Remove/Install Telestart/Stationary Heater Radio Remote Control Receiver - AR83.70-P-0003CLW
Model 205.3
up to model year 2019
with Code 228 (Additional Warm Water Heating)
with Code B24 (Remote Control For Auxiliary Heating)

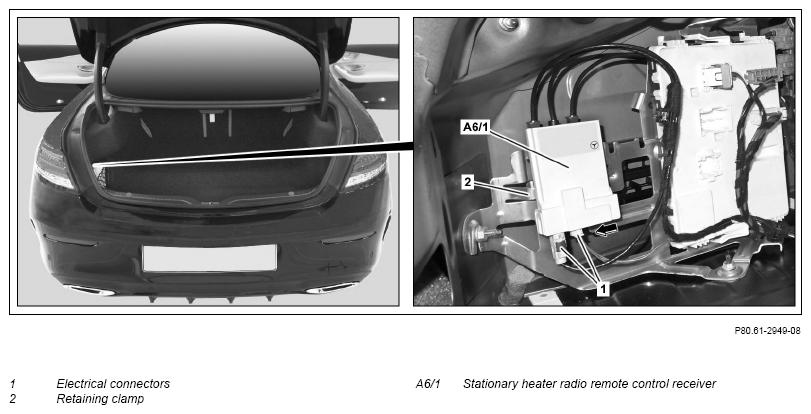

Fig 1: Telestart/Stationary Heater Radio Remote Control Receiver Components Location - Model 205 Up To Model Year 2019 With Codes 228, B24
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/Install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 2 | Remove side trim in left side of trunk. | AR68.30-P-4800LW | |
| 3 | Disconnect electrical connectors (1). | ||
| 4 | Release retaining clip (2) and remove stationary heater radio remote control receiver (A6/1) in direction of arrow. | ||
| 5 | Install in the reverse order. | ||
| 6 | Teach in stationary heater radio remote control transmitter. | When replacing the stationary heater radio remote control receiver (A6/1). | AR83.70-P-0013-01LC |
