Wiring Diagram Of Ground Cabling - PE00.19-P-2800-97FBG
Model 205 up to model year 2019 W10, W10/1, W11, W12, W15/17 Model 253 (except 253.99) up to model year 2020 W10, W10/1, W11, W12, W15/17
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 96L |
| B4/4 | Purging pressure sensor | 26L |
| B76/1 | Condensation sensor for fuel filter with heating element | 12L |
| B76/1 | Condensation sensor for fuel filter with heating element | 30L |
| C8 | Park pawl capacitor | 64L |
| Code 221 | Fully electric driver seat adjustment without memory without electric head restraint adjustment | 36E |
| Code 222 | Electrically adjustable right front seat | 36E |
| Code 242 | All-electric front passenger seat with memory (right) | 36E |
| Code 275 | Memory package | 36F |
| Code 413 | Panoramic sliding sunroof | 57E |
| Code 421 | 9G-TR0NIC PLUS | 62E |
| Code 427 | 7G-TR0NIC PLUS automatic transmission | 62E |
| Code 460 | Canada version | 24E |
| Code 466 | Active engine mount | 78E |
| Code 494 | USA version | 24E |
| Code 965 | Taxi/rental car - Pre-installation | 48E |
| Code 9U1 | ECALL RUSSIA (GLONASS) preinstallation | 53E |
| Code B03 | ECO start/stop function | 62E |
| Code B63 | AMG eSound | 82E |
| Code E64 | ECALL RUSSIA (GLONASS) | 53E |
| Code F205 | MODEL SERIES 205 | 87E |
| Code F205 | MODEL SERIES 205 | 83E |
| Code F253 | MODEL SERIES 253 | 57E |
| Code F253 | MODEL SERIES 253 | 83F |
| Code FA | CABRIOLET | 87E |
| Code FV | LONG SEDAN | 58E |
| Code L | LEFT-HAND DRIVE | 5E |
| Code L | LEFT-HAND DRIVE | 74E |
| Code L | LEFT-HAND DRIVE | 83F |
| Code M274 | SPARK-IGNITION ENGINE M274 | 24E |
| Code M276 | SPARK-IGNITION ENGINE M276 | 13E |
| Code M642 | DIESEL ENGINE 0M642 | 28E |
| Code M651 | DIESEL ENGINE 0M651 | 8E |
| Code ME04 | Hybrid drive 20 KW VARIANT | 66E |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 66E |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 66E |
| Code P65 | Seating comfort package | 36F |
| Code R | RIGHT-HAND DRIVE | 7E |
| Code R | RIGHT-HAND DRIVE | 78E |
| Code R | RIGHT-HAND DRIVE | 83E |
| G1 | On-board electrical system battery | 5L |
| G1/13 | ECO start/stop function additional battery | 68L |

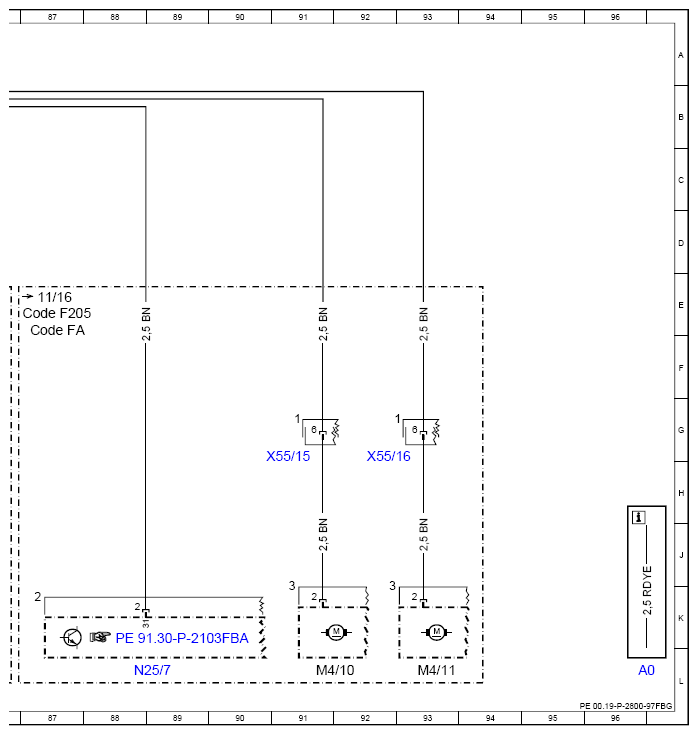

| M4/10 | Left AIRSCARF fan motor | 91L |
| M4/11 | Right AIRSCARF fan motor | 93L |
| N129/1 | Power electronics control unit | 2A |
| N14/3 | Glow output stage | 10L |
| N14/3 | Glow output stage | 34L |

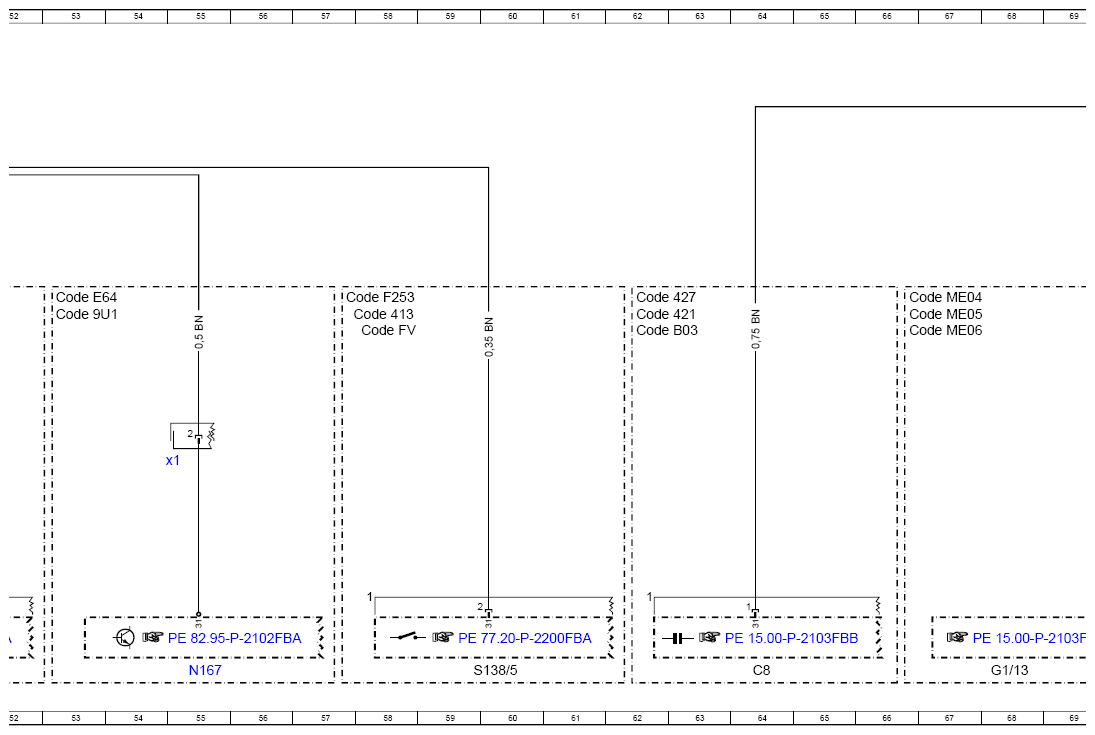

| N167 | E-Call Russia (GLONASS) control unit | 55L |
| N167x1 | E-Call Russia (GLONASS) control unit electrical connector 1 | 55H |
| N25/7 | AIRSCARF control unit | 88L |
| N3/10 | ME-SFI [ME] control unit | 15L |
| N3/42 | Active engine mounts control unit | 80L |
| N32/23 | Driver seat lumbar support adjustment control unit | 38L |
| N32/24 | Front passenger seat lumbar support adjustment control unit | 44L |
| N40/1 | Engine sound control unit | 84L |
| S138/5 | Panoramic sliding sunroof roller sun blind button | 60L |
| S93/2 | Two-way radio switch | 50L |
| T1/1 | Cylinder 1 ignition coil | 18L |
| T1/2 | Cylinder 2 ignition coil | 19L |
| T1/3 | Cylinder 3 ignition coil | 20L |
| T1/4 | Cylinder 4 ignition coil | 21L |
| T1/5 | Cylinder 5 ignition coil | 22L |
| T1/6 | Cylinder 6 ignition coil | 23L |

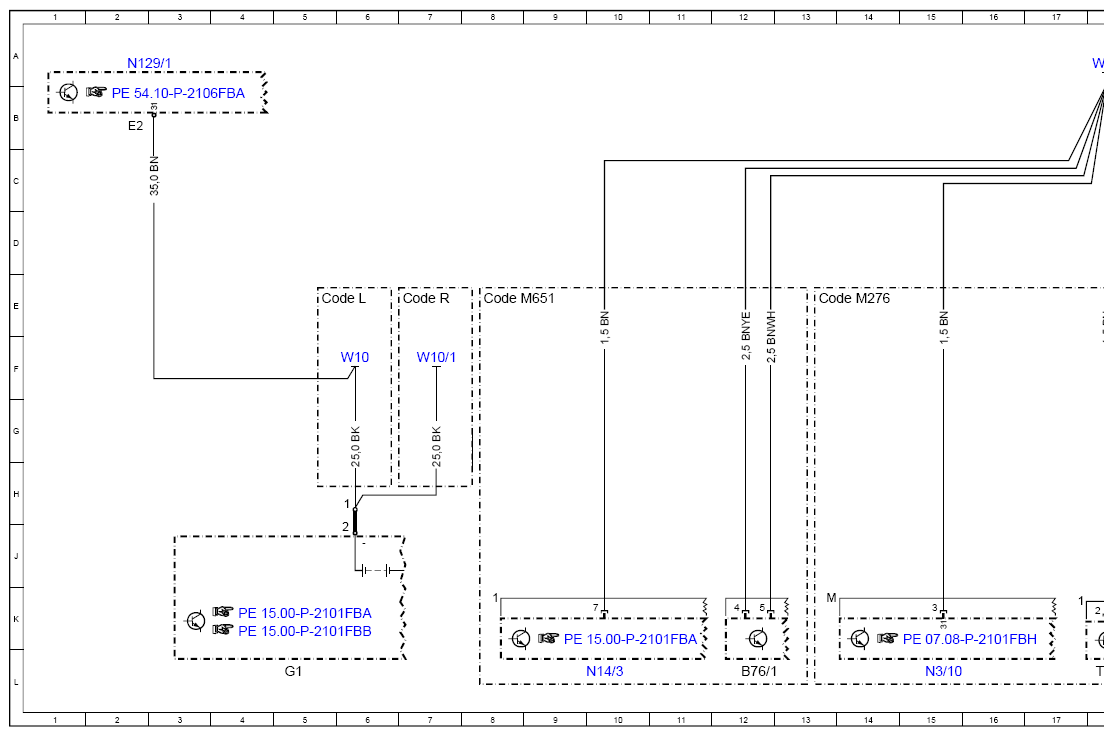

| W10 | Right on-board electrical system battery ground point | 6F |
| W10/1 | Left on-board electrical system battery ground point | 7F |

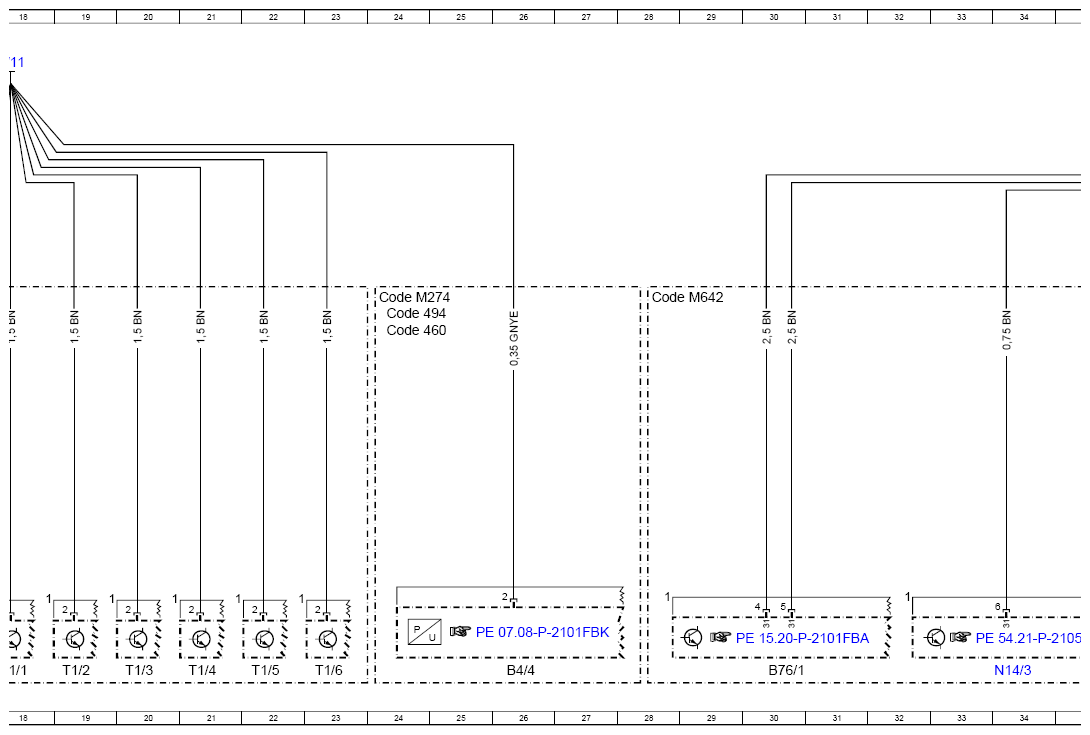

| W11 | Combustion engine ground point | 18A |

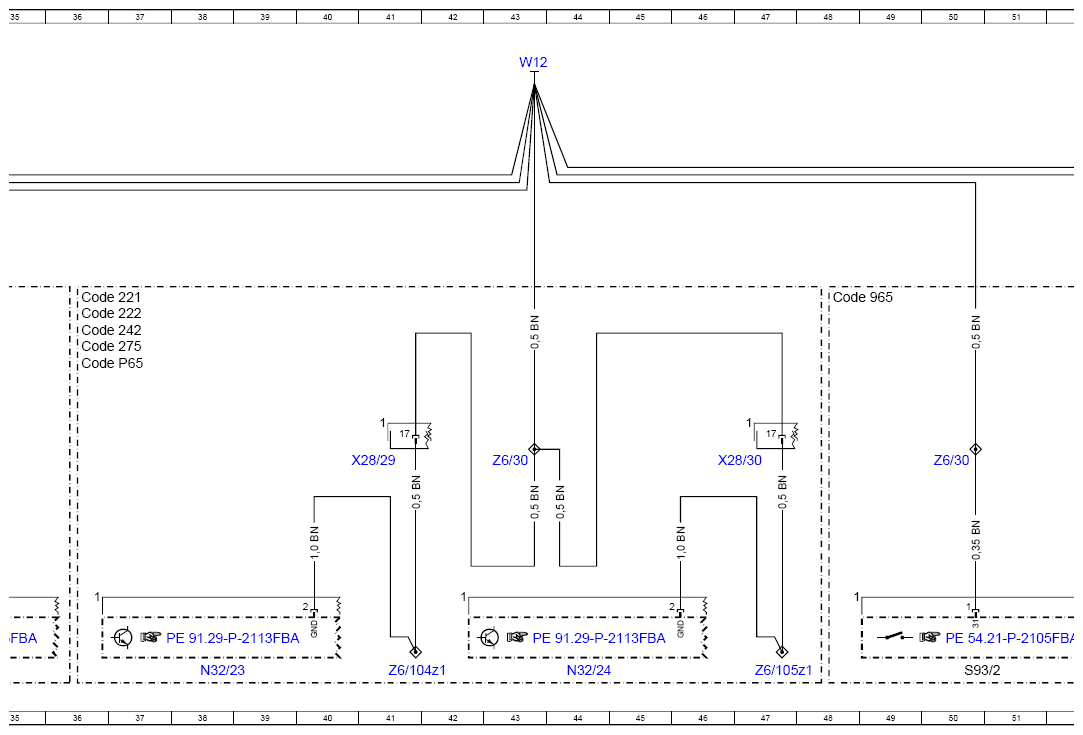

| W12 | Ground point (center console) | 43A |

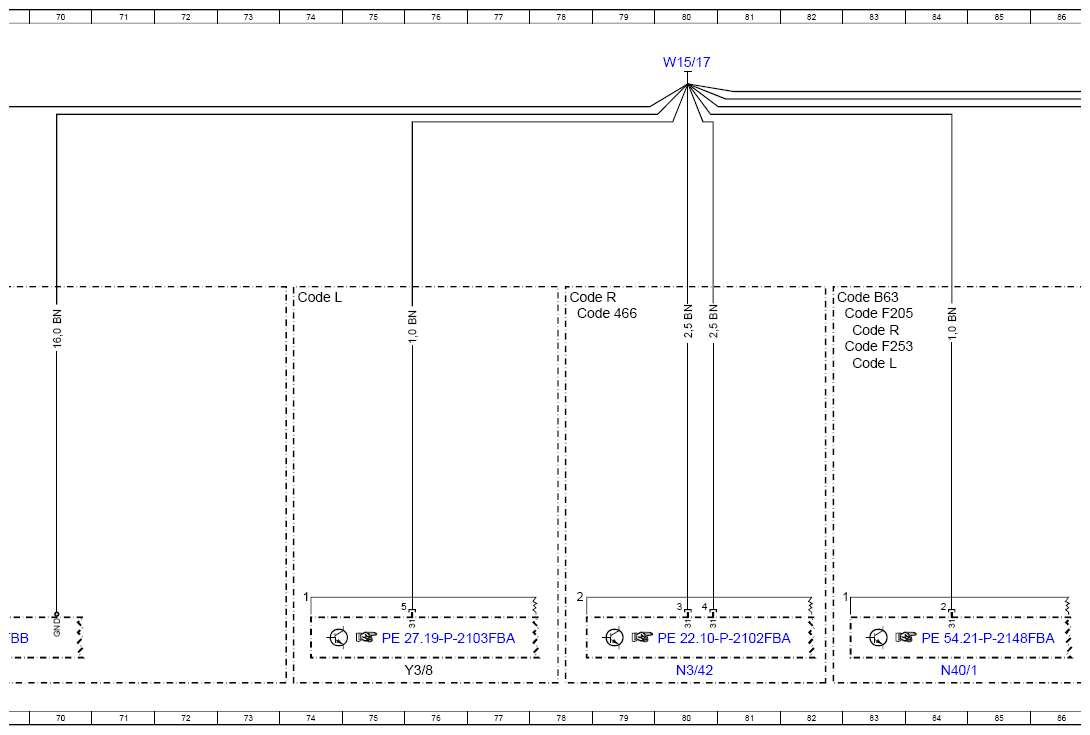

| W15/17 | Additional battery ground point | 80A |
| X28/29 | Frame floor assembly/driver seat electrical connector | 41H |
| X28/30 | Frame floor assembly/front passenger seat electrical connector | 47H |
| X55/15 | Driver seat electrical connector | 91H |
| X55/16 | Front passenger seat electrical connector | 92H |
| Y3/8 | Fully integrated transmission control, control unit | 76L |
| Z6/104z1 | Driver seat lumbar support ground line connector sleeve | 41L |
| Z6/105z1 | Front passenger seat lumbar support ground line connector sleeve | 47L |
| Z6/30 | Circuit 31 connector sleeve | 43H |
| Z6/30 | Circuit 31 connector sleeve | 50H |
