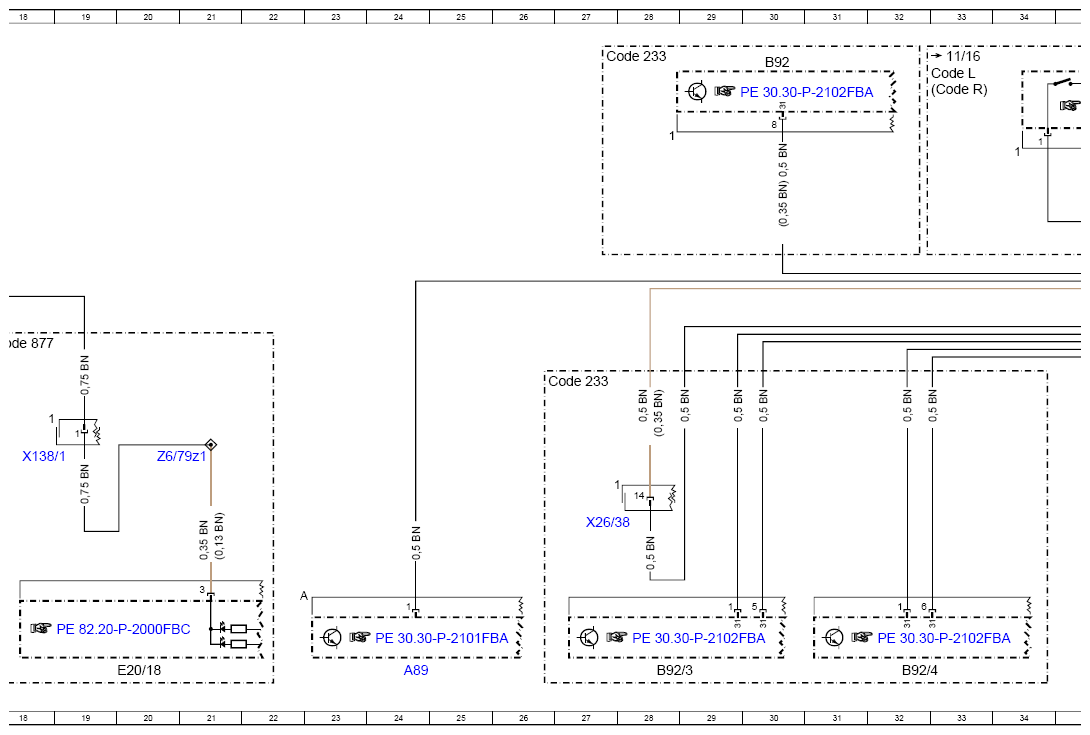

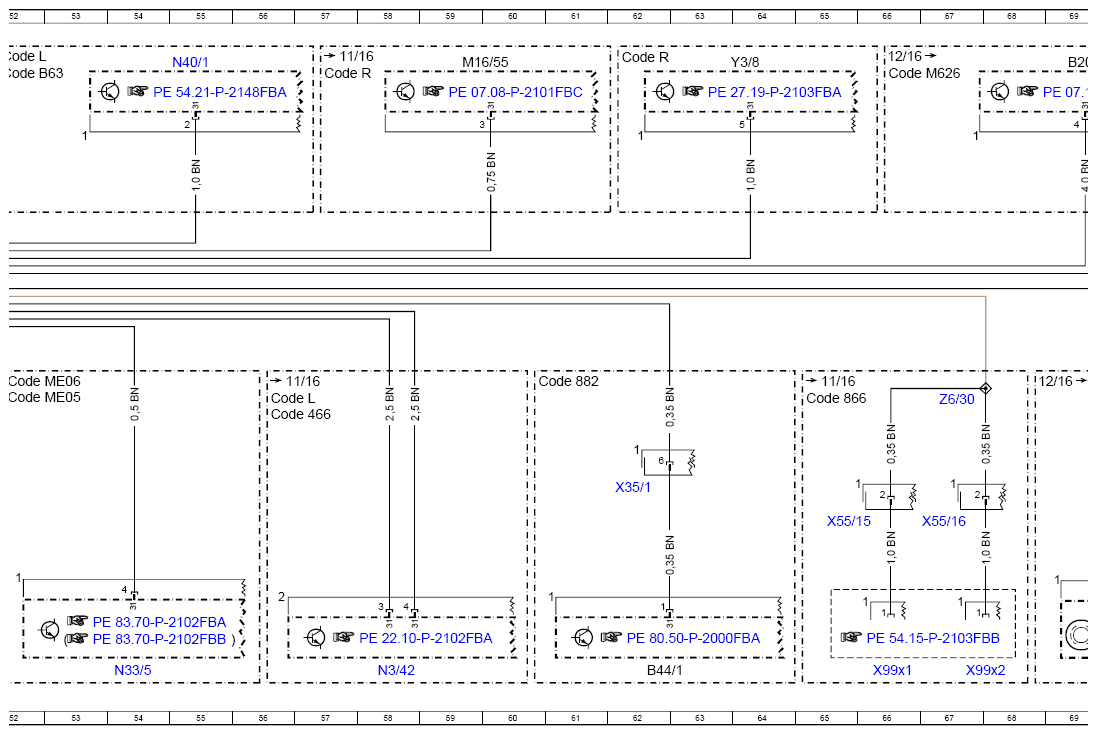

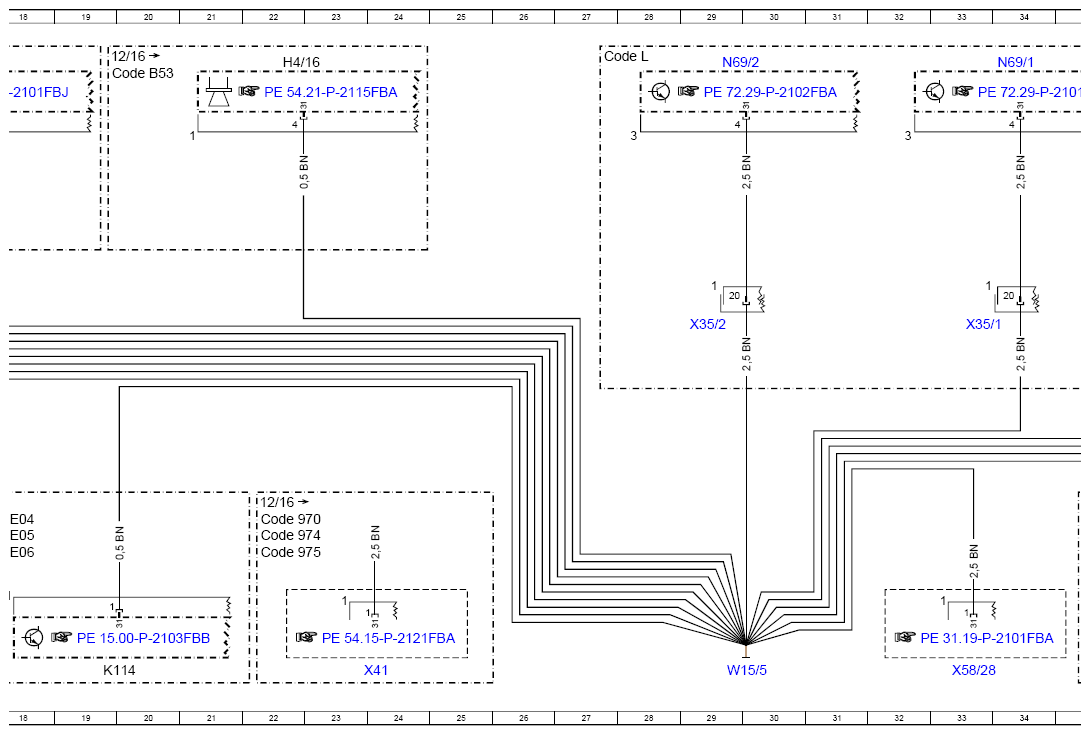

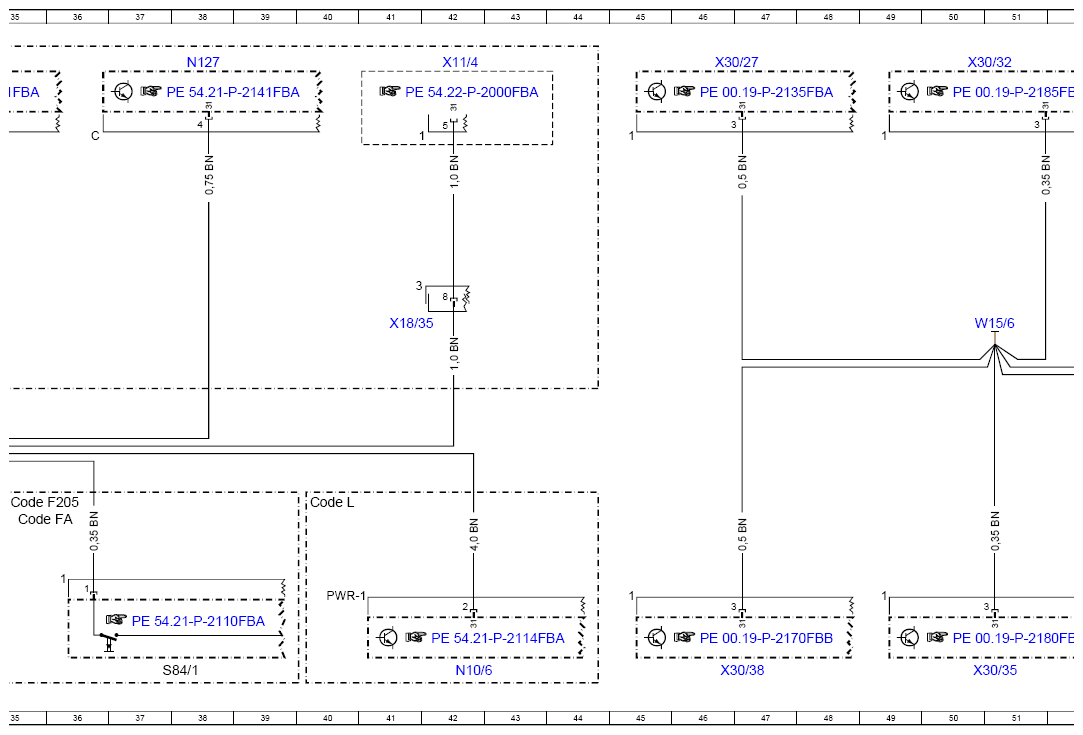

Wiring Diagram Of Ground Cabling - PE00.19-P-2800-97FBC
Model 205 up to model year 2019 W15/8, W16/4 Model 253 (except 253.99) up to model year 2020 W15/8, W16/4
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 105L |
| A105 | Touchpad | 15L |
| A40/9 | Audio/COMAND control panel | 11L |
| A6 | Stationary heater unit | 45A |
| A89 | DISTRONIC electric controller unit | 24L |
| A90 | COLLISION PREVENTION ASSIST controller unit | 40L |
| B20 | Fuel filter element with integrated heater | 69A |

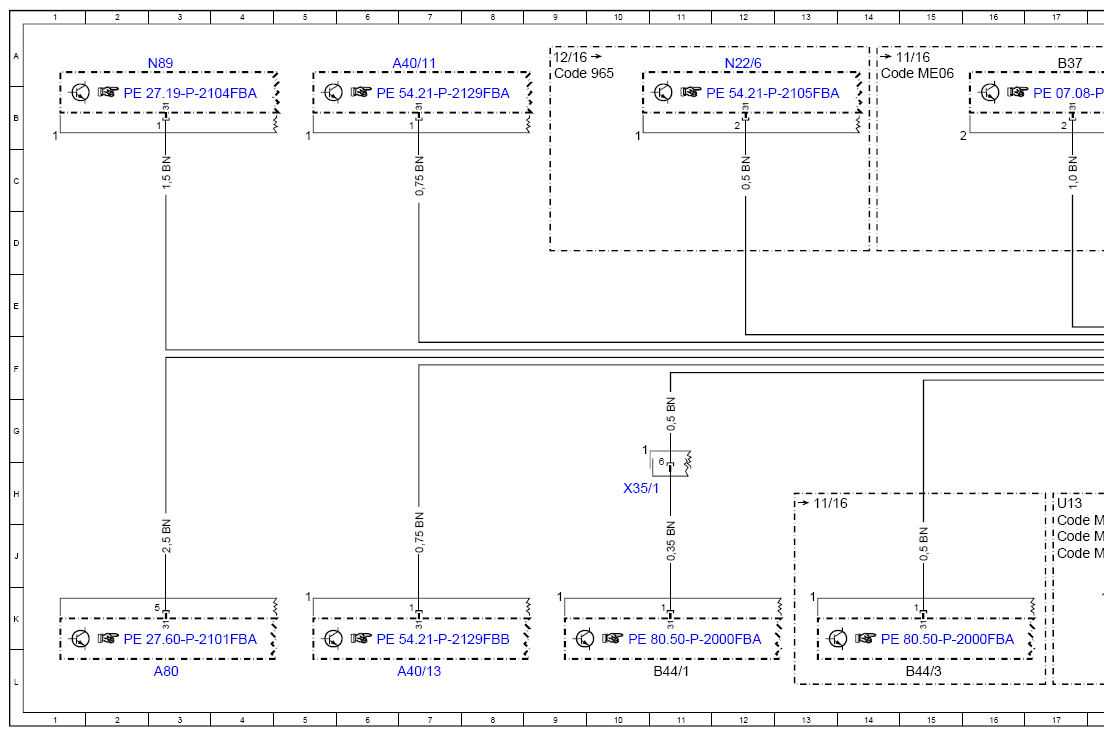

| B44/1 | Left front door interior protection sensor | 62L |
| B92 | Front long-range radar sensor | 30A |
| B92/3 | Left front bumper radar sensor | 28L |
| B92/4 | Right front bumper radar sensor | 32L |
| Code 228 | Stationary heater | 47A |
| Code 233 | AUTONOMOUS INTELLIGENT CRUISE CONTROL PLUS | 26F |
| Code 233 | AUTONOMOUS INTELLIGENT CRUISE CONTROL PLUS | 27A |
| Code 258 | Collision Prevention Assist PLUS (CPA+) | 38F |
| Code 460 | Canada version | 42G |
| Code 466 | Active engine mount | 56G |
| Code 494 | USA version | 42G |
| Code 522 | Audio 20 radio | 13F |
| Code 531 | COMAND APS | 13F |
| Code 551 | Anti-theft alarm system (ATA [EDW]) | 73G |
| Code 866 | Rear entertainment preinstallation | 65G |
| Code 877 | Ambiance illumination | 18F |
| Code 882 | Interior protection and tow-away protection | 60F |
| Code 882 | Interior protection and tow-away protection | 73G |
| Code B63 | AMG eSound | 52A |
| Code F253 | MODEL SERIES 253 | 73F |
| Code L | LEFT-HAND DRIVE | 46F |
| Code L | LEFT-HAND DRIVE | 5F |
| Code L | LEFT-HAND DRIVE | 33A |
| Code L | LEFT-HAND DRIVE | 52A |
| Code L | LEFT-HAND DRIVE | 56G |
| Code M177 | SPARK-IGNITION ENGINE M177 | 12A |
| Code M274 | SPARK-IGNITION ENGINE M274 | 81D |
| Code M276 | SPARK-IGNITION ENGINE M276 | 12A |
| Code M626 | 66A | |
| Code M642 | 89D | |
| Code M651 | 42F | |
| Code M651 | 77D | |
| Code ME04 | Hybrid drive 20 KW VARIANT | 46G |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 52G |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 46G |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 52F |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 46G |
| Code R | RIGHT-HAND DRIVE | 33B |
| Code R | RIGHT-HAND DRIVE | 57A |
| Code R | RIGHT-HAND DRIVE | 62A |
| Code R | RIGHT-HAND DRIVE | 77A |
| E20/18 | Front center console cup holder ambiance illumination | 20L |
| H3/1 | Alarm siren | 75L |
| K114 | ECO start/stop function additional battery relay | 49L |
| M16/55 | Center exhaust flap actuator motor | 59A |
| N3/10 | ME-SFI [ME] control unit | 83L |
| N3/10 | ME-SFI [ME] control unit | 87L |
| N3/42 | Active engine mounts control unit | 58L |
| N3/9 | CDI control unit | 79L |
| N3/9 | CDI control unit | 91L |
| N3/9 | CDI control unit | 95L |
| N33/3 | Catalytic converter heater control unit | 44L |
| N33/5 | High-voltage PTC heater | 54L |
| N40/1 | Engine sound control unit | 55A |

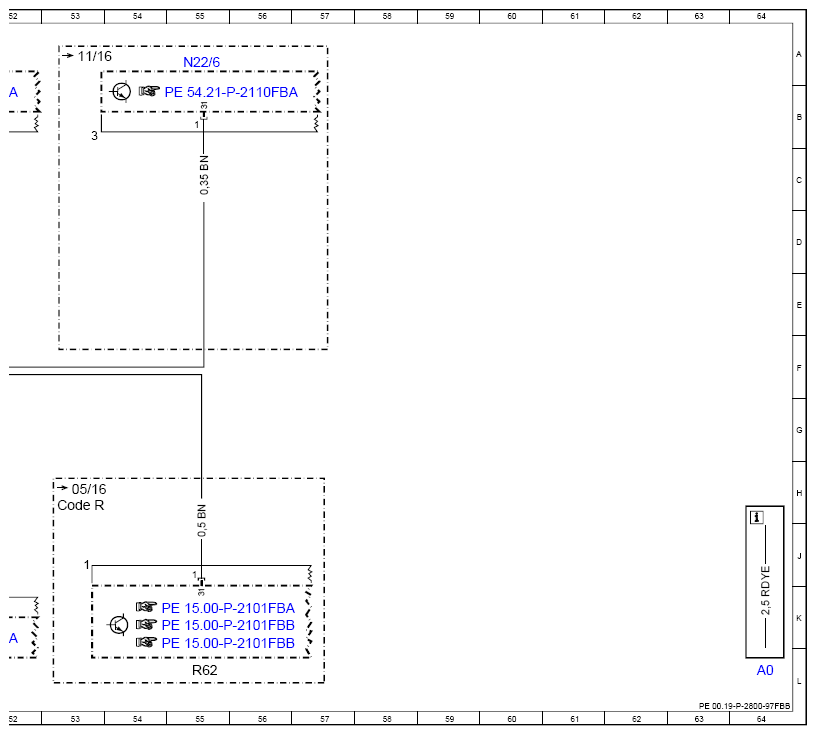

| R62 | Voltage dip limiter | 7L |

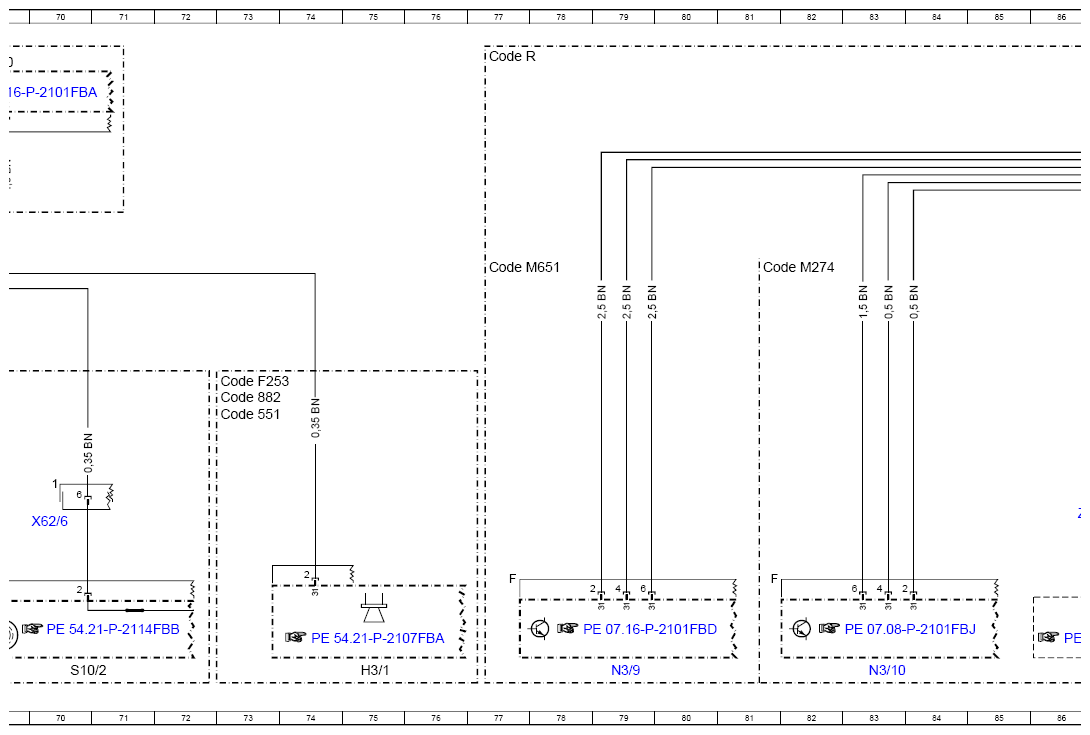

| S10/2 | Right front brake wear sensor | 70L |
| S62/42 | Passenger side engine hood contact switch | 36A |
| S62/43 | Driver side engine hood contact switch | 36A |

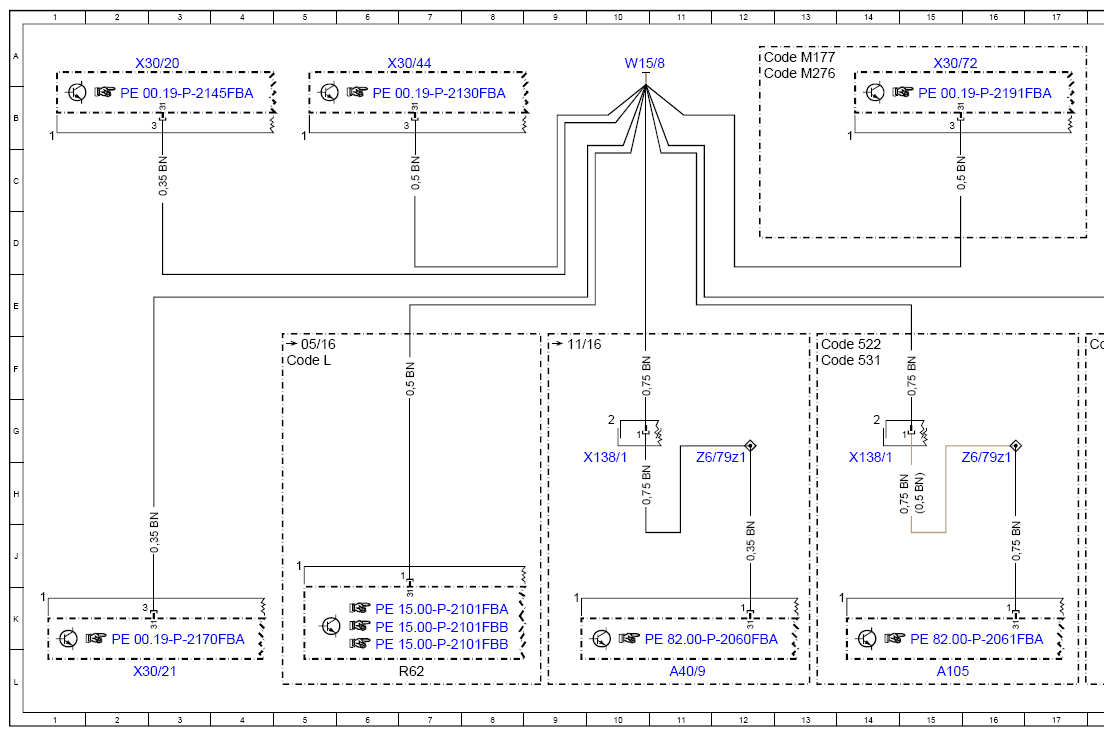

| W15/8 | Right front footwell ground point (CAN) | 10A |

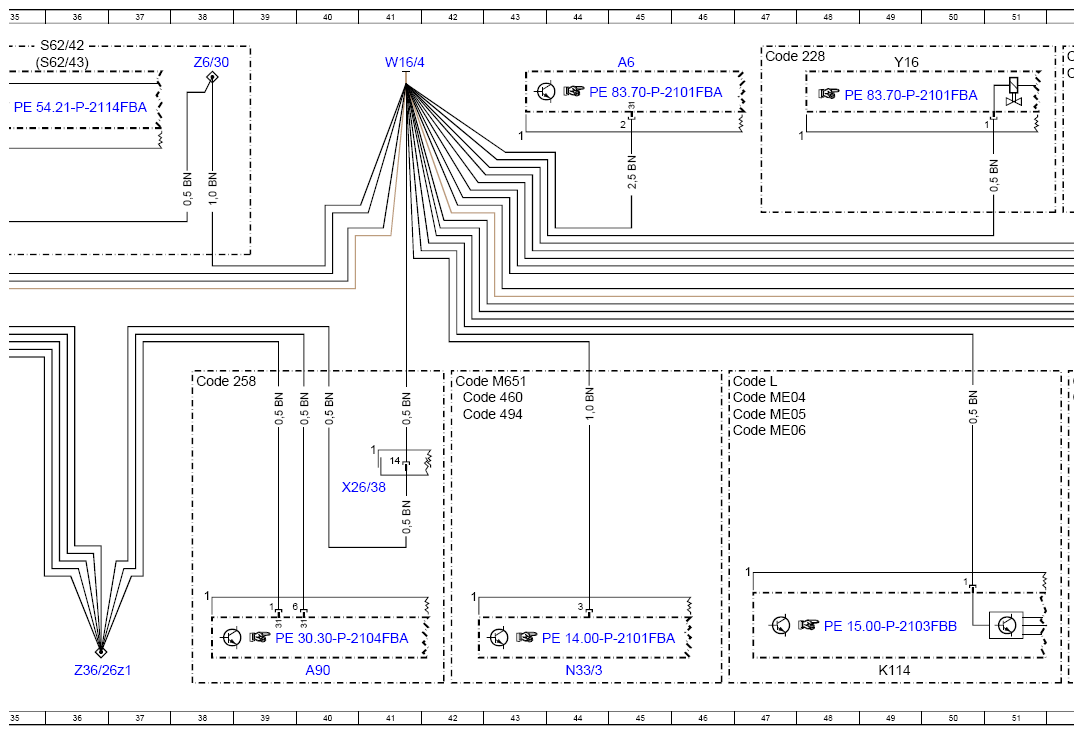

| W16/4 | Right major assembly compartment ground point | 41A |

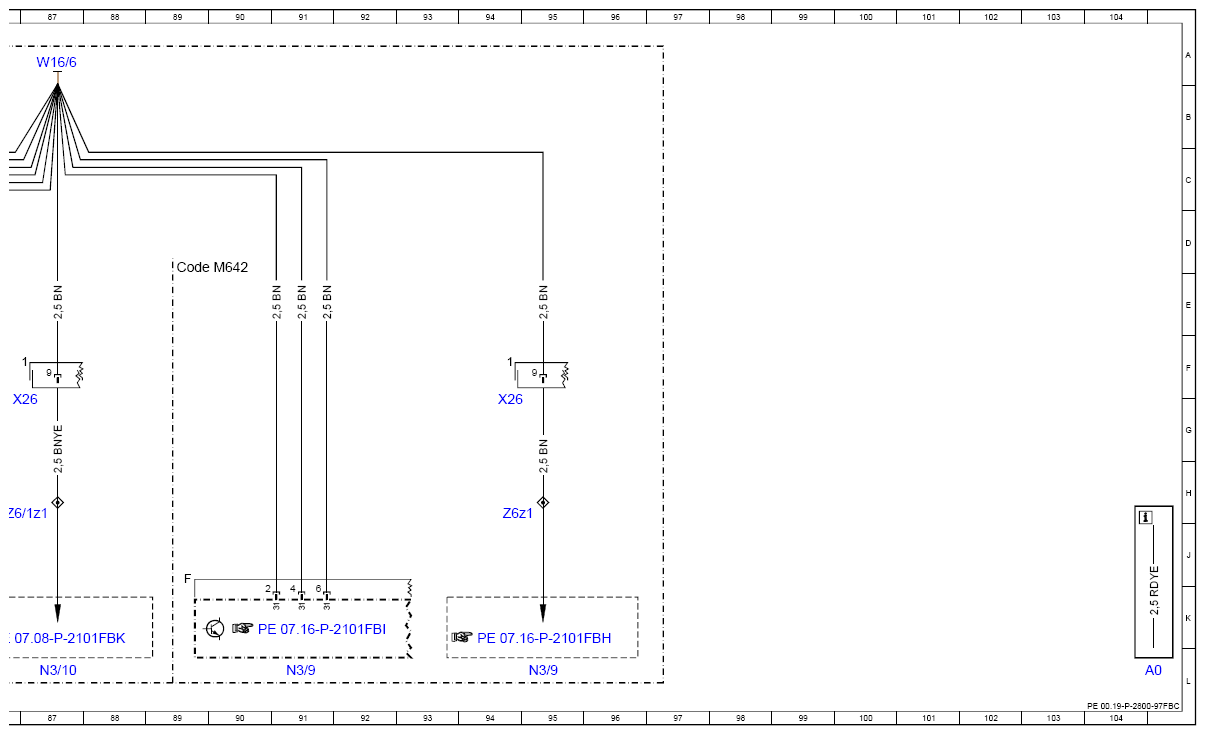

| W16/6 | Right major assembly compartment ground point | 87A |
| X138/1 | Front center console electrical connector | 10H |
| X138/1 | Front center console electrical connector | 14H |
| X138/1 | Front center console electrical connector | 18H |
| X26 | Interior and engine wiring harness electrical connector | 94G |
| X26 | Interior and engine wiring harness electrical connector | 87G |
| X26/38 | Front bumper and frame wiring harness electrical connector | 27J |
| X26/38 | Front bumper and frame wiring harness electrical connector | 41H |
| X30/20 | User interface CAN (CAN HMI) potential distributor electrical connector | 2A |
| X30/21 | Drive train CAN (CAN C1) potential distributor electrical connector | 2L |
| X30/44 | Hybrid CAN (CAN L) potential distributor electrical connector | 7A |
| X30/72 | AMG CAN potential distributor electrical connector | 15A |
| X35/1 | Driver door electrical connector | 62H |
| X55/15 | Left seat separation point | 65J |
| X55/16 | Right seat separation point | 67J |
| X62/6 | Front axle electrical connector, right distributor | 70J |
| X99x1 | Left tablet PC electrical connector | 66L |
| X99x2 | Right tablet PC electrical connector | 67L |
| Y16 | Stationary heater switchover valve | 49A |
| Y3/8 | Fully integrated transmission control, control unit | 64A |
| Z36/26z1 | DISTRONIC PLUS front ground line connector sleeve | 36L |
| Z6/1z1 | Ground line connector sleeve | 87H |
| Z6/30 | Circuit 31 connector sleeve | 38A |
| Z6/30 | Circuit 31 connector sleeve | 67G |
| Z6/79z1 | Circuit 31 connector sleeve | 12G |
| Z6/79z1 | Circuit 31 connector sleeve | 16G |
| Z6/79z1 | Circuit 31 connector sleeve | 21G |
| Z6z1 | Circuit 31 connector sleeve | 94H |
