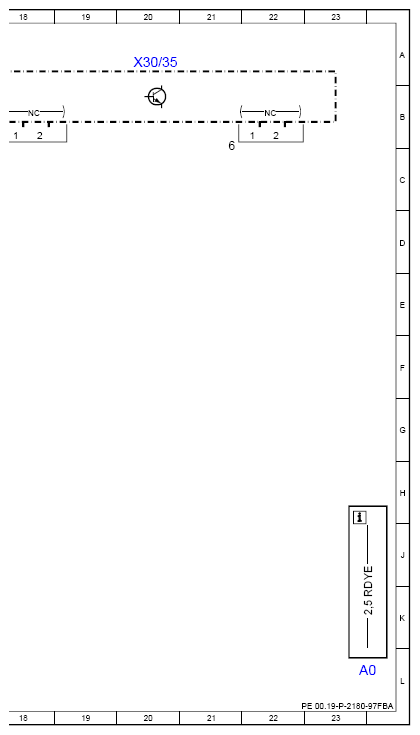

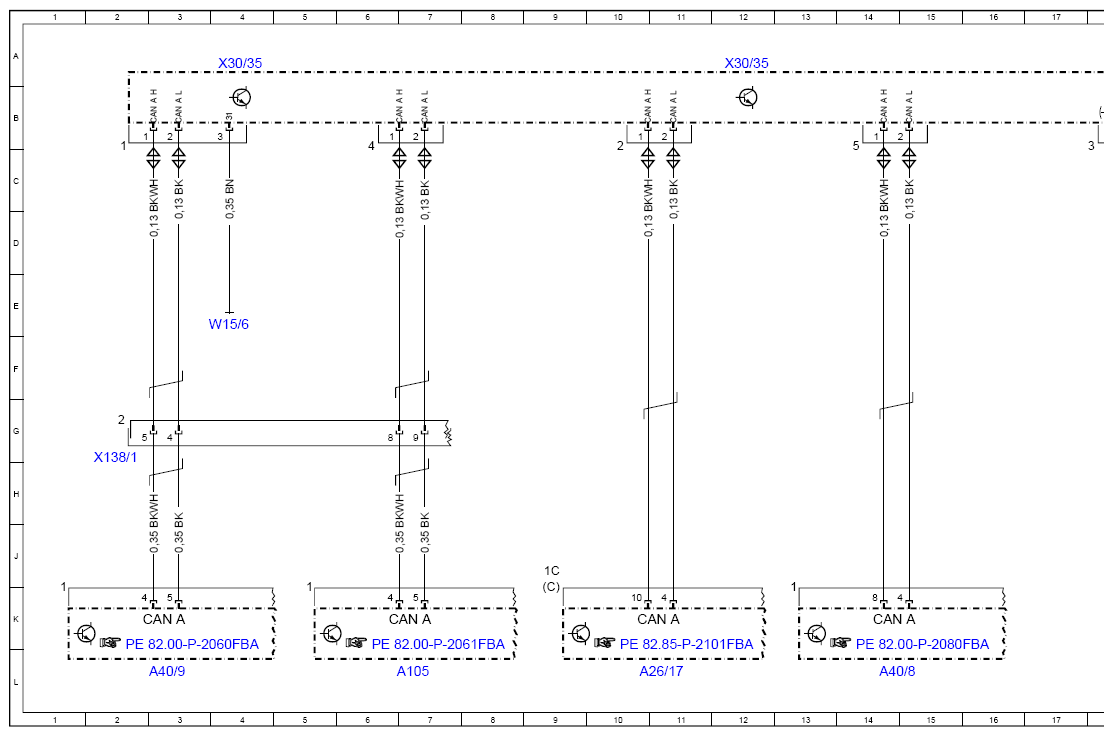

Wiring Diagram Of Telematics CAN - PE00.19-P-2180-97FBA
Model 205 up to model year 2019
Potential distributor X30/35
Model 253 (except 253.99) up to model year 2020
Potential distributor X30/35
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 23L |
| A105 | Touchpad | 7L |
| A26/17 | Head unit | 11L |
| A40/8 | Audio/COMAND® display | 14L |
| A40/9 | Audio/COMAND® control panel | 3L |
| CAN A | Telematics CAN | 3K |
| CAN A | Telematics CAN | 7K |
| CAN A | Telematics CAN | 11K |
| CAN A | Telematics CAN | 14K |
| W15/6 | Left front footwell ground point (CAN) | 4E |
| X138/1 | Front center console electrical connector | 2H |
| X30/35 | Telematics CAN (CAN A) potential distributor electrical connector | 12A |
| X30/35 | Telematics CAN (CAN A) potential distributor electrical connector | 4A |
| X30/35 | Telematics CAN (CAN A) potential distributor electrical connector | 20A |
