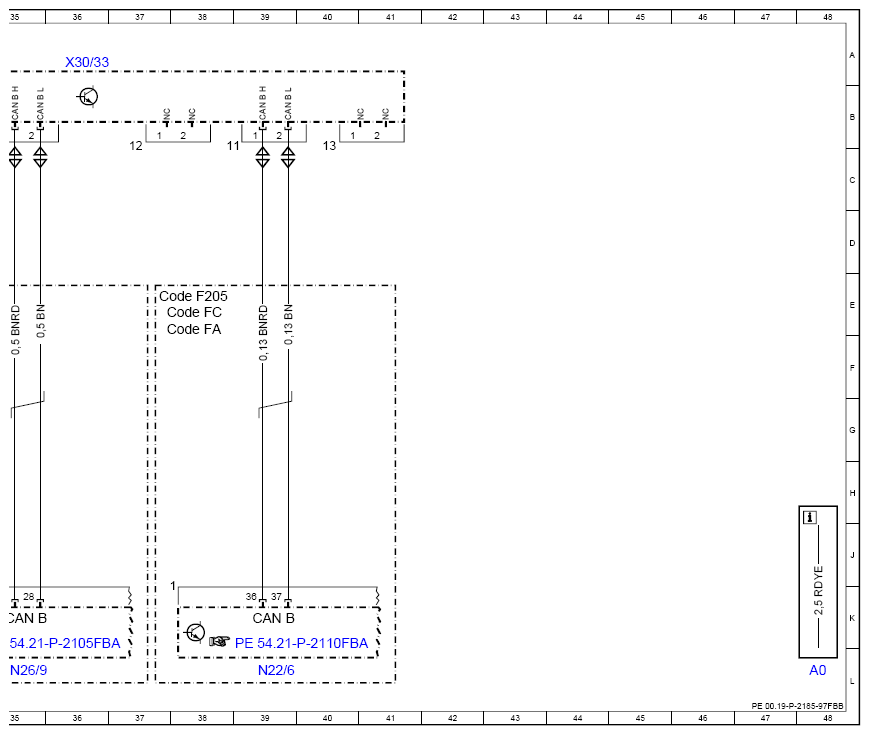

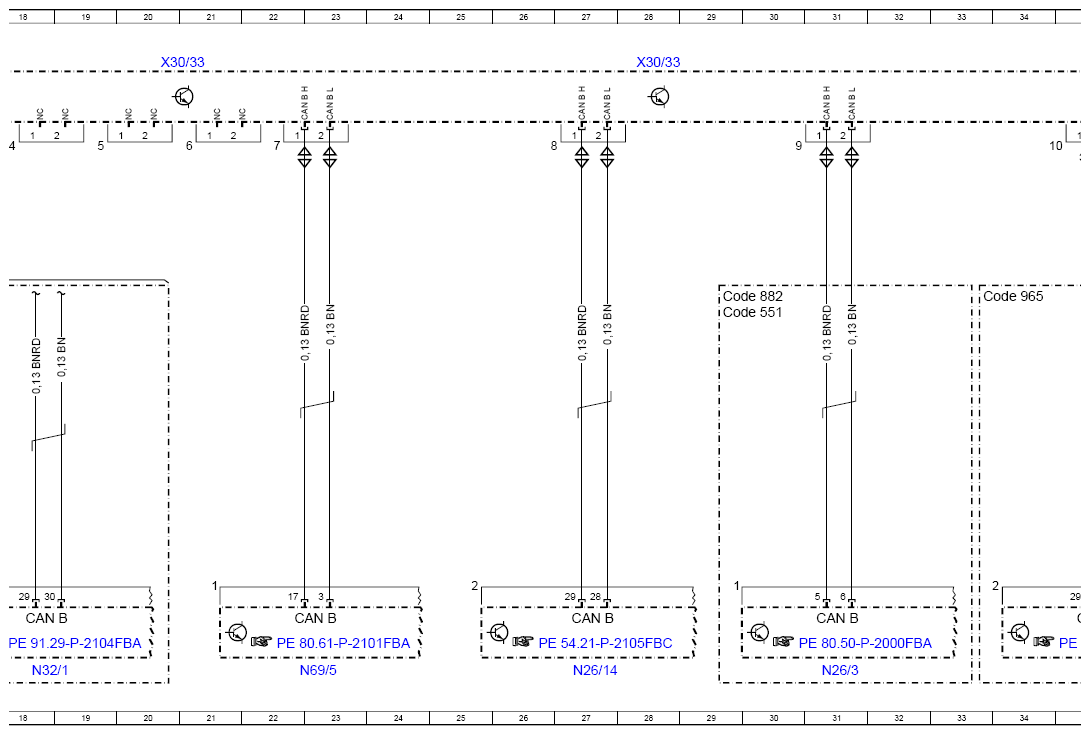

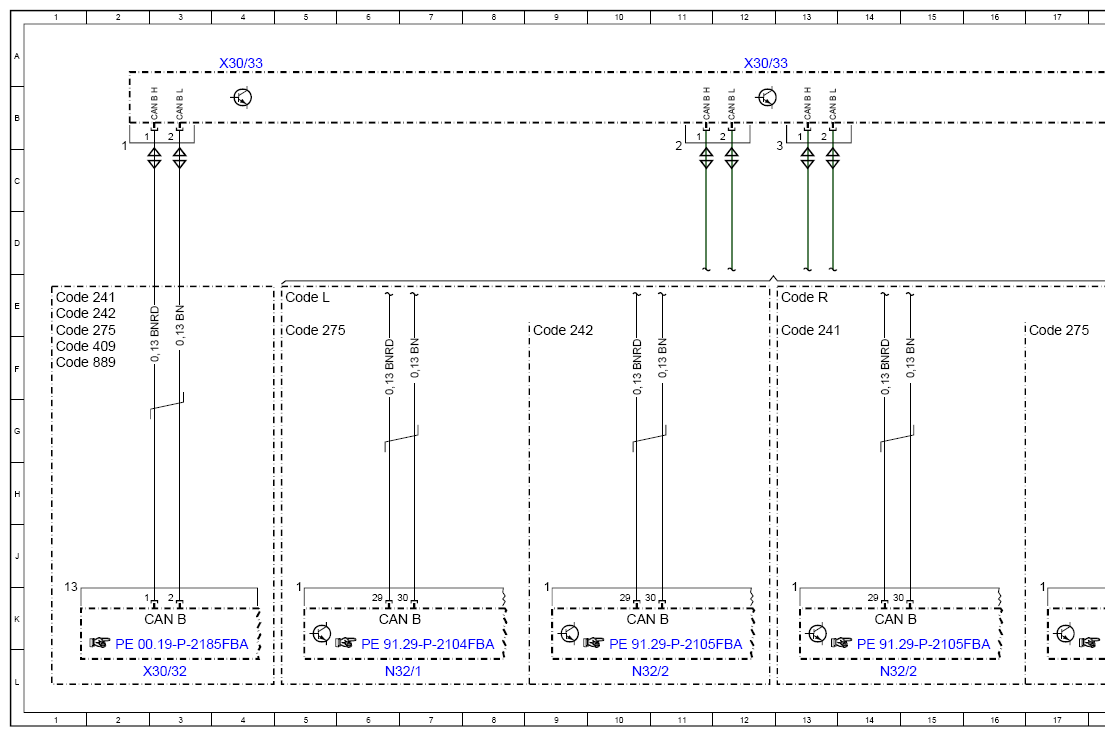

Wiring Diagram Of Interior CAN - PE00.19-P-2185-97FBB
Model 205 up to model year 2019
Right interior CAN X30/33
Model 253 (except 253.99) up to model year 2020
Right interior CAN X30/33
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 48L |
| CAN B | Interior CAN | 3K |
| CAN B | Interior CAN | 6K |
| CAN B | Interior CAN | 10K |
| CAN B | Interior CAN | 14K |
| CAN B | Interior CAN | 18K |
| CAN B | Interior CAN | 23K |
| CAN B | Interior CAN | 27K |
| CAN B | Interior CAN | 31K |
| CAN B | Interior CAN | 35K |
| CAN B | Interior CAN | 39K |
| Code 241 | All-electric front passenger seat with memory (left) | 1E |
| Code 241 | All-electric front passenger seat with memory (left) | 13E |
| Code 242 | All-electric front passenger seat with memory (right) | 9E |
| Code 242 | All-electric front passenger seat with memory (right) | 1E |
| Code 275 | Memory package | 1E |
| Code 275 | Memory package | 5E |
| Code 275 | Memory package | 17E |
| Code 409 | Multicontour seat package | 1F |
| Code 551 | Anti-theft alarm system (ATA [EDW]) | 29E |
| Code 882 | Interior protection and tow-away protection | 29E |
| Code 889 | KEYLESS-GO | 1F |
| Code 965 | Electrical preinstallation for taxi and rental car | 33E |
| Code F205 | Model Series 205 | 37E |
| Code FA | Cabriolet | 37E |
| Code FC | Coupe | 37E |
| Code L | LEFT-HAND DRIVE | 5E |
| Code R | RIGHT-HAND DRIVE | 13E |
| N22/6 | Rear control unit | 39L |
| N26/14 | Special vehicle multifunction control unit (SVMCU [MSS]) | 27L |
| N26/3 | ATA [EDW]/towing sensor/interior motion sensor control unit | 31L |
| N26/9 | Special-purpose vehicle multifunction control unit | 35L |
| N32/1 | Driver seat control unit | 6L |
| N32/1 | Driver seat control unit | 18L |
| N32/2 | Front passenger seat control unit | 10L |
| N32/2 | Front passenger seat control unit | 14L |
| N69/5 | KEYLESS-GO control unit | 23L |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 3L |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 4A |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 12A |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 20A |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 28A |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 36A |
