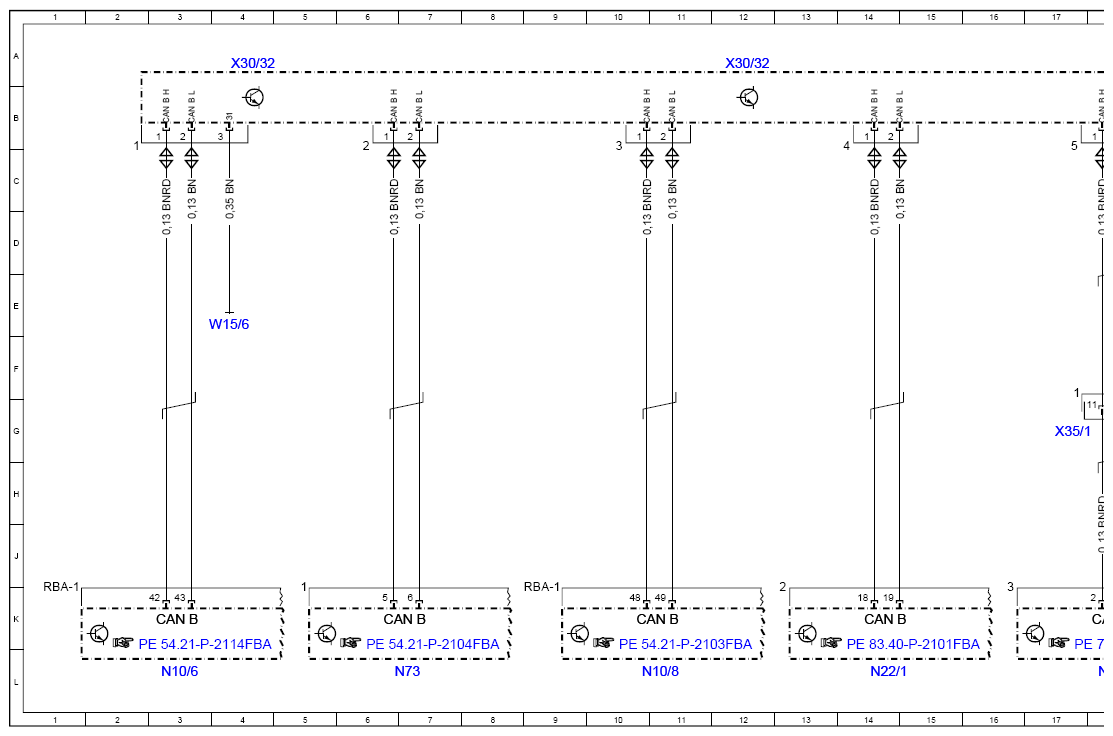

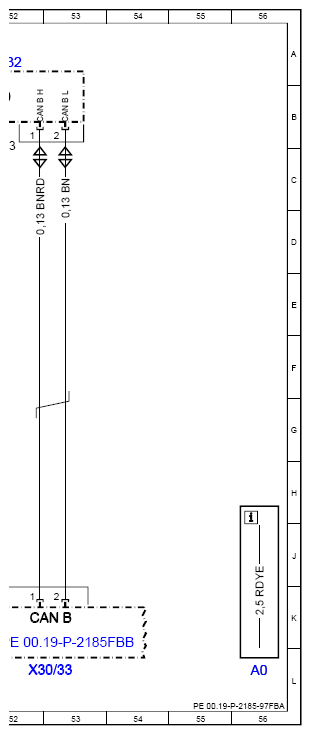

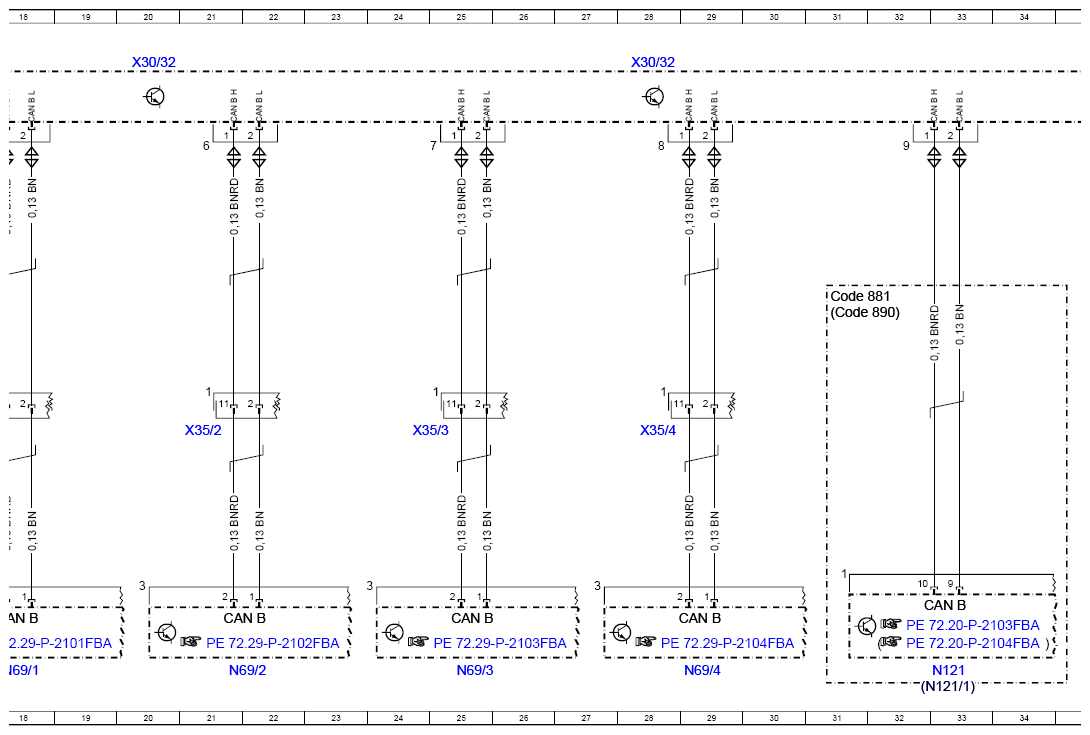

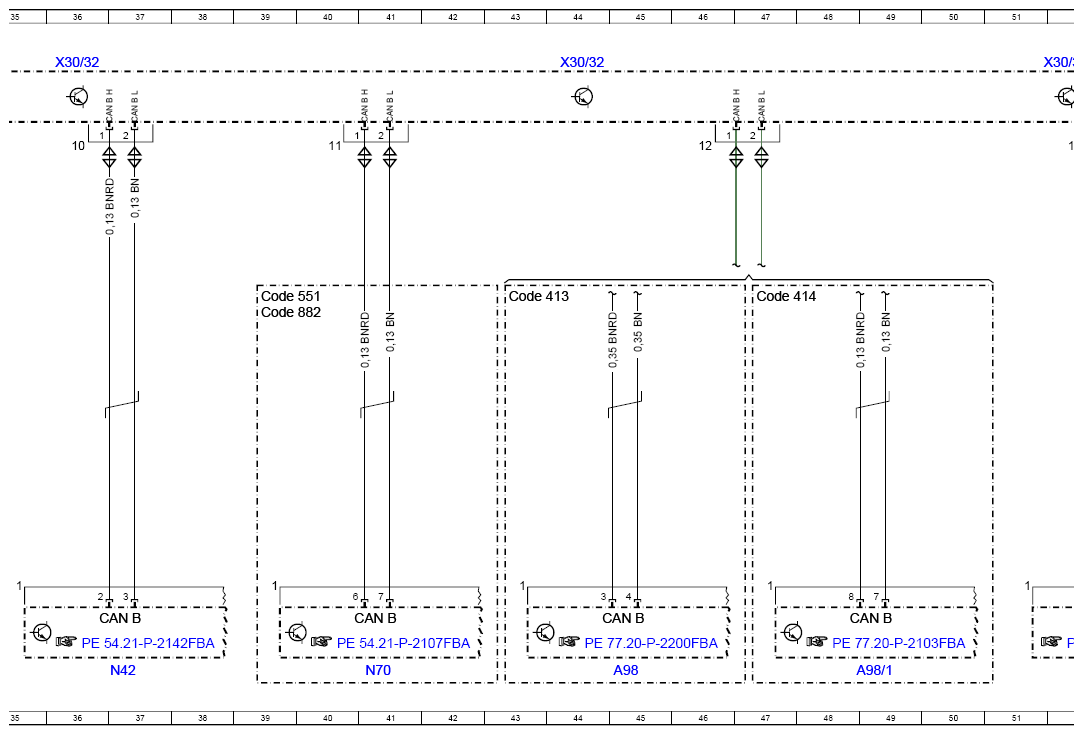

Wiring Diagram Of Interior CAN - PE00.19-P-2185-97FBA
Model 205 up to model year 2019
Left interior CAN X30/32
Model 253 (except 253.99) up to model year 2020
Left interior CAN X30/32
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 56L |
| A98 | Panoramic sliding roof control module | 45L |
| A98/1 | Sliding roof control module | 49L |
| CAN B | Interior CAN | 29K |
| CAN B | Interior CAN | 10K |
| CAN B | Interior CAN | 6K |
| CAN B | Interior CAN | 3K |
| CAN B | Interior CAN | 14K |
| CAN B | Interior CAN | 18K |
| CAN B | Interior CAN | 21K |
| CAN B | Interior CAN | 25K |
| CAN B | Interior CAN | 33K |
| CAN B | Interior CAN | 37K |
| CAN B | Interior CAN | 41K |
| CAN B | Interior CAN | 45K |
| CAN B | Interior CAN | 49K |
| CAN B | Interior CAN | 52K |
| Code 413 | Panoramic sliding sunroof | 43E |
| Code 414 | Sliding roof | 47E |
| Code 551 | Anti-theft alarm system (ATA [EDW]) | 39E |
| Code 881 | Remote trunk closing | 31E |
| Code 882 | Interior protection and tow-away protection | 39E |
| Code 890 | EASY-PACK liftgate | 31E |
| N10/6 | Front SAM control unit | 3L |
| N10/8 | Rear SAM control unit | 11L |
| N121 | Trunk lid control, control unit | 33L |
| N121/1 | Tailgate control, control unit | 33L |
| N22/1 | Climate control, control unit | 14L |
| N42 | Camera cover control unit | 37L |
| N69/1 | Left front door control unit | 18L |
| N69/2 | Right front door control unit | 21L |
| N69/3 | Left rear door control unit | 25L |
| N69/4 | Right rear door control unit | 29L |
| N70 | Overhead control panel control unit | 41L |
| N73 | Electronic ignition switch control unit | 7L |
| W15/6 | Left front footwell ground point (CAN) | 4E |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 4A |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 12A |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 20A |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 28A |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 36A |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 44A |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 52A |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 52L |
| X35/1 | Left front door electrical connector | 17G |
| X35/2 | Right front door electrical connector | 21G |
| X35/3 | Left rear door electrical connector | 25G |
| X35/4 | Right rear door electrical connector | 28G |
