Check Active Seat Belt Buckle Adapter - AP86.20-P-8663C
Model 156, 169, 172, 176, 177, 204, 205, 206, 207, 212, 213, 218, 221, 222, 223, 238, 243, 245, 246, 247, 253, 257 with code 45P (Disability conversion - Sales control code)
| Check | |||

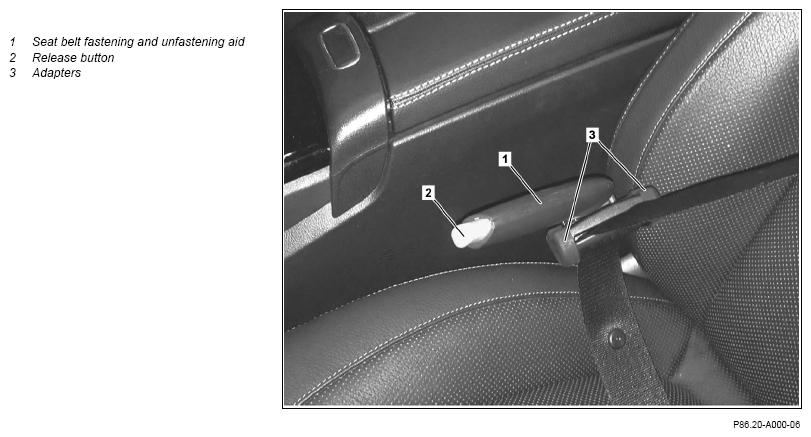

| 1 | Check seat belt with seat belt fastening and unfastening aid (1) for correct latching of seat belt tongue in seat belt buckle. | If problems occur, ↓ Rectify the problems. |
|
| 2 | Press release button (2) and seat belt fastening and unfastening aid (1) simultaneously, pull up and check for proper operation and ease of movement. | If problems occur, ↓ Rectify the problems. |
|
| 3 | Check seat belt fastening and unfastening aid (1) for damage. ↓ |
If problems occur, ↓ Rectify the problems. |
|
| 4 | Check threaded connections on adapters (3) for firm seating. | If the threaded connections on the adapters (3) are not adequately fastened, ↓ Retighten threaded connections on adapters (3). |
