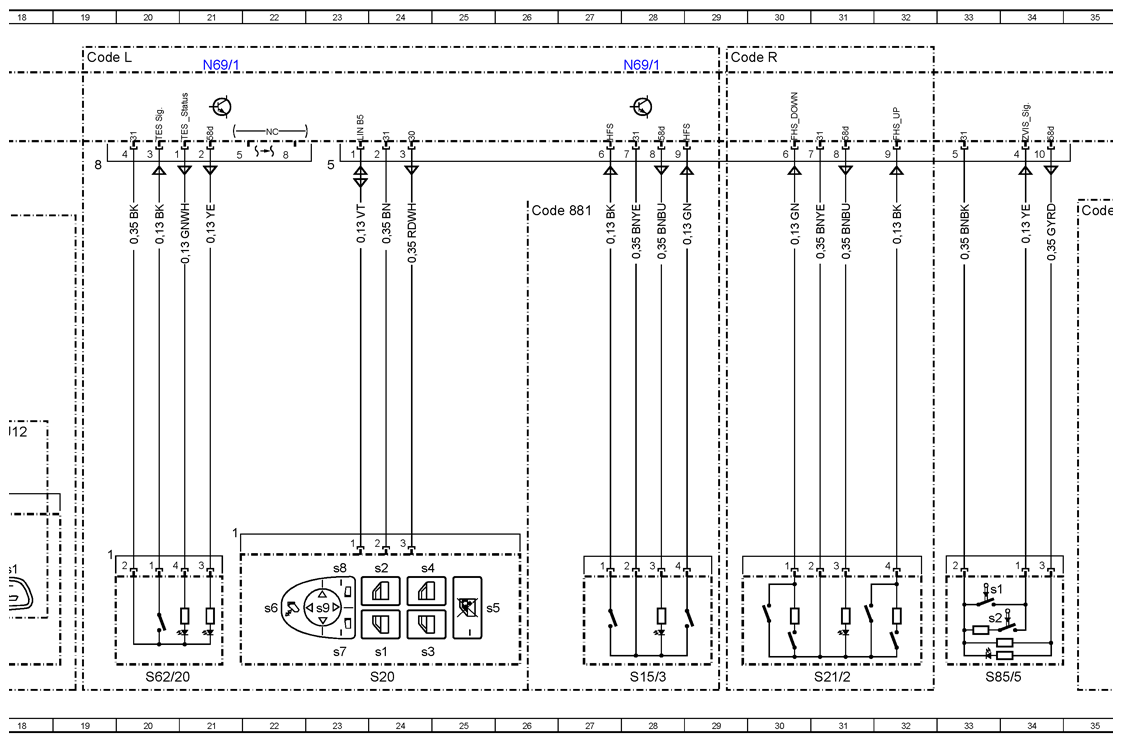

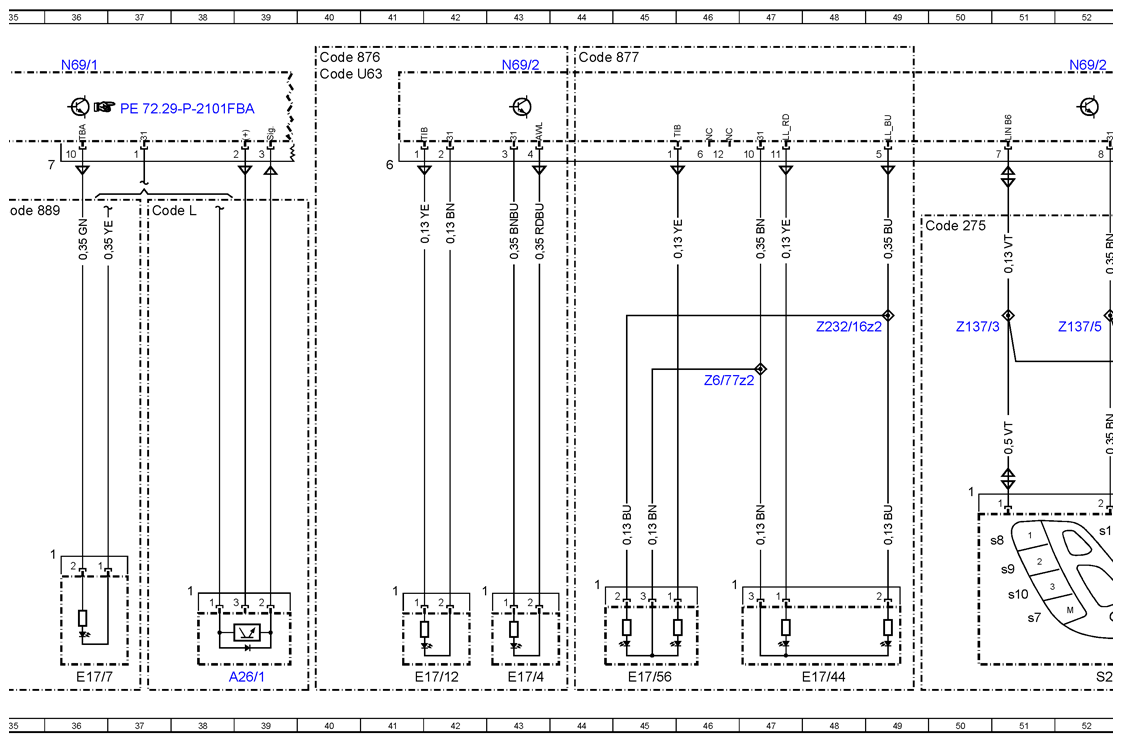

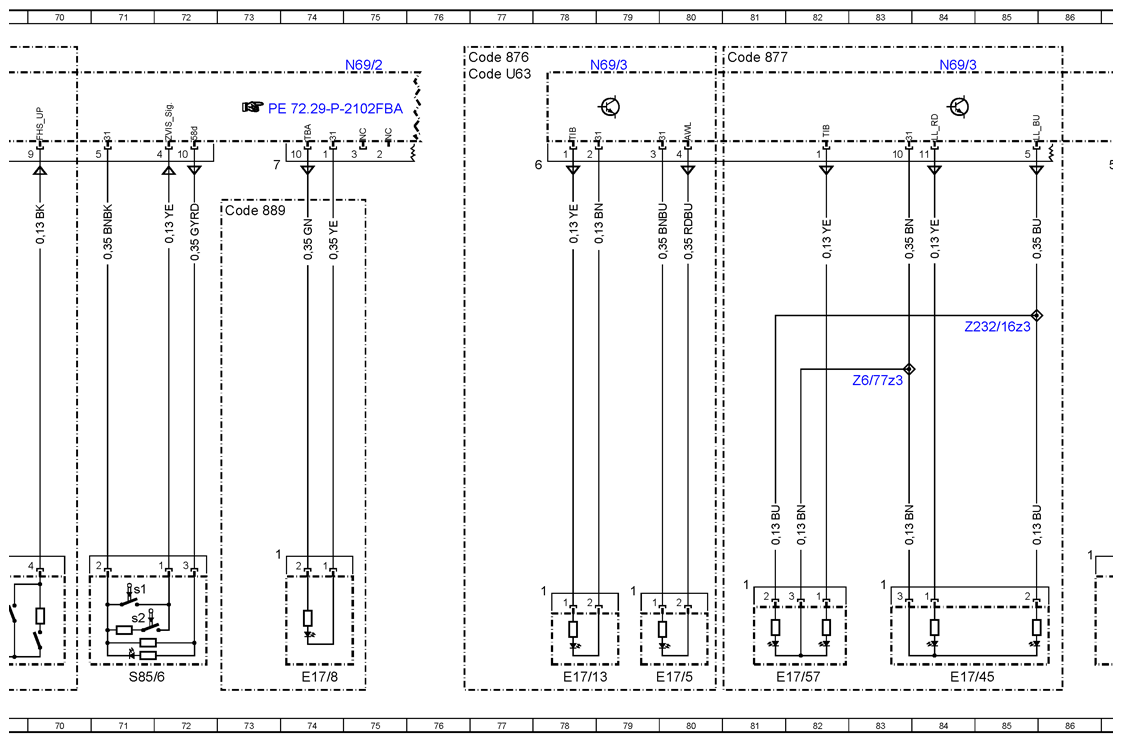

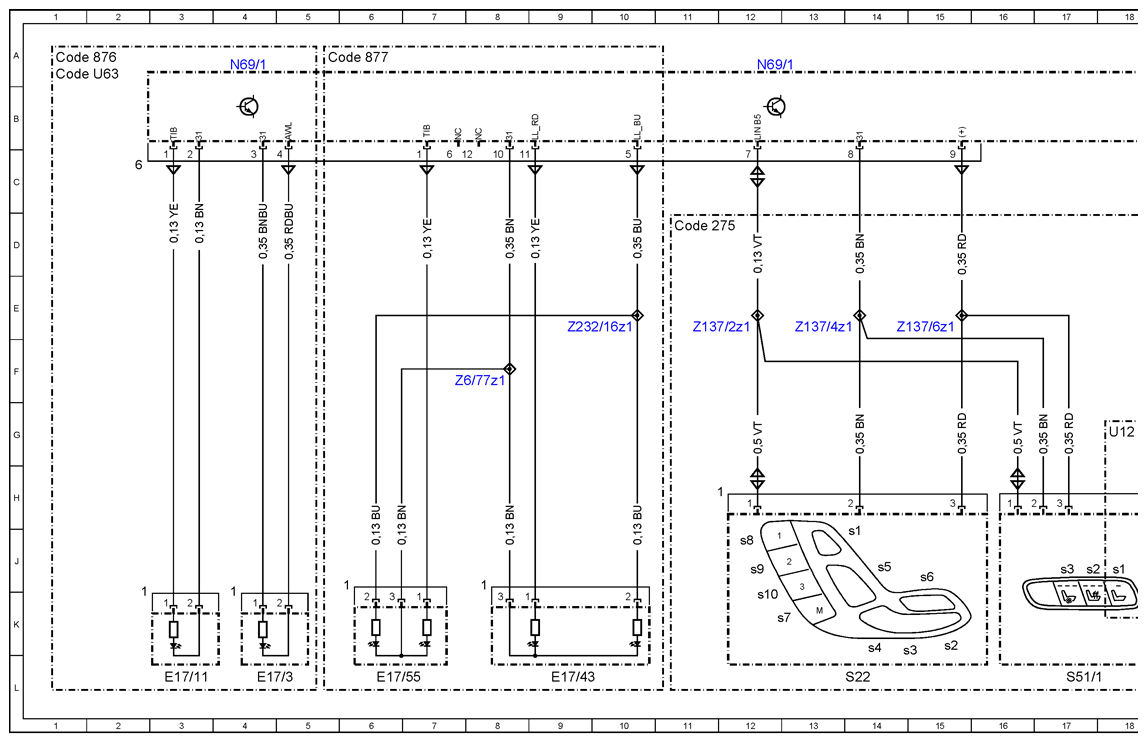

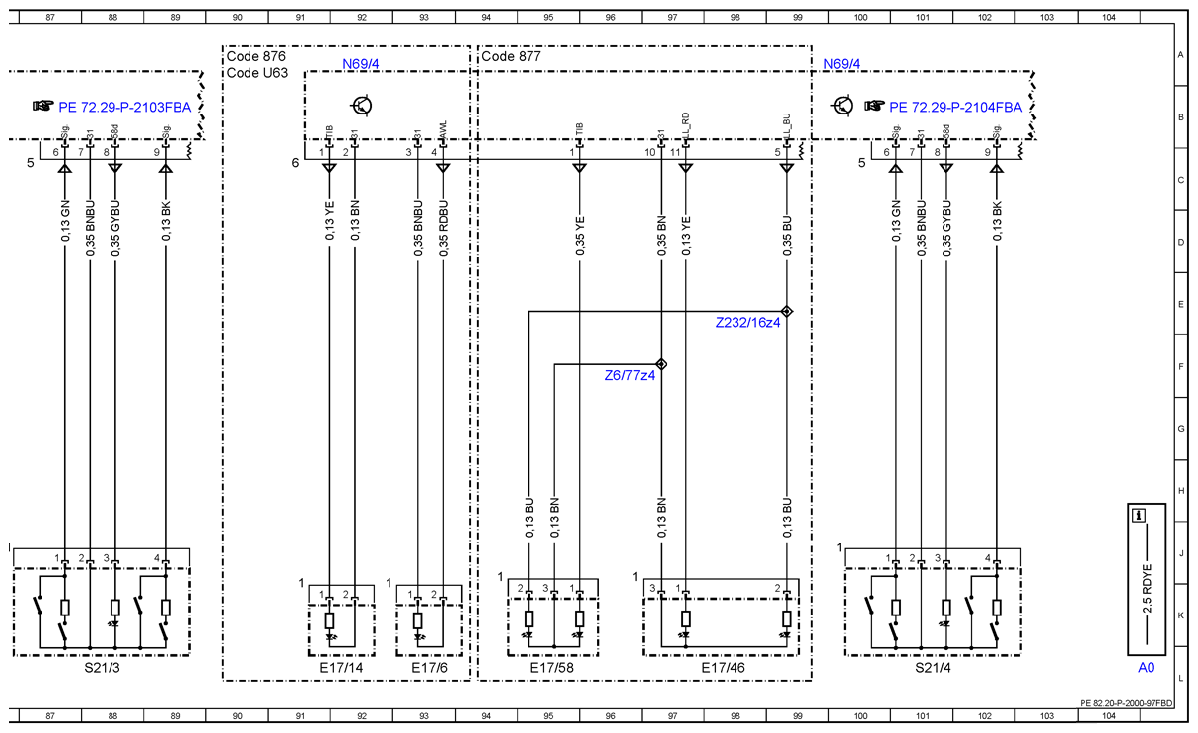

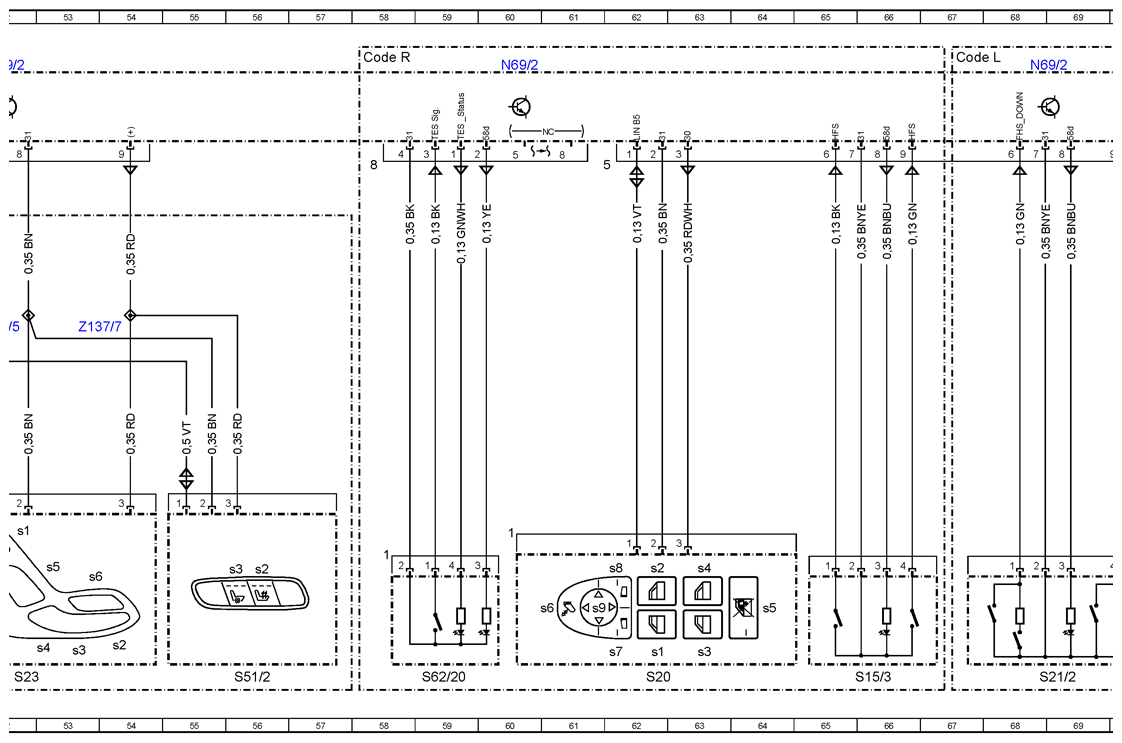

Wiring Diagram Interior Illumination - PE82.20-P-2000-97FBD
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2023 Mercedes-Benz GLC43 AMG, 2022 Mercedes-Benz GLC43 AMG, 2021 Mercedes-Benz GLC63 S AMG, 2021 Mercedes-Benz GLC63 AMG, and 2021 Mercedes-Benz GLC43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 205 up to model year 2019 Sheet 2 Model 253 (except 253.99) up to model year 2020 Sheet 2
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 105L |
| A26/1 | Driver door infrared remote control receiver | 39L |
| Code 275 | Memory package | 11D |
| Code 275 | Memory package | 49D |
| Code 876 | Interior lights package | 1A |
| Code 876 | Interior lights package | 40A |
| Code 876 | Interior lights package | 76A |
| Code 876 | Interior lights package | 90A |
| Code 877 | Ambiance illumination | 5A |
| Code 877 | Ambiance illumination | 44A |
| Code 877 | Ambiance illumination | 81A |
| Code 877 | Ambiance illumination | 94A |
| Code 881 | Remote trunk closing | 26D |
| Code 889 | KEYLESS-GO | 35D |
| Code 889 | KEYLESS-GO | 73D |
| Code L | LEFT-HAND DRIVE | 19A |
| Code L | LEFT-HAND DRIVE | 37D |
| Code L | LEFT-HAND DRIVE | 67A |
| Code R | RIGHT-HAND DRIVE | 29A |
| Code R | RIGHT-HAND DRIVE | 58A |
| Code U63 | Driving school package | 1A |
| Code U63 | Driving school package | 40A |
| Code U63 | Driving school package | 76A |
| Code U63 | Driving school package | 90A |
| E17/11 | Left front door door handle illumination | 3L |
| E17/12 | Right front door door handle illumination | 42L |
| E17/13 | Left rear door door handle illumination | 78L |
| E17/14 | Right rear door door handle illumination | 92L |
| E17/3 | Left front door exit and warning lamp | 4L |
| E17/4 | Right front door exit and warning lamp | 43L |
| E17/43 | Left front door ambiance illumination | 9L |
| E17/44 | Right front door ambiance illumination | 48L |
| E17/45 | Left rear door ambiance illumination | 84L |
| E17/46 | Right rear door ambiance illumination | 98L |
| E17/5 | Left rear door exit and warning lamp | 80L |
| E17/55 | Left front door handle ambiance illumination | 6L |
| E17/56 | Right front door handle ambiance illumination | 45L |
| E17/57 | Left rear door handle ambiance illumination | 82L |
| E17/58 | Right rear door handle ambiance illumination | 95L |
| E17/6 | Right rear door exit and warning lamp | 93L |
| E17/7 | Left front door exterior door handle illumination | 36L |
| E17/8 | Right front door exterior door handle illumination | 74L |
| N69/1 | Left front door control unit | 4A |
| N69/1 | Left front door control unit | 12A |
| N69/1 | Left front door control unit | 36A |
| N69/1 | Left front door control unit | 28A |
| N69/1 | Left front door control unit | 21A |
| N69/2 | Right front door control unit | 43A |
| N69/2 | Right front door control unit | 52A |
| N69/2 | Right front door control unit | 60A |
| N69/2 | Right front door control unit | 68A |
| N69/2 | Right front door control unit | 75A |
| N69/3 | Left rear door control unit | 79A |
| N69/3 | Left rear door control unit | 84A |
| N69/4 | Right rear door control unit | 92A |
| N69/4 | Right rear door control unit | 100A |
| S15/3 | Driver trunk lid/liftgate control button | 28L |
| S15/3 | Driver trunk lid/liftgate control button | 66L |
| S20 | Driver-side power window and outside mirror adjustment switch group | 24L |
| S20 | Driver-side power window and outside mirror adjustment switch group | 62L |
| S20s1 | Left front power window switch | 24L |
| S20s1 | Left front power window switch | 62L |
| S20s2 | Right front power window switch | 24J |
| S20s2 | Right front power window switch | 62J |
| S20s3 | Left rear power window switch | 24L |
| S20s3 | Left rear power window switch | 63L |
| S20s4 | Right rear power window switch | 24J |
| S20s4 | Right rear power window switch | 63J |
| S20s5 | Rear side window child safety lock switch | 25K |
| S20s5 | Rear side window child safety lock switch | 64K |
| S20s6 | Outside mirror fold-in/fold-out switch | 22K |
| S20s6 | Outside mirror fold-in/fold-out switch | 61K |
| S20s7 | Left outside mirror adjustment switch | 23L |
| S20s7 | Left outside mirror adjustment switch | 62L |
| S20s8 | Right outside mirror adjustment switch | 23J |
| S20s8 | Right outside mirror adjustment switch | 62J |
| S20s9 | Outside mirror adjustment switch | 23K |
| S20s9 | Outside mirror adjustment switch | 61K |
| S21/2 | Passenger-side power window switch | 31L |
| S21/2 | Passenger-side power window switch | 69L |
| S21/3 | Left rear power window switch | 88L |
| S21/4 | Right rear power window switch | 101L |
| S22 | Left front seat adjustment switch group | 14L |
| S22s1 | Left front head restraint adjustment switch | 14J |
| S22s10 | Left front memory 3 switch | 12K |
| S22s2 | Left front seat inclination adjustment switch | 15K |
| S22s3 | Left front seat fore/aft adjustment switch | 14K |
| S22s4 | Left front seat height adjustment switch | 14K |
| S22s5 | Left front backrest adjustment switch | 14J |
| S22s6 | Left front seat cushion length switch | 15J |
| S22s7 | Left front memory function switch | 12K |
| S22s8 | Left front memory 1 switch | 12J |
| S22s9 | Left front memory 2 switch | 12J |
| S23 | Right front seat adjustment switch group | 52L |
| S23s1 | Right front head restraint adjustment switch | 52J |
| S23s10 | Right front memory 3 switch | 51K |
| S23s2 | Right front seat inclination adjustment switch | 54K |
| S23s3 | Right front seat fore/aft adjustment switch | 53K |
| S23s4 | Right front seat height adjustment switch | 53K |
| S23s5 | Right front backrest adjustment switch | 53J |
| S23s6 | Right front seat cushion length switch | 53J |
| S23s7 | Right front memory function switch | 51K |
| S23s8 | Right front memory 1 switch | 51J |
| S23s9 | Right front memory 2 switch | 51J |
| S51/1 | Left front seat climate control switch group | 17L |
| S51/1s1 | Left or right seat setting switch | 18J |
| S51/1s2 | Left front seat heater switch | 17J |
| S51/1s3 | Left front seat ventilation switch | 17J |
| S51/2 | Right front seat climate control switch group | 56L |
| S51/2s2 | Right front seat heater switch | 56J |
| S51/2s3 | Right front seat ventilation switch | 56J |
| S62/20 | Refueling safety detection switch | 20L |
| S62/20 | Refueling safety detection switch | 59L |
| S85/5 | Left front door central locking interior switch | 33L |
| S85/5s1 | "Open" central locking switch | 33K |
| S85/5s2 | "Close" central locking switch | 33K |
| S85/6 | Right front door central locking interior switch | 71L |
| S85/6s1 | "Open" central locking switch | 71K |
| S85/6s2 | "Close" central locking switch | 71K |
| U12 | Valid for left-hand drive vehicles | 18G |
| Z137/2z1 | Left door LIN connector sleeve | 12E |
| Z137/3 | Right front door LIN connector sleeve | 50E |
| Z137/4z1 | Left front door circuit 31 connector sleeve | 13E |
| Z137/5 | Right front door circuit 31 connector sleeve | 52E |
| Z137/6z1 | Left front door power supply connector sleeve | 15E |
| Z137/7 | Right front door power supply connector sleeve | 54E |
| Z232/16z1 | Left front door connector sleeve for trim piece ambiance illumination (blue) | 10E |
| Z232/16z2 | Right front door connector sleeve for trim piece ambiance illumination (blue) | 48E |
| Z232/16z3 | Left rear door trim ambiance illumination connector sleeve (blue) | 85E |
| Z232/16z4 | Right rear door connector sleeve for trim piece ambiance illumination (blue) | 98E |
| Z6/77z1 | Left front door illumination circuit 31 connector sleeve | 8F |
| Z6/77z2 | Right front door illumination circuit 31 connector sleeve | 46F |
| Z6/77z3 | Left rear door illumination circuit 31 connector sleeve | 83F |
| Z6/77z4 | Right rear door illumination circuit 31 connector sleeve | 96F |
