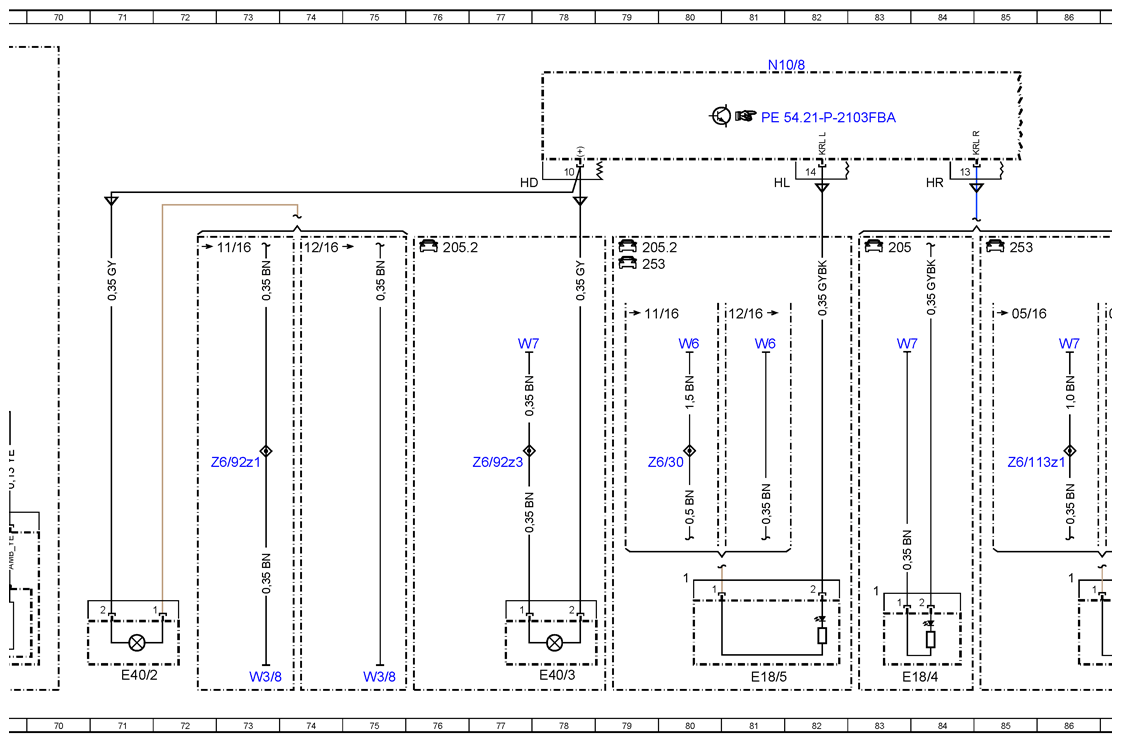

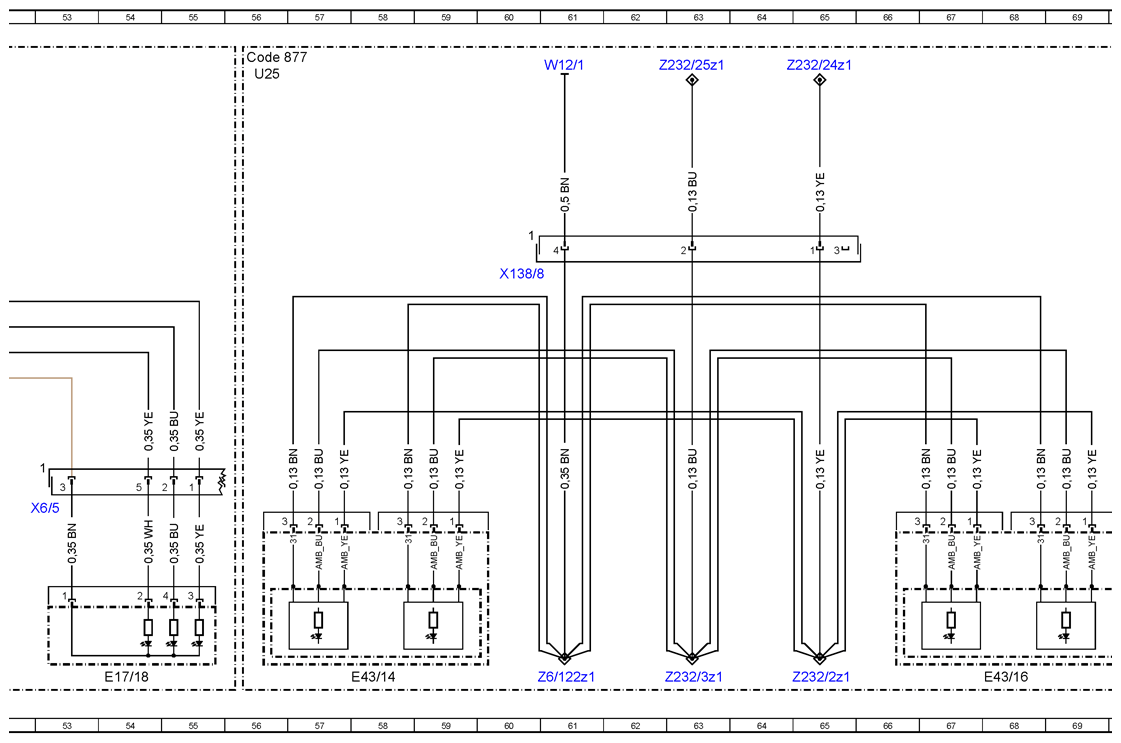

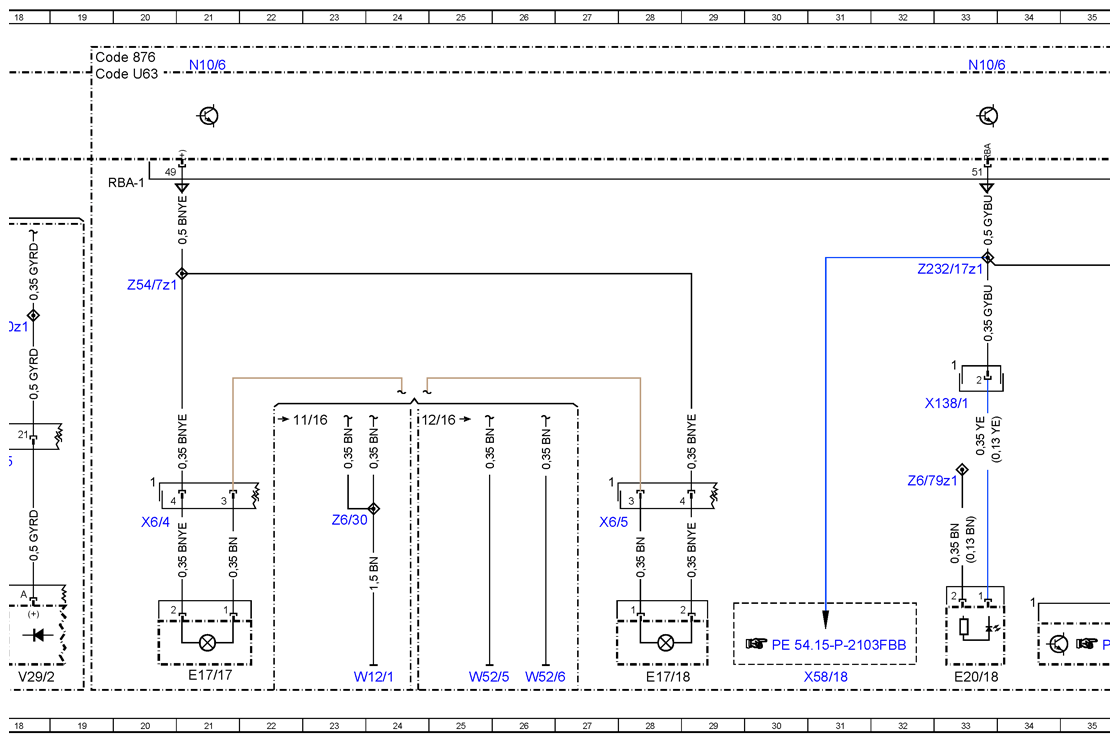

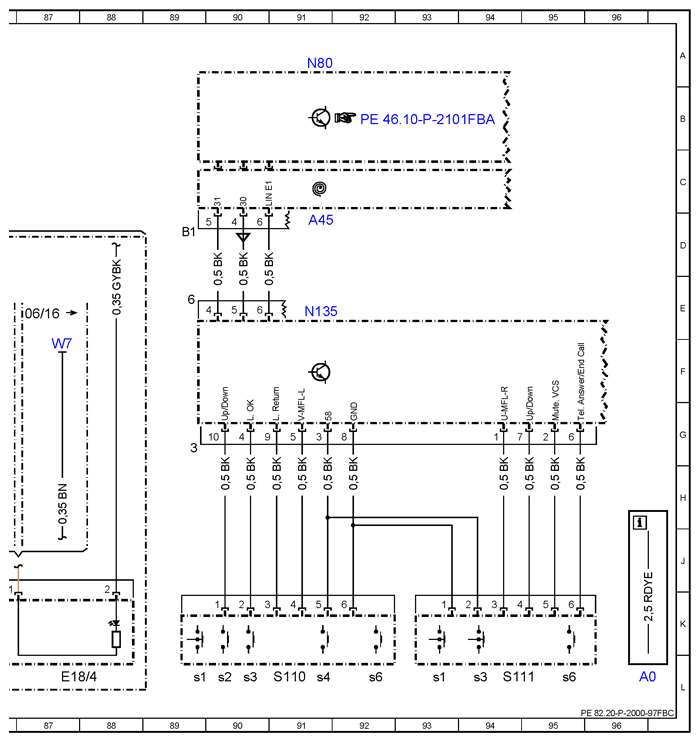

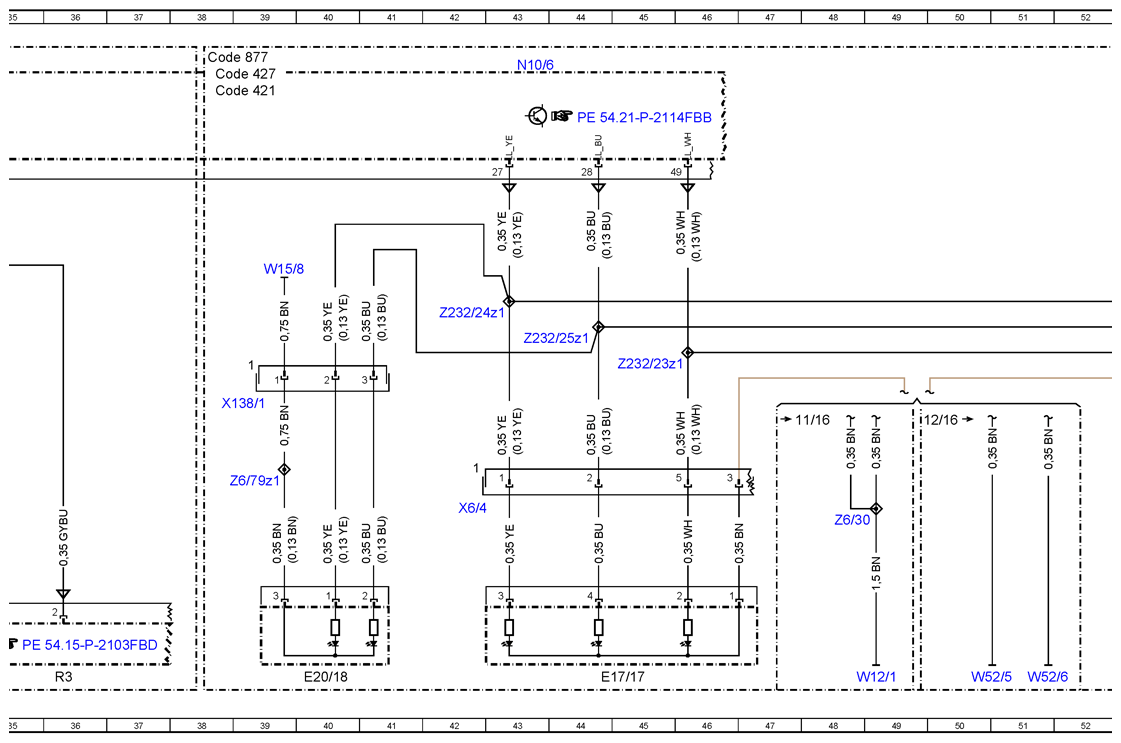

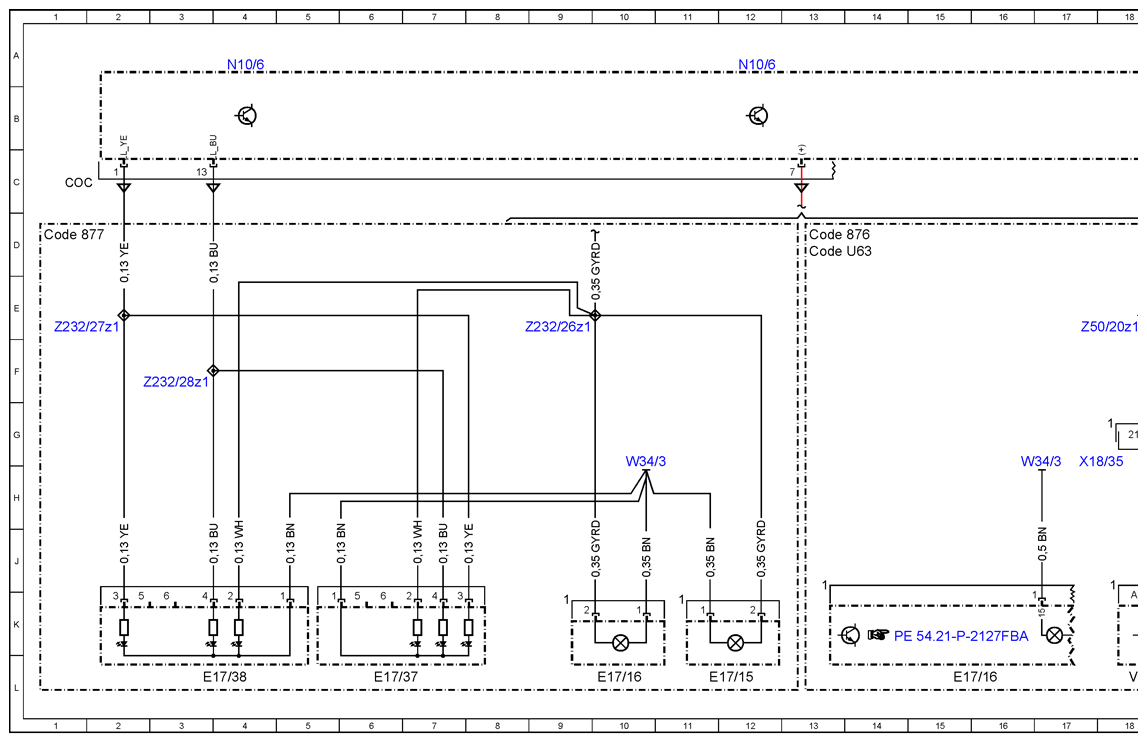

Wiring Diagram Interior Illumination - PE82.20-P-2000-97FBC
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2023 Mercedes-Benz GLC43 AMG, 2022 Mercedes-Benz GLC43 AMG, 2021 Mercedes-Benz GLC63 S AMG, 2021 Mercedes-Benz GLC63 AMG, and 2021 Mercedes-Benz GLC43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 205 up to model year 2019 Sheet 1 Model 253 (except 253.99) up to model year 2020 Sheet 1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 96L |
| A45 | Fanfare horns and airbag clock spring contact | 91D |
| Code 421 | 9G-TRONIC PLUS | 38B |
| Code 427 | 7G-TRONIC PLUS automatic transmission | 38A |
| Code 876 | Interior lights package | 13D |
| Code 876 | Interior lights package | 19A |
| Code 877 | Ambiance illumination | 1D |
| Code 877 | Ambiance illumination | 38A |
| Code 877 | Ambiance illumination | 56A |
| Code U63 | Driving school package | 13D |
| Code U63 | Driving school package | 19A |
| E17/15 | Right front footwell lamp | 12L |
| E17/16 | Left front footwell lamp | 10L |
| E17/16 | Left front footwell lamp | 15L |
| E17/17 | Left rear footwell lamp | 21L |
| E17/17 | Left rear footwell lamp | 45L |
| E17/18 | Right rear footwell lamp | 28L |
| E17/18 | Right rear footwell lamp | 54L |
| E17/37 | Left front footwell lamp | 6L |
| E17/38 | Right front footwell lamp | 4L |
| E18/4 | Right luggage compartment lamp | 83L |
| E18/4 | Right luggage compartment lamp | 87L |
| E18/5 | Left luggage compartment lamp | 81L |
| E20/18 | Front center console cup holder ambiance illumination | 33L |
| E20/18 | Front center console cup holder ambiance illumination | 40L |
| E40/2 | Left trunk lid/liftgate ambient lamp and warning lamp | 71L |
| E40/3 | Right trunk lid/liftgate ambient lamp and warning lamp | 78L |
| E43/14 | Left front center console ambiance illumination | 58L |
| E43/16 | Right front center console ambiance illumination | 68L |
| LIN E1 | Steering LIN | 91C |
| N10/6 | Front SAM control unit | 4A |
| N10/6 | Front SAM control unit | 12A |
| N10/6 | Front SAM control unit | 33A |
| N10/6 | Front SAM control unit | 21A |
| N10/6 | Front SAM control unit | 43A |
| N10/8 | Rear SAM control unit | 81A |
| N135 | Steering wheel electronics | 91E |
| N80 | Steering column module control unit | 91A |
| R3 | Front cigarette lighter with ashtray illumination | 36L |
| S110 | Left multifunction steering wheel button group | 91L |
| S110s1 | Scroll forward/back button | 89L |
| S110s2 | Voice control system OFF button | 90L |
| S110s3 | System selection button | 90L |
| S110s4 | "Back" button | 91L |
| S110s6 | OK button | 92L |
| S111 | Right multifunction steering wheel button group | 94L |
| S111s1 | Buttons + and - for setting specific functions and volume control | 93L |
| S111s3 | Accept/terminate phone call button | 94L |
| S111s6 | Mute function button | 95L |
| U25 | Valid for automatic transmission | 56A |
| V29/2 | Footwell lamp diode 2 | 18L |
| W12/1 | Right center console ground point | 49L |
| W12/1 | Right center console ground point | 23L |
| W12/1 | Right center console ground point | 61A |
| W15/8 | Right front footwell ground point (CAN) | 39D |
| W3/8 | Right rear wheel well ground point | 75L |
| W3/8 | Right rear wheel well ground point | 73L |
| W34/3 | Right footwell ground point | 10H |
| W34/3 | Right footwell ground point | 16H |
| W52/5 | Left center longitudinal member ground point | 25L |
| W52/5 | Left center longitudinal member ground point | 50L |
| W52/6 | Right center longitudinal member ground point | 26L |
| W52/6 | Right center longitudinal member ground point | 51L |
| W6 | Left wheel arch trunk ground point | 81F |
| W6 | Left wheel arch trunk ground point | 80F |
| W7 | Right wheelhouse trunk ground point | 77F |
| W7 | Right wheelhouse trunk ground point | 86F |
| W7 | Right wheelhouse trunk ground point | 83F |
| W7 | Right wheelhouse trunk ground point | 87F |
| X138/1 | Front center console electrical connector | 33G |
| X138/1 | Front center console electrical connector | 39G |
| X138/8 | Upper center console trim plate electrical connector | 60E |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 18H |
| X58/18 | Right rear center console 12V socket | 31L |
| X6/4 | Driver footwell lamp electrical connector | 20H |
| X6/4 | Driver footwell lamp electrical connector | 42H |
| X6/5 | Front passenger footwell lamp electrical connector | 27H |
| X6/5 | Front passenger footwell lamp electrical connector | 53H |
| Z232/17z1 | Center console ambiance illumination connector sleeve (yellow) | 33D |
| Z232/23z1 | Ambiance illumination footwell connector sleeve (warm/white) | 45F |
| Z232/24z1 | Ambiance illumination footwell connector sleeve (yellow) | 42E |
| Z232/24z1 | Ambiance illumination footwell connector sleeve (yellow) | 65A |
| Z232/25z1 | Ambiance illumination footwell connector sleeve (blue) | 44F |
| Z232/25z1 | Ambiance illumination footwell connector sleeve (blue) | 63A |
| Z232/26z1 | Cockpit ambiance illumination connector sleeve (warm/white) | 9E |
| Z232/27z1 | Ambiance illumination footwell connector sleeve (yellow) | 2E |
| Z232/28z1 | Ambiance illumination footwell connector sleeve (blue) | 3F |
| Z232/2z1 | Center console ambiance illumination connector sleeve (LED/k1) | 65L |
| Z232/3z1 | Center console ambiance illumination connector sleeve (LED/k2) | 63L |
| Z50/20z1 | Cockpit connector sleeve, footwell lighting | 18E |
| Z54/7z1 | Footwell illumination connector sleeve | 20E |
| Z6/113z1 | Rear seat ground point connector sleeve | 85H |
| Z6/122z1 | Center console ground point connector sleeve | 61L |
| Z6/30 | Circuit 31 connector sleeve | 23H |
| Z6/30 | Circuit 31 connector sleeve | 48H |
| Z6/30 | Circuit 31 connector sleeve | 80H |
| Z6/79z1 | Circuit 31 connector sleeve | 32H |
| Z6/79z1 | Circuit 31 connector sleeve | 39H |
| Z6/92z1 | Trunk lid ground line connector sleeve | 73H |
| Z6/92z3 | Trunk lid ground connector sleeve | 77H |
