Wiring Diagram For Touchpad - PE82.00-P-2061-97FCA
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2023 Mercedes-Benz GLC43 AMG, 2022 Mercedes-Benz GLC43 AMG, 2021 Mercedes-Benz GLC63 S AMG, 2021 Mercedes-Benz GLC63 AMG, and 2021 Mercedes-Benz GLC43 AMG. However, it is still accessible from the selected car via links, so may be relevant.

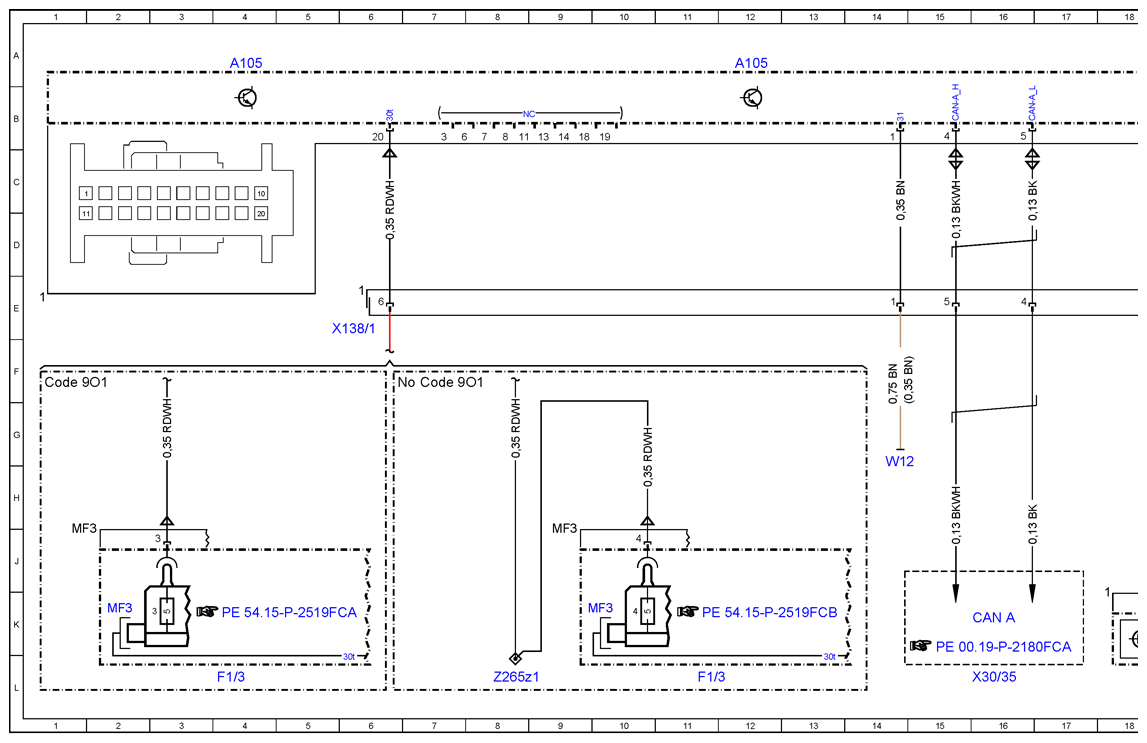

Model 253 (except 253.99) as of model year 2020 with code 446 (Touchpad only) A105 Model 253.99 as of model year 2019 with code 446 (Touchpad only) with code 9O1 (Fuel cell pre-installation) A105
| Code: | Designation: | Position: |
|---|---|---|

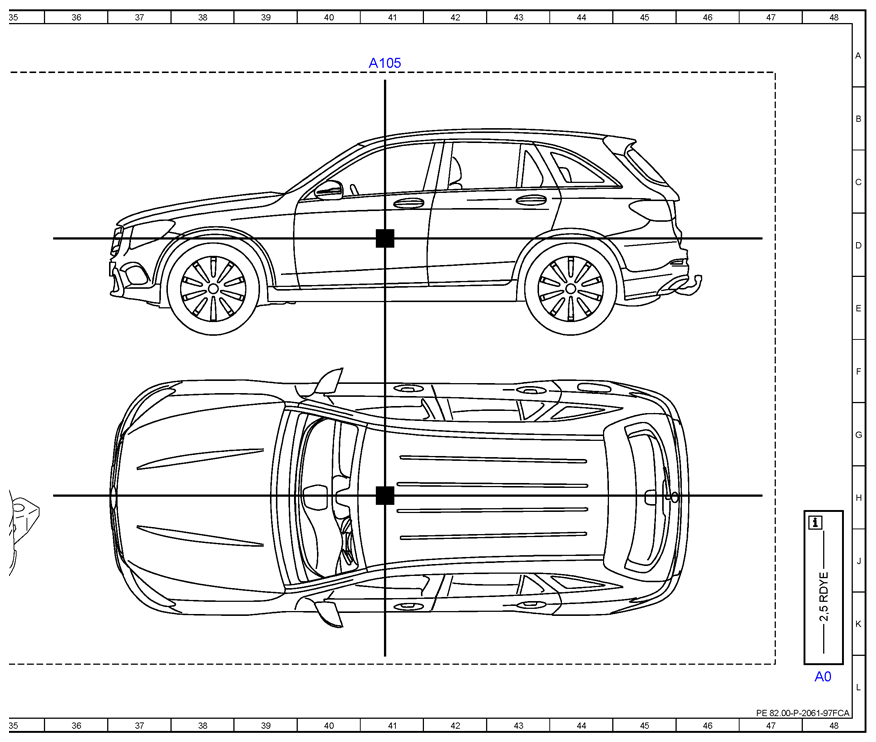

| A0 | Use of wiring diagrams | 48L |
| A105 | Touchpad | 4A |
| A105 | Touchpad | 12A |
| A105 | Touchpad | 20A |
| A105 | Touchpad | 32A |
| A105 | Touchpad | 26A |
| A105 | Touchpad | 41A |
| CAN A | Telematics CAN | 16K |
| Code 9O1 | Fuel cell retrofitting | 1F |
| Code 9O1 | Fuel cell retrofitting | 7F |
| F1/3 | Passenger-side A-pillar fuse box | 4L |
| F1/3 | Passenger-side A-pillar fuse box | 11L |
| F1/3MF3 | Multiple fuse 3 | 2K |
| F1/3MF3 | Multiple fuse 3 | 10K |

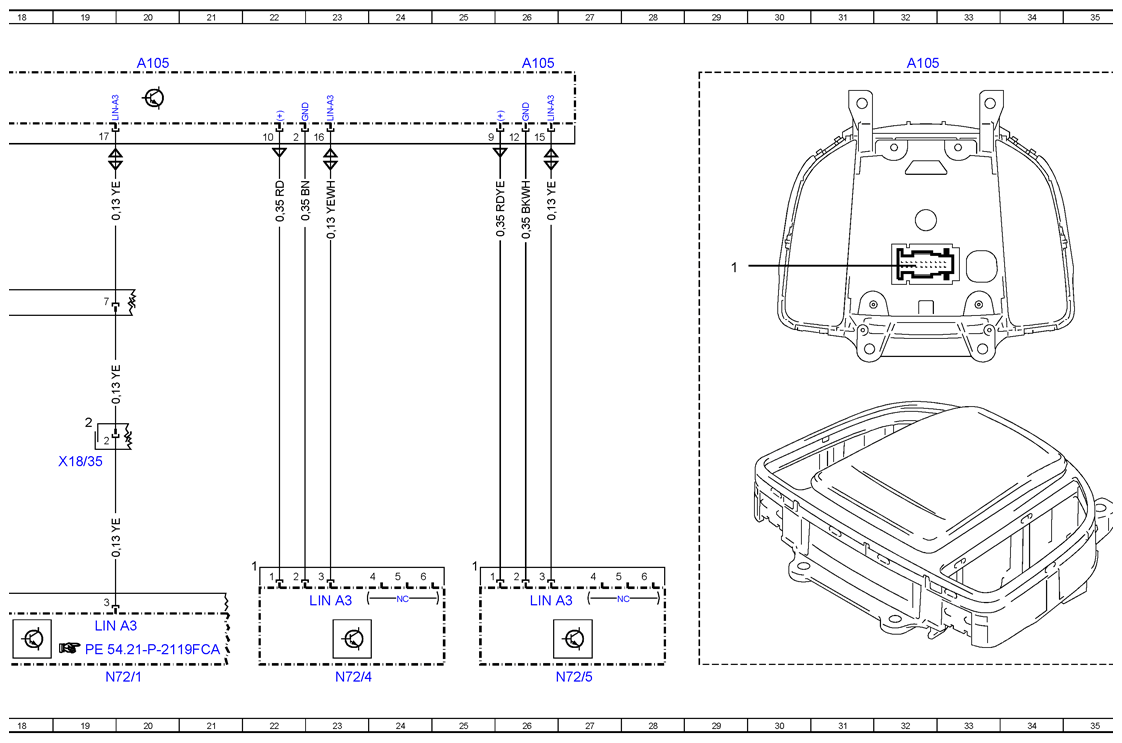

| LIN A3 | LCP LIN | 19K |
| LIN A3 | LCP LIN | 23K |
| LIN A3 | LCP LIN | 26K |
| N72/1 | Upper control panel control unit | 19L |
| N72/4 | Left lower control panel | 23L |
| N72/5 | Right lower control panel | 27L |
| W12 | Ground point (center console) | 14H |
| X138/1 | Front center console electrical connector | 6E |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 19H |
| X30/35 | Telematics CAN (CAN A) potential distributor electrical connector | 16L |
| Z265z1 | Terminal 30t connector sleeve | 8L |
