Wiring Diagram For Adaptive Brake (ABR) - PE42.47-P-2000-97FBC
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2023 Mercedes-Benz GLC43 AMG, 2022 Mercedes-Benz GLC43 AMG, 2021 Mercedes-Benz GLC63 S AMG, 2021 Mercedes-Benz GLC63 AMG, and 2021 Mercedes-Benz GLC43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 253 (except 253.99) up to model year 2020 N30/4
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 96L |

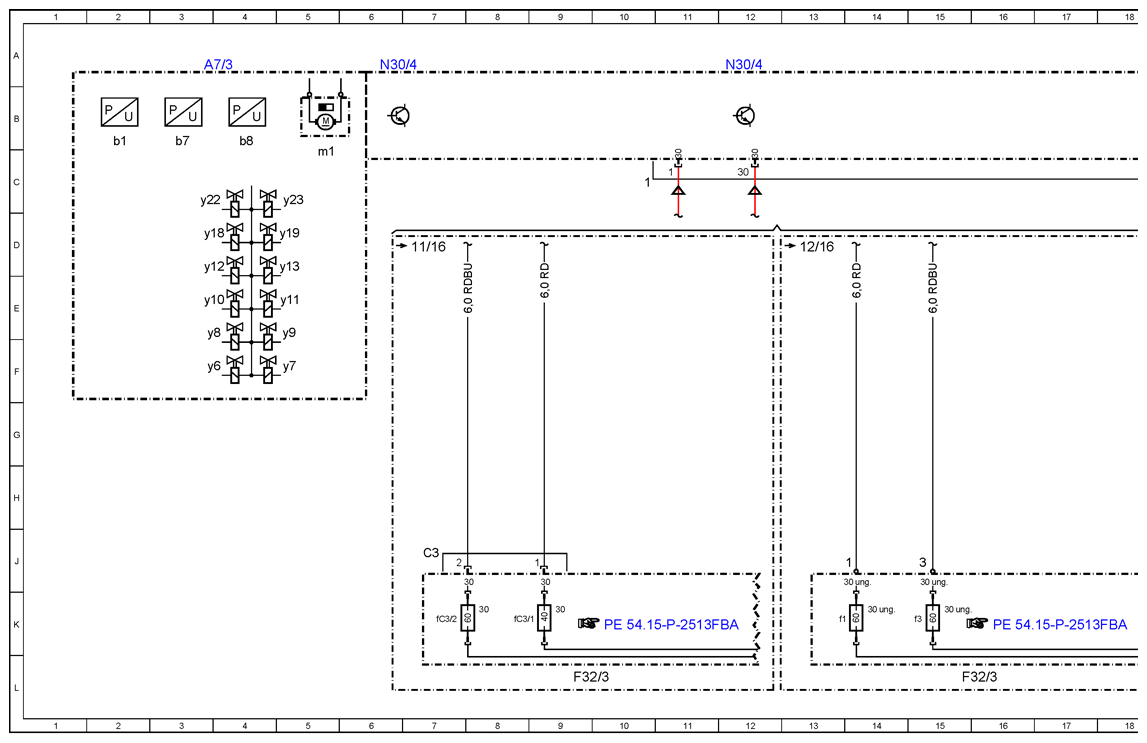

| A7/3 | Traction system hydraulic unit | 3A |
| A7/3b1 | Front axle brake pressure sensor | 2B |
| A7/3b7 | Front pressure sensor | 3B |
| A7/3b8 | Rear pressure sensor | 4B |
| A7/3m1 | High pressure and return pump | 5C |
| A7/3y10 | Left rear pressure regulator valve (pressure hold) | 3E |
| A7/3y11 | Left rear pressure regulator valve (pressure release) | 5E |
| A7/3y12 | Right rear pressure regulator valve (pressure hold) | 3D |
| A7/3y13 | Right rear pressure regulator valve (pressure release) | 5D |
| A7/3y18 | Front axle switchover valve | 3D |
| A7/3y19 | Rear axle switchover valve | 5D |
| A7/3y22 | Front axle intake ball valve | 3C |
| A7/3y23 | Rear axle intake ball valve | 5C |
| A7/3y6 | Left front pressure regulator valve (pressure hold) | 3F |
| A7/3y7 | Left front pressure regulator valve (pressure release) | 5F |
| A7/3y8 | Right front pressure regulator valve (pressure hold) | 3E |
| A7/3y9 | Right front pressure regulator valve (pressure release) | 5E |
| B37/1 | Pedal angle sensor | 58L |
| B64/1 | Brake vacuum sensor | 66L |
| B64/1 | Brake vacuum sensor | 70L |
| CAN H | Vehicle dynamics CAN | 44K |
| Code L | LEFT-HAND DRIVE | 19D |
| Code L | LEFT-HAND DRIVE | 39E |
| Code ME04 | Hybrid drive 20 KW VARIANT | 48D |
| Code ME04 | Hybrid drive 20 KW VARIANT | 60D |
| Code ME04 | Hybrid drive 20 KW VARIANT | 68D |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 48D |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 60D |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 64D |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 68D |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 48E |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 60E |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 68E |
| Code R | RIGHT-HAND DRIVE | 19D |
| Code R | RIGHT-HAND DRIVE | 38E |
| F32/3 | Engine compartment prefuse box | 9L |
| F32/3 | Engine compartment prefuse box | 15L |
| F32/3f1 | Fuse 1 | 13K |
| F32/3f3 | Fuse 3 | 15K |
| F32/3fC3/1 | Electrical fuse C3/1 | 9K |
| F32/3fC3/2 | Electrical fuse C3/2 | 7K |

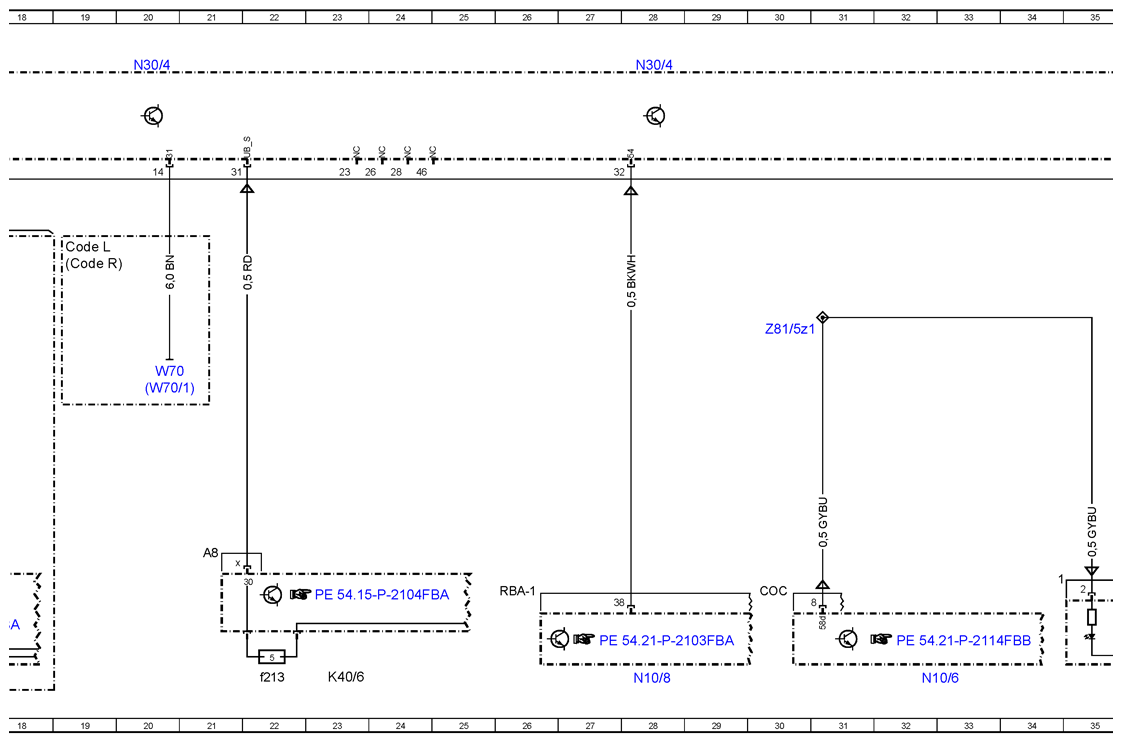

| K40/6 | Driver-side fuse and relay module | 23L |
| K40/6f213 | Fuse 213 | 22L |
| K40/8 | Engine fuse and relay module | 55L |
| K40/8f118 | Fuse 118 | 50L |
| K40/8f121 | Fuse 121 | 47L |
| K40/8kI | Vacuum pump relay (+) | 52L |

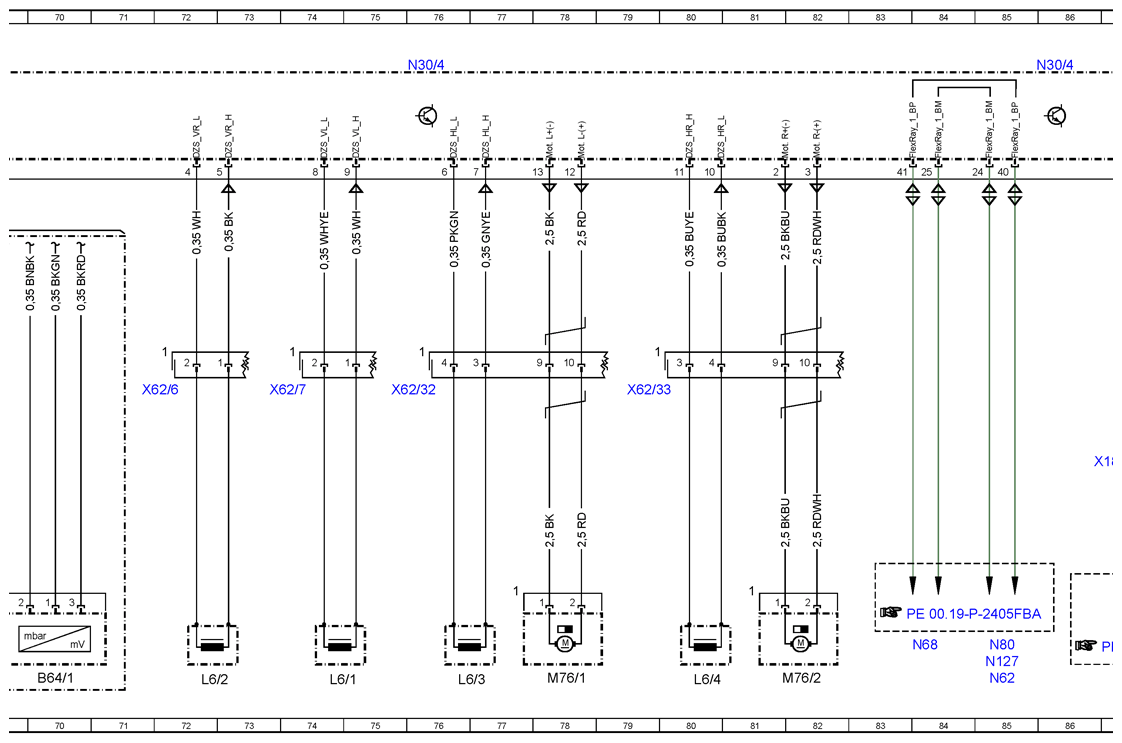

| L6/1 | Left front axle RPM sensor | 74L |
| L6/2 | Right front axle RPM sensor | 72L |
| L6/3 | Left rear axle RPM sensor | 76L |
| L6/4 | Right rear axle RPM sensor | 80L |
| M76/1 | Left electric parking brake actuator motor | 78L |
| M76/2 | Right electric parking brake actuator motor | 82L |
| N10/6 | Front SAM control unit | 32L |
| N10/8 | Rear SAM control unit | 28L |
| N127 | Drivetrain control unit | 85L |

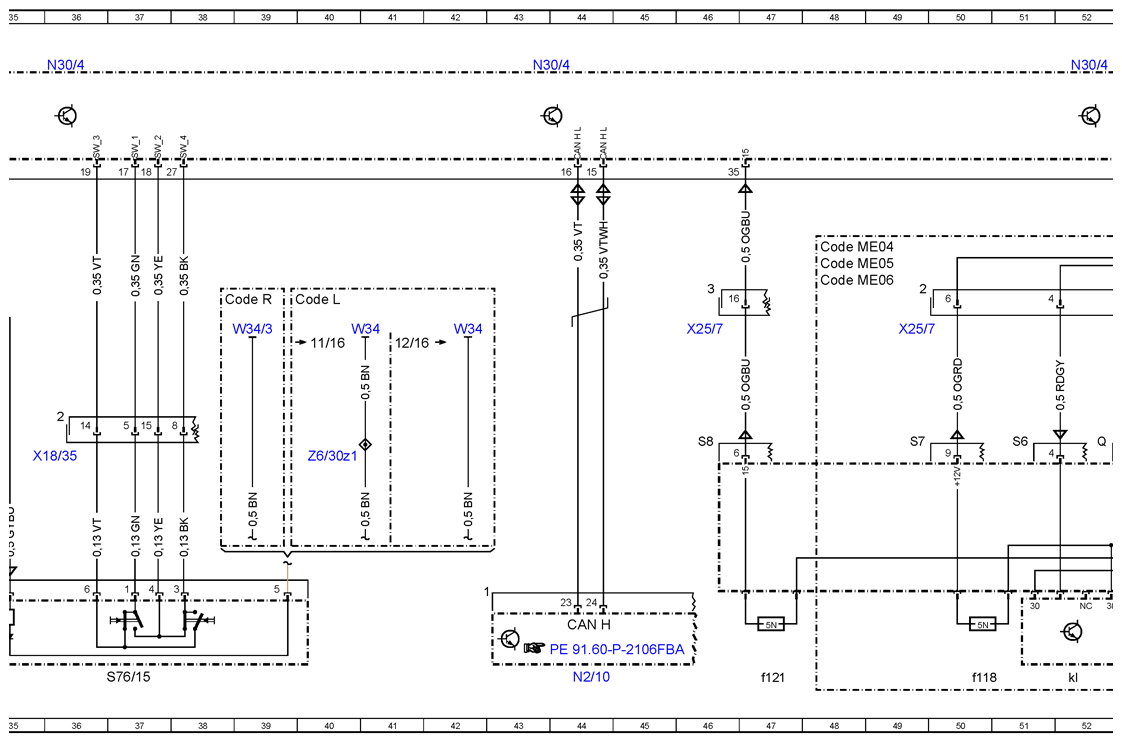

| N2/10 | Supplemental restraint system control unit | 44L |

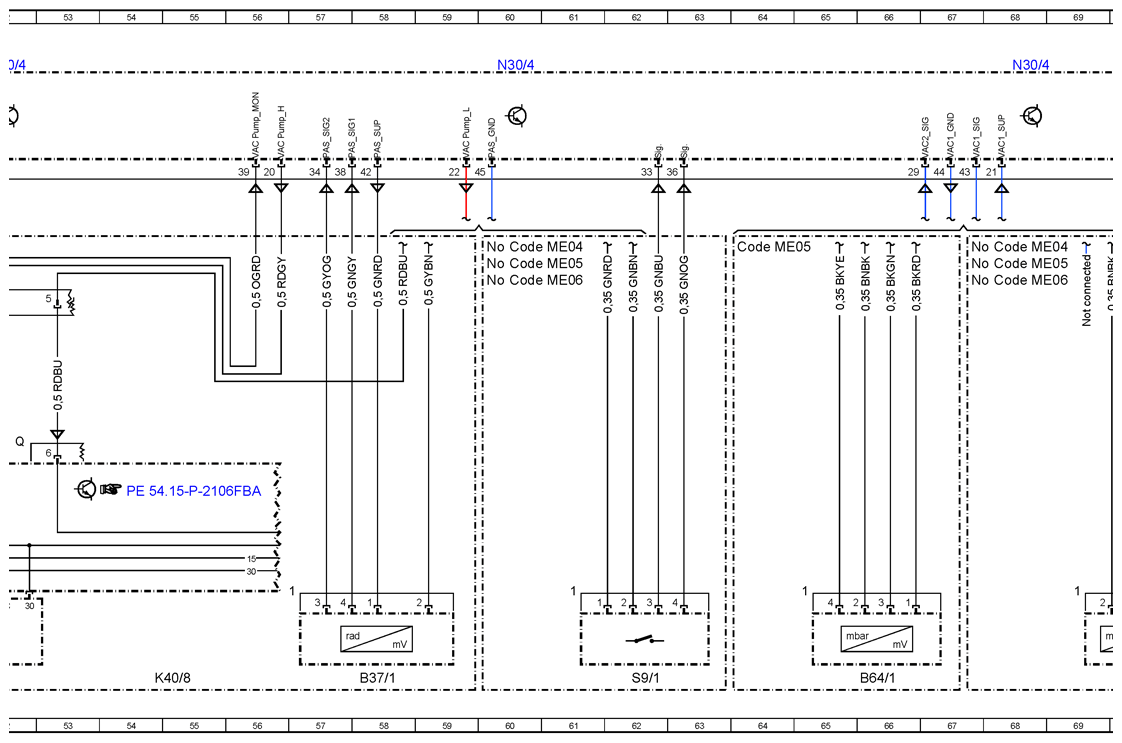

| N30/4 | Electronic Stability Program control unit | 6A |
| N30/4 | Electronic Stability Program control unit | 12A |
| N30/4 | Electronic Stability Program control unit | 28A |
| N30/4 | Electronic Stability Program control unit | 20A |
| N30/4 | Electronic Stability Program control unit | 36A |
| N30/4 | Electronic Stability Program control unit | 43A |
| N30/4 | Electronic Stability Program control unit | 52A |
| N30/4 | Electronic Stability Program control unit | 60A |
| N30/4 | Electronic Stability Program control unit | 68A |
| N30/4 | Electronic Stability Program control unit | 76A |
| N30/4 | Electronic Stability Program control unit | 86A |
| N62 | Parking system control unit | 85L |
| N68 | Electrical power steering control unit | 84K |
| N80 | Steering column module control unit | 85K |
| S76/15 | Electric parking brake switch | 37L |
| S9/1 | Stop lamp switch | 62L |
| W34 | Left footwell ground point | 40E |
| W34 | Left footwell ground point | 42E |
| W34/3 | Right footwell ground point | 39E |
| W70 | Electronic Stability Program ground point | 20F |
| W70/1 | Left ESP® ground point | 20F |

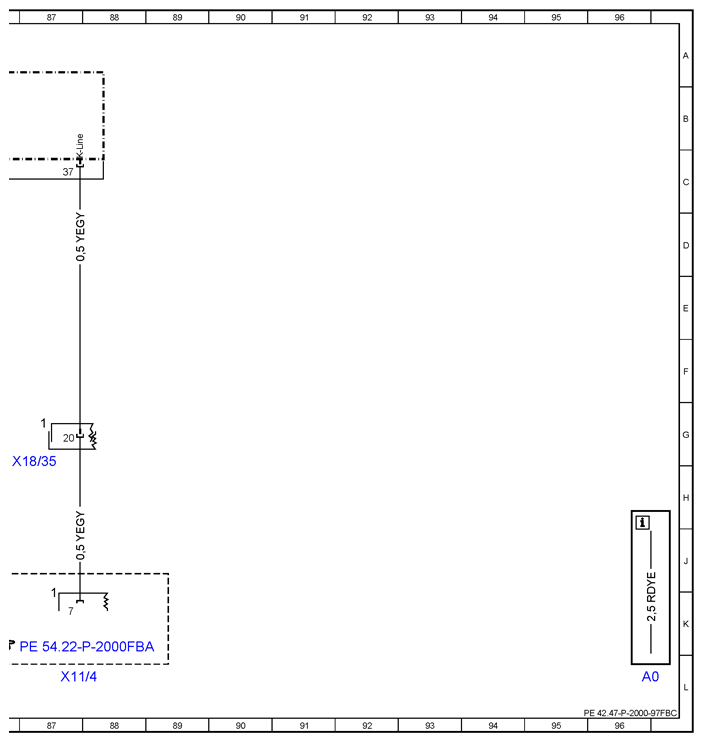

| X11/4 | Diagnostic connector | 87L |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 36G |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 87H |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 46E |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 49E |
| X62/32 | Rear axle electrical connector, left distributor | 76F |
| X62/33 | Rear axle electrical connector, right distributor | 79F |
| X62/6 | Front axle electrical connector, right distributor | 72F |
| X62/7 | Front axle electrical connector, left distributor | 74F |
| Z6/30z1 | Circuit 31 connector sleeve | 40G |
| Z81/5z1 | Circuit 58d connector sleeve | 30E |
