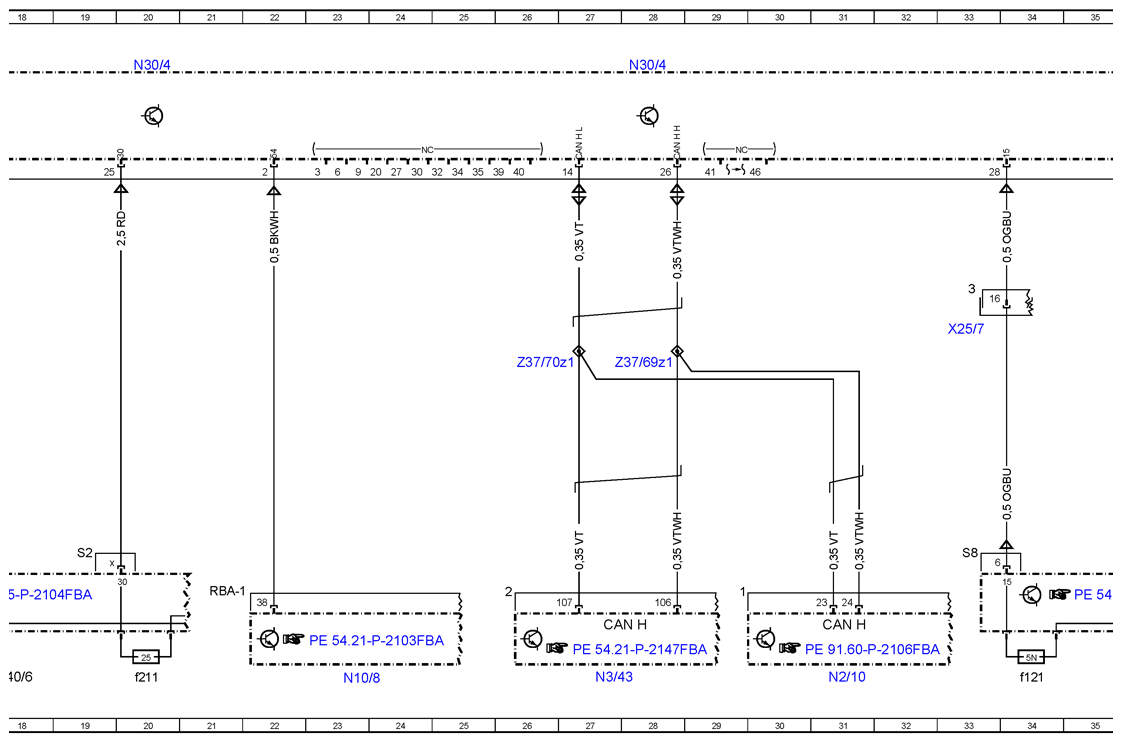

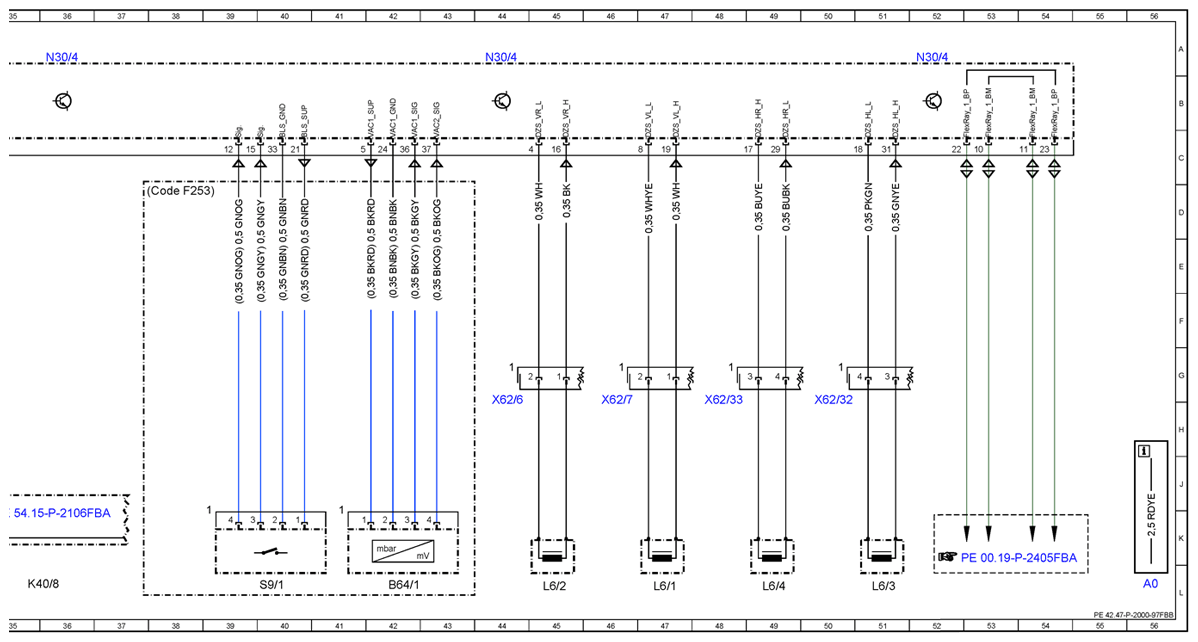

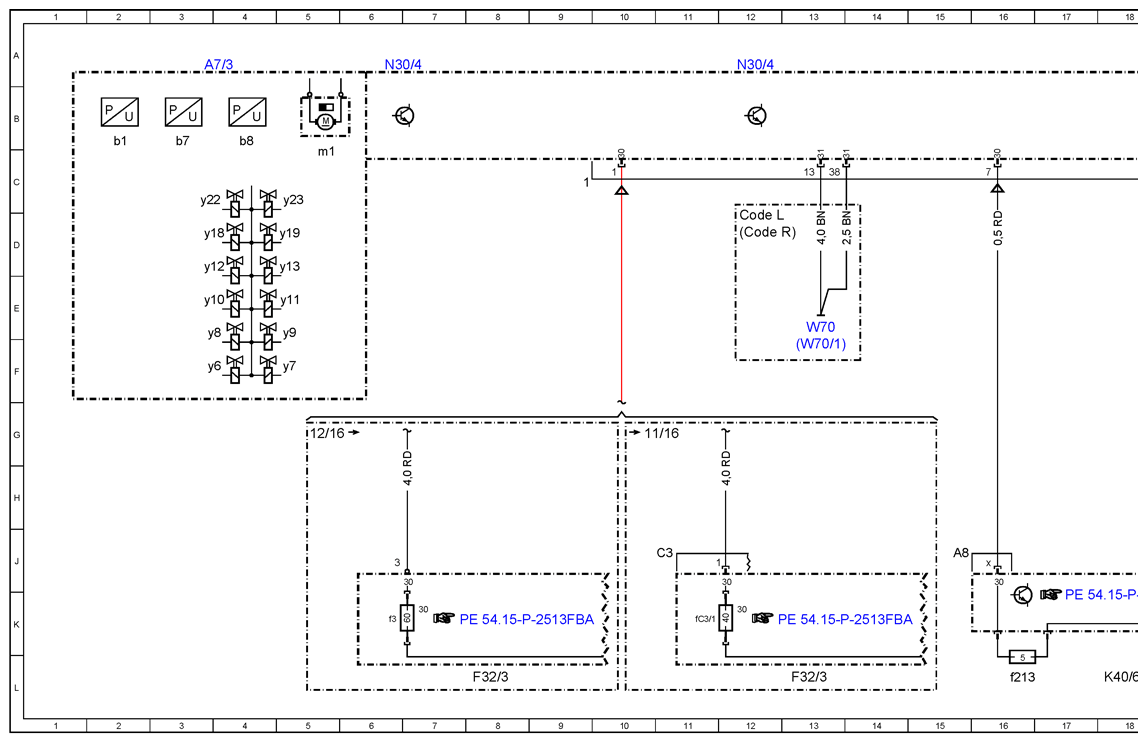

Wiring Diagram For Adaptive Brake (ABR) - PE42.47-P-2000-97FBB
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2023 Mercedes-Benz GLC43 AMG, 2022 Mercedes-Benz GLC43 AMG, 2021 Mercedes-Benz GLC63 S AMG, 2021 Mercedes-Benz GLC63 AMG, and 2021 Mercedes-Benz GLC43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 205 with engine 177 up to model year 2019 Control unit N30/4_AMG Model 253 (except 253.99) with engine 177 up to model year 2020 Control unit N30/4_AMG
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 56L |
| A7/3 | Traction system hydraulic unit | 3A |
| A7/3b1 | Front axle brake pressure sensor | 2B |
| A7/3b7 | Front pressure sensor | 3B |
| A7/3b8 | Rear pressure sensor | 4B |
| A7/3m1 | High pressure and return pump | 5C |
| A7/3y10 | Left rear pressure regulator valve (pressure hold) | 3E |
| A7/3y11 | Left rear pressure regulator valve (pressure release) | 5E |
| A7/3y12 | Right rear pressure regulator valve (pressure hold) | 3D |
| A7/3y13 | Right rear pressure regulator valve (pressure release) | 5D |
| A7/3y18 | Front axle switchover valve | 3D |
| A7/3y19 | Rear axle switchover valve | 5D |
| A7/3y22 | Front axle intake ball valve | 3C |
| A7/3y23 | Rear axle intake ball valve | 5C |
| A7/3y6 | Left front pressure regulator valve (pressure hold) | 3F |
| A7/3y7 | Left front pressure regulator valve (pressure release) | 5F |
| A7/3y8 | Right front pressure regulator valve (pressure hold) | 3E |
| A7/3y9 | Right front pressure regulator valve (pressure release) | 5E |
| B64/1 | Brake vacuum sensor | 42L |
| CAN H | Vehicle dynamics CAN | 27K |
| CAN H | Vehicle dynamics CAN | 31K |
| Code F253 | MODEL SERIES 253 | 37D |
| Code L | LEFT-HAND DRIVE | 12D |
| Code R | RIGHT-HAND DRIVE | 12D |
| F32/3 | Engine compartment prefuse box | 13L |
| F32/3 | Engine compartment prefuse box | 8L |
| F32/3f3 | Fuse 3 | 6K |
| F32/3fC3/1 | Electrical fuse C3/1 | 12K |
| K40/6 | Driver-side fuse and relay module | 18L |
| K40/6f211 | Fuse 211 | 20L |
| K40/6f213 | Fuse 213 | 16L |
| K40/8 | Engine fuse and relay module | 35L |
| K40/8f121 | Fuse 121 | 34L |
| L6/1 | Left front axle RPM sensor | 47L |
| L6/2 | Right front axle RPM sensor | 45L |
| L6/3 | Left rear axle RPM sensor | 51L |
| L6/4 | Right rear axle RPM sensor | 49L |
| N10/8 | Rear SAM control unit | 23L |
| N2/10 | Supplemental restraint system control unit | 31L |
| N3/43 | AMG suspension control unit | 27L |
| N30/4 | Electronic Stability Program control unit | 6A |
| N30/4 | Electronic Stability Program control unit | 12A |
| N30/4 | Electronic Stability Program control unit | 20A |
| N30/4 | Electronic Stability Program control unit | 28A |
| N30/4 | Electronic Stability Program control unit | 36A |
| N30/4 | Electronic Stability Program control unit | 44A |
| N30/4 | Electronic Stability Program control unit | 52A |
| S9/1 | Stop lamp switch | 40L |
| W70 | Electronic Stability Program ground point | 13E |
| W70/1 | Left ESP® ground point | 13F |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 33E |
| X62/32 | Rear axle electrical connector, left distributor | 50H |
| X62/33 | Rear axle electrical connector, right distributor | 48H |
| X62/6 | Front axle electrical connector, right distributor | 44H |
| X62/7 | Front axle electrical connector, left distributor | 46H |
| Z37/69z1 | Vehicle dynamics CAN (high) connector sleeve | 28F |
| Z37/70z1 | Vehicle dynamics CAN (low) connector sleeve | 26F |
