Wiring Diagram Of Soldered Points/Z Connector Sleeves - PE00.19-P-2600-97FBE
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2023 Mercedes-Benz GLC43 AMG, 2022 Mercedes-Benz GLC43 AMG, 2021 Mercedes-Benz GLC63 S AMG, 2021 Mercedes-Benz GLC63 AMG, and 2021 Mercedes-Benz GLC43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 205 up to model year 2019 Z7/44z1, Z7/44z2, Z68/25z1 Model 253 (except 253.99) up to model year 2020 Z7/44z1, Z7/44z2, Z68/25z1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 80L |
| A6/1 | Stationary heater radio remote control receiver | 12L |
| B11/4 | Coolant temperature sensor | 63L |
| B17/14 | Left charge air temperature sensor | 78L |
| B17/8 | Charge air temperature sensor | 64L |
| B28/11 | Pressure sensor downstream of air filter | 47L |
| B28/11 | Pressure sensor downstream of air filter | 59L |

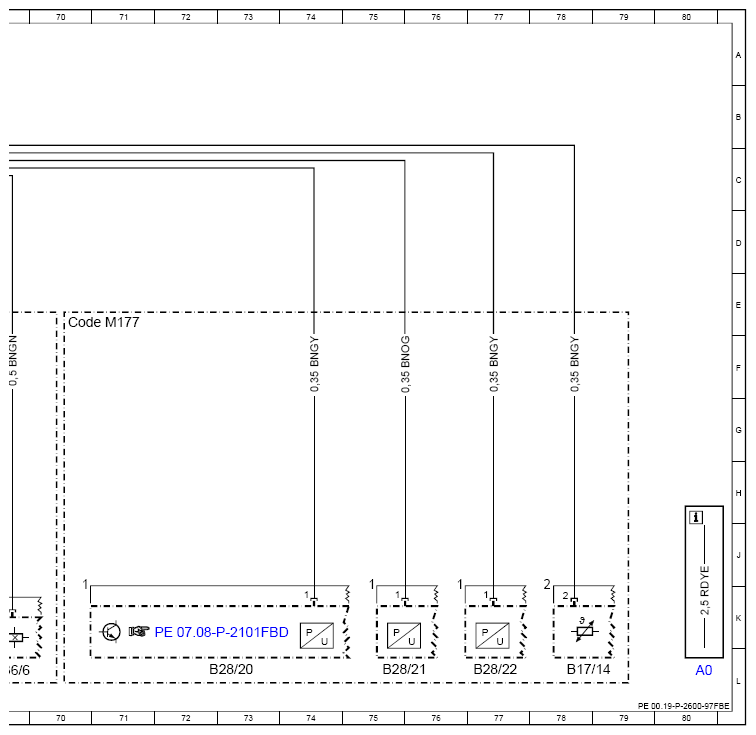

| B28/20 | Left pressure sensor upstream of throttle valve | 73L |
| B28/21 | Right pressure sensor upstream of throttle valve | 75L |
| B28/22 | Left pressure sensor downstream of throttle valve | 77L |
| B28/4 | Pressure sensor downstream air filter, left cylinder bank | 61L |
| B28/6 | Pressure sensor upstream of throttle valve | 60L |
| B28/8 | Differential pressure sensor (DPF) | 44L |
| B4/1 | Fuel tank fuel level indicator fill level sensor, left | 30L |
| B4/2 | Fuel tank fuel level indicator fill level sensor, right | 25L |
| B4/4 | Purging pressure sensor | 66L |
| B4/7 | Fuel pressure sensor | 21L |
| B4/7 | Fuel pressure sensor | 35L |
| B5/1 | Boost pressure sensor | 48L |
| B5/4 | Low-pressure turbocharger boost pressure sensor | 43L |
| B6/4 | Left intake camshaft Hall sensor | 68L |
| B6/6 | Left exhaust camshaft Hall sensor | 69L |
| B60 | Exhaust pressure sensor | 45L |
| Code 460 | Canada version | 65H |
| Code 494 | USA version | 65H |
| Code 581 | THERMOTRONIC automatic air conditioning | 5F |
| Code M177 | SPARK-IGNITION ENGINE M177 | 19E |
| Code M177 | SPARK-IGNITION ENGINE M177 | 70E |
| Code M274 | SPARK-IGNITION ENGINE M274 | 19F |
| Code M276 | SPARK-IGNITION ENGINE M276 | 19F |
| Code M276 | SPARK-IGNITION ENGINE M276 | 49F |
| Code M276 | SPARK-IGNITION ENGINE M276 | 54E |
| Code M626 | DIESEL ENGINE OM626 | 33E |
| Code M626 | DIESEL ENGINE OM626 | 49E |
| Code M642 | DIESEL ENGINE OM642 | 33F |
| Code M651 | DIESEL ENGINE OM651 | 33F |
| Code M651 | DIESEL ENGINE OM651 | 37E |
| Code M651 | DIESEL ENGINE OM651 | 49F |
| N118 | Fuel pump control unit | 16L |
| N22/1 | Climate control, control unit | 7A |
| N22/4 | Rear air conditioning operating unit | 7L |
| N3/10 | ME-SFI [ME] control unit | 56L |
| N3/9 | CDI control unit | 39L |
| N37/8 | NOx sensor control unit downstream of SCR catalytic converter | 52L |
| N58/1 | Climate control operating unit | 3L |
| U161 | Not valid for fuel tank (41.2 liters) | 28E |
| U562 | Valid for Bosch system | 37F |
| W52/6 | Right center longitudinal member ground point | 51F |
| X101/4 | Right rear frame floor assembly/underfloor electrical connector | 51H |
| X138/1 | Front center console electrical connector | 7H |
| X18/3 | Vehicle interior/fuel tank electrical connector | 20H |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 13H |
| X26 | Interior and engine wiring harness electrical connector | 34H |

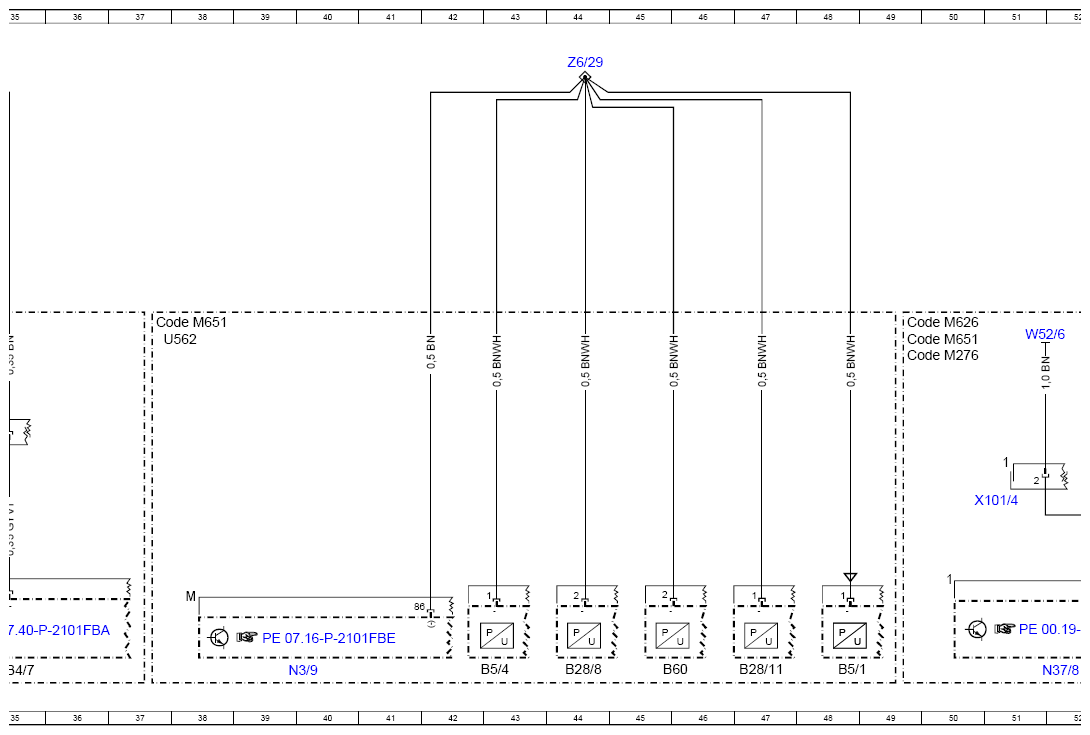

| Z6/29 | Sensor ground line connector sleeve | 44A |

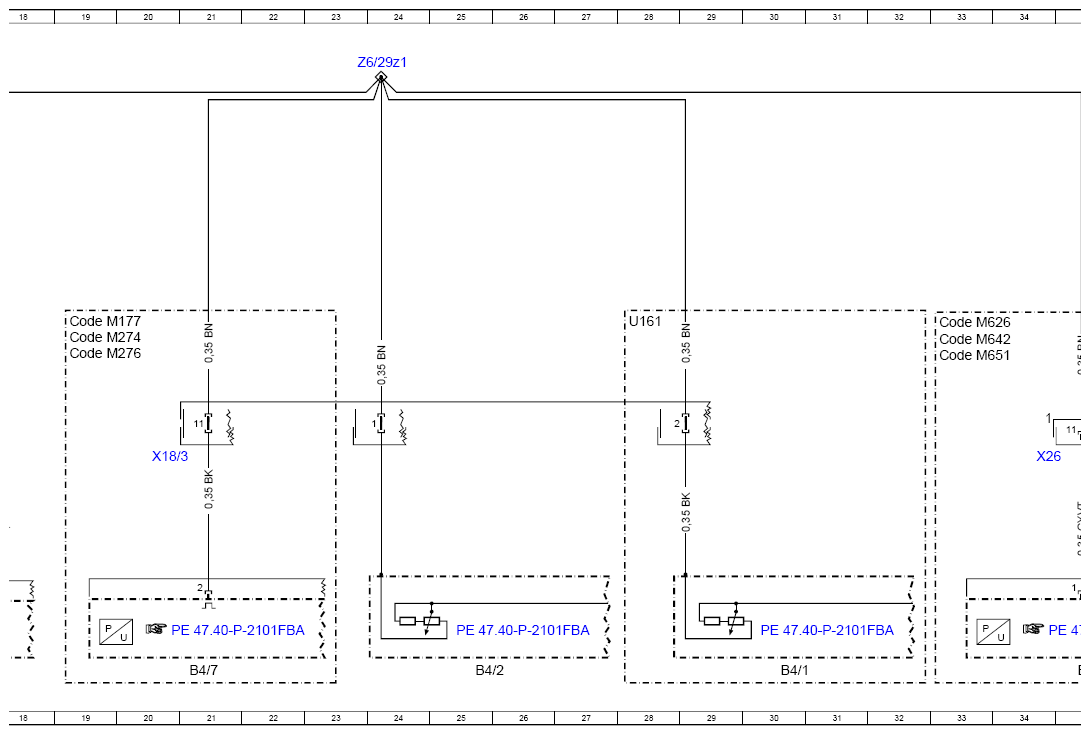

| Z6/29z1 | Connector sleeve, ground connection for fuel pump | 24A |

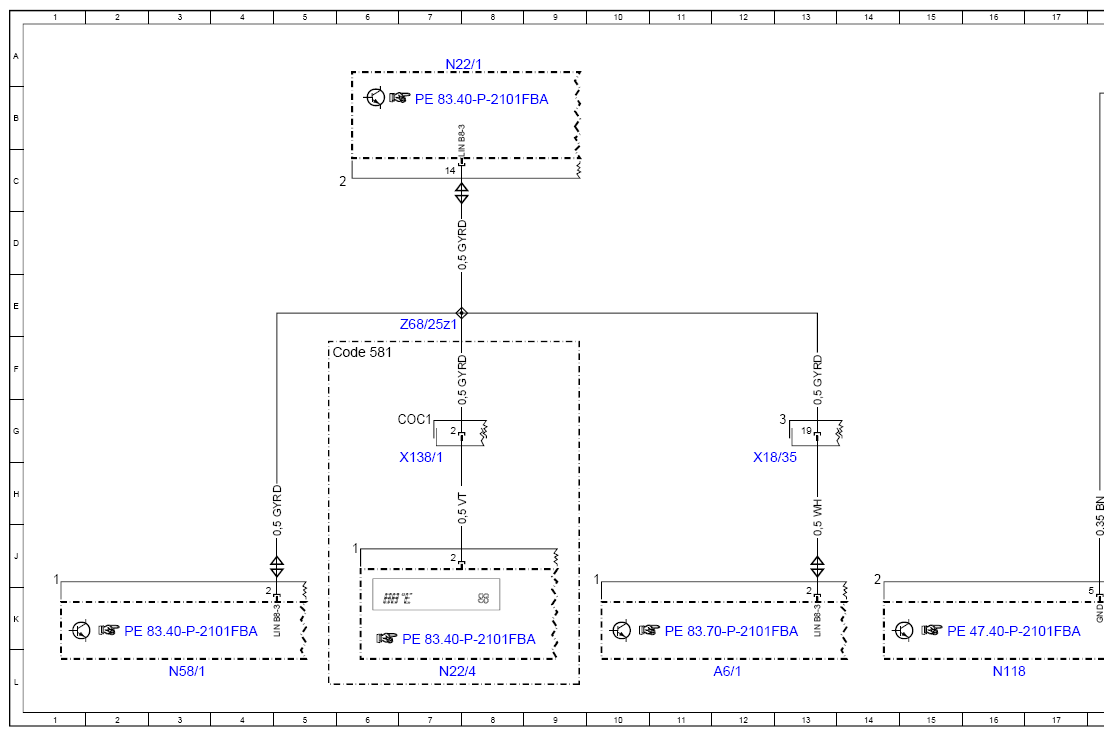

| Z68/25z1 | Connector sleeve, data line, A/C control panel LIN | 7E |

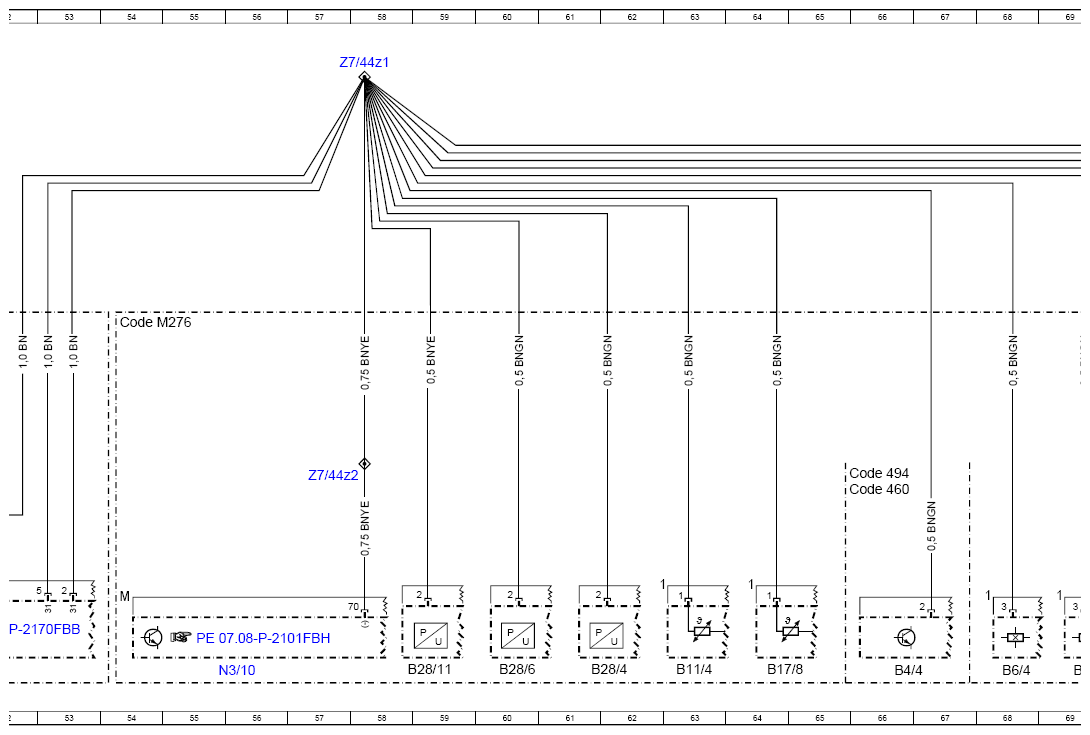

| Z7/44z1 | Sensor ground connector sleeve | 58A |
| Z7/44z2 | Sensor ground connector sleeve | 57H |
