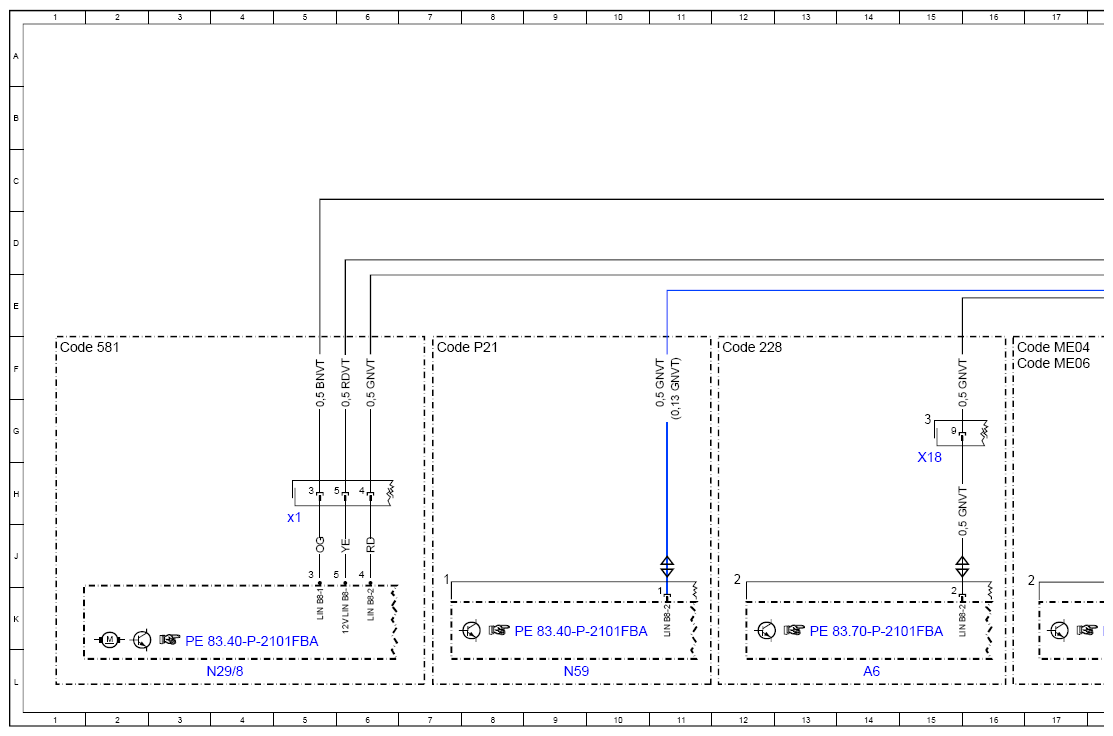

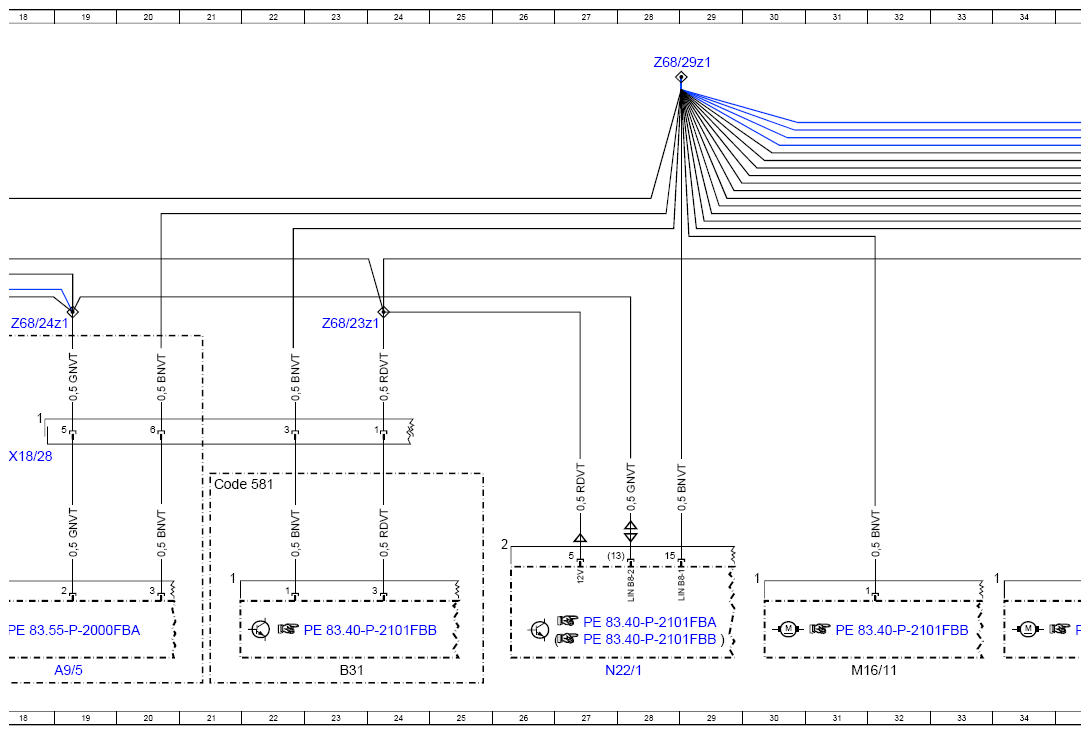

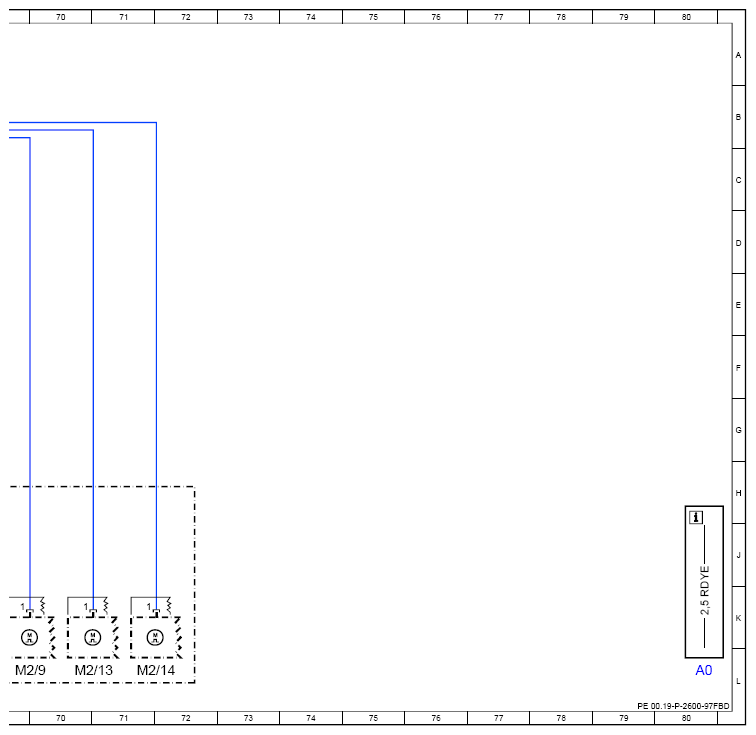

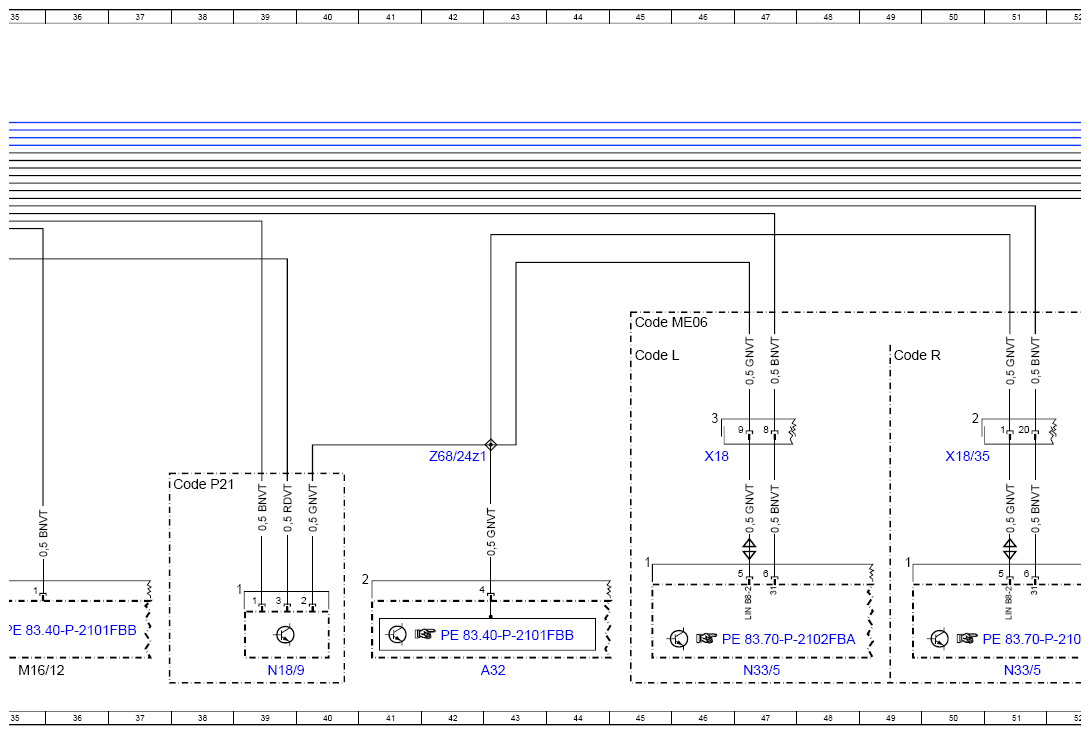

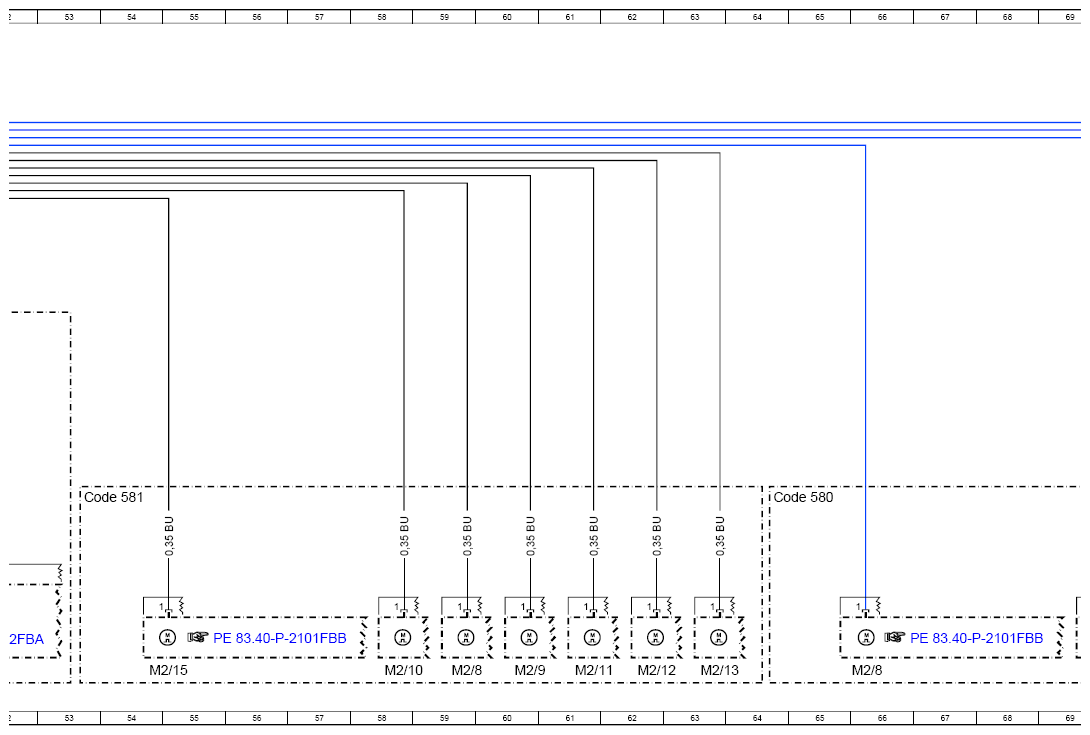

Wiring Diagram Of Soldered Points/Z Connector Sleeves - PE00.19-P-2600-97FBD
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2023 Mercedes-Benz GLC43 AMG, 2022 Mercedes-Benz GLC43 AMG, 2021 Mercedes-Benz GLC63 S AMG, 2021 Mercedes-Benz GLC63 AMG, and 2021 Mercedes-Benz GLC43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 205 up to model year 2019 Z68/23z1, Z68/24z1, Z68/29z1 Model 253 (except 253.99) up to model year 2020 Z68/23z1, Z68/24z1, Z68/29z1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 80L |
| A32 | AC housing | 43L |
| A6 | Stationary heater unit | 14L |
| A9/5 | Electric refrigerant compressor | 19L |
| B31 | Air quality sensor | 23L |
| Code 228 | Stationary heater | 12F |
| Code 580 | Air conditioning | 64H |
| Code 581 | THERMOTRONIC automatic air conditioning | 21H |
| Code 581 | THERMOTRONIC automatic air conditioning | 1F |
| Code 581 | THERMOTRONIC automatic air conditioning | 53H |
| Code L | LEFT-HAND DRIVE | 45F |
| Code ME04 | Hybrid drive 20 KW VARIANT | 16F |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 16F |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 45E |
| Code P21 | AIR-BALANCE package | 38H |
| Code P21 | AIR-BALANCE package | 7F |
| Code R | RIGHT-HAND DRIVE | 49F |
| M16/11 | Left A-pillar air distribution actuator motor | 31L |
| M16/12 | Right A-pillar air distribution actuator motor | 35L |
| M2/10 | Rear blend air flap actuator motor | 58L |
| M2/11 | Left footwell vent/center air vent/side air vent and rear vent flap actuator motor | 61L |
| M2/12 | Right footwell vent/center air vent and side air vent flap actuator motor | 62L |
| M2/13 | Fresh air/ram air/air recirculation flap actuator motor | 63L |
| M2/13 | Fresh air/ram air/air recirculation flap actuator motor | 70L |
| M2/14 | Defroster/footwell/center air vent flap actuator motor | 71L |
| M2/15 | Defroster vent flap actuator motor | 54L |
| M2/1x1 | Rear blower motor electrical connector | 5H |
| M2/8 | Left blending air flap actuator | 59L |
| M2/8 | Left blending air flap actuator | 66L |
| M2/9 | Right blending air flap actuator | 60L |
| M2/9 | Right blending air flap actuator | 69L |
| N18/9 | Driver side air vent ionizer | 39L |
| N22/1 | Climate control, control unit | 27L |
| N29/8 | Booster blower electronic blower regulator | 4L |
| N33/5 | High-voltage PTC heater | 47L |
| N33/5 | High-voltage PTC heater | 51L |
| N59 | Perfume atomizer generator | 9L |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 15H |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 46G |
| X18/28 | Left cockpit/engine compartment electrical connector | 18G |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 50G |
| Z68/23z1 | Connector sleeve, 12V climate control LIN 2 | 23E |
| Z68/24z1 | Connector sleeve, data line for climate control LIN 2 | 18E |
| Z68/24z1 | Connector sleeve, data line for climate control LIN 2 | 42G |
| Z68/29z1 | Connector sleeve, ground line for climate control LIN 1 and climate control LIN 2 | 28A |
