Wiring Diagram Of Soldered Points/Z Connector Sleeves - PE00.19-P-2600-97FBC
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2023 Mercedes-Benz GLC43 AMG, 2022 Mercedes-Benz GLC43 AMG, 2021 Mercedes-Benz GLC63 S AMG, 2021 Mercedes-Benz GLC63 AMG, and 2021 Mercedes-Benz GLC43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 205 up to model year 2019 Z6/30, Z6/104z1, Z6/105z1 Model 253 (except 253.99) up to model year 2020 Z6/30, Z6/104z1, Z6/105z1
| Code: | Designation: | Position: |
|---|---|---|

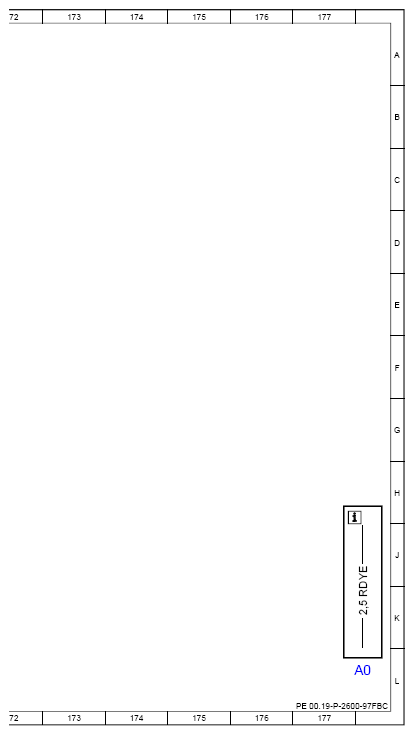

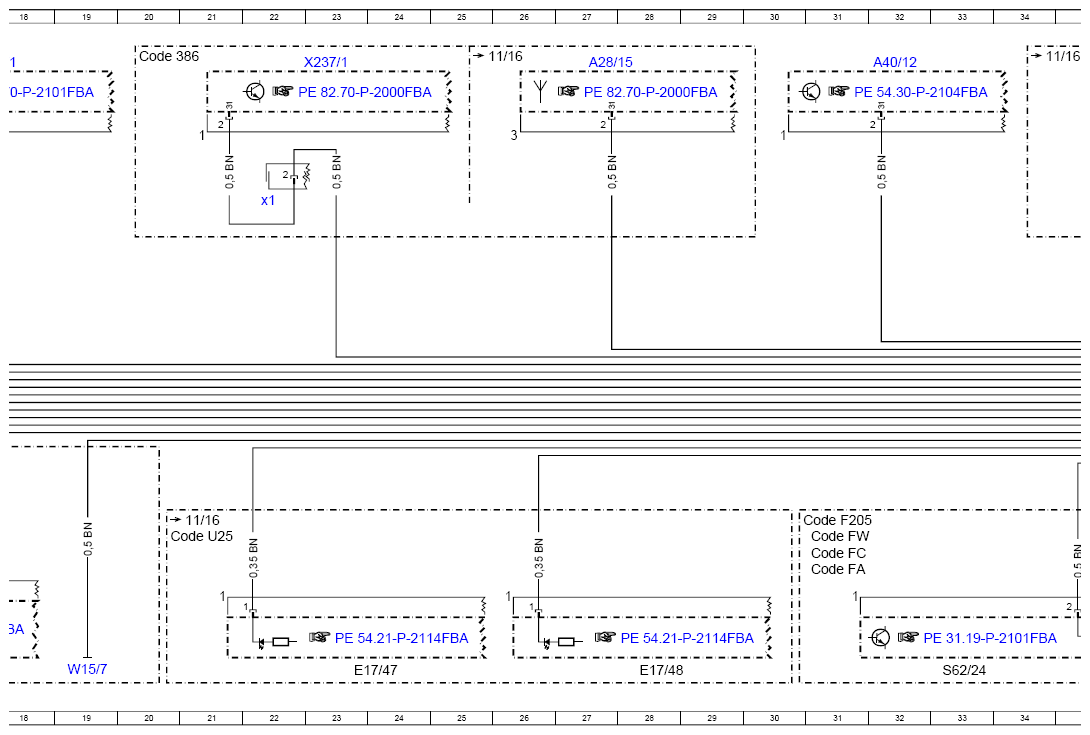

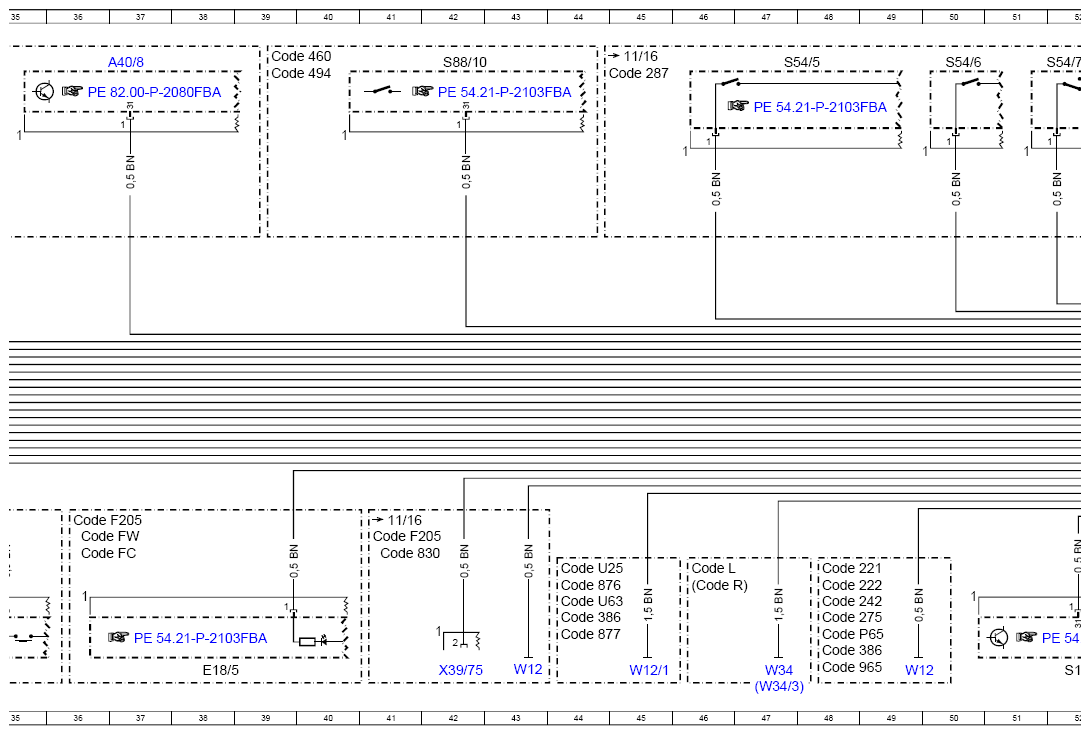

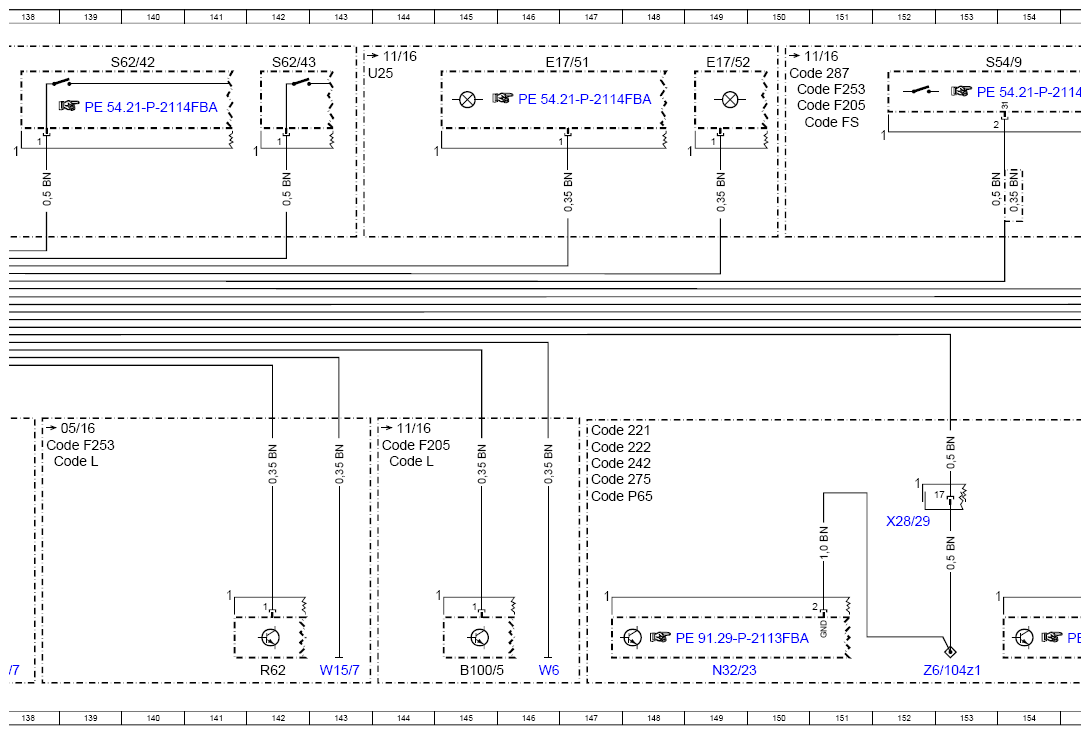

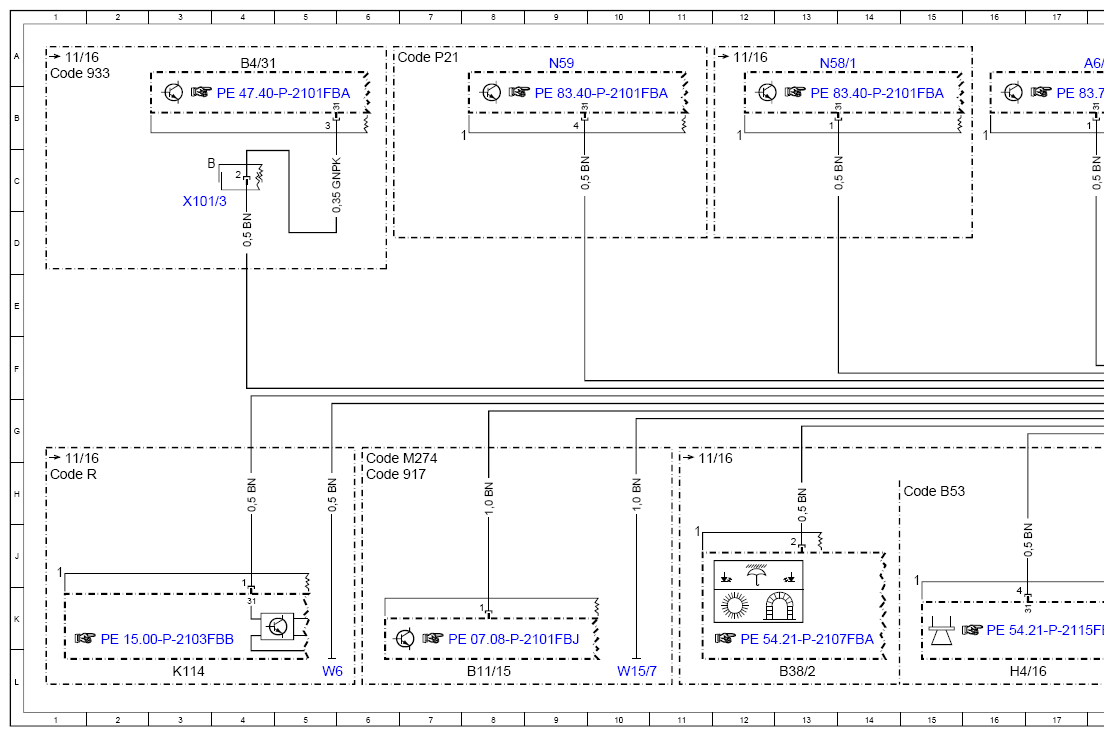

| A0 | Use of wiring diagrams | 178L |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 27A |
| A40/12 | Head-up display | 32A |
| A40/8 | Audio/COMAND display | 37A |
| A6/1 | Stationary heater radio remote control receiver | 18A |
| A7/5 | Soft top control hydraulic unit | 169A |
| A90/4 | Tuner unit | 70A |
| B100/5 | Trunk partition Hall sensor closed | 145L |
| B11/15 | Radiator sensor for engine diagnosis | 8L |
| B38/2 | Rain/light sensor with additional functions | 13L |
| B4/31 | Fuel quality sensor | 4A |
| Code 221 | Fully electric driver seat adjustment without memory without electric head restraint adjustment | 48J |
| Code 221 | Fully electric driver seat adjustment without memory without electric head restraint adjustment | 147G |
| Code 222 | Electrically adjustable right front seat | 48K |
| Code 222 | Electrically adjustable right front seat | 147G |
| Code 228 | Stationary heater | 156A |
| Code 242 | All-electric front passenger seat with memory (right) | 48K |
| Code 242 | All-electric front passenger seat with memory (right) | 147H |
| Code 275 | Memory package | 48K |
| Code 275 | Memory package | 147H |
| Code 287 | Through-loading feature | 44A |
| Code 287 | Through-loading feature | 150A |
| Code 386 | Comfort telephony | 44K |
| Code 386 | Comfort telephony | 48L |
| Code 386 | Comfort telephony | 20A |
| Code 460 | Canada version | 39A |
| Code 460 | Canada version | 134H |
| Code 474 | Diesel particulate filter | 134G |
| Code 494 | USA version | 39A |
| Code 494 | USA version | 134H |
| Code 536 | SIRIUS satellite radio | 68A |
| Code 537 | Digital radio (DAB) | 68B |
| Code 830 | Additional parts for China vehicles | 41J |
| Code 865 | TV tuner | 68B |
| Code 866 | Rear entertainment preinstallation | 107G |
| Code 876 | Interior lights package | 44K |
| Code 876 | Interior lights package | 93G |
| Code 877 | Ambiance illumination | 44K |
| Code 877 | Ambiance illumination | 111G |
| Code 917 | PZEV emission USA | 6H |
| Code 933 | Flexible Fuel Vehicle | 1A |
| Code 965 | Taxi/rental car - Pre-installation | 48L |
| Code 965 | Taxi/rental car - Pre-installation | 63A |
| Code B53 | Acoustic ambient protection | 15H |
| Code F205 | MODEL SERIES 205 | 30J |
| Code F205 | MODEL SERIES 205 | 36J |
| Code F205 | MODEL SERIES 205 | 41J |
| Code F205 | MODEL SERIES 205 | 54B |
| Code F205 | MODEL SERIES 205 | 144G |
| Code F205 | MODEL SERIES 205 | 150B |
| Code F205 | MODEL SERIES 205 | 156B |
| Code F205 | MODEL SERIES 205 | 165A |
| Code F253 | MODEL SERIES 253 | 54A |
| Code F253 | MODEL SERIES 253 | 138G |
| Code F253 | MODEL SERIES 253 | 150B |
| Code FA | CABRIOLET | 31J |
| Code FA | CABRIOLET | 156B |
| Code FA | CABRIOLET | 166A |
| Code FC | COUPE | 31J |
| Code FC | COUPE | 36J |
| Code FS | STATION WAGON | 55B |
| Code FS | STATION WAGON | 150B |
| Code FW | SEDAN | 31J |
| Code FW | SEDAN | 36J |
| Code L | LEFT-HAND DRIVE | 46J |
| Code L | LEFT-HAND DRIVE | 130H |
| Code L | LEFT-HAND DRIVE | 138H |
| Code L | LEFT-HAND DRIVE | 144H |
| Code M177 | SPARK-IGNITION ENGINE M177 | 130G |
| Code M177 | SPARK-IGNITION ENGINE M177 | 136A |
| Code M274 | SPARK-IGNITION ENGINE M274 | 6H |
| Code M651 | DIESEL ENGINE OM651 | 134G |
| Code P21 | AIR-BALANCE package | 6A |
| Code P65 | Seating comfort package | 48K |
| Code P65 | Seating comfort package | 147H |
| Code R | RIGHT-HAND DRIVE | 1H |
| Code R | RIGHT-HAND DRIVE | 46K |
| Code R | RIGHT-HAND DRIVE | 130J |
| Code U25 | Illuminated door sills | 20J |
| Code U25 | Illuminated door sills | 44J |
| Code U63 | Driving school package | 44K |
| Code U63 | Driving school package | 93H |

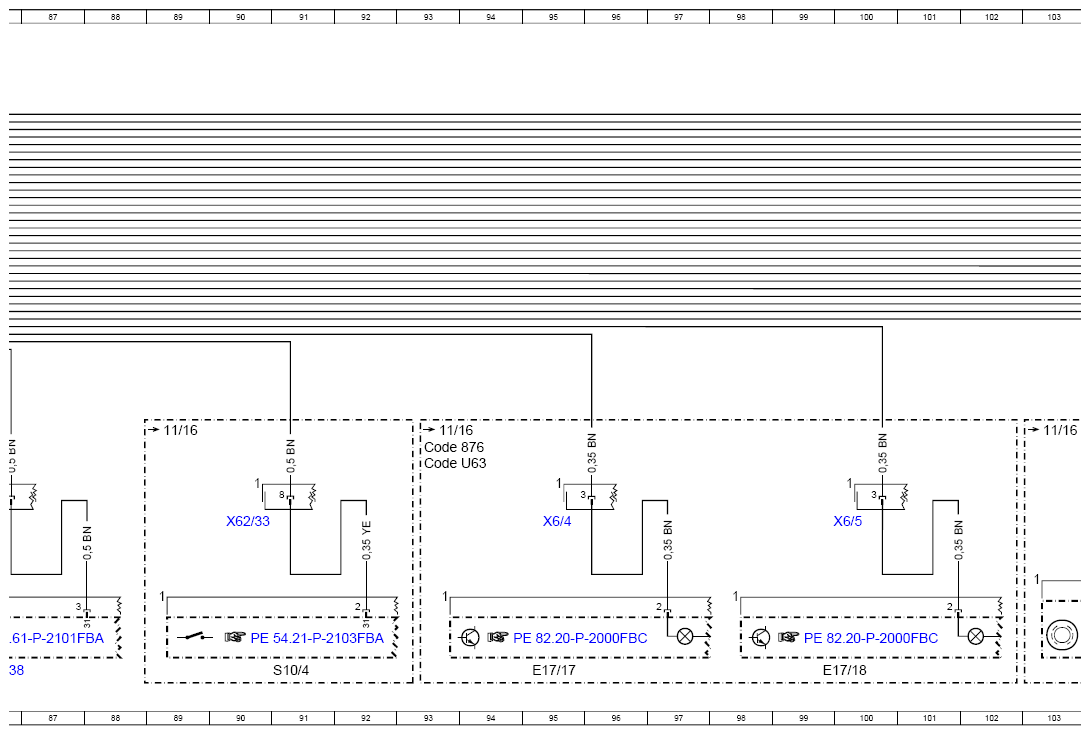

| E17/17 | Left rear footwell lamp | 95L |
| E17/17 | Left rear footwell lamp | 113L |
| E17/18 | Right rear footwell lamp | 99L |
| E17/18 | Right rear footwell lamp | 117L |
| E17/47 | Left front illuminated door sill molding | 23L |
| E17/48 | Right front illuminated door sill molding | 28L |
| E17/51 | Left rear illuminated door sill molding | 146A |
| E17/52 | Right rear illuminated door sill molding | 149A |
| E18/5 | Left luggage compartment lamp | 38L |
| H15 | Pedal operation monitor buzzer | 79L |
| H4/16 | Sound generator | 16L |
| K114 | ECO start/stop function additional battery relay | 3L |

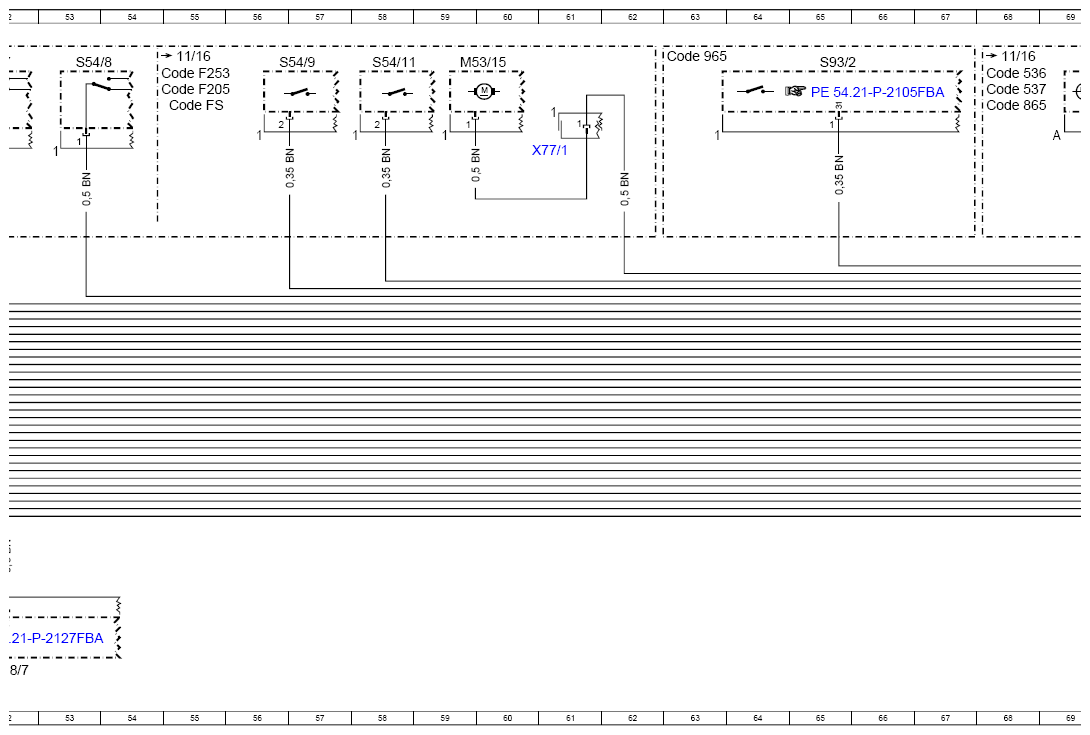

| M53/15 | Left rear backrest release actuator | 59A |

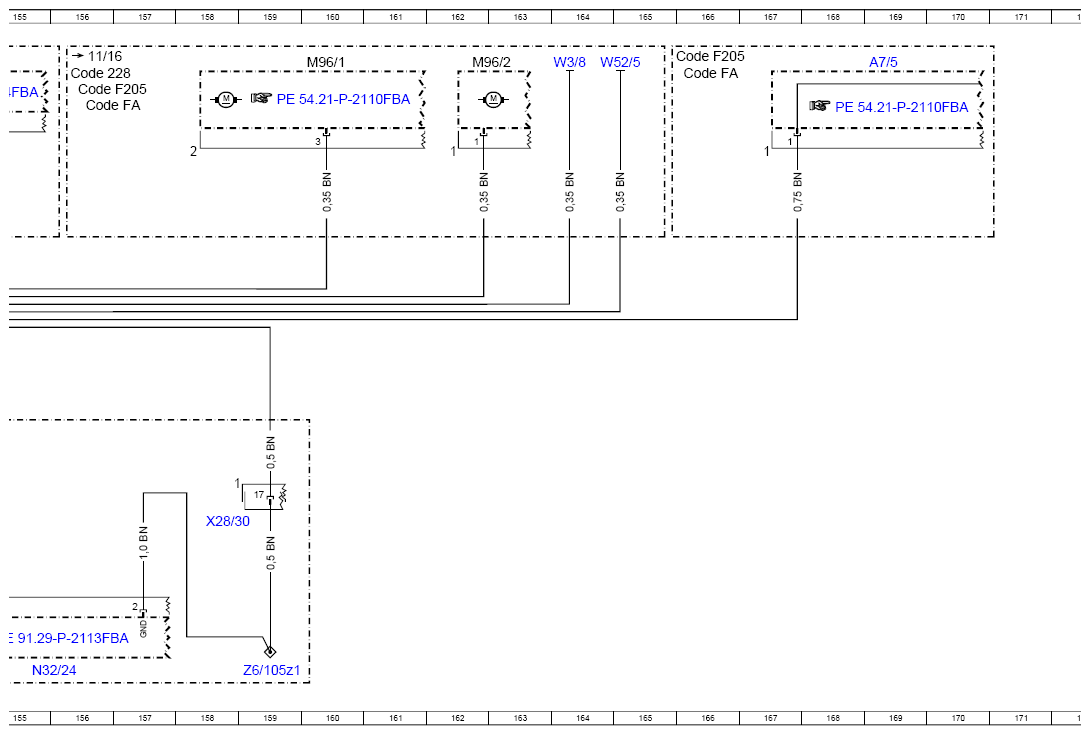

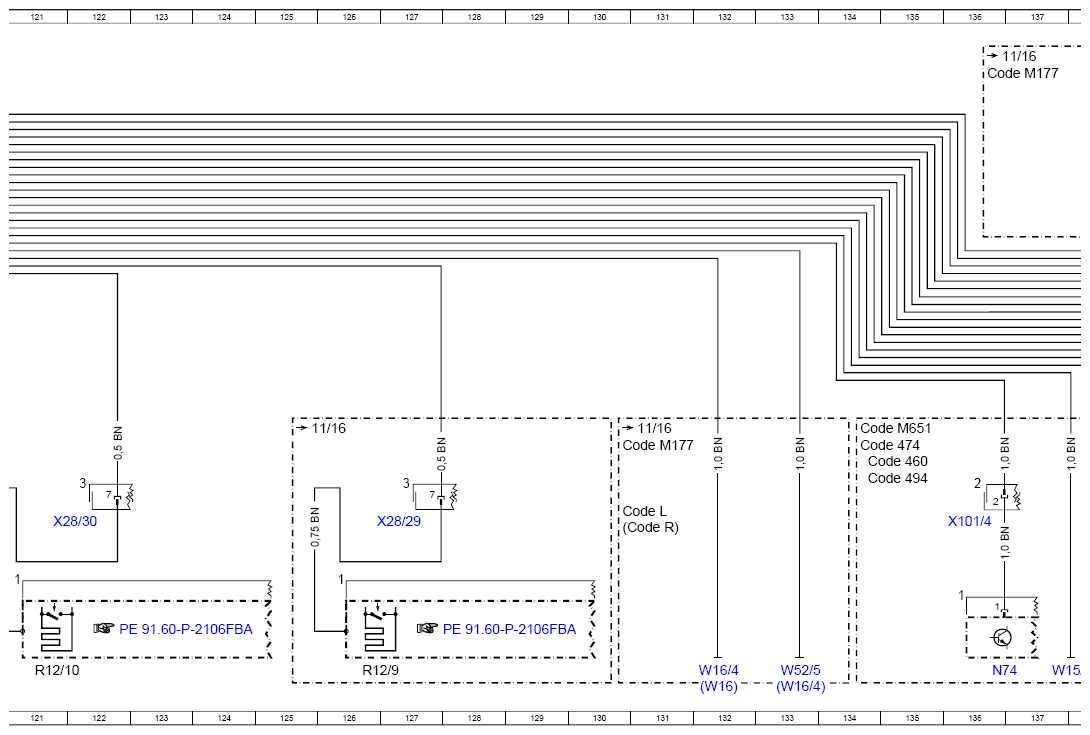

| M96/1 | Draft stop actuator motor | 160A |
| M96/2 | Wind deflector actuator motor | 162A |
| N32/23 | Driver seat lumbar support adjustment control unit | 149L |
| N32/24 | Front passenger seat lumbar support adjustment control unit | 155L |
| N38 | Rear switching module | 86L |
| N58/1 | Climate control operating unit | 13A |
| N59 | Perfume atomizer generator | 9A |
| N74 | Soot particulate sensor control unit | 136L |
| R12/10 | Front passenger sidebag squib | 121L |
| R12/9 | Driver sidebag squib | 126L |
| R62 | Voltage dip limiter | 142L |

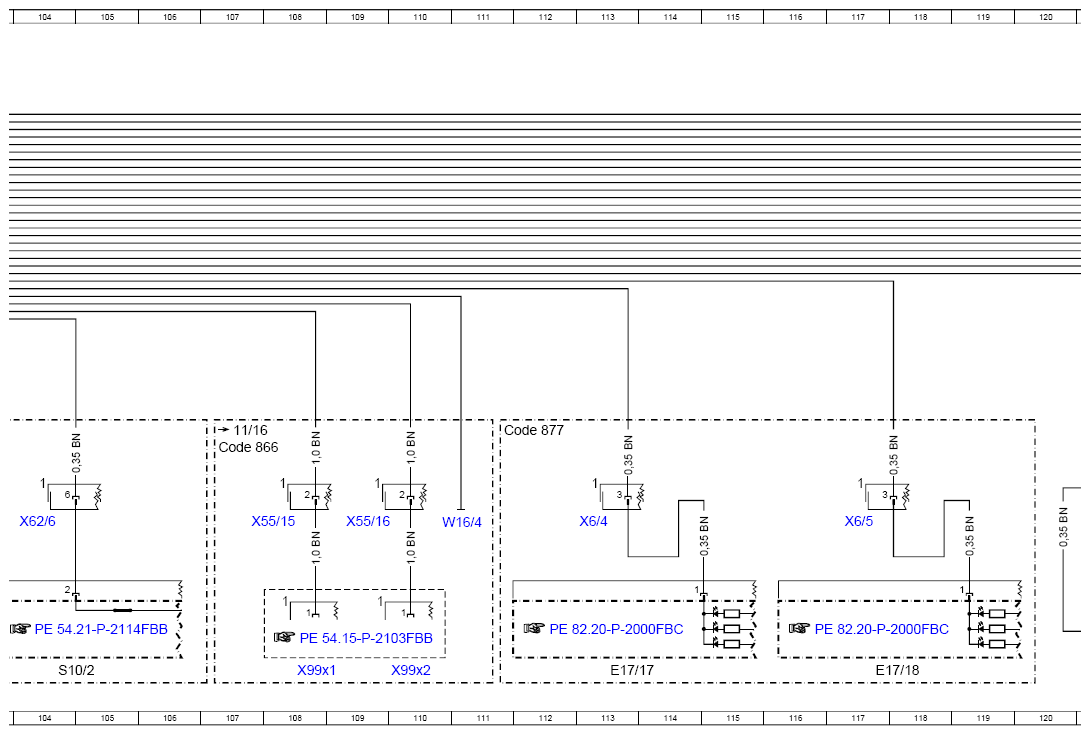

| S10/2 | Right front brake wear sensor | 104L |
| S10/4 | Right rear brake wear sensor | 91L |
| S146 | Pedal operation monitor switch | 82L |
| S18/7 | Footwell illumination switch | 52L |
| S54/11 | Left rear backrest release button | 58A |
| S54/5 | Left rear backrest inclination switch | 47A |
| S54/6 | Right rear backrest inclination switch | 50A |
| S54/7 | Left rear backrest lock switch | 52A |
| S54/8 | Right rear backrest lock switch | 53A |
| S54/9 | Left luggage compartment rear backrest release button | 57A |
| S54/9 | Left luggage compartment rear backrest release button | 153A |
| S62/24 | Trailer hitch release switch | 33L |
| S62/42 | Passenger side engine hood contact switch | 140A |
| S62/43 | Driver side engine hood contact switch | 142A |
| S88/10 | Trunk lid emergency opening switch | 42A |
| S93/2 | Two-way radio switch | 65A |
| U25 | Valid for automatic transmission | 143A |
| W12 | Ground point (center console) | 43L |
| W12 | Ground point (center console) | 49L |
| W12/1 | Right center console ground point | 45L |
| W15/7 | Right front footwell ground point | 19L |
| W15/7 | Right front footwell ground point | 10L |
| W15/7 | Right front footwell ground point | 137L |
| W15/7 | Right front footwell ground point | 143L |
| W16 | Major assembly compartment ground point | 132L |
| W16/4 | Right major assembly compartment ground point | 132L |
| W16/4 | Right major assembly compartment ground point | 133L |
| W16/4 | Right major assembly compartment ground point | 111J |
| W3/8 | Right rear wheel well ground point | 164A |
| W34 | Left footwell ground point | 47L |
| W34/3 | Right footwell ground point | 47L |
| W52/5 | Left center longitudinal member ground point | 133L |
| W52/5 | Left center longitudinal member ground point | 164A |
| W6 | Left wheel arch trunk ground point | 5L |
| W6 | Left wheel arch trunk ground point | 146L |
| X101/3 | Left rear frame floor assembly/underfloor electrical connector | 3C |
| X101/4 | Right rear frame floor assembly/underfloor electrical connector | 136J |
| X237/1 | Mobile phone contact plate | 23A |
| X237/1x1 | Mobile phone contact plate electrical connector 1 | 22C |
| X26/40 | Rear frame floor assembly/bumper electrical connector | 86J |
| X28/29 | Frame floor assembly/driver seat electrical connector | 127J |
| X28/29 | Frame floor assembly/driver seat electrical connector | 152J |
| X28/30 | Frame floor assembly/front passenger seat electrical connector | 122J |
| X28/30 | Frame floor assembly/front passenger seat electrical connector | 158J |
| X39/75 | Rear USB electrical connector | 42L |
| X55/15 | Driver seat electrical connector | 108J |
| X55/16 | Front passenger seat electrical connector | 109J |
| X6/4 | Driver footwell lamp electrical connector | 95J |
| X6/4 | Driver footwell lamp electrical connector | 113J |
| X6/5 | Front passenger footwell lamp electrical connector | 100J |
| X6/5 | Front passenger footwell lamp electrical connector | 117J |
| X62/33 | Rear axle electrical connector, right distributor | 90J |
| X62/6 | Front axle electrical connector, right distributor | 104J |
| X77/1 | Left rear backrest release actuator electrical connector | 61C |
| X99x1 | Left tablet PC electrical connector | 108L |
| X99x2 | Right tablet PC electrical connector | 110L |
| Z6/104z1 | Driver seat lumbar support ground line connector sleeve | 153L |
| Z6/105z1 | Front passenger seat lumbar support ground line connector sleeve | 159L |

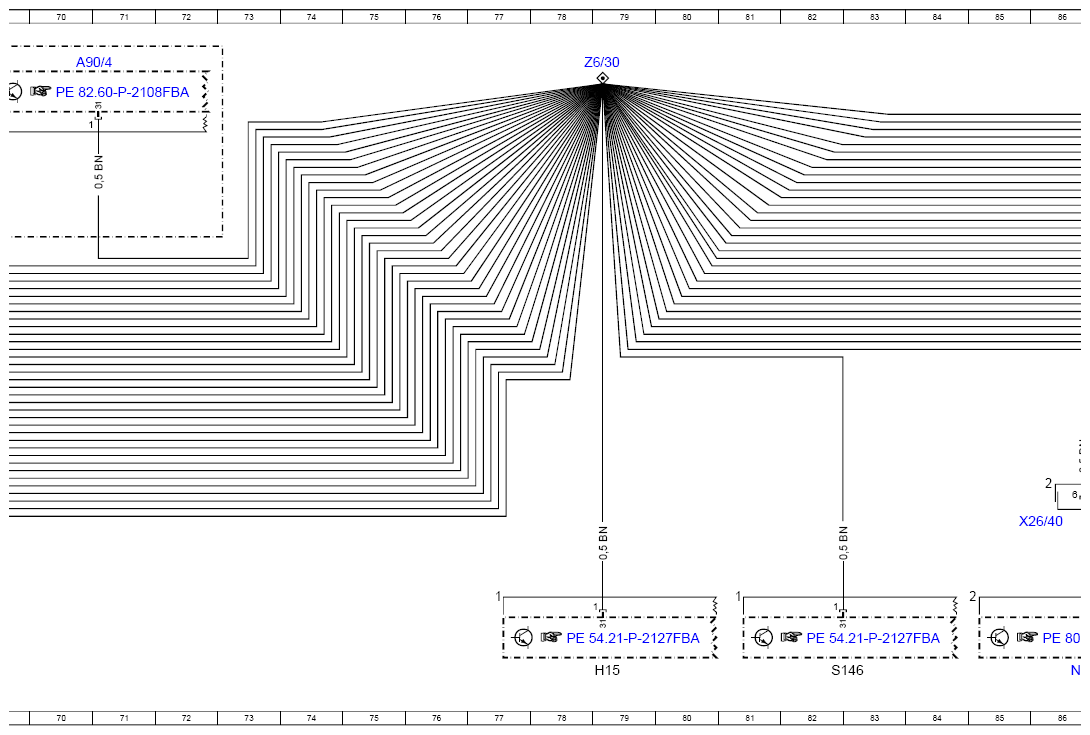

| Z6/30 | Circuit 31 connector sleeve | 79A |
