Remove/Install Brake Fluid Reservoir - AR42.10-P-0301LW
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205
Model 213
Model 253
Model 293

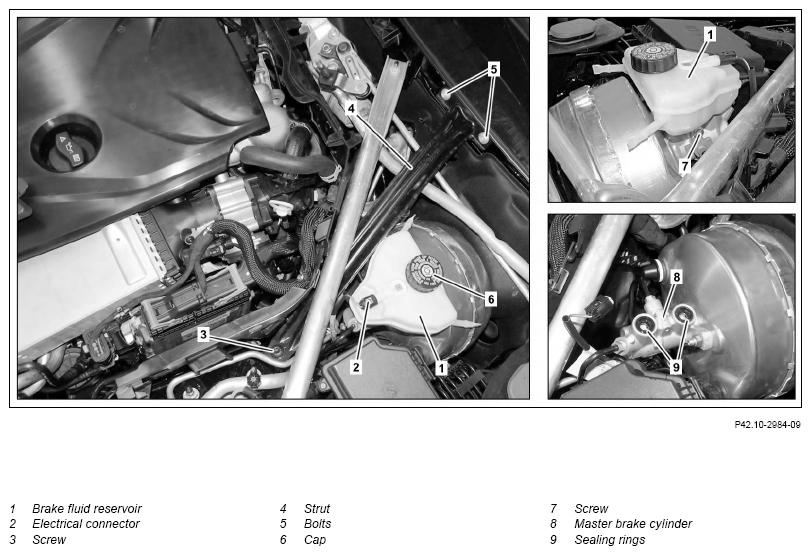

Shown on model 205
| Risk of poisoning from swallowing brake fluid. Risk of injury from skin and eye contact with brake fluid | Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| Topical note | Notes on externally invisible brake fluid loss | AH42.10-P-9406-02A | |
| Topical note | Brake fluid notes | AH42.50-P-0001-01A | |
| Topical note | Notes on repairs to brake system | AH42.00-P-0003-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Remove cover over brake fluid reservoir (1). | ||
| 2 | Unscrew screws (3, 5) and take off strut (4). | Model 205 Model 253 Model 293 |
*BA62.30-P-1003-02K |
| *BA62.30-P-1004-02K | |||
| 3 | Release and detach electrical connector (2) from brake fluid level switch. | ||
| 4 | Remove cap (6) and remove sieve from brake fluid reservoir (1). | ||
| 5 | Extract brake fluid from brake fluid reservoir (1). | ||
| 6 | Detach hose from brake fluid reservoir (1) and seal openings using suitable stop plugs. | Model 205, 213, 253 with transmission 716 Protect painted surfaces from brake fluid. Otherwise, the paint will be damaged. |
Fig 2 |
| 7 | Remove screw (7). | Instead of the screw (7), remove the installed safety pin. |
|
| 8 | Remove brake fluid reservoir (1) from master brake cylinder (8) and seal connections using suitable stop plugs. | Collect brake fluid which runs out with an absorbent rag. Otherwise, the paint will be damaged. |
Fig 2 |
| 9 | Install in the reverse order. | ||
| Check | |||
| 10 | Correct fluid level in brake fluid reservoir (1). | ||
| Model 205 | AP42.10-P-4210CAA | ||
| Model 213, 253 | AP42.10-P-4210B | ||
| Model 293 | AP42.10-P-4210F | ||
| 11 | Check area around brake fluid reservoir (1) for leak tightness. |
FROND END WITH FRONT REINFORCEMENT
| Number | Designation | Model 205 | Model 253 | |
|---|---|---|---|---|
| BA62.30-P-1003-02K | Screw/ Bolt, lower strut to suspension strut tower mounting bracket | Nm | 50 | 50 |
FROND END WITH FRONT REINFORCEMENT
| Number | Designation | Model 293 | |
|---|---|---|---|
| BA62.30-P-1003-02K | Screw/ Bolt, lower strut to suspension strut tower mounting bracket | Nm | 50 |
FROND END WITH FRONT REINFORCEMENT
| Number | Designation | Model 205 | Model 253 | |
|---|---|---|---|---|
| BA62.30-P-1004-02K | Screw/ Bolt, lower strut to firewall | Nm | 23 | 23 |
FROND END WITH FRONT REINFORCEMENT
| Number | Designation | Model 293 | |
|---|---|---|---|
| BA62.30-P-1004-02K | Screw/ Bolt, lower strut to firewall | Nm | 23 |
