Restart Tire Pressure Monitor (TPM) - AR54.30-P-1001-01LWG

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Model 205

up to model year 2019

with code 475 (Tire pressure monitoring system)

Model 253

up to model year 2020

with code 475 (Tire pressure monitoring system)

Switch on ignition.

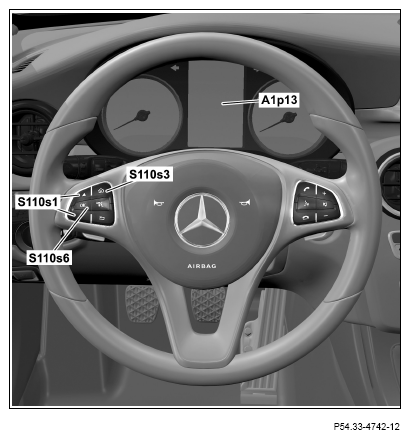

Use system selection button (S110s3) to call up list of menus.
Use scroll forward/back buttons (S110s1) to select "Service" menu.
OK button. (S110s6) press.
Use scroll forward/back buttons (S110s1) to select "Tire pressure".
OK button. (S110s6) press.
In the multifunction display (A1p13), the current tire pressures or the note "Tire pressure display appears after driving for a few minutes" are displayed.
Press scroll forward/back button (S110s1).
The note "Adopt current pressures as new guideline values" is shown in the multifunction display (A1p13).
OK button. (S110s6) press.
The note "Tire pressure monitoring restarted" is shown in the multifunction display (A1p13). After a few minutes' driving the tire pressures are displayed and monitored.
Switch off ignition.

Courtesy of MERCEDES-BENZ USA
