Detach/Attach Wiper Arms - AR82.30-P-6100-03LWE

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Model 205, 206, 213, 253, 293, 297

Model 238

except code 874 (MAGIC VISION CONTROL incl. heated windshield washer system)

injury hazard from pinching ana crushing, in extreme cases extremities can even be cut off when caught in windshield wiper mechanism.

When working on the windshield wiper mechanism, always switch off the ignition and store transmitter key outside of transmission range (at least 2 m).

AS82.30-Z-0001-01A

WINDSHIELD WIPER

Number	Designation		Model 205	Model 206
BA82.30-P-1001-01M	Nut to wiper arm	Nm	30	30

WINDSHIELD WIPER

Number	Designation		Model 213	Model 253
BA82.30-P-1001-01M	Nut to wiper arm	Nm	30	30

WINDSHIELD WIPER

Number	Designation		Model 293
BA82.30-P-1001-01M	Nut to wiper arm	Nm	30

WINDSHIELD WIPER

Number	Designation			Model 297
BA82.30-P-1001-01S	Nut, wiper arm to windshield wiper system	M10	Nm	30

Fig 1: Identifying Thrust Washer M 10X1.5 (210 589 04 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Puller (001 589 38 33 00)

Courtesy of MERCEDES-BENZ USA

Remove

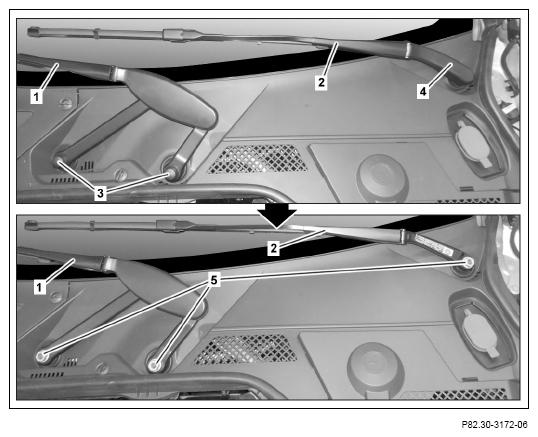

Remove caps (3, 4).
Unscrew nuts (5).
Release and remove wiper arms (1, 2) from windshield wiper system using puller and thrust piece.
Install
Attach wiper arms (1 2) to the windshield wiper system driver.
Position wiper arms (1, 2) with the aid of the window markings.
Screw on nuts (5) Model 205, 206, 213, 253, 293
Model 297
Attach caps (3, 4).

Courtesy of MERCEDES-BENZ USA
