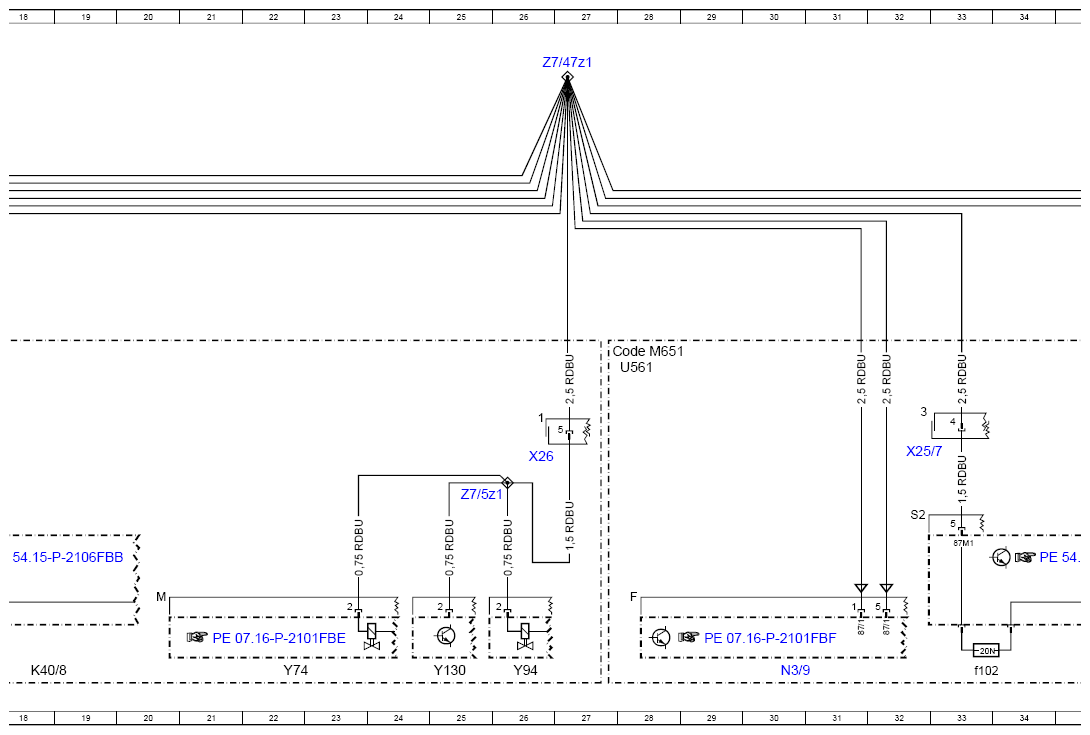

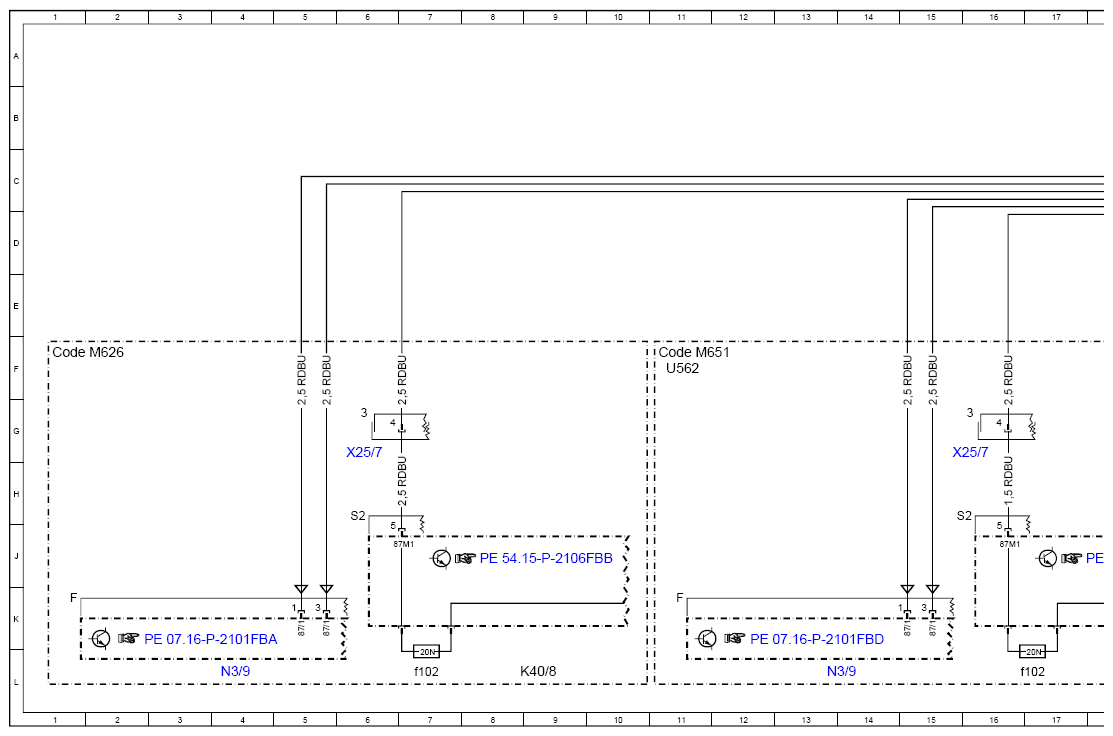

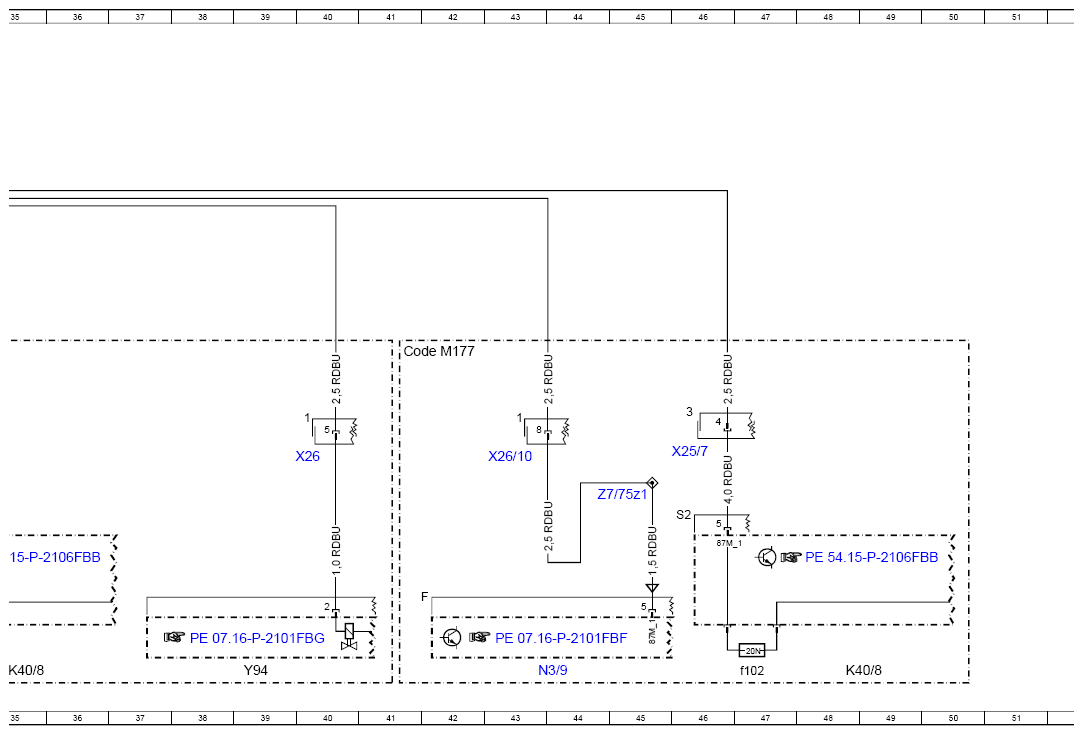

Wiring Diagram Of Soldered Points/Z Connector Sleeves - PE00.19-P-2600-97FBF
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205
up to model year 2019 Z7/5z1, Z7/47z1
Model 253 (except 253.99)
up to model year 2020 Z7/5z1, Z7/47z1
| Code: | Designation: | Position: |
|---|---|---|

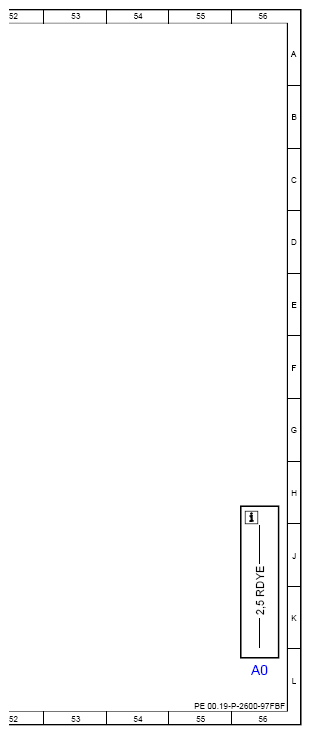

| A0 | Use of wiring diagrams | 56L |
| Code M177 | SPARK-IGNITION ENGINE M177 | 41F |
| Code M626 | 1F | |
| Code M651 | 27F | |
| Code M651 | 11F | |
| K40/8 | Engine fuse and relay module | 9L |
| K40/8 | Engine fuse and relay module | 18L |
| K40/8 | Engine fuse and relay module | 35L |
| K40/8 | Engine fuse and relay module | 48L |
| K40/8f102 | Fuse 102 | 7L |
| K40/8f102 | Fuse 102 | 17L |
| K40/8f102 | Fuse 102 | 33L |
| K40/8f102 | Fuse 102 | 47L |
| N3/9 | CDI control unit | 4L |
| N3/9 | CDI control unit | 13L |
| N3/9 | CDI control unit | 30L |
| N3/9 | CDI control unit | 43L |
| U561 | Valid for Delphi system | 28F |
| U562 | Valid for Bosch system | 11F |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 6G |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 16G |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 32G |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 46G |
| X26 | Interior and engine wiring harness electrical connector | 26G |
| X26 | Interior and engine wiring harness electrical connector | 40G |
| X26/10 | Vehicle interior/engine electrical connector | 43G |
| Y130 | Engine oil pump valve | 25L |
| Y74 | Pressure regulator valve | 22L |
| Y94 | Quantity control valve | 26L |
| Y94 | Quantity control valve | 39L |
| Z7/47z1 | Circuit 87/1 connector sleeve | 26A |
| Z7/5z1 | Circuit 87 connector sleeve | 25H |
| Z7/75z1 | Circuit 87/3 connector sleeve | 45H |
