Telephone (TEL) Wiring Diagram - PE82.70-P-2000-97FBA
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205 up to model year 2019
with code 386 (Comfort telephony)
Contact plate X237/1
Model 253 (except 253.99) up to model year 2020
with code 386 (Comfort telephony)
Contact plate X237/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 40L |

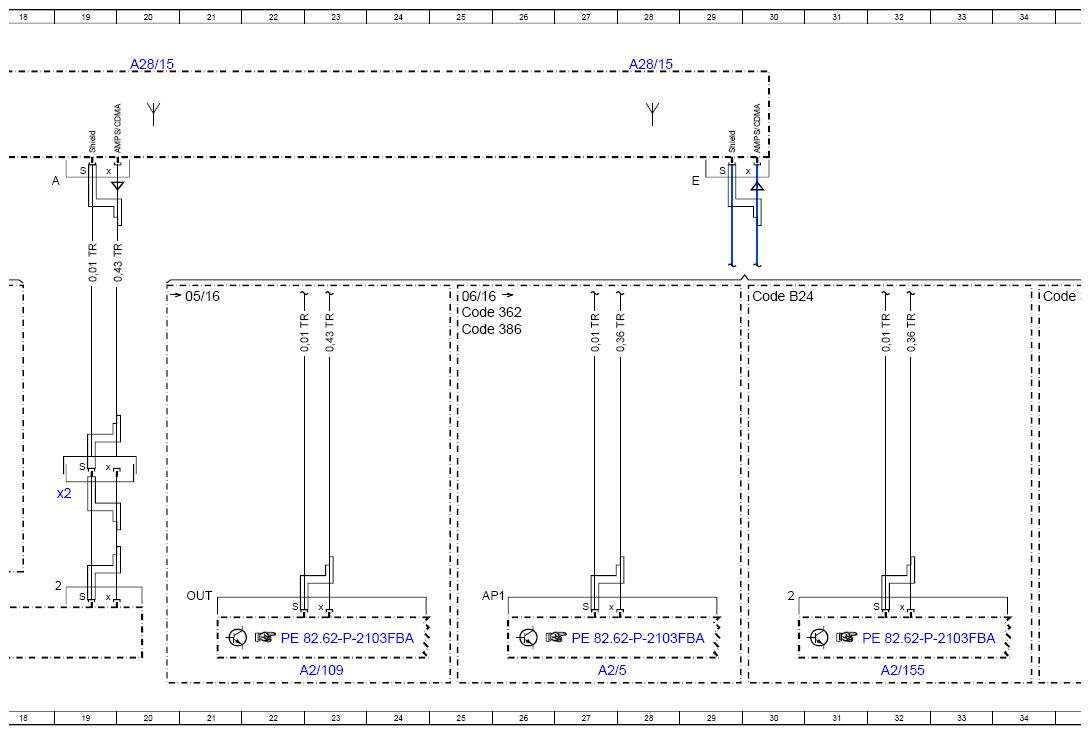

| A2/109 | Telephone antenna splitter | 23L |
| A2/155 | Telephone and stationary heater antenna changeover switch | 32L |
| A2/5 | Global positioning system antenna splitter | 27L |
| A26/17 | Head unit | 7L |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 4A |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 12A |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 20A |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 28A |
| Code 344 | Antenna preinstallation for taxi | 34E |
| Code 362 | HERMES LTE | 25E |
| Code 386 | Comfort telephony | 25E |
| Code B24 | Radio remote control for stationary heater | 30E |
| K40/5 | Rear fuse and relay module | 3L |
| K40/5f416 | Fuse 416 | 2L |
| W12/1 | Right center console ground point | 14J |
| W12/1 | Right center console ground point | 16J |
| W52/6 | Right center longitudinal member ground point | 17J |

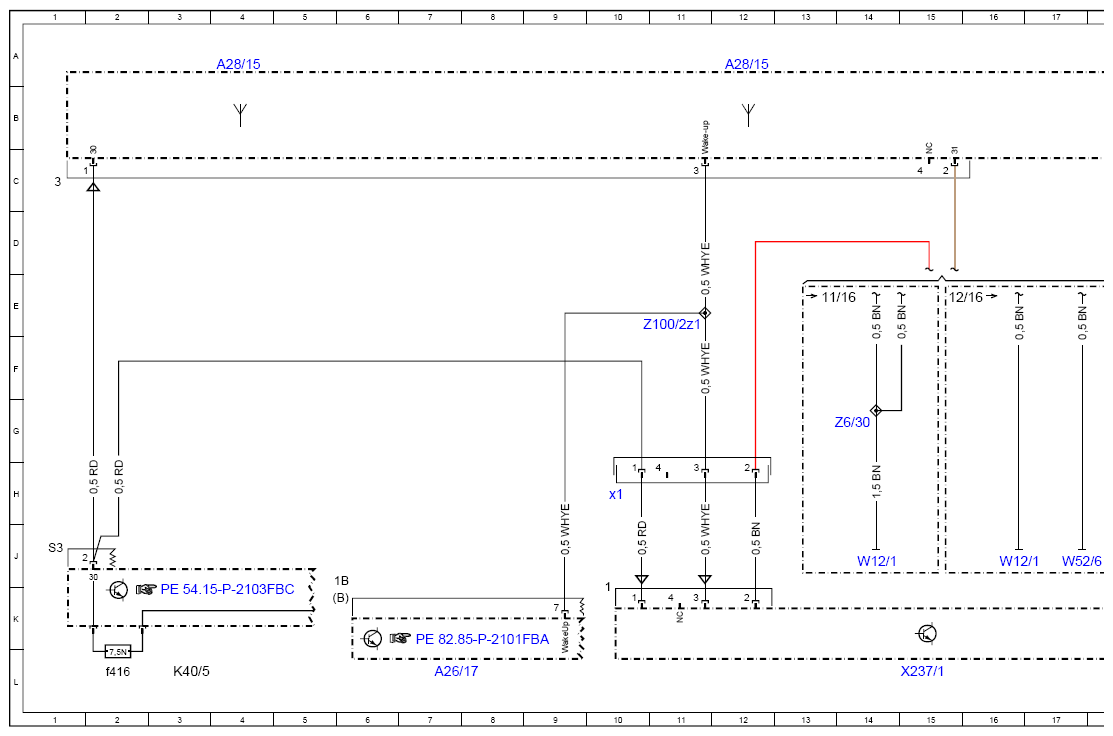

| X237/1 | Mobile phone contact plate | 15L |
| X237/1x1 | Mobile phone contact plate electrical connector 1 | 10H |
| X237/1x2 | Mobile phone contact plate electrical connector 2 | 19H |

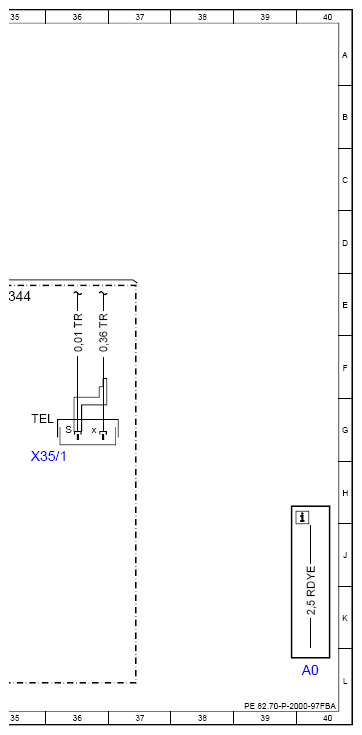

| X35/1 | Driver door electrical connector | 36H |
| Z100/2z1 | Wake-up signal connector sleeve | 11E |
| Z6/30 | Circuit 31 connector sleeve | 14G |
