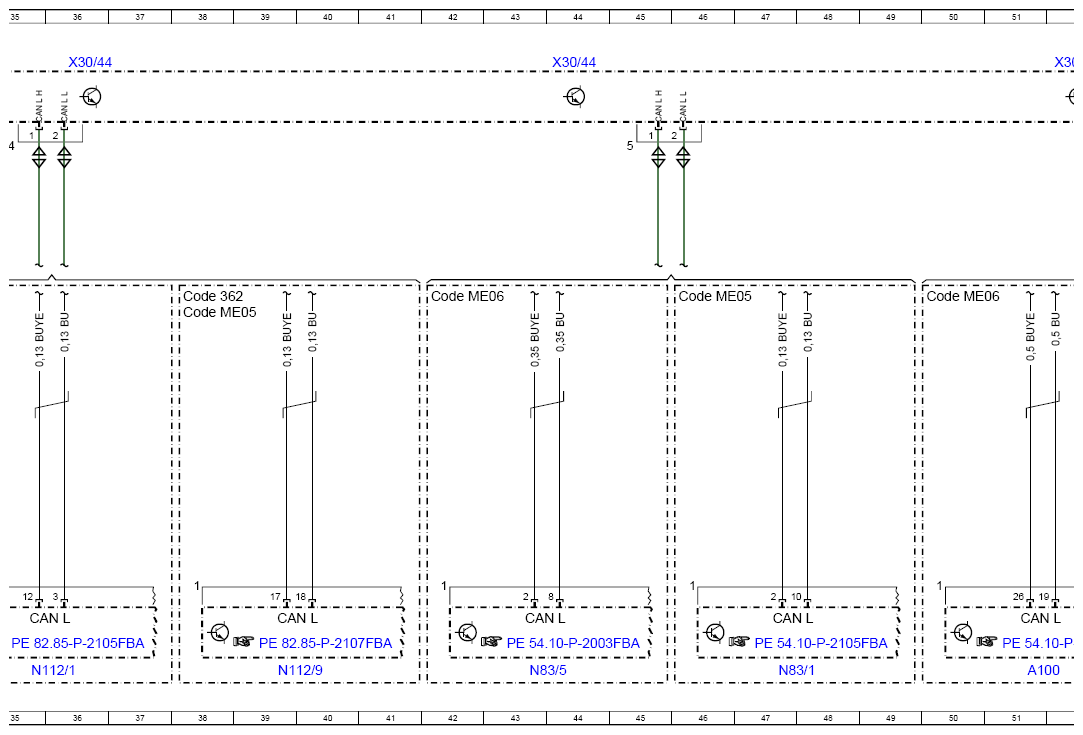

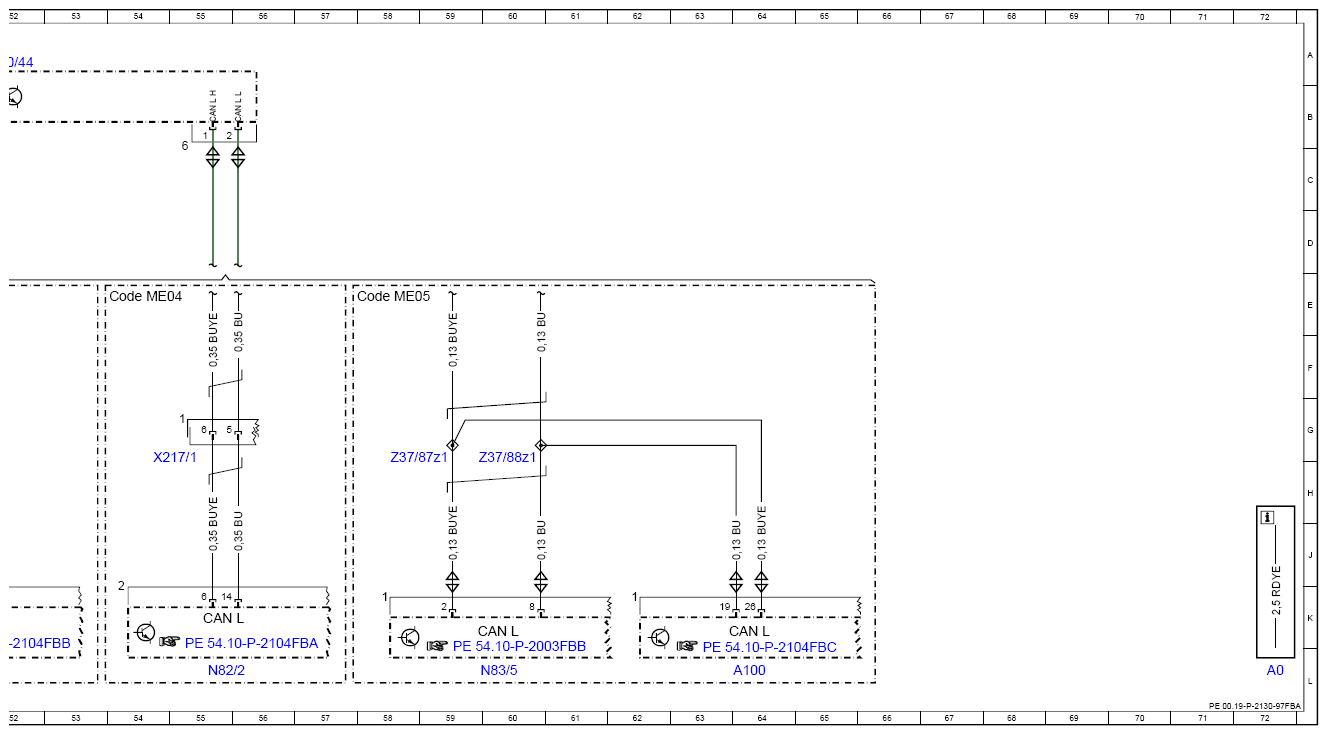

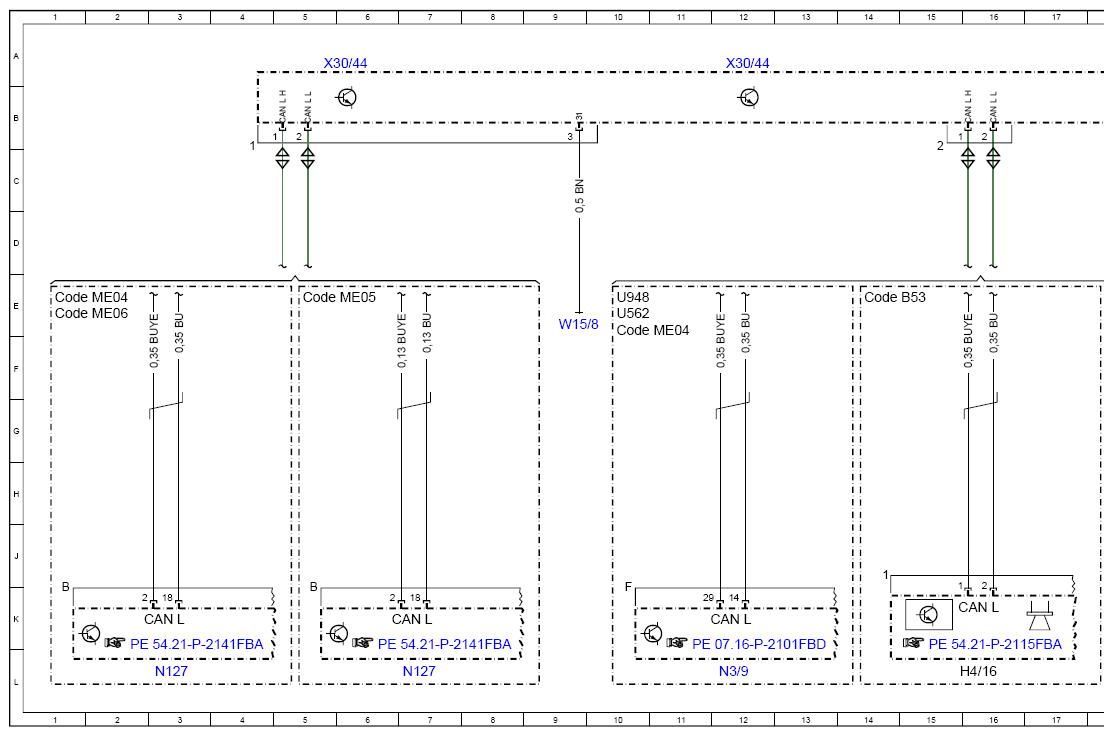

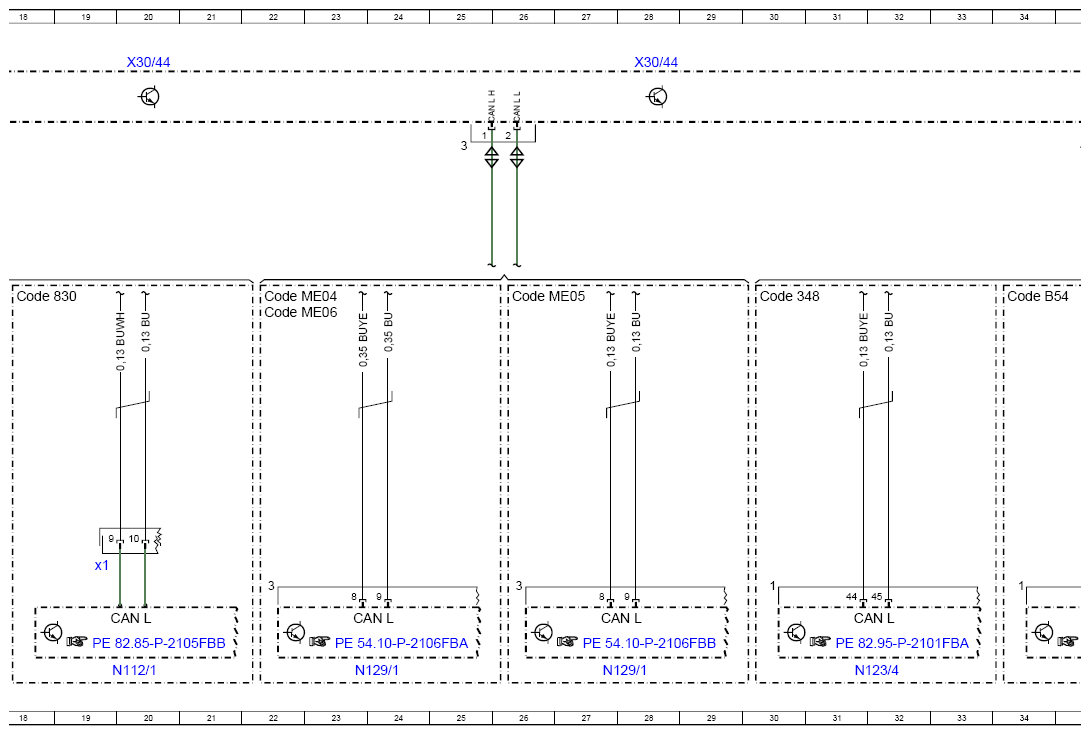

Wiring Diagram, Hybrid CAN - PE00.19-P-2130-97FBA
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205 up to model year 2019
Model 253 (except 253.99) up to model year 2020
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 72L |
| A100 | High-voltage battery module | 51L |
| A100 | High-voltage battery module | 64L |
| CAN L | Hybrid CAN | 3K |
| CAN L | Hybrid CAN | 7K |
| CAN L | Hybrid CAN | 12K |
| CAN L | Hybrid CAN | 16K |
| CAN L | Hybrid CAN | 20K |
| CAN L | Hybrid CAN | 23K |
| CAN L | Hybrid CAN | 27K |
| CAN L | Hybrid CAN | 31K |
| CAN L | Hybrid CAN | 35K |
| CAN L | Hybrid CAN | 60K |
| CAN L | Hybrid CAN | 39K |
| CAN L | Hybrid CAN | 43K |
| CAN L | Hybrid CAN | 47K |
| CAN L | Hybrid CAN | 51K |
| CAN L | Hybrid CAN | 55K |
| CAN L | Hybrid CAN | 64K |
| Code 348 | Emergency call / assistance system | 30E |
| Code 362 | HERMES LTE | 38E |
| Code 830 | Additional parts for China vehicles | 18E |
| Code B53 | Acoustic ambient protection | 14E |
| Code B54 | Live Traffic Information | 34E |
| Code ME04 | Hybrid drive 20 KW VARIANT | 1E |
| Code ME04 | Hybrid drive 20 KW VARIANT | 10E |
| Code ME04 | Hybrid drive 20 KW VARIANT | 22E |
| Code ME04 | Hybrid drive 20 KW VARIANT | 54E |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 5E |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 26E |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 38E |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 46E |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 57E |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 1E |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 22E |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 42E |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 50E |
| H4/16 | Sound generator | 16L |
| N112/1 | Telematics services communication module | 20L |
| N112/1 | Telematics services communication module | 35L |
| N112/1x1 | Telematics services communication module electrical connector | 19J |
| N112/9 | HERMES control unit | 39L |
| N123/4 | Emergency call system control unit | 31L |
| N127 | Drivetrain control unit | 7L |
| N127 | Drivetrain control unit | 3L |
| N129/1 | Power electronics control unit | 23L |
| N129/1 | Power electronics control unit | 27L |
| N3/9 | CDI control unit | 12L |
| N82/2 | Battery management system control unit | 55L |
| N83/1 | DC/DC converter control unit | 47L |
| N83/5 | Charger | 60L |
| N83/5 | Charger | 43L |
| U562 | Val id for Bosch system | 10E |
| U948 | Valid for diesel engine 651 | 10E |
| W15/8 | Right front footwell ground point (CAN) | 9E |
| X217/1 | Battery management system electrical connector | 55H |
| X30/44 | Hybrid CAN (CAN L) potential distributor electrical connector | 5A |
| X30/44 | Hybrid CAN (CAN L) potential distributor electrical connector | 12A |
| X30/44 | Hybrid CAN (CAN L) potential distributor electrical connector | 20A |
| X30/44 | Hybrid CAN (CAN L) potential distributor electrical connector | 28A |
| X30/44 | Hybrid CAN (CAN L) potential distributor electrical connector | 36A |
| X30/44 | Hybrid CAN (CAN L) potential distributor electrical connector | 44A |
| X30/44 | Hybrid CAN (CAN L) potential distributor electrical connector | 52A |
| Z37/87z1 | Hybrid CAN (high) connector sleeve | 58H |
| Z37/88z1 | Hybrid CAN (low) connector sleeve | 60H |
