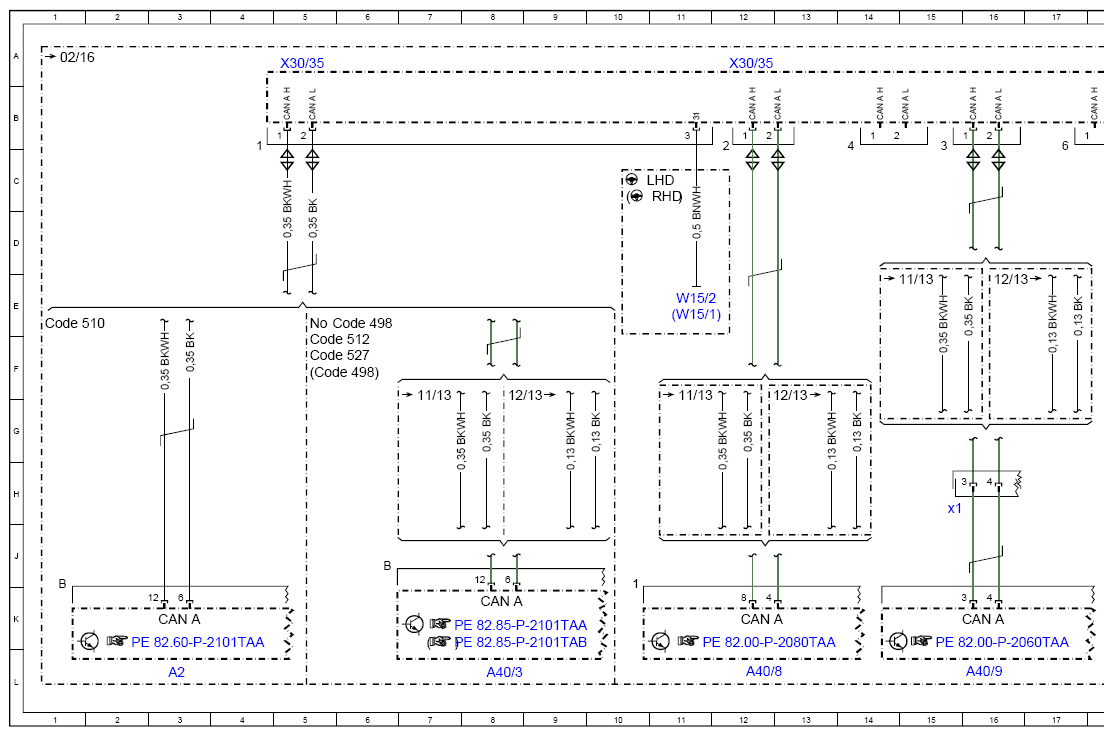

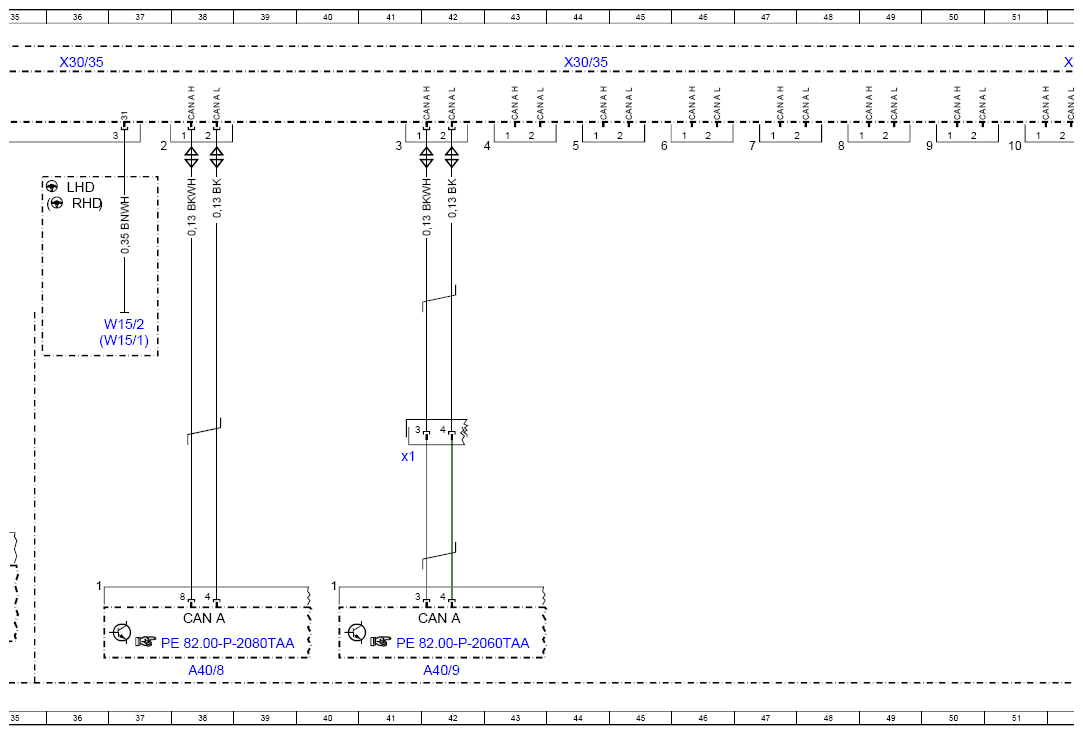

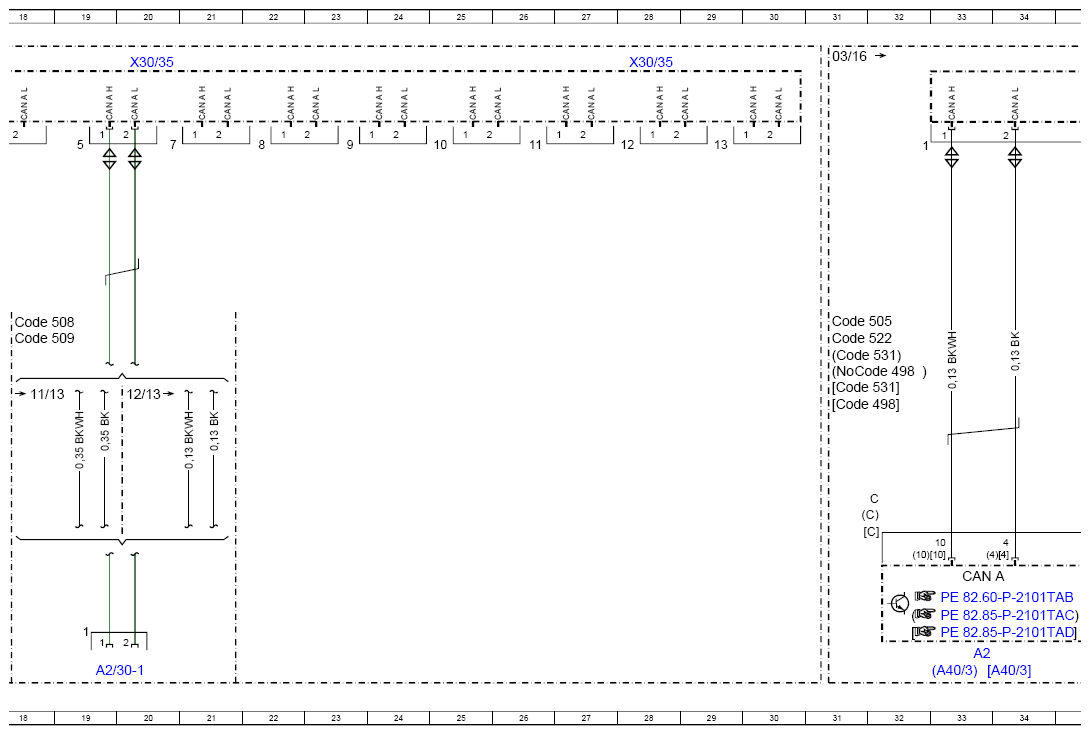

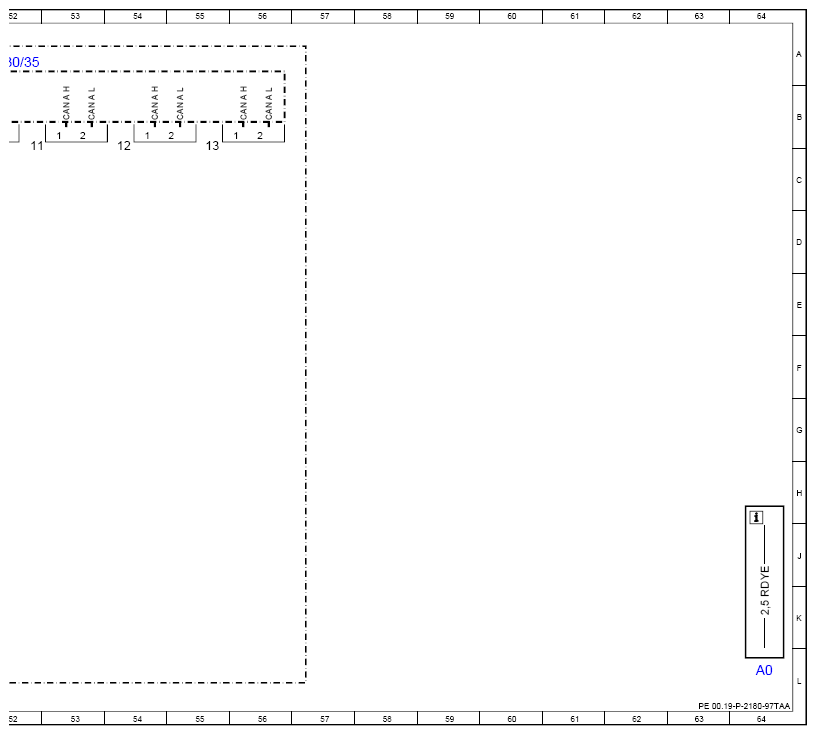

Wiring Diagram Of Telematics CAN - PE00.19-P-2180-97TAA
WARNING: This page is about a different car, the 2020 Mercedes-Benz SLC43 AMG, 2019 Mercedes-Benz SLC43 AMG, 2018 Mercedes-Benz SLC43 AMG, and 2017 Mercedes-Benz SLC43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 172.4
Potential distributor X30/35
| Code: | Designation: | Position: |
|---|---|---|
| AO | Color code key | 64L |
| A2 | Radio | 3L |
| A2 | Radio | 33L |
| A2/30-1 | Cradle for navigation module | 19L |
| A40/3 | COMAND control unit | 33L |
| A40/3 | COMAND control unit | 8L |
| A40/3 | COMAND control unit | 34L |
| A40/8 | Audio/COMAND display | 12L |
| A40/8 | Audio/COMAND display | 38L |
| A40/9 | Audio/COMAND control panel | 16L |
| A40/9 | Audio/COMAND control panel | 42L |
| A40/9x1 | Audio/COMAND control panel electrical connector | 15H |
| A40/9x1 | Audio/COMAND control panel electrical connector | 41H |
| CAN A | Telematics CAN | 12K |
| CAN A | Telematics CAN | 3K |
| CAN A | Telematics CAN | 8K |
| CAN A | Telematics CAN | 16K |
| CAN A | Telematics CAN | 38K |
| CAN A | Telematics CAN | 42K |
| CAN A | Telematics CAN | 33J |
| Code 498 | Japan version | 31F |
| Code 498 | Japan version | 5F |
| Code 498 | Japan version | 31G |
| Code 498 | Japan version | 5E |
| Code 505 | Radio 20 NTG5, non-navigation-capable | 31E |
| Code 508 | Navigation module preinstallation | 18E |
| Code 509 | Navigation module | 18F |
| Code 510 | Audio 20 with CD changer | IE |
| Code 512 | COMAND APS with DVD changer | 5F |
| Code 522 | Audio 20 radio | 31F |
| Code 527 | COMAND APS with single DVD drive (with navigation) | 5F |
| Code 531 | COMAND APS | 31F |
| Code 531 | COMAND APS | 31F |
| LHD | Left-hand drive vehicle | 10C |
| LHD | Left-hand drive vehicle | 36C |
| RHD | Right-hand drive vehicle | 11C |
| RHD | Right-hand drive vehicle | 36C |
| W15/1 | Right footwell ground point | 11E |
| W15/1 | Right footwell ground point | 37F |
| W15/2 | Left footwell ground point | 11E |
| W15/2 | Left footwell ground point | 37E |
| X30/35 | Telematics CAN voltage distributor electrical connector | 12A |
| X30/35 | Telematics CAN voltage distributor electrical connector | 5A |
| X30/35 | Telematics CAN voltage distributor electrical connector | 20A |
| X30/35 | Telematics CAN voltage distributor electrical connector | 28A |
| X30/35 | Telematics CAN voltage distributor electrical connector | 36A |
| X30/35 | Telematics CAN voltage distributor electrical connector | 44A |
| X30/35 | Telematics CAN voltage distributor electrical connector | 52A |
