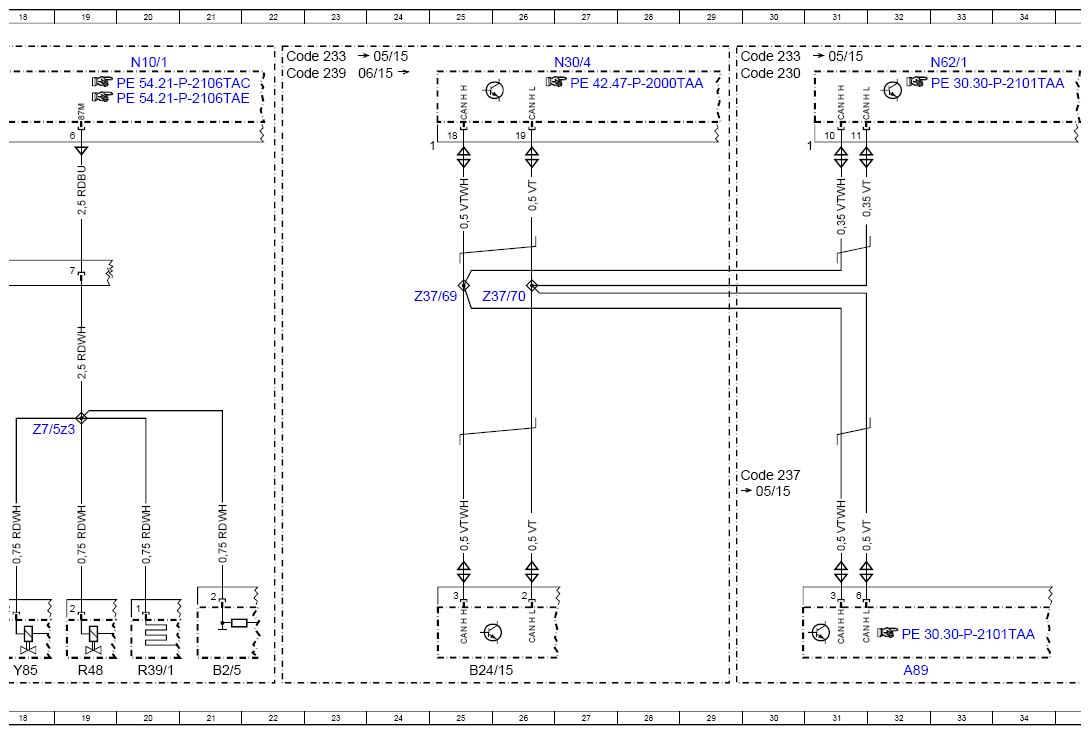

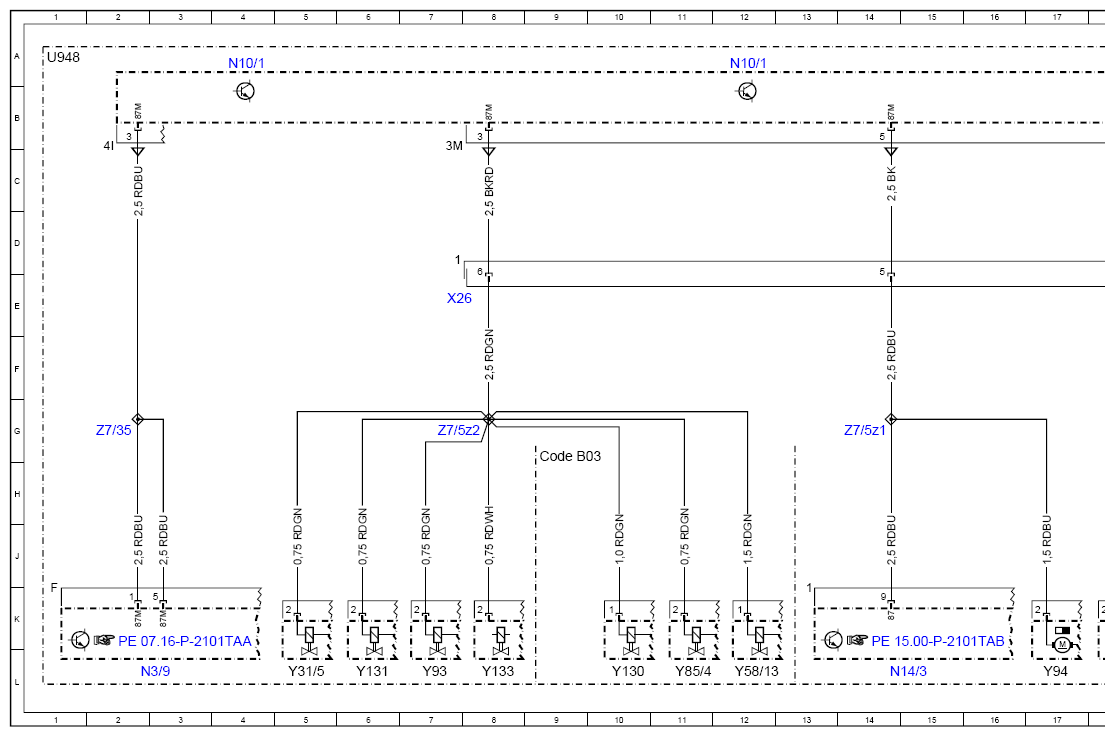

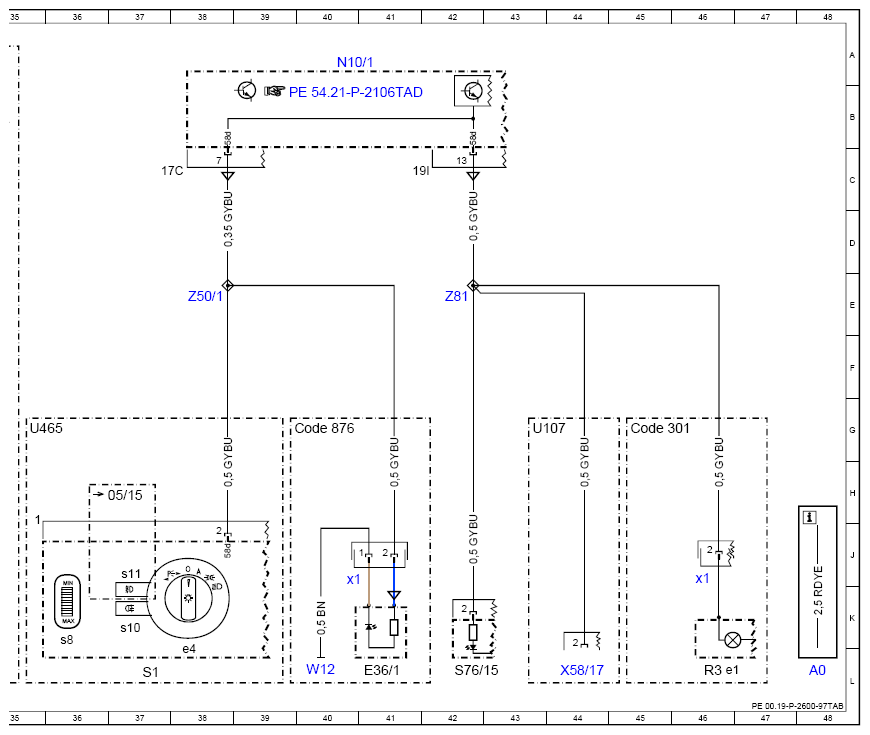

Wiring Diagram Of Soldered Points/Z Connector Sleeves - PE00.19-P-2600-97TAB
WARNING: This page is about a different car, the 2020 Mercedes-Benz SLC43 AMG, 2019 Mercedes-Benz SLC43 AMG, 2018 Mercedes-Benz SLC43 AMG, and 2017 Mercedes-Benz SLC43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 172.4
Sheet 2
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 48L |
| A89 | DISTRONIC electric controller unit | 32L |
| B2/5 | Hot film mass air flow sensor | 21L |
| B24/15 | Yaw rate sensor for lateral and longitudinal acceleration | 25L |
| Code 230 | Exclusive parking assist | 29A |
| Code 233 | DISTRONIC PLUS | 22A |
| Code 233 | DISTRONIC PLUS | 29A |
| Code 237 | Active Blind Spot Assist | 29H |
| Code 239 | DISTRONIC PLUS | 22A |
| Code 301 | Ashtray in place of stowage compartment with flap and power outlet | 45G |
| Code 876 | Interior lights package | 39G |
| Code B03 | ECO start/stop function | 9G |
| E36/1 | Armrest stowage compartment illumination | 41L |
| E36/1x1 | Armrest stowage compartment illumination electrical connector | 40J |
| N10/1 | Front SAM control unit with fuse and relay module | 4A |
| N10/1 | Front SAM control unit with fuse and relay module | 12A |
| N10/1 | Front SAM control unit with fuse and relay module | 20A |
| N10/1 | Front SAM control unit with fuse and relay module | 40A |
| N14/3 | Glow output stage | 14L |
| N3/9 | CDI control unit | 2L |
| N30/4 | Electronic Stability Program control unit | 27A |
| N62/1 | Radar sensors control unit | 33A |
| R3 | Cigarette lighter with ashtray illumination | 46L |
| R39/1 | Vent line heater element | 20L |
| R3e1 | Ashtray illumination | 46L |
| R3x1 | Electrical connector for cigarette lighter with ashtray illumination | 46J |
| R48 | Coolant thermostat heating element | 19L |
| S1 | Exterior lights switch | 37L |
| S1e4 | Switch illumination | 38L |
| S1s10 | Rear fog light button | 37K |
| S1s11 | Front fog lamp button | 37J |
| S1s8 | Headlamp range controller | 36K |
| S76/15 | Electric parking brake switch | 42L |
| U107 | Valid for socket in glove compartment | 43G |
| U465 | Valid for manual headlamp range adjustment | 35G |
| U948 | Valid for diesel engine 651 | 1A |
| W12 | Ground point (center console) | 40L |
| X26 | Interior and engine wiring harness electrical connector | 7E |
| X58/17 | Front vehicle interior power outlet | 44L |
| Y130 | Engine oil pump valve | 10L |
| Y131 | Oil spray nozzle shutoff valve | 6L |
| Y133 | Coolant pump switchover valve | 8L |
| Y31/5 | Boost pressure control pressure transducer | 5L |
| Y58/13 | Heat exchanger shutoff valve | 12L |
| Y85 | Exhaust gas recirculation cooler bypass switchover valve | 18L |
| Y85/4 | Exhaust gas recirculation bypass flap electronic vacuum regulator | 11L |
| Y93 | Boost pressure control flap pressure transducer | 7L |
| Y94 | Quantity control valve | 17L |
| Z37/69 | Vehicle dynamics CAN (high) connector sleeve | 25E |
| Z37/70 | Dynamic CAN bus (low) connector sleeve | 26E |
| Z50/1 | Circuit 58d instrument panel connector sleeve | 38E |
| Z7/35 | Circuit 87 M1e connector sleeve | 2G |
| Z7/5z1 | Circuit 87 connector sleeve | 14G |
| Z7/5z2 | Circuit 87 connector sleeve | 7G |
| Z7/5z3 | Circuit 87 connector sleeve | 19G |
| Z81 | Circuit 58d connector sleeve | 42E |
