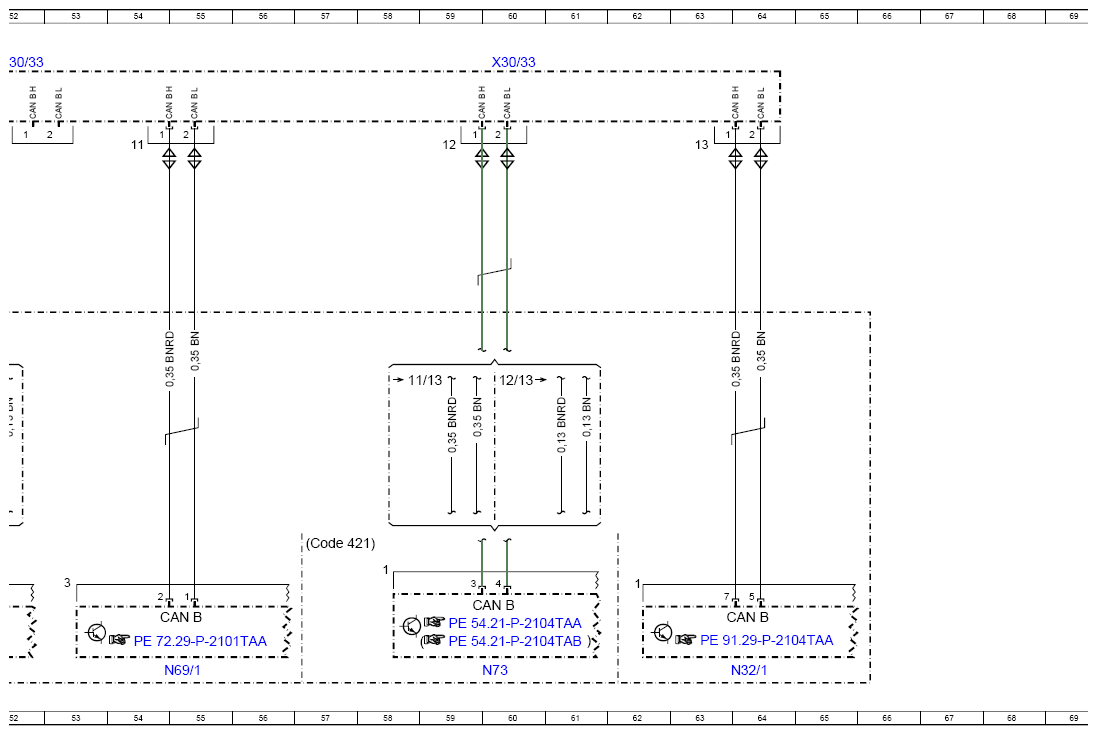

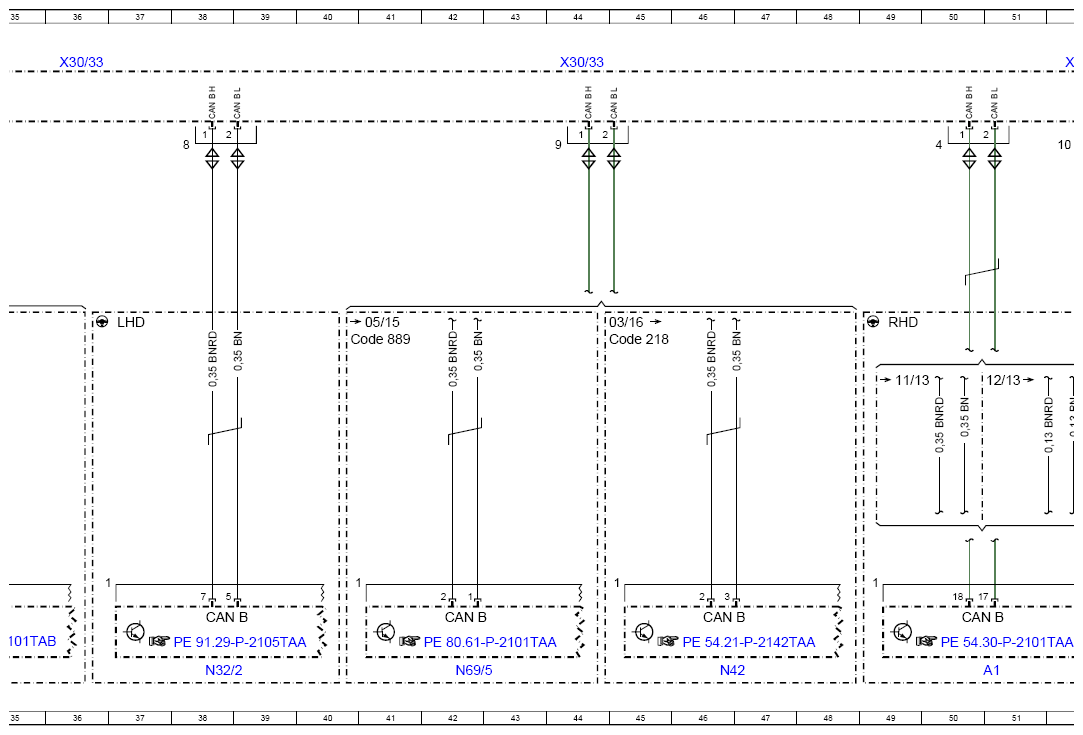

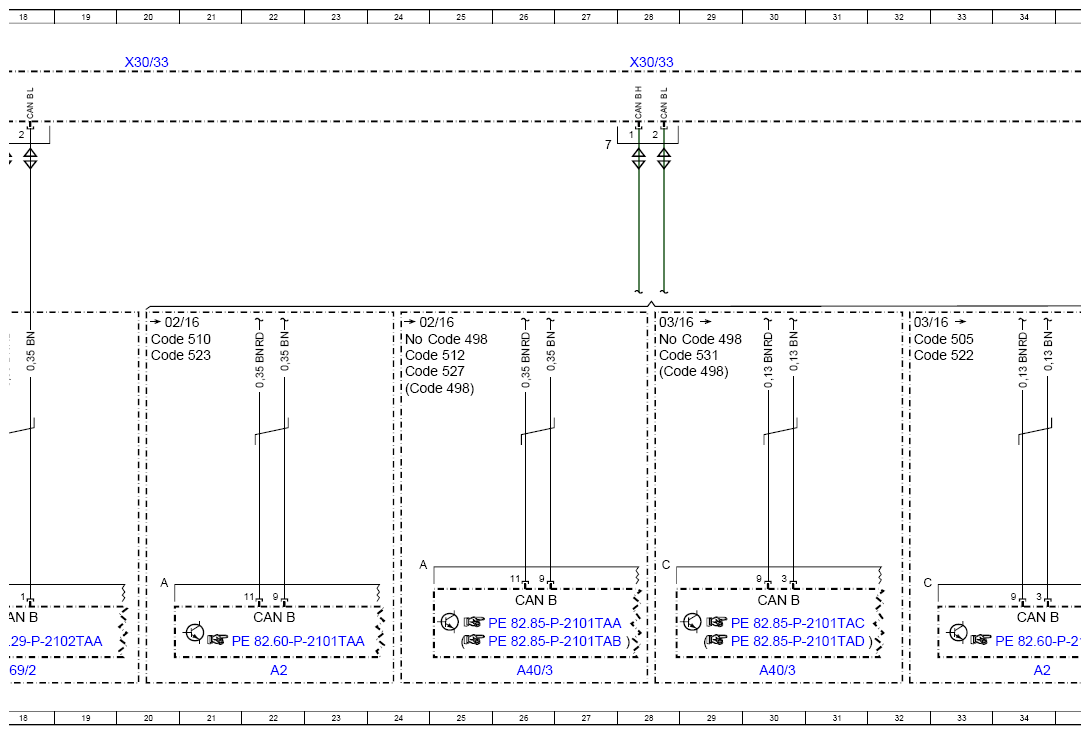

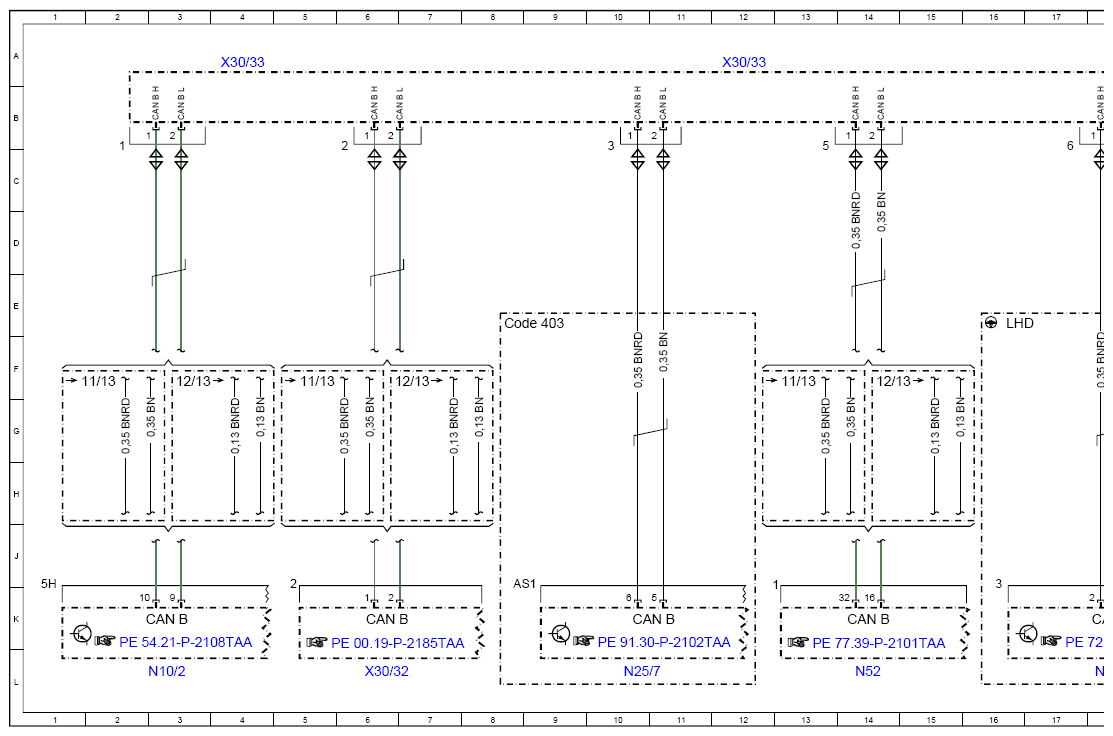

Wiring Diagram Of Interior CAN - PE00.19-P-2185-97TAB
WARNING: This page is about a different car, the 2020 Mercedes-Benz SLC43 AMG, 2019 Mercedes-Benz SLC43 AMG, 2018 Mercedes-Benz SLC43 AMG, and 2017 Mercedes-Benz SLC43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 172.4
Potential distributor X30/33
| Code: | Designation: | Position: |
|---|---|---|

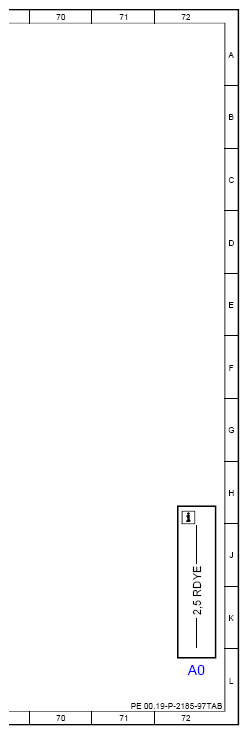

| A0 | Color code key | 72L |
| A1 | Instrument cluster | 51L |
| A2 | Radio | 22L |
| A2 | Radio | 34L |
| A40/3 | COMAND control unit | 26L |
| A40/3 | COMAND control unit | 30L |
| CAN B | Interior CAN | 14K |
| CAN B | Interior CAN | 3K |
| CAN B | Interior CAN | 6K |
| CAN B | Interior CAN | 10K |
| CAN B | Interior CAN | 18K |
| CAN B | Interior CAN | 22K |
| CAN B | Interior CAN | 34K |
| CAN B | Interior CAN | 26K |
| CAN B | Interior CAN | 30K |
| CAN B | Interior CAN | 60K |
| CAN B | Interior CAN | 42K |
| CAN B | Interior CAN | 38K |
| CAN B | Interior CAN | 46K |
| CAN B | Interior CAN | 50K |
| CAN B | Interior CAN | 55K |
| CAN B | Interior CAN | 64K |
| Code 218 | Backup camera | 44F |
| Code 403 | AIRSCARF system | 8E |
| Code 421 | 9G-TR0NIC | 57J |
| Code 498 | Japan version | 28F |
| Code 498 | Japan version | 24F |
| Code 498 | Japan version | 24F |
| Code 498 | Japan version | 29F |
| Code 505 | Radio 20 NTG5, non-navigation-capable | 32F |
| Code 510 | Audio 20 with CD changer | 20F |
| Code 512 | COMAND APS with DVD changer | 24F |
| Code 522 | Audio 20 radio | 32F |
| Code 523 | Audio 20 radio | 20F |
| Code 527 | COMAND APS with single DVD drive (with navigation) | 24F |
| Code 531 | COMAND APS | 28F |
| Code 889 | KEYLESS-GO | 40F |
| LHD | Left-hand drive vehicle | 16E |
| LHD | Left-hand drive vehicle | 37E |
| N10/2 | Rear SAM control unit with fuse and relay module | 3L |
| N25/7 | AIRSCARF control unit | 10L |
| N32/1 | Driver seat control unit | 64L |
| N32/2 | Front passenger seat control unit | 38L |
| N42 | Camera cover control unit | 46L |
| N52 | Vario roof control control unit | 14L |
| N69/1 | Left door control unit | 55L |
| N69/2 | Right door control unit | 18L |
| N69/5 | KEYLESS-GO control unit | 42L |
| N73 | Electronic ignition switch control unit | 60L |
| RHD | Right-hand drive vehicle | 49E |
| X30/32 | Left vehicle floor interior CAN voltage distributor electrical connector | 6L |
| X30/33 | Right vehicle floor interior CAN voltage distributor electrical connector | 4A |
| X30/33 | Right vehicle floor interior CAN voltage distributor electrical connector | 12A |
| X30/33 | Right vehicle floor interior CAN voltage distributor electrical connector | 20A |
| X30/33 | Right vehicle floor interior CAN voltage distributor electrical connector | 28A |
| X30/33 | Right vehicle floor interior CAN voltage distributor electrical connector | 36A |
| X30/33 | Right vehicle floor interior CAN voltage distributor electrical connector | 44A |
| X30/33 | Right vehicle floor interior CAN voltage distributor electrical connector | 52A |
| X30/33 | Right vehicle floor interior CAN voltage distributor electrical connector | 60A |
