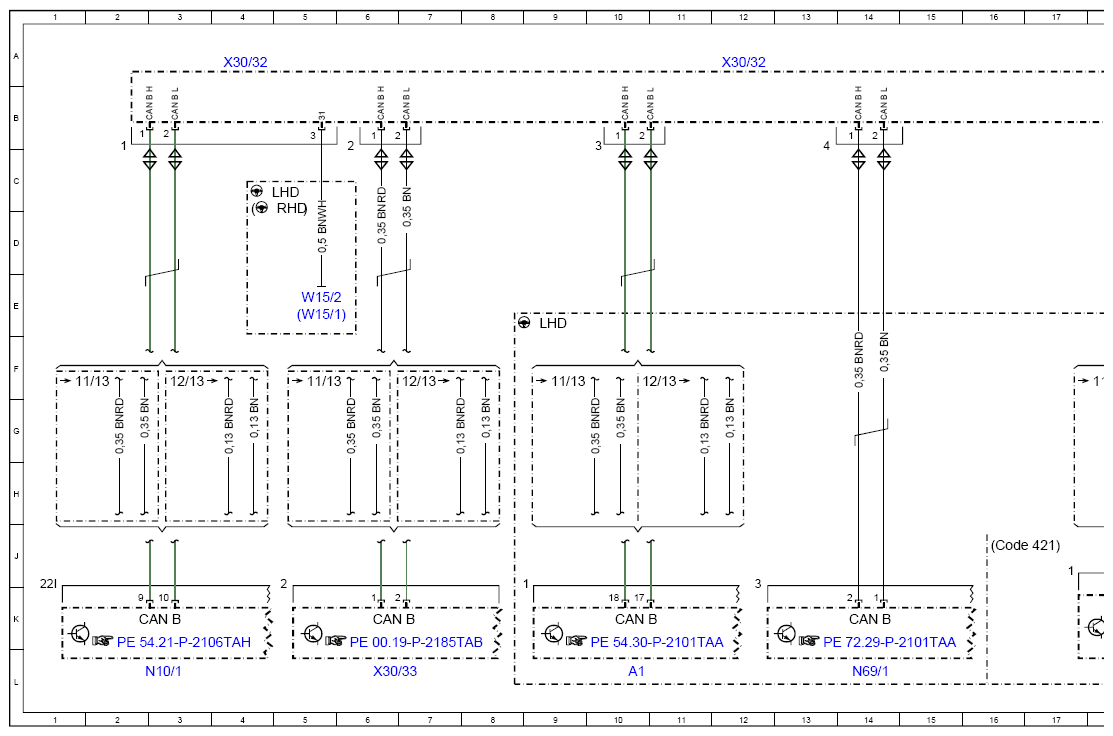

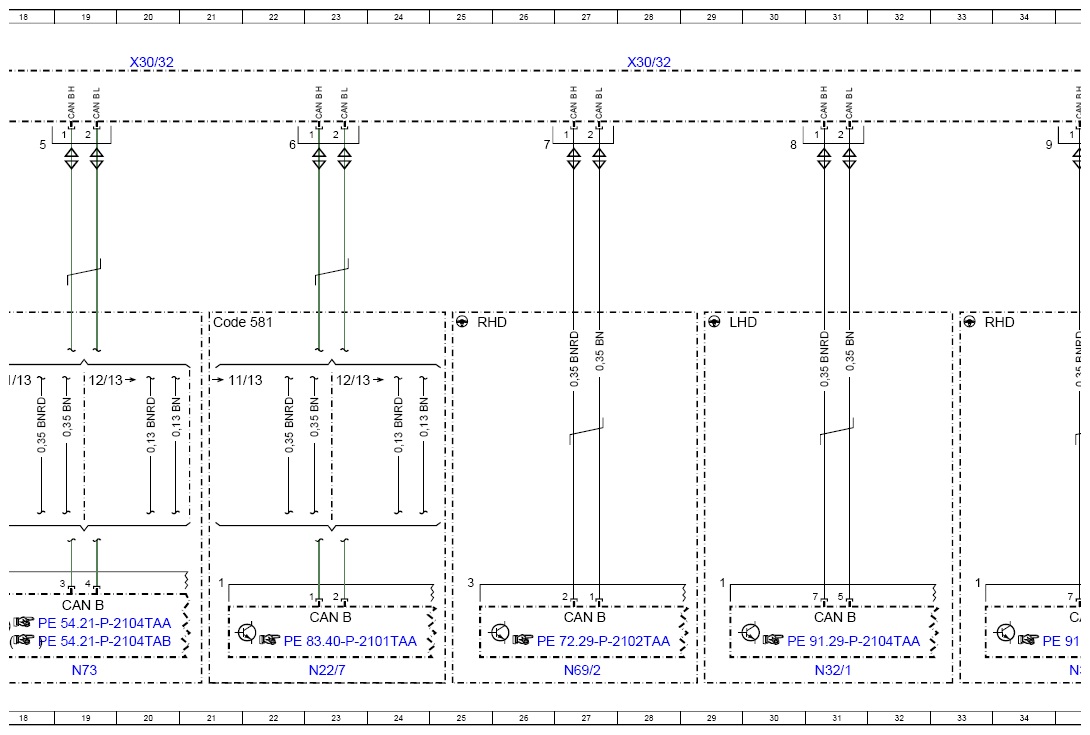

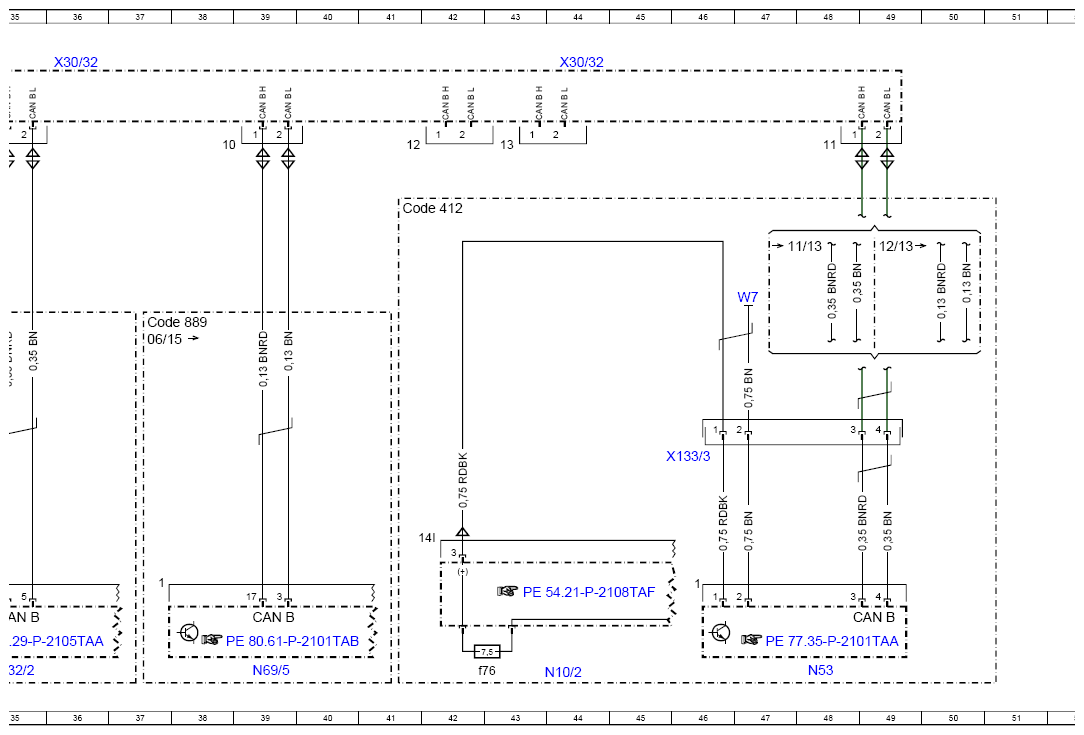

Wiring Diagram Of Interior CAN - PE00.19-P-2185-97TAA
WARNING: This page is about a different car, the 2020 Mercedes-Benz SLC43 AMG, 2019 Mercedes-Benz SLC43 AMG, 2018 Mercedes-Benz SLC43 AMG, and 2017 Mercedes-Benz SLC43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 172.4
Potential distributor X30/32
| Code: | Designation: | Position: |
|---|---|---|

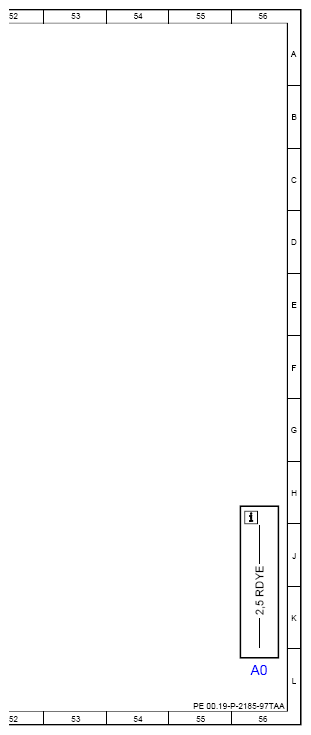

| AO | Color code key | 56L |
| A1 | Instrument cluster | 10L |
| CAN B | Interior CAN | 6K |
| CAN B | Interior CAN | 3K |
| CAN B | Interior CAN | 10K |
| CAN B | Interior CAN | 19K |
| CAN B | Interior CAN | 14K |
| CAN B | Interior CAN | 23K |
| CAN B | Interior CAN | 27K |
| CAN B | Interior CAN | 31K |
| CAN B | Interior CAN | 35K |
| CAN B | Interior CAN | 39K |
| CAN B | Interior CAN | 49K |
| Code 412 | MAGIC SKY CONTROL | 41D |
| Code 421 | 9G-TR0NIC | 16J |
| Code 581 | Automatic air conditioning | 21E |
| Code 889 | KEYLESS-GO | 37E |
| LHD | Left-hand drive vehicle | 9E |
| LHD | Left-hand drive vehicle | 4C |
| LHD | Left-hand drive vehicle | 29E |
| N10/1 | Front SAM control unit with fuse and relay module | 3L |
| N10/2 | Rear SAM control unit with fuse and relay module | 44L |
| N10/2f76 | Fuse 76 | 42L |
| N22/7 | Automatic air conditioning control and operating unit | 23L |
| N32/1 | Driver seat control unit | 31L |
| N32/2 | Front passenger seat control unit | 35L |
| N53 | MAGIC SKY CONTROL control unit | 48L |
| N69/1 | Left door control unit | 14L |
| N69/2 | Right door control unit | 27L |
| N69/5 | KEYLESS-GO control unit | 39L |
| N73 | Electronic ignition switch control unit | 19L |
| RHD | Right-hand drive vehicle | 5D |
| RHD | Right-hand drive vehicle | 25E |
| RHD | Right-hand drive vehicle | 33E |
| W15/1 | Right footwell ground point | 5E |
| W15/2 | Left footwell ground point | 5E |
| W7 | Right wheel house trunk ground point | 47E |
| X133/3 | MAGIC SKY CONTROL electrical connector | 46H |
| X30/32 | Left vehicle floor interior CAN voltage distributor electrical connector | 4A |
| X30/32 | Left vehicle floor interior CAN voltage distributor electrical connector | 12A |
| X30/32 | Left vehicle floor interior CAN voltage distributor electrical connector | 20A |
| X30/32 | Left vehicle floor interior CAN voltage distributor electrical connector | 28A |
| X30/32 | Left vehicle floor interior CAN voltage distributor electrical connector | 36A |
| X30/32 | Left vehicle floor interior CAN voltage distributor electrical connector | 44A |
| X30/33 | Right vehicle floor interior CAN voltage distributor electrical connector | 6L |
