Wiring Diagram Of Chassis CAN - PE00.19-P-2195-97TAB
WARNING: This page is about a different car, the 2020 Mercedes-Benz SLC43 AMG, 2019 Mercedes-Benz SLC43 AMG, 2018 Mercedes-Benz SLC43 AMG, and 2017 Mercedes-Benz SLC43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 172.4
as of 3/1/16

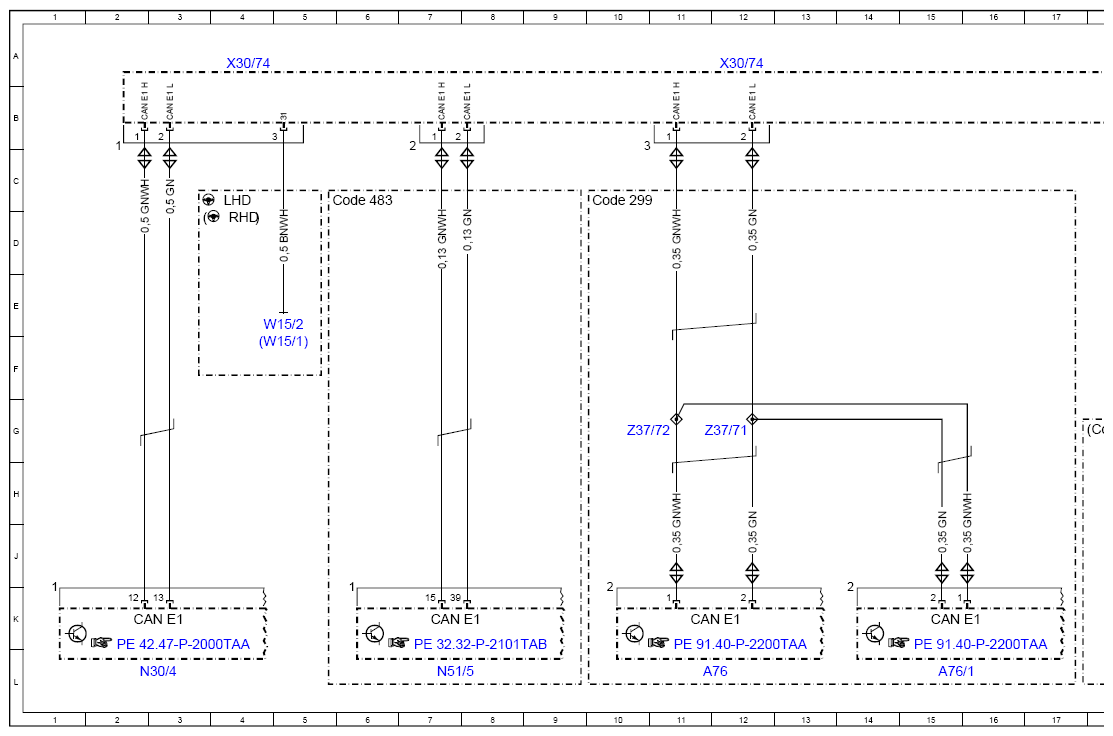

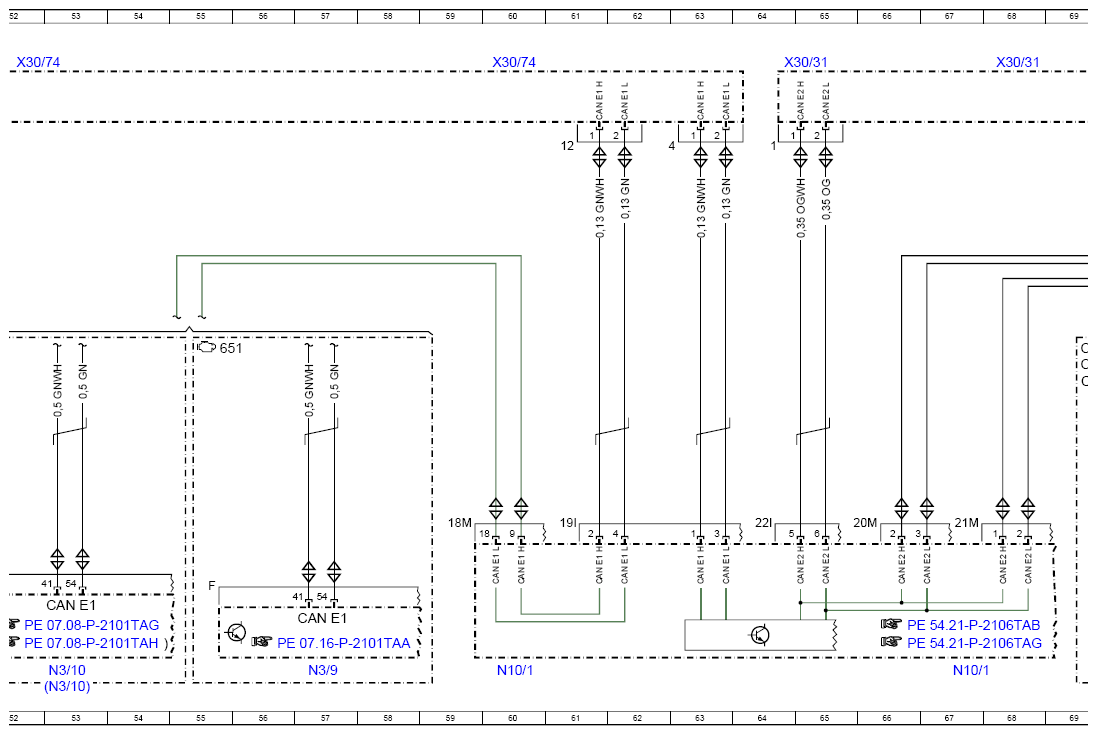

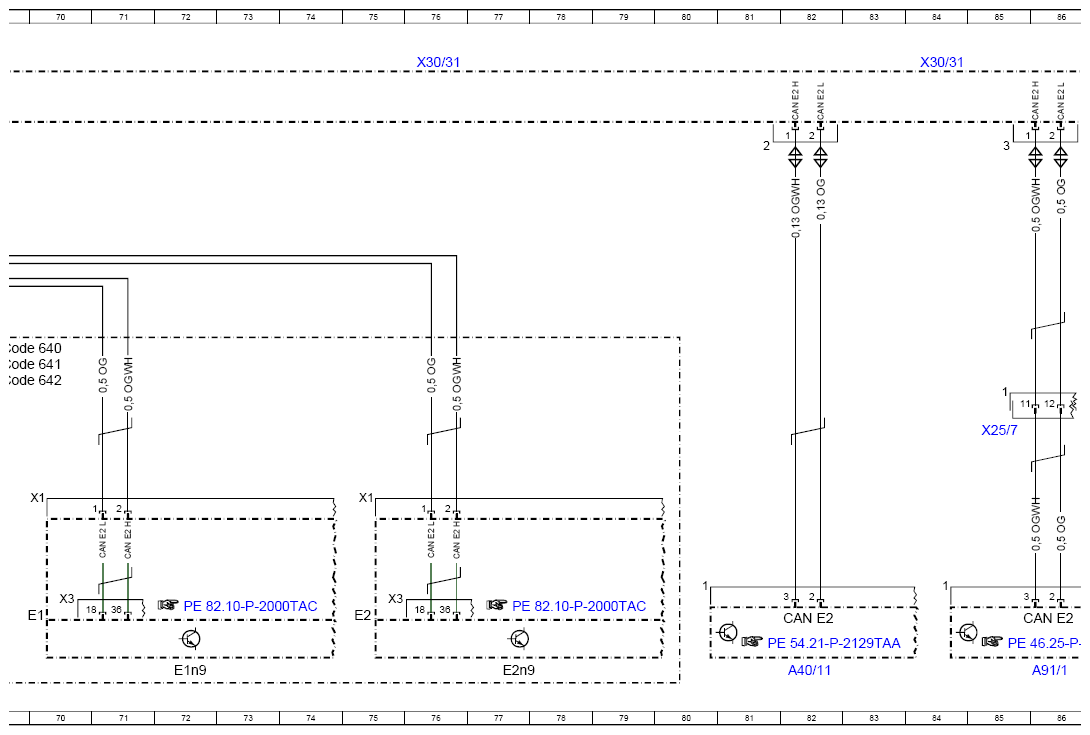

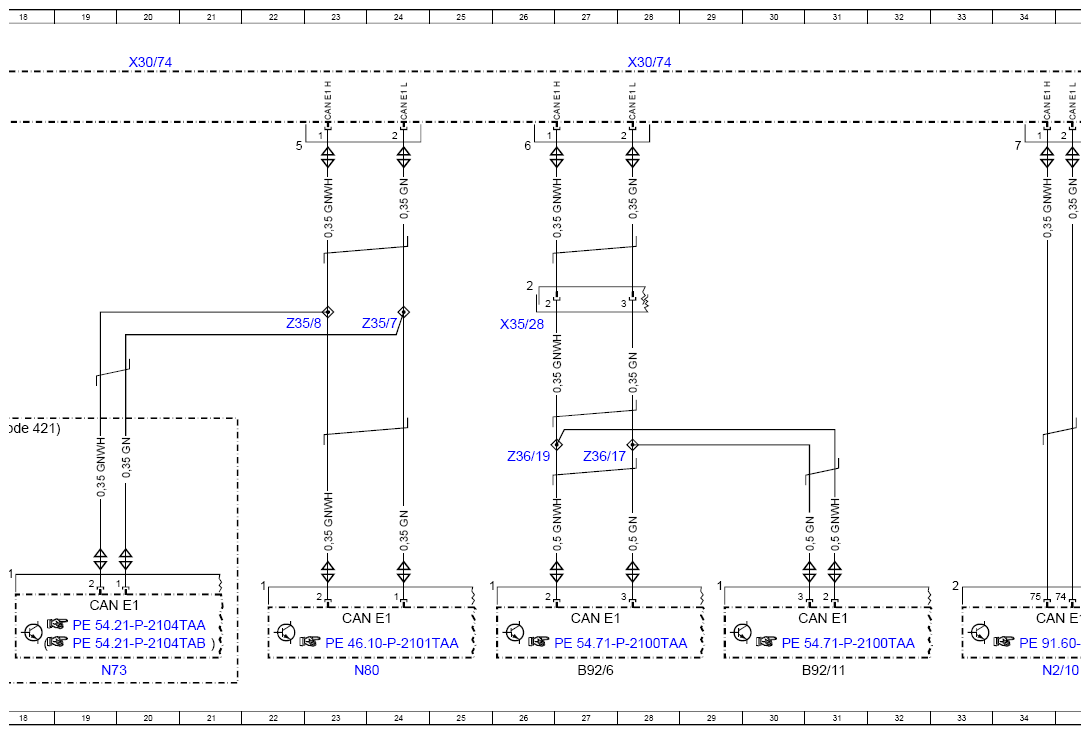

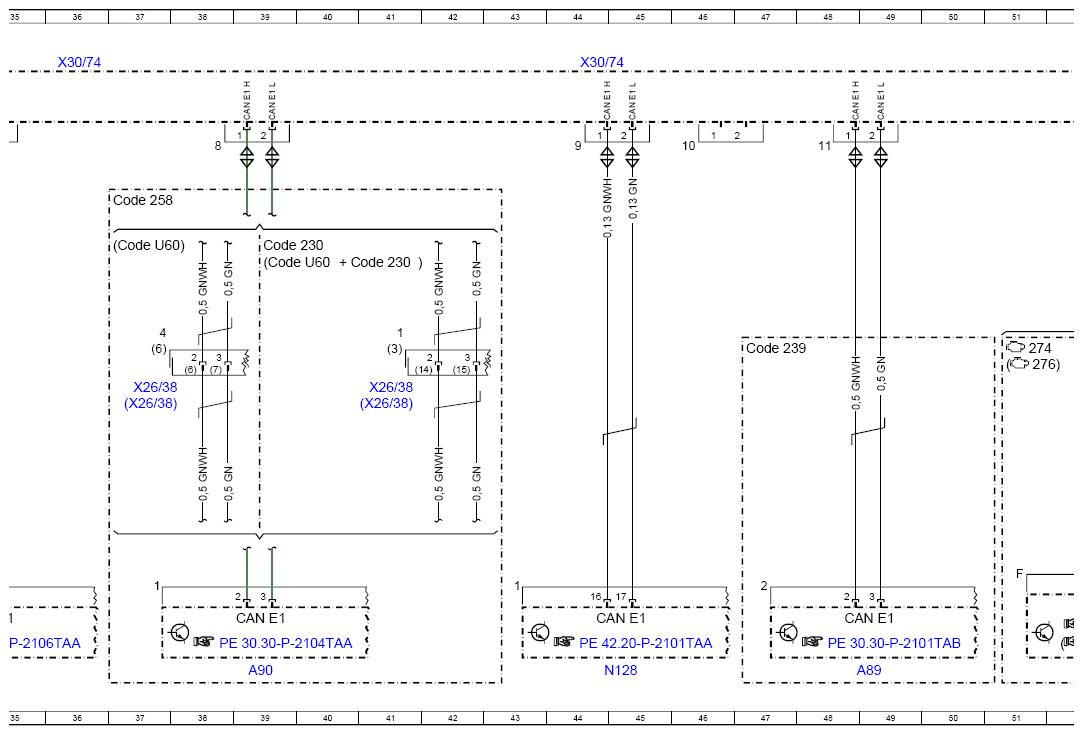

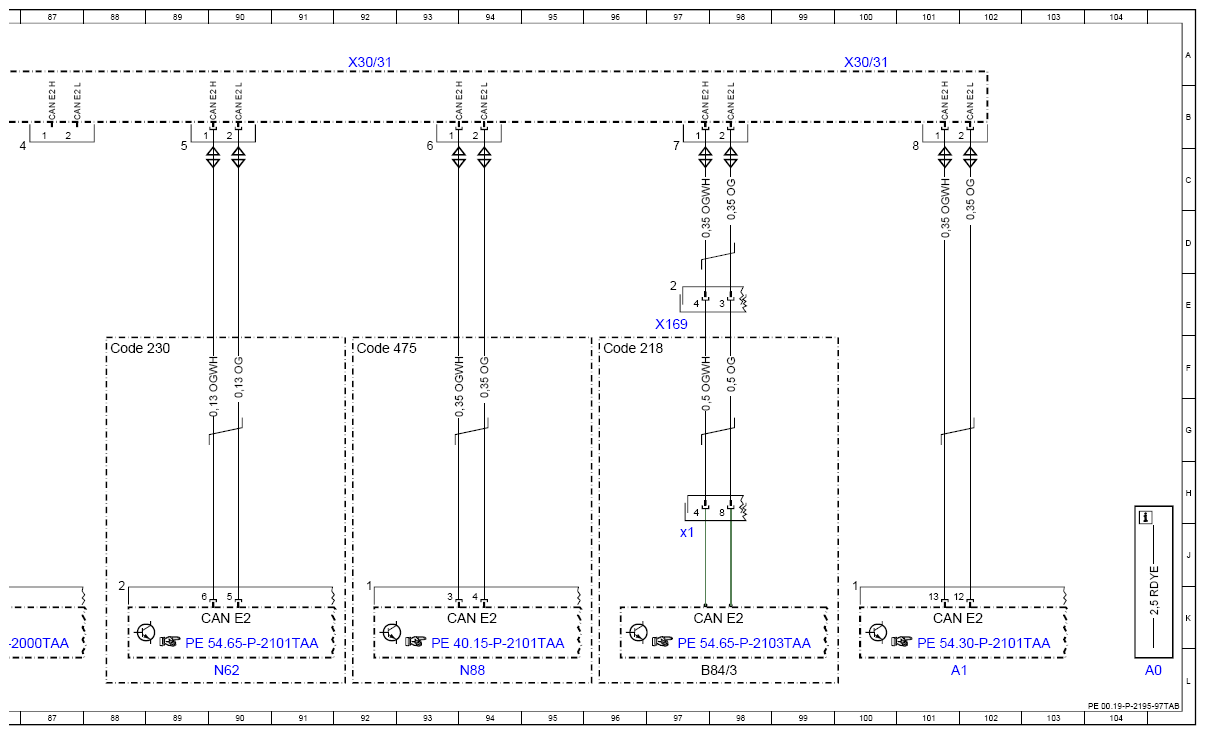

Potential distributor X30/31 and X30/74
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 105L |
| A1 | Instrument cluster | 101L |
| A40/11 | Multifunction camera | 82L |
| A76 | Left reversible emergency tensioning retractor | 11L |
| A76/1 | Right reversible emergency tensioning retractor | 15L |
| A89 | DISTRONIC electric controller unit | 49L |
| A90 | COLLISION PREVENTION ASSIST controller unit | 39L |
| A91/1 | Electrohydraulic power steering | 86L |
| B84/3 | Backup camera | 98L |
| B84/3x1 | Reversing camera electrical connector 1 | 97J |
| B92/11 | Left outer rear bumper integrated radar sensor | 31L |
| B92/6 | Right outer rear bumper integrated radar sensor | 27L |
| CAN E1 | Chassis CAN 1 | 53K |
| CAN E1 | Chassis CAN 1 | 19K |
| CAN E1 | Chassis CAN 1 | 2K |
| CAN E1 | Chassis CAN 1 | 11K |
| CAN E1 | Chassis CAN 1 | 7K |
| CAN E1 | Chassis CAN 1 | 15K |
| CAN E1 | Chassis CAN 1 | 23K |
| CAN E1 | Chassis CAN 1 | 27K |
| CAN E1 | Chassis CAN 1 | 31K |
| CAN E1 | Chassis CAN 1 | 34K |
| CAN E1 | Chassis CAN 1 | 45K |
| CAN E1 | Chassis CAN 1 | 39K |
| CAN E1 | Chassis CAN 1 | 48K |
| CAN E1 | Chassis CAN 1 | 57K |
| CAN E2 | Chassis CAN 2 | 86K |
| CAN E2 | Chassis CAN 2 | 82K |
| CAN E2 | Chassis CAN 2 | 90K |
| CAN E2 | Chassis CAN 2 | 94K |
| CAN E2 | Chassis CAN 2 | 97K |
| CAN E2 | Chassis CAN 2 | 101K |
| Code 218 | Backup camera | 96F |
| Code 230 | Exclusive parking assist | 40D |
| Code 230 | Exclusive parking assist | 39D |
| Code 230 | Exclusive parking assist | 88F |
| Code 239 | DISTRONIC PLUS | 47F |
| Code 258 | COLLISION PREVENTION ASSIST | 37C |
| Code 299 | PRE-SAFE® | 10C |
| Code 421 | 9G-TR0NIC | 17G |
| Code 475 | Tire pressure monitor | 92F |
| Code 483 | Vehicle dynamics package | 5C |
| Code 640 | High Performance LED | 69F |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 69F |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 69F |
| Code U60 | Pedestrian protection | 39D |
| Code U60 | Pedestrian protection | 37D |
| E1 | Left front lamp unit | 70K |
| E1n9 | Left headlamp control unit | 72L |
| E2 | Right front lamp unit | 75K |
| E2n9 | Right headlamp control unit | 77L |
| LHD | Left-hand drive vehicle | 4C |
| N10/1 | Front SAM control unit with fuse and relay module | 60L |
| N10/1 | Front SAM control unit with fuse and relay module | 67L |
| N128 | Electric parking brake control unit | 45L |
| N2/10 | Supplemental restraint system control unit | 34L |
| N3/10 | ME-SFI [ME] control unit | 53L |
| N3/10 | ME-SFI [ME] control unit | 53L |
| N3/9 | CDI control unit | 57L |
| N30/4 | Electronic Stability Program control unit | 3L |
| N51/5 | Adaptive damping system control unit | 7L |
| N62 | Parking system control unit | 90L |
| N73 | Electronic ignition switch control unit | 19L |
| N80 | Steering column module control unit | 23L |
| N88 | Tire pressure monitor control unit | 94L |
| RHD | Right-hand drive vehicle | 4D |
| W15/1 | Right footwell ground point | 4F |
| W15/2 | Left footwell ground point | 5E |
| X169 | Backup camera electrical connector | 97E |
| X25/7 | Engine compartment/FFS [RBA] electrical connector | 85G |
| X26/38 | Front bumper and frame wiring harness electrical connector | 41G |
| X26/38 | Front bumper and frame wiring harness electrical connector | 37G |
| X26/38 | Front bumper and frame wiring harness electrical connector | 37F |
| X26/38 | Front bumper and frame wiring harness electrical connector | 41F |
| X30/31 | Chassis 1 CAN (CAN E2) potential distributor electrical connector | 64A |
| X30/31 | Chassis 1 CAN (CAN E2) potential distributor electrical connector | 68A |
| X30/31 | Chassis 1 CAN (CAN E2) potential distributor electrical connector | 76A |
| X30/31 | Chassis 1 CAN (CAN E2) potential distributor electrical connector | 84A |
| X30/31 | Chassis 1 CAN (CAN E2) potential distributor electrical connector | 92A |
| X30/31 | Chassis 1 CAN (CAN E2) potential distributor electrical connector | 100A |
| X30/74 | Chassis CAN 1 (CAN E1) potential distributor electrical connector | 20A |
| X30/74 | Chassis CAN 1 (CAN E1) potential distributor electrical connector | 12A |
| X30/74 | Chassis CAN 1 (CAN E1) potential distributor electrical connector | 4A |
| X30/74 | Chassis CAN 1 (CAN E1) potential distributor electrical connector | 28A |
| X30/74 | Chassis CAN 1 (CAN E1) potential distributor electrical connector | 36A |
| X30/74 | Chassis CAN 1 (CAN E1) potential distributor electrical connector | 44A |
| X30/74 | Chassis CAN 1 (CAN E1) potential distributor electrical connector | 52A |
| X30/74 | Chassis CAN 1 (CAN E1) potential distributor electrical connector | 60A |
| X35/28 | Rear bumper parking system electrical connector | 26E |
| Z35/7 | CAN bus high cockpit bus node | 24E |
| Z35/8 | CAN bus low cockpit bus node | 22E |
| Z36/17 | Rear sensor CAN connector sleeve | 27G |
| Z36/19 | Rear sensor CAN connector sleeve | 26G |
| Z37/71 | Reversible emergency tensioning retractor CAN engine bus (low) connector sleeve | 12G |
| Z37/72 | Reversible emergency tensioning retractor chassis CAN (high) connector sleeve | 11G |
