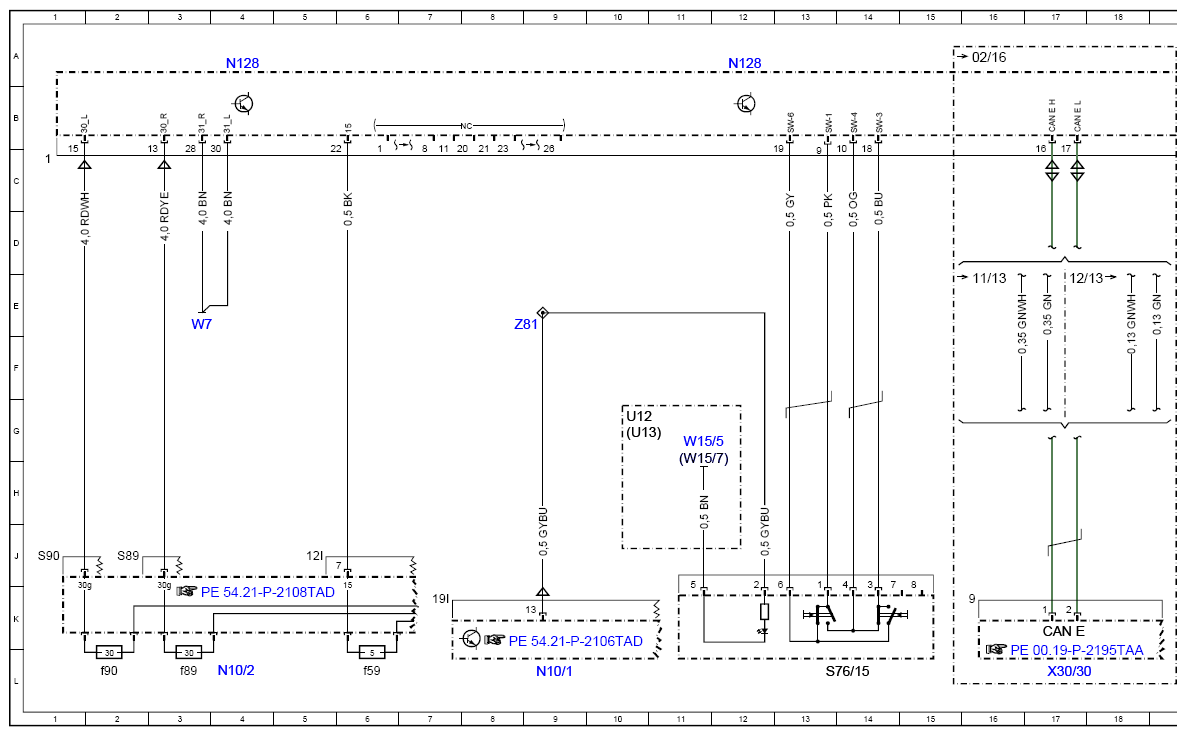

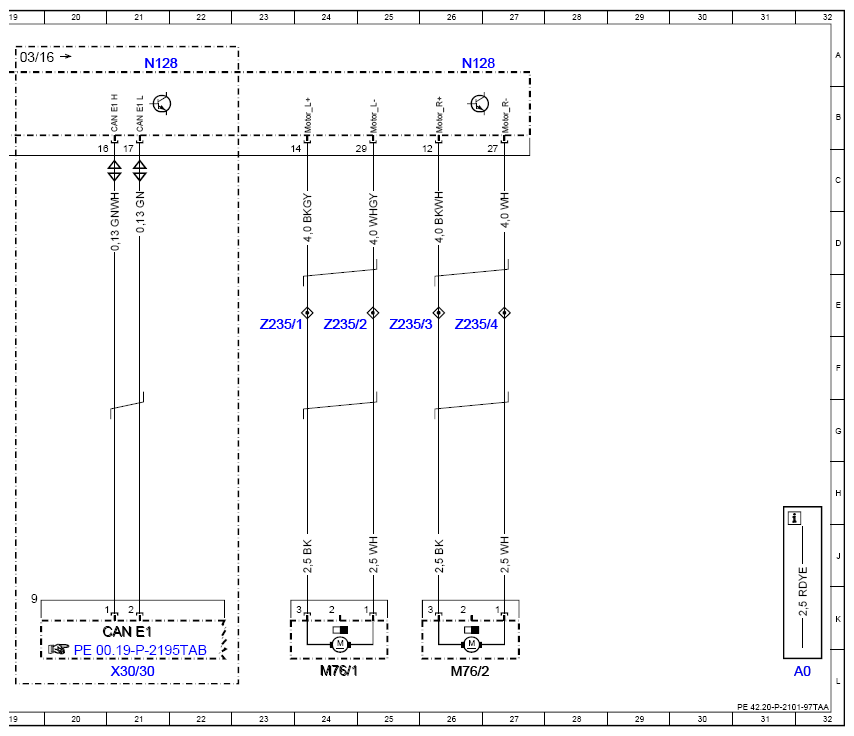

Wiring Diagram For Electric Parking Brake - PE42.20-P-2101-97TAA
WARNING: This page is about a different car, the 2020 Mercedes-Benz SLC43 AMG, 2019 Mercedes-Benz SLC43 AMG, 2018 Mercedes-Benz SLC43 AMG, and 2017 Mercedes-Benz SLC43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 172.4
Control unit N128
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 32L |
| CAN E | Chassis CAN | 17K |
| CAN E1 | Chassis CAN 1 | 21K |
| M76/1 | Left electric parking brake actuator motor | 24L |
| M76/2 | Right electric parking brake actuator motor | 26L |
| N10/1 | Front SAM control unit with fuse and relay module | 9L |
| N10/2 | Rear SAM control unit with fuse and relay module | 4L |
| N10/2f59 | Fuse 59 | 6L |
| N10/2f89 | Fuse 89 | 3L |
| N10/2f90 | Fuse 90 | 2L |
| N128 | Electric parking brake control unit | 4A |
| N128 | Electric parking brake control unit | 12A |
| N128 | Electric parking brake control unit | 21A |
| N128 | Electric parking brake control unit | 26A |
| S76/15 | Electric parking brake switch | 14L |
| U12 | Valid for left-hand drive vehicles | 10G |
| U13 | Valid for right-hand drive vehicles | 10G |
| W15/5 | Left front footwell ground point | 11G |
| W15/7 | Right front footwell ground point | 11H |
| W7 | Right wheelhouse trunk ground point | 3E |
| X30/30 | Vehicle floor chassis CAN voltage distributor electrical connector | 17L |
| X30/74 | Chassis CAN 1 (CAN E1) potential distributor electrical connector | 21L |
| Z235/1 | Electronic parking brake circuit 30 connector sleeve | 23E |
| Z235/2 | Electronic parking brake circuit 31 connector sleeve | 24E |
| Z235/3 | Electronic parking brake circuit 30 connector sleeve | 25E |
| Z235/4 | Electronic parking brake circuit 31 connector sleeve | 26E |
| Z81 | Circuit 58d connector sleeve | 9E |
