Replace Brake Fluid - AP42.00-P-4280V

WARNING: This page is about a different car, the 2020 Mercedes-Benz SLC43 AMG, 2019 Mercedes-Benz SLC43 AMG, 2018 Mercedes-Benz SLC43 AMG, and 2017 Mercedes-Benz SLC43 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Model 171, 172, 231

Model 171 shown

G13845928Courtesy of MERCEDES-BENZ USA
  Risk of accident  when commissioning the vehicle due to a lack of braking effect when the service brake is operated for the first time after repair work. Before starting the engine, actuate brake pedal several times until pressure is built up and maintained in the brake system. AS42.50-Z-0002-01A
CAUTION Risk of poisoning  from swallowing brake fluid. Risk of injury  from skin and eye contact with brake fluid Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. AS42.50-Z-0001-01A
  Brake fluid notes   AH42.50-P-0001-01A
  Notes on repairs to brake system   AH42.00-P-0003-01A
INSTALLING Remove
1 Open engine hood and position upright.
2 Remove cover over brake fluid reservoir. Model 231
3 Clean area around cap of brake fluid reservoir. Assembly cleaner *BR00.45-Z-1028-04A
4 Unscrew cap of brake fluid reservoir.
5 Pump off brake fluid from brake fluid reservoir.
6 Add new brake fluid up to max marking in brake fluid reservoir.
REFER TO CAPACITIES & SPECIFICATIONS Brake fluids (DOT 4 plus)   BB00.40-P-0331-00A
REFER TO CAPACITIES & SPECIFICATIONS General brake fluid   BB00.40-P-0330-01A

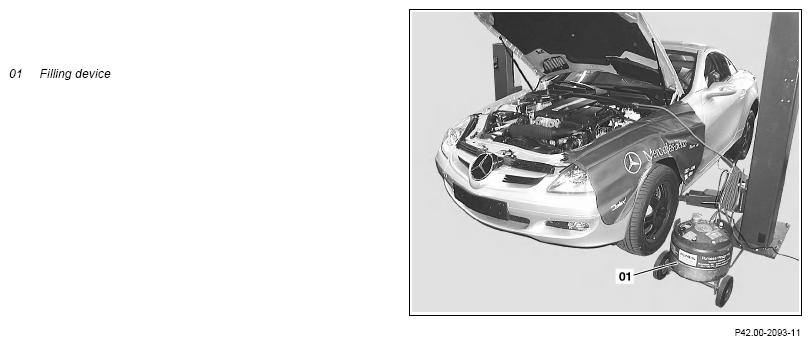

7 Connect filling unit (01) to brake fluid reservoir.
REFER TO SPECIAL TOOLS 000 588 01 82 00 Filling unit   WS25.00-P-0016B
REFER TO CAPACITIES & SPECIFICATIONS Brake fluids (DOT 4 plus)   BB00.40-P-0331-00A
REFER TO CAPACITIES & SPECIFICATIONS General brake fluid IMPORTANT Pay attention to manufacturer's operating instructions. BB00.40-P-0330-01A
8 Raise vehicle.
REFER TO TESTING & REPAIR   Model 171, 172 AR00.60-P-1000V
REFER TO TESTING & REPAIR   Model 231 AR00.60-P-1000TX
9 Remove bottom engine compartment paneling.
REFER TO TESTING & REPAIR   Model 171
with code 411 (6-speed manual transmission)		 AR61.20-P-1105V
REFER TO TESTING & REPAIR   Model 172 with engine 271, 274, 276
with code 411 (6-speed manual transmission)		 AR61.20-P-1105W
REFER TO TESTING & REPAIR   Model 172 with engine 651
with code 411 (6-speed manual transmission)		 AR94.30-P-5300W
10 Renew brake fluid.
REFER TO TESTING & REPAIR   Model 231 AR42.10-P-0010-02RK
REFER TO TESTING & REPAIR   Model 171 AR42.10-P-0010-02V
REFER TO TESTING & REPAIR   Model 172 AR42.10-P-0010-02EW
    TORQUE SPECIFICATION Model 171 (except 171.473)
Model 171.473 Bleed screw to brake caliper		 *BA42.10-P-1002-12P
    TORQUE SPECIFICATION Model 172
Model 231 Bleed screw to brake caliper		 *BA42.10-P-1002-12J
    TORQUE SPECIFICATION Model 171 Bleed screw to brake caliper *BA42.10-P-1002-10P
    TORQUE SPECIFICATION Model 172 Bleed screw at brake caliper *BA42.10-P-1003-10J
    TORQUE SPECIFICATION Model 231.457/473
Model 231.465
Model 231.474
except code B07 (AMG - ceramic brake system)
Model 231.474
with code B07 (AMG - ceramic brake system)
Model 231.479
except code B07 (AMG - ceramic brake system)
Model 231.479
with code B07 (AMG - ceramic brake system) Bleed screw at brake caliper		 *BA42.10-P-1005-10U
    TORQUE SPECIFICATION Model 171 with transmission 711.65, 716.631/664/669
Model 172 with transmission 711.654/655/670 Bleed screw to central clutch operator		 *BA25.20-P-1001-01B
REMOVING Install
11 Install lower engine compartment lining.
REFER TO TESTING & REPAIR   Model 171
with code 411 (6-speed manual transmission)		 AR61.20-P-1105V
REFER TO TESTING & REPAIR   Model 172 with engine 271, 274, 276
with code 411 (6-speed manual transmission) Gasoline		 AR61.20-P-1105W
REFER TO TESTING & REPAIR   Model 172 with engine 651
with code 411 (6-speed manual transmission) Diesel		 AR94.30-P-5300W
12 Remove filling unit (01) from brake fluid reservoir.
13 Check brake system for leaks.
REFER TO TESTING & REPAIR     AR42.10-P-0100-01V
14 Correct fluid level in brake fluid reservoir.   AP42.10-P-4210V
15 Screw on brake fluid reservoir cap.
16 Install cover over brake fluid reservoir. Model 231
17 Close hood.
CLUTCH OPERATING SYSTEM

Number Designation Transmission 711.6 (except 711.640/641) Transmission 716.6 all Model s (except in Model 211)
BA25.20-P-1001-01B Bleed screw to central clutch operator Nm 9 9
FRONT AXLE BRAKE CALIPER

Number Designation Model 171
BA42.10-P-1002-10P Bleed screw to brake caliper Nm 14
REAR AXLE BRAKE CALIPER

Number Designation Model 172 Model 231
BA42.10-P-1002-12J Bleed screw to brake caliper Nm 18 18
REAR AXLE BRAKE CALIPER

Number Designation Model 171 (except 171.473) Model 171.473
BA42.10-P-1002-12P Bleed screw to brake caliper Nm 14 14
FRONT AXLE BRAKE CALIPER

Number Designation Model 172
BA42.10-P-1003-10J Bleed screw at brake caliper Nm 18
FRONT AXLE BRAKE CALIPER

Number Designation Model 231.457/473 Model 231.465
BA42.10-P-1005-10U Bleed screw at brake caliper Nm 18 18
FRONT AXLE BRAKE CALIPER

Number Designation Model 231.474 except Code B07 Model 231.474 with Code B07
BA42.10-P-1005-10U Bleed screw at brake caliper Nm 18 18
FRONT AXLE BRAKE CALIPER

Number Designation Model 231.479 except Code B07 Model 231.479 with Code B07
BA42.10-P-1005-10U Bleed screw at brake caliper Nm 18 18
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1028-04A Assembly cleaner A 000 986 56 01
