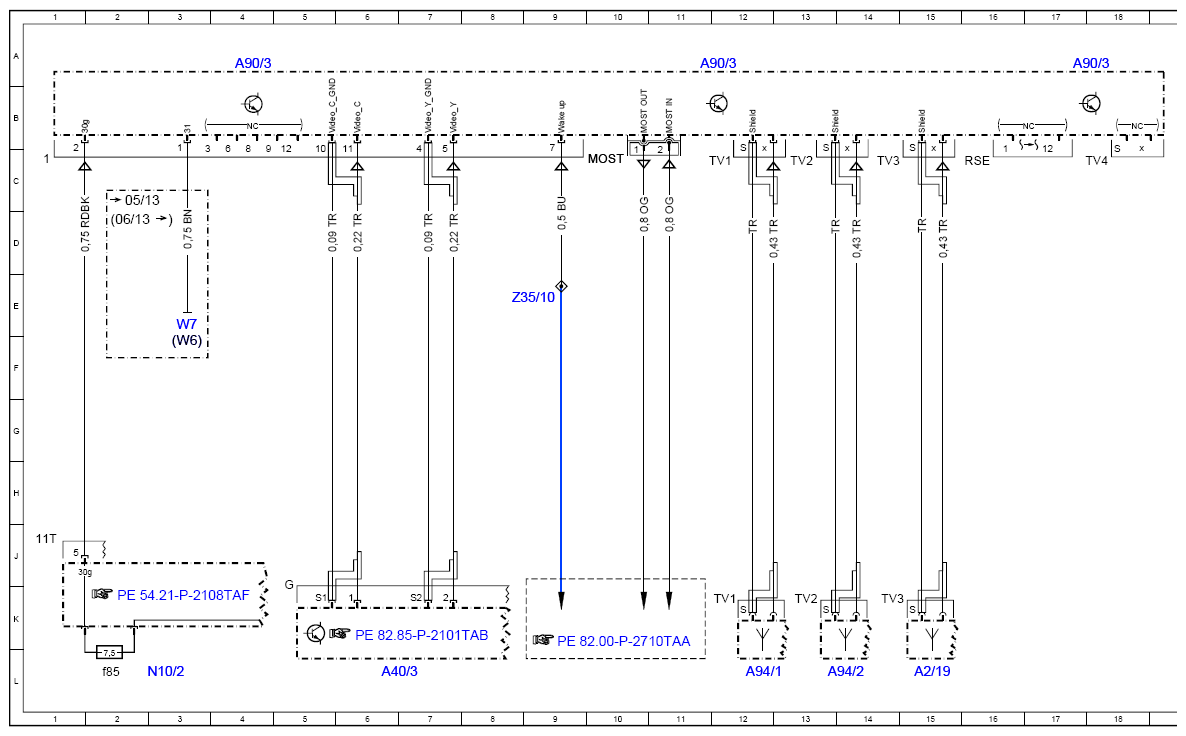

(Wiring Diagram Of TV Tuner - PE82.60-P-2220-97TAA)
WARNING: This page is about a different car, the 2020 Mercedes-Benz SLC43 AMG, 2019 Mercedes-Benz SLC43 AMG, 2018 Mercedes-Benz SLC43 AMG, and 2017 Mercedes-Benz SLC43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 172.4
up to 2/29/16
with code 865 (digital TV)
except code 494 (US version)
Control unit A90/3
| Code: | Designation: | Position: |
|---|---|---|

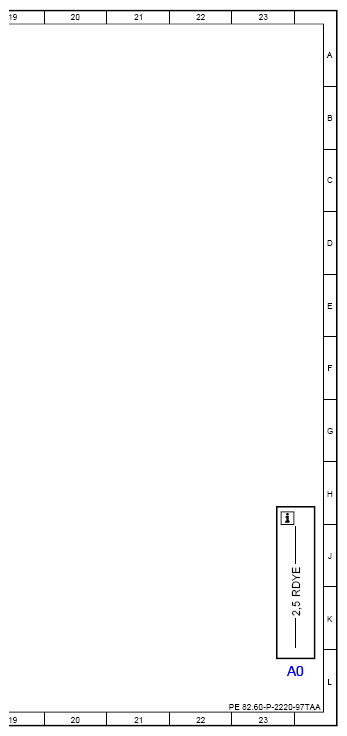

| A0 | Color code key | 23L |
| A2/19 | FM 2, DAB and TV antenna amplifier | 15L |
| A40/3 | COMAND® control unit | 6L |
| A90/3 | TV digital tuner | 4A |
| A90/3 | TV digital tuner | 11A |
| A90/3 | TV digital tuner | 17A |
| A94/1 | TV 1 antenna amplifier | 12L |
| A94/2 | TV 2 antenna amplifier | 14L |
| MOST | Media Oriented System Transport | 10C |
| N10/2 | Rear SAM control unit with fuse and relay module | 3L |
| N10/2f85 | Fuse 85 | 2L |
| W6 | Left wheel arch trunk ground point | 3F |
| W7 | Right wheelhouse trunk ground point | 3E |
| Z35/10 | MOST wake-up signal connector sleeve | 9E |
