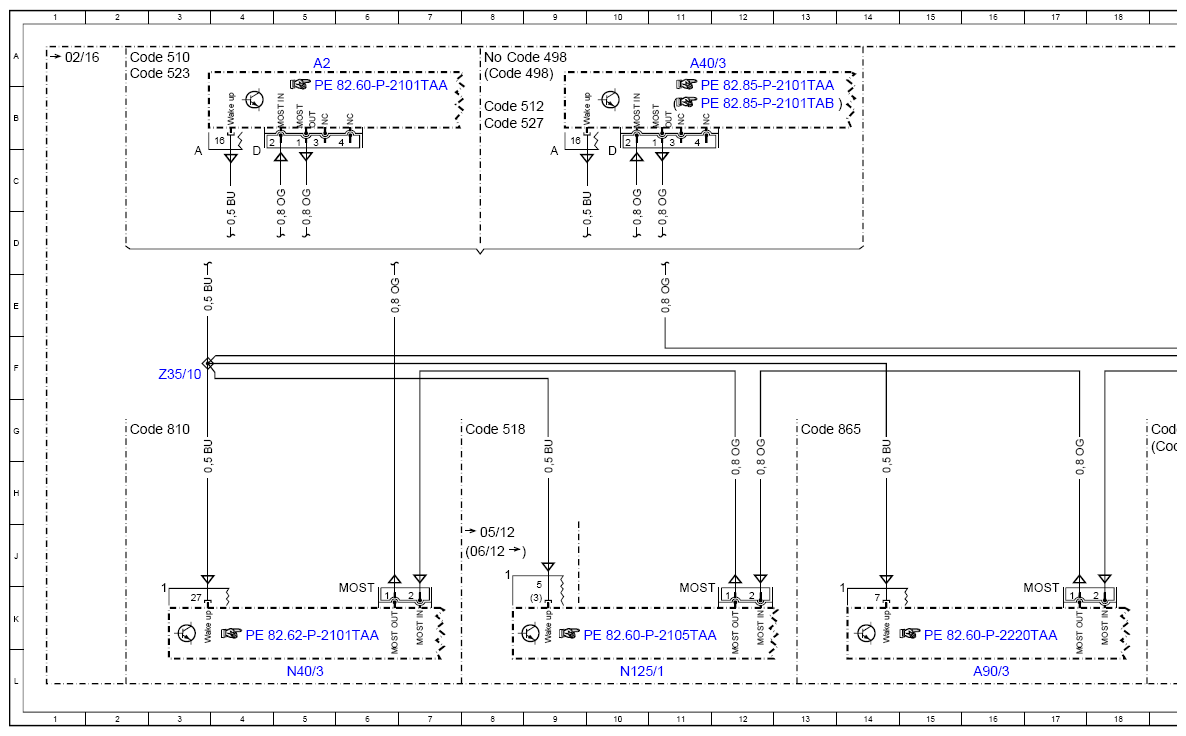

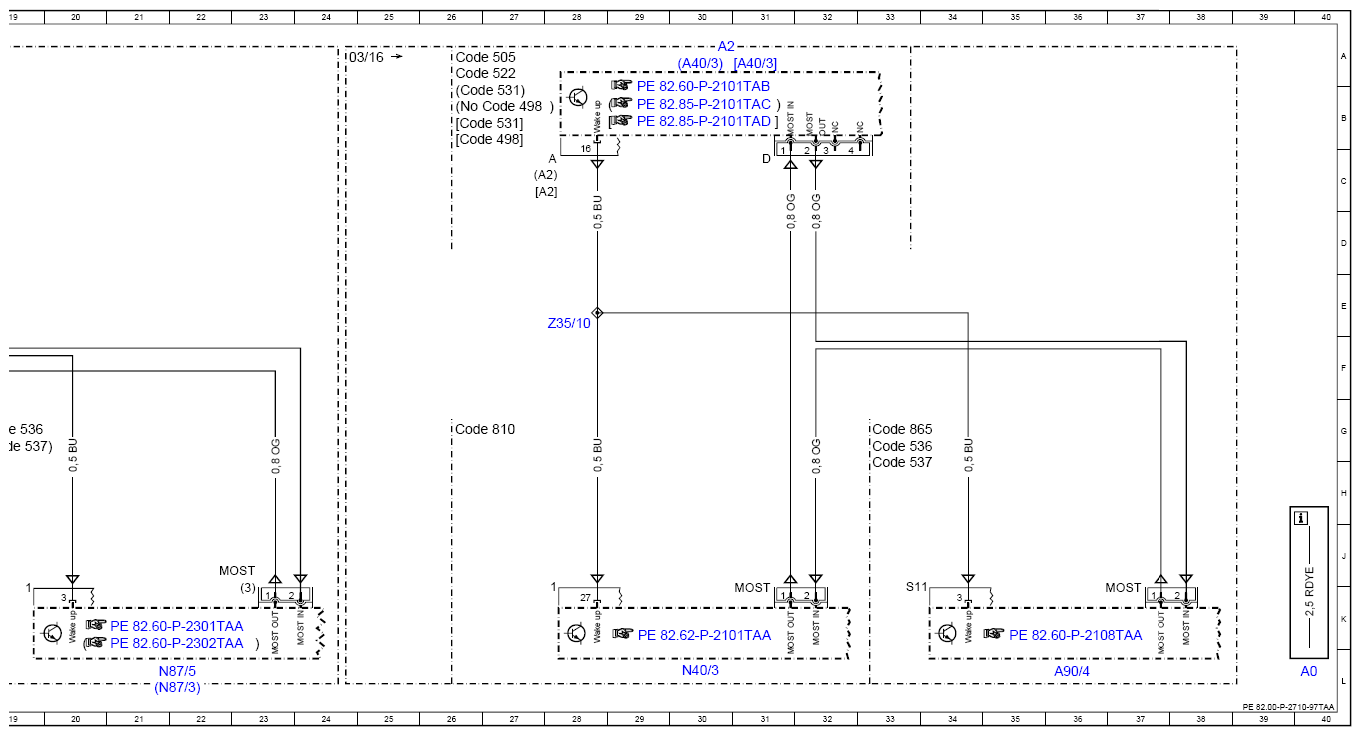

Wiring Diagram Of Most Bus - PE82.00-P-2710-97TAA
WARNING: This page is about a different car, the 2020 Mercedes-Benz SLC43 AMG, 2019 Mercedes-Benz SLC43 AMG, 2018 Mercedes-Benz SLC43 AMG, and 2017 Mercedes-Benz SLC43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 172.4
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 40L |
| A2 | Radio | 5A |
| A2 | Radio | 30A |
| A40/3 | COMAND® control unit | 11A |
| A40/3 | COMAND® control unit | 30A |
| A40/3 | COMAND® control unit | 31A |
| A90/3 | TV digital tuner | 16L |
| A90/4 | Tuner unit | 36L |
| Code 498 | Japan version | 8A |
| Code 498 | Japan version | 8A |
| Code 498 | Japan version | 26B |
| Code 498 | Japan version | 26B |
| Code 505 | Radio 20 NTG5, non-navigation-capable | 26A |
| Code 510 | Audio 20 with CD changer | 2A |
| Code 512 | COMAND® APS with DVD changer | 8B |
| Code 518 | Media Interface | 8G |
| Code 522 | Audio 20 radio | 26A |
| Code 523 | Audio 20 radio | 2A |
| Code 527 | COMAND® APS with single DVD drive (with navigation) | 8B |
| Code 531 | COMAND® APS | 26B |
| Code 531 | COMAND® APS | 26B |
| Code 536 | SIRIUS satellite radio | 19G |
| Code 536 | SIRIUS satellite radio | 33G |
| Code 537 | Digital radio | 19G |
| Code 537 | Digital radio | 33H |
| Code 810 | Sound system | 2G |
| Code 810 | Sound system | 26G |
| Code 865 | TV tuner (digital) | 13G |
| Code 865 | TV tuner (digital) | 33G |
| MOST | Media Oriented System Transport | 6K |
| MOST | Media Oriented System Transport | 11K |
| MOST | Media Oriented System Transport | 17K |
| MOST | Media Oriented System Transport | 23J |
| MOST | Media Oriented System Transport | 31K |
| MOST | Media Oriented System Transport | 37K |
| N125/1 | Media interface control unit | 10L |
| N40/3 | Sound system amplifier control unit | 5L |
| N40/3 | Sound system amplifier control unit | 30L |
| N87/3 | Digital Audio Broadcasting control unit | 21L |
| N87/5 | Satellite digital audio radio (SDAR) control unit | 21L |
| Z35/10 | MOST wake-up signal connector sleeve | 3F |
| Z35/10 | MOST wake-up signal connector sleeve | 28E |
