Wiring Diagram Of Exterior Lights - PE82.10-P-2000-97TAC
WARNING: This page is about a different car, the 2020 Mercedes-Benz SLC43 AMG, 2019 Mercedes-Benz SLC43 AMG, 2018 Mercedes-Benz SLC43 AMG, and 2017 Mercedes-Benz SLC43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 172.4
as of model year 2016
with code 640 (High-performance LED)
Model 172.4
as of model year 2016
with code 641 (Headlamps, LED, dynamic, left-side traffic)
Model 172.4
as of model year 2016
with code 642 (Headlamps, LED, dynamic, right-side traffic)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 105L |
| B22/7 | Left rear level sensor | 33L |
| B22/8 | Left front level sensor | 36L |

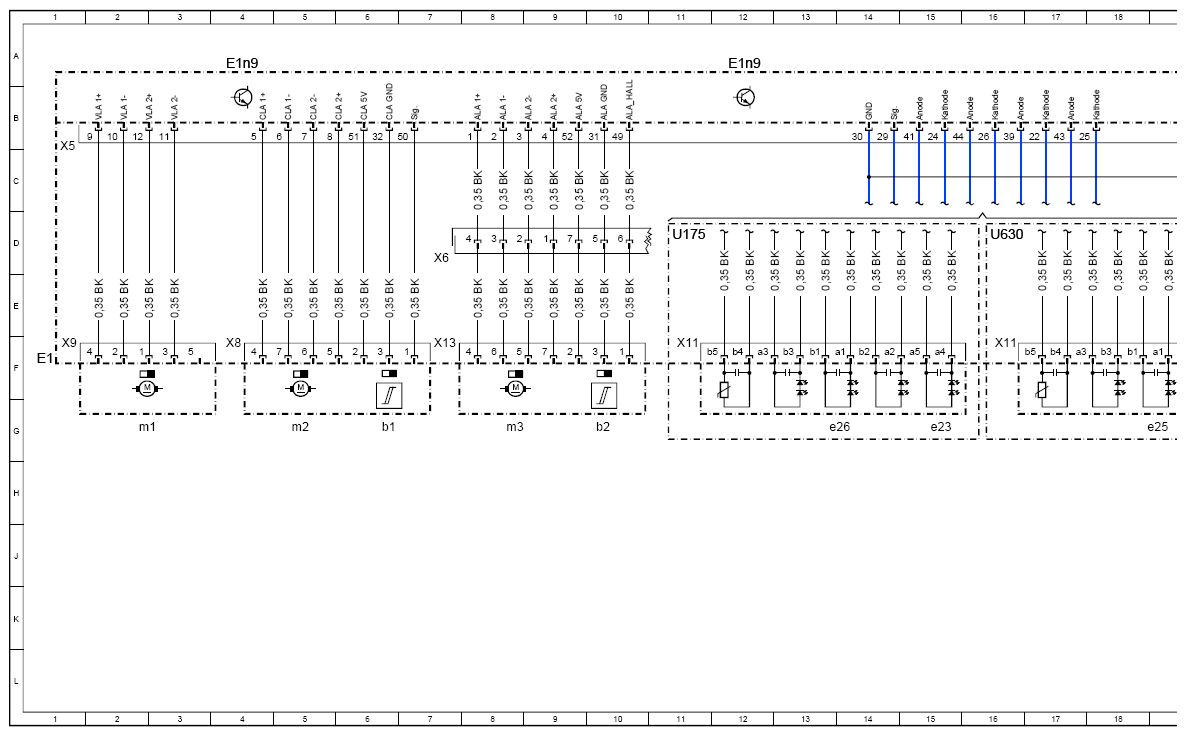

| E1 | Left front lamp unit | 1F |
| E1b1 | Left active curve illumination position sensor | 6G |
| E1b2 | Left light distribution position sensor | 10G |
| E1e15 | Left low beam (short range) | 49G |
| E1e16 | Left low beam (long range) and high beam | 46G |
| E1e23 | Left front ambient light | 15G |
| E1e25 | Left position light, daytime running light and turn signal light | 19G |
| E1e26 | Left position light, daytime running light, turn signal light and ambient light | 13G |
| E1e6 | Left front side-marker lamp | 20G |
| E1e9 | Left cornering illumination | 22G |
| E1m1 | Left headlamp range adjustment actuator motor | 2G |
| E1m2 | Left active curve illumination actuator motor | 5G |
| E1m3 | Left light distribution actuator motor | 8G |
| E1m4 | Left front lamp unit fan motor | 44G |

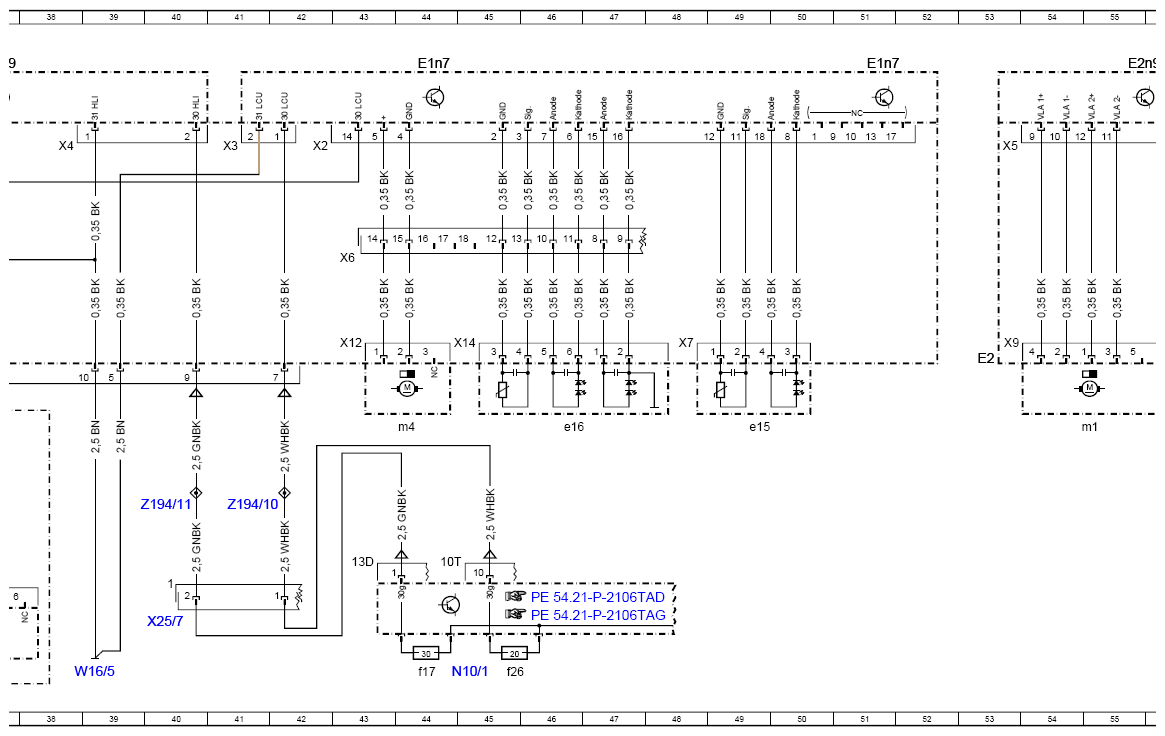

| E1n7 | Actuation module for left front exterior lights LED | 44A |
| E1n7 | Actuation module for left front exterior lights LED | 51A |
| E1n9 | Left headlamp control unit | 20A |
| E1n9 | Left headlamp control unit | 4A |
| E1n9 | Left headlamp control unit | 12A |
| E1n9 | Left headlamp control unit | 28A |
| E1n9 | Left headlamp control unit | 37A |
| E2 | Right front lamp unit | 53F |
| E2b1 | Right active curve illumination position sensor | 58G |
| E2b2 | Right light distribution position sensor | 62G |
| E2e15 | Right low beam (short range) | 95G |
| E2e16 | Right low beam (long range) and high beam | 92G |
| E2e23 | Right front ambient light | 67G |
| E2e25 | Right position light, daytime running light and turn signal light | 71G |
| E2e26 | Right position light, daytime running light, turn signal light and ambient light | 66G |
| E2e6 | Right front side-marker lamp | 72G |
| E2e9 | Right cornering illumination | 74G |
| E2m1 | Right headlamp range adjustment actuator motor | 55G |
| E2m2 | Right active curve illumination actuator motor | 57G |
| E2m3 | Right light distribution actuator motor | 60G |
| E2m4 | Right front lamp unit fan motor | 90G |

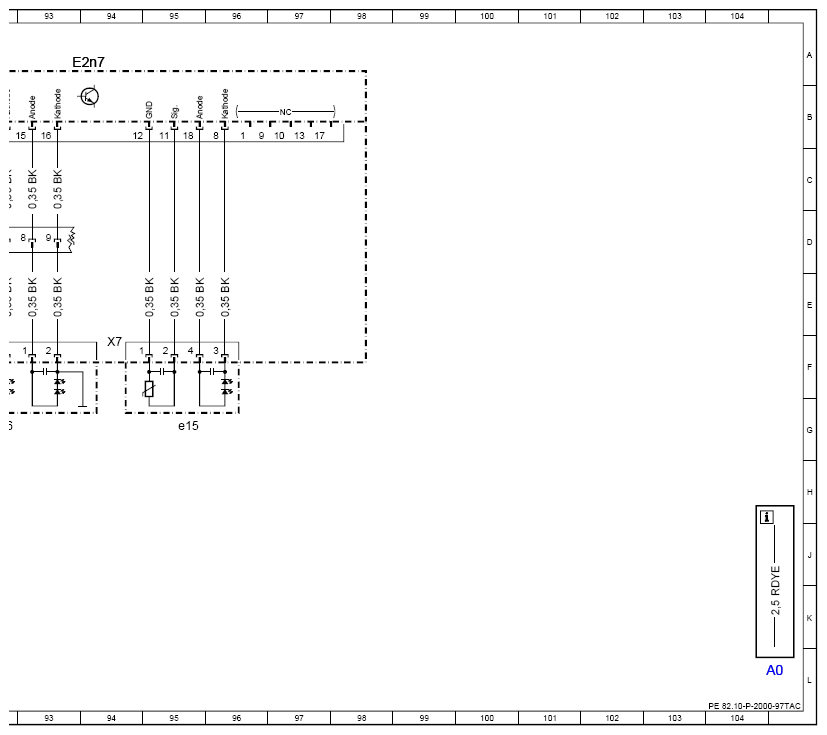

| E2n7 | Actuation module for right front exterior lights LED | 88A |
| E2n7 | Actuation module for right front exterior lights LED | 94A |

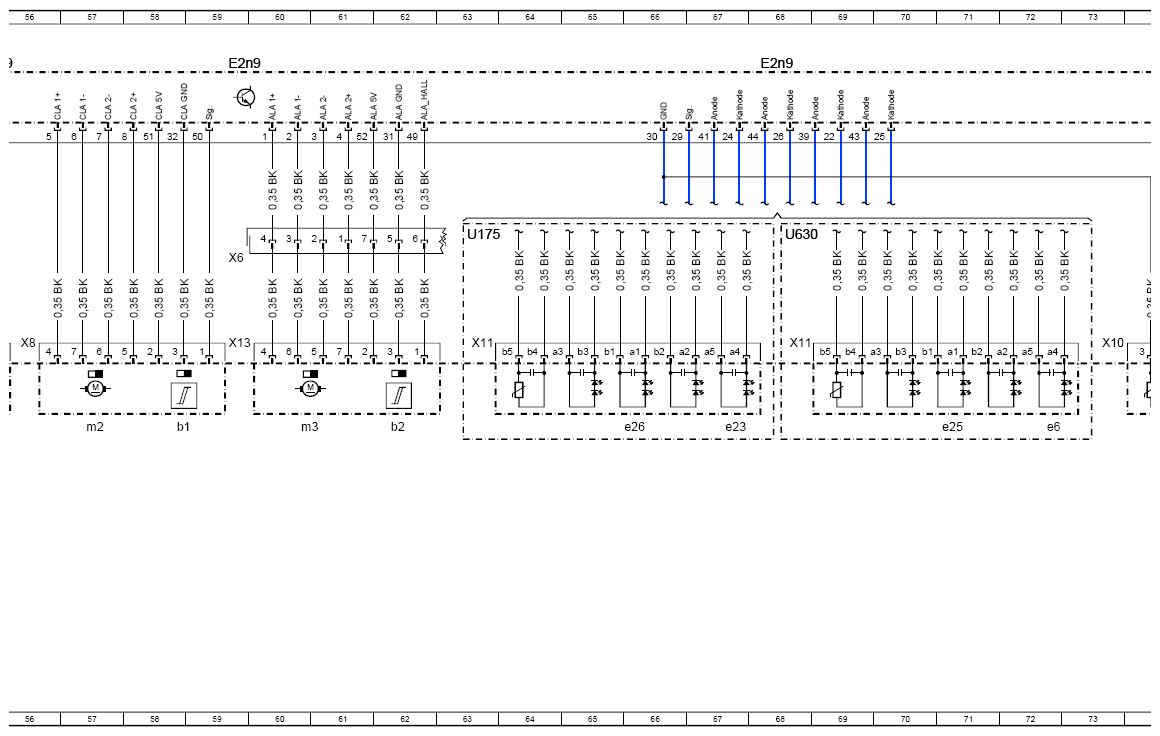

| E2n9 | Right headlamp control unit | 55A |
| E2n9 | Right headlamp control unit | 59A |
| E2n9 | Right headlamp control unit | 68A |
| E2n9 | Right headlamp control unit | 76A |
| E2n9 | Right headlamp control unit | 84A |

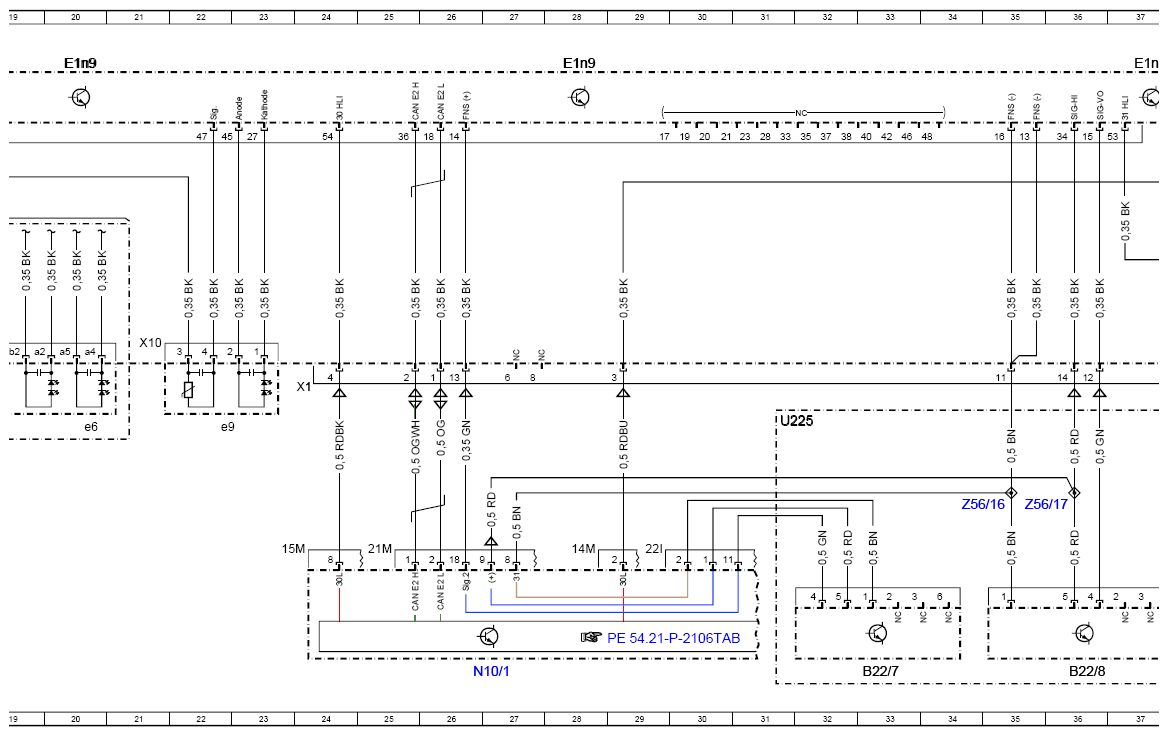

| N10/1 | Front SAM control unit with fuse and relay module | 26L |
| N10/1 | Front SAM control unit with fuse and relay module | 45L |
| N10/1 | Front SAM control unit with fuse and relay module | 78L |
| N10/1f17 | Fuse 17 | 44L |
| N10/1f26 | Fuse 26 | 45L |
| U175 | Valid for all except (USA and Canada) | 11D |
| U175 | Valid for all except (USA and Canada) | 63D |
| U225 | Valid without code 483 Vehicle dynamics package | 31G |
| U630 | Valid for USA and Canada | 16D |
| U630 | Valid for USA and Canada | 68D |

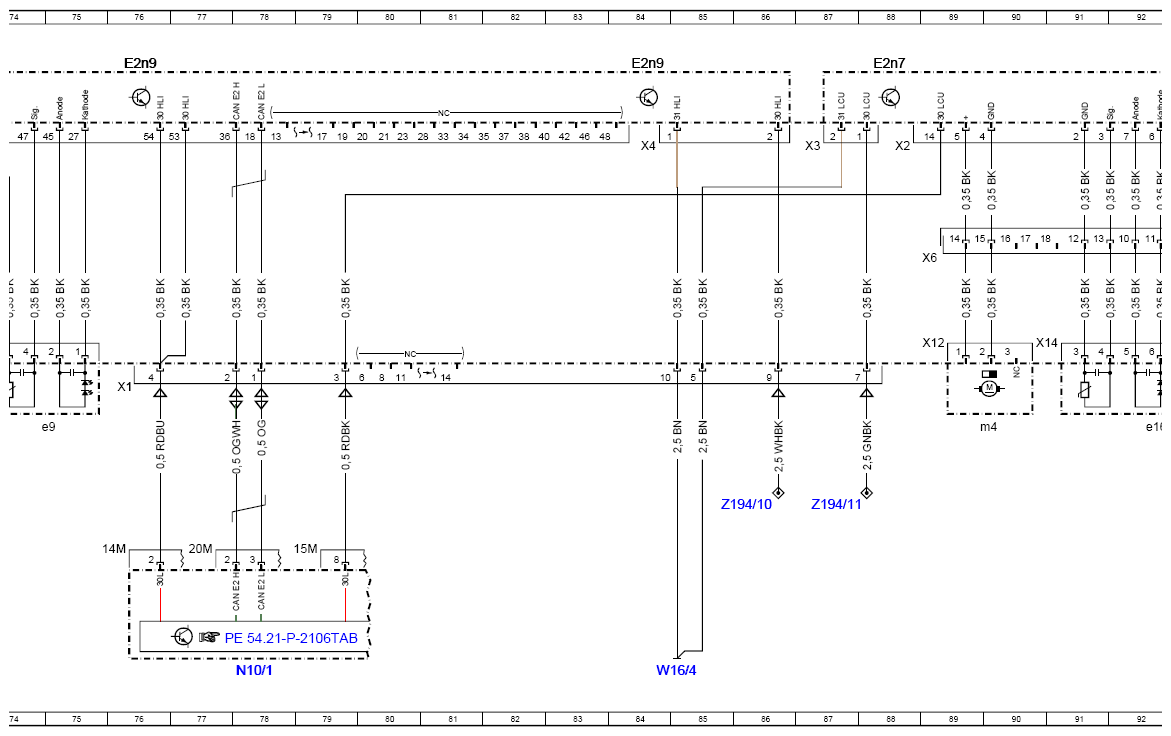

| W16/4 | Right major assembly compartment ground point | 84L |
| W16/5 | Left major assembly compartment electronics ground point | 39L |
| X25/7 | Engine compartment/FFS [RBA] electrical connector | 40K |
| Z194/10 | Headlamp control unit circuit 30 connector sleeve | 41H |
| Z194/10 | Headlamp control unit circuit 30 connector sleeve | 86H |
| Z194/11 | Front LED exterior illumination actuation module circuit 30 connector sleeve | 40H |
| Z194/11 | Front LED exterior illumination actuation module circuit 30 connector sleeve | 87H |
| Z56/16 | Level sensor ground connection engine compartment solder point | 35H |
| Z56/17 | Level sensor supply engine compartment solder point | 36H |
