Wiring Diagram Of Exterior Lights - PE82.10-P-2000-97TAB
WARNING: This page is about a different car, the 2020 Mercedes-Benz SLC43 AMG, 2019 Mercedes-Benz SLC43 AMG, 2018 Mercedes-Benz SLC43 AMG, and 2017 Mercedes-Benz SLC43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 172.4
except code 615 (Bi-xenon headlamps with active light function)
except code 621 (Intelligent Light System (left-hand traffic))
except code 622 (Intelligent Light System)
except code 640 (High-performance LED)
except code 641 (Headlamps, LED, dynamic, left-side traffic)
except code 642 (Headlamps, LED, dynamic, right-side traffic)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 72L |
| Code B03 | ECO start/stop function | 1G |
| Code B03 | ECO start/stop function | 31G |

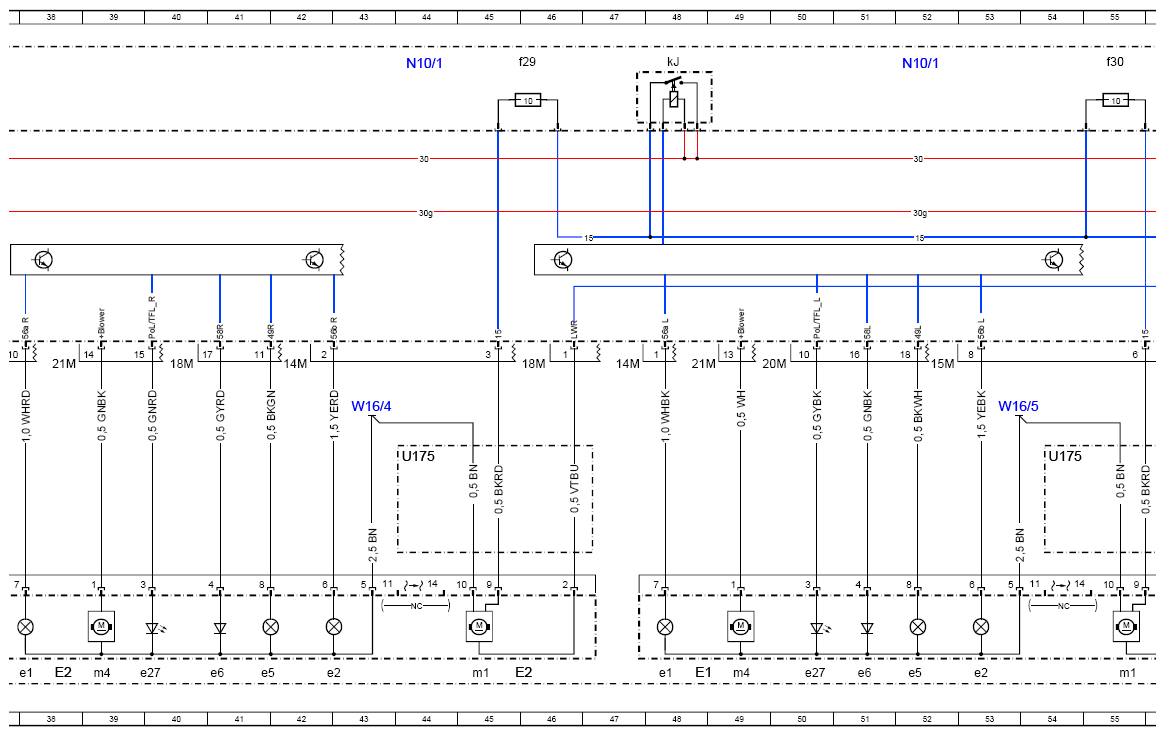

| E1 | Left front lamp unit | 9L |
| E1 | Left front lamp unit | 48L |
| E1 | Left front lamp unit | 56L |
| E1e1 | Left high beam | 7L |
| E1e1 | Left high beam | 48L |
| E1e2 | Left low beam | 10L |
| E1e2 | Left low beam | 53L |
| E1e27 | Left position light and daytime running light | 50L |
| E1e3 | Left front standing and parking lamp | 9L |
| E1e5 | Left front turn signal lamp | 8L |
| E1e5 | Left front turn signal lamp | 52L |
| E1e6 | Left front side-marker lamp | 51L |
| E1m1 | Left headlamp range adjustment actuator motor | 13L |
| E1m1 | Left headlamp range adjustment actuator motor | 55L |
| E1m4 | Left front lamp unit fan motor | 49L |
| E2 | Right front lamp unit | 17L |
| E2 | Right front lamp unit | 38L |
| E2 | Right front lamp unit | 45L |
| E2e1 | Right high beam | 15L |
| E2e1 | Right high beam | 38L |
| E2e2 | Right low beam | 18L |
| E2e2 | Right low beam | 42L |
| E2e27 | Right position light and daytime running light | 40L |
| E2e3 | Right front standing and parking lamp | 17L |
| E2e5 | Right front turn signal lamp | 16L |
| E2e5 | Right front turn signal lamp | 41L |
| E2e6 | Right front side-marker lamp | 41L |
| E2m1 | Right headlamp range adjustment actuator motor | 22L |
| E2m1 | Right headlamp range adjustment actuator motor | 45L |
| E2m4 | Right front lamp unit fan motor | 39L |

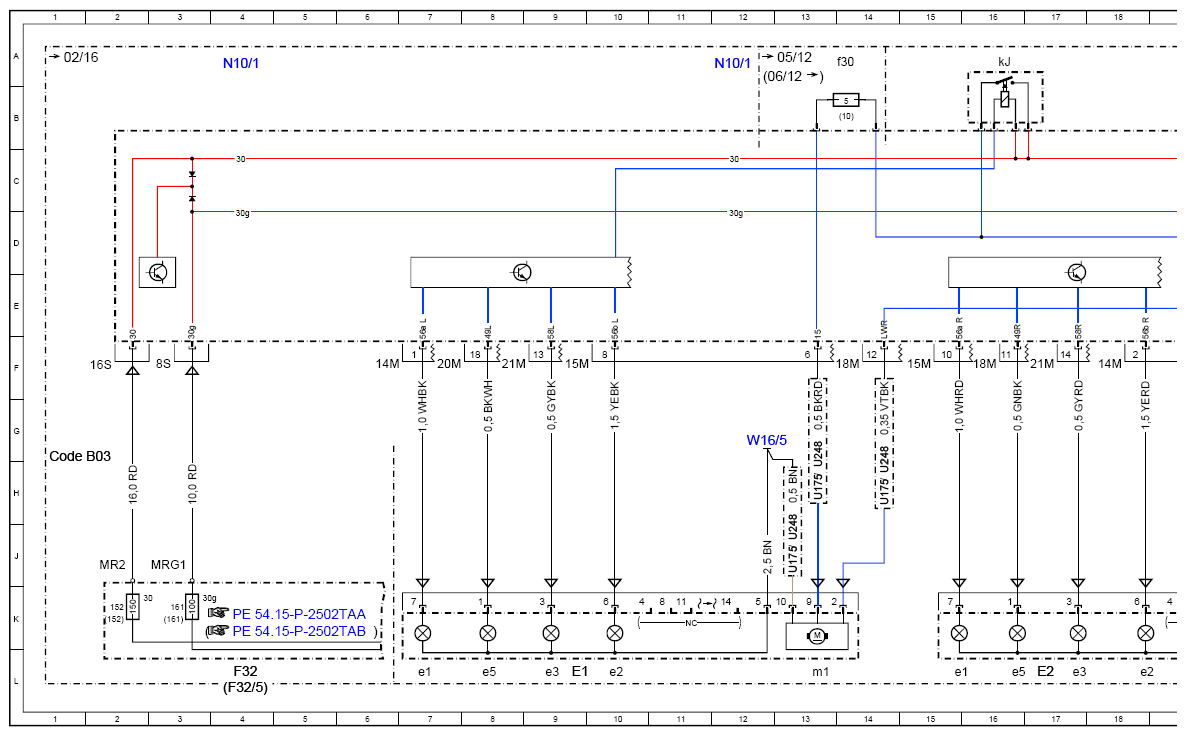

| F32 | Front pre-fuse | 4L |
| F32 | Front pre-fuse | 34L |
| F32/5 | Pre-fuse box without ECO start/stop function | 4L |
| F32/5 | Pre-fuse box without ECO start/stop function | 34L |
| F32/5f152 | Pre-fuse 152 | 2K |
| F32/5f152 | Pre-fuse 152 | 32K |
| F32/5f161 | Pre-fuse 161 | 3K |
| F32/5f161 | Pre-fuse 161 | 33K |
| F32f152 | Pre-fuse 152 | 2K |
| F32f152 | Pre-fuse 152 | 32K |
| F32f161 | Pre-fuse 161 | 3K |
| F32f161 | Pre-fuse 161 | 33K |
| N10/1 | Front SAM control unit with fuse and relay module | 4A |
| N10/1 | Front SAM control unit with fuse and relay module | 12A |
| N10/1 | Front SAM control unit with fuse and relay module | 19A |
| N10/1 | Front SAM control unit with fuse and relay module | 28A |
| N10/1 | Front SAM control unit with fuse and relay module | 36A |
| N10/1 | Front SAM control unit with fuse and relay module | 44A |
| N10/1 | Front SAM control unit with fuse and relay module | 52A |
| N10/1 | Front SAM control unit with fuse and relay module | 62A |
| N10/1f29 | Fuse 29 | 21A |
| N10/1f29 | Fuse 29 | 46A |
| N10/1f30 | Fuse 30 | 14A |
| N10/1f30 | Fuse 30 | 55A |
| N10/1f5 | Fuse 5 | 27A |
| N10/1f5 | Fuse 5 | 61A |
| N10/1kJ | Circuit 15 relay | 16A |
| N10/1kJ | Circuit 15 relay | 48A |

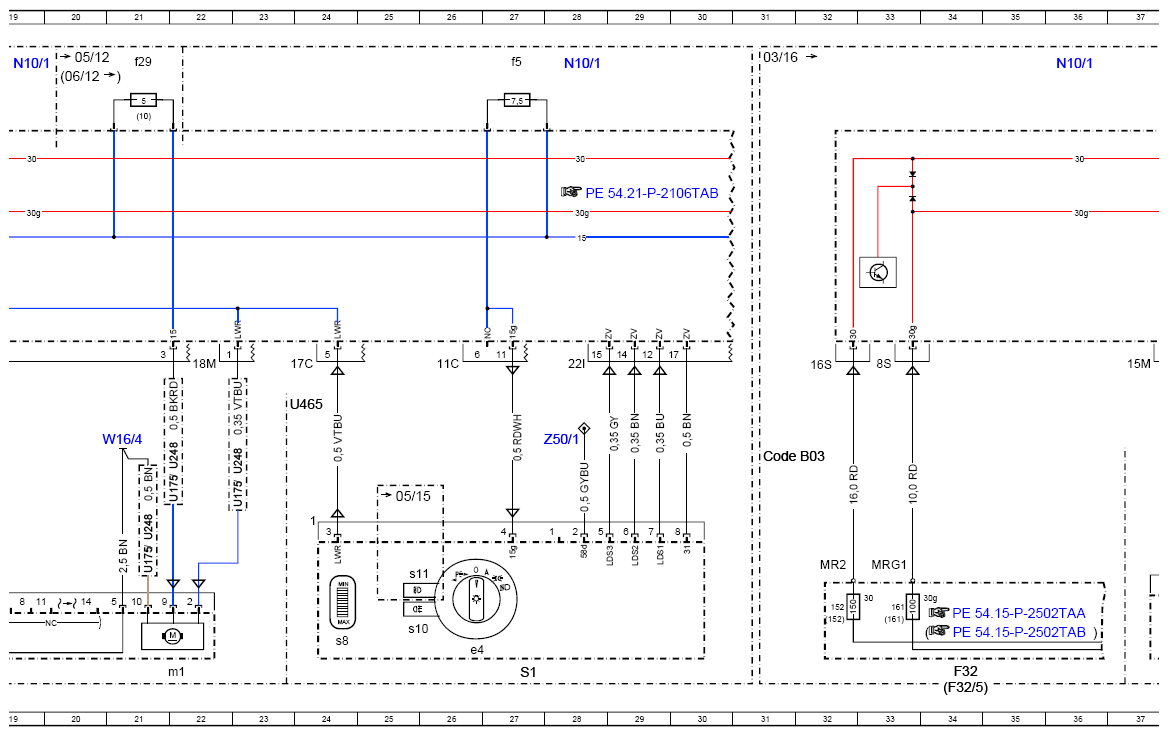

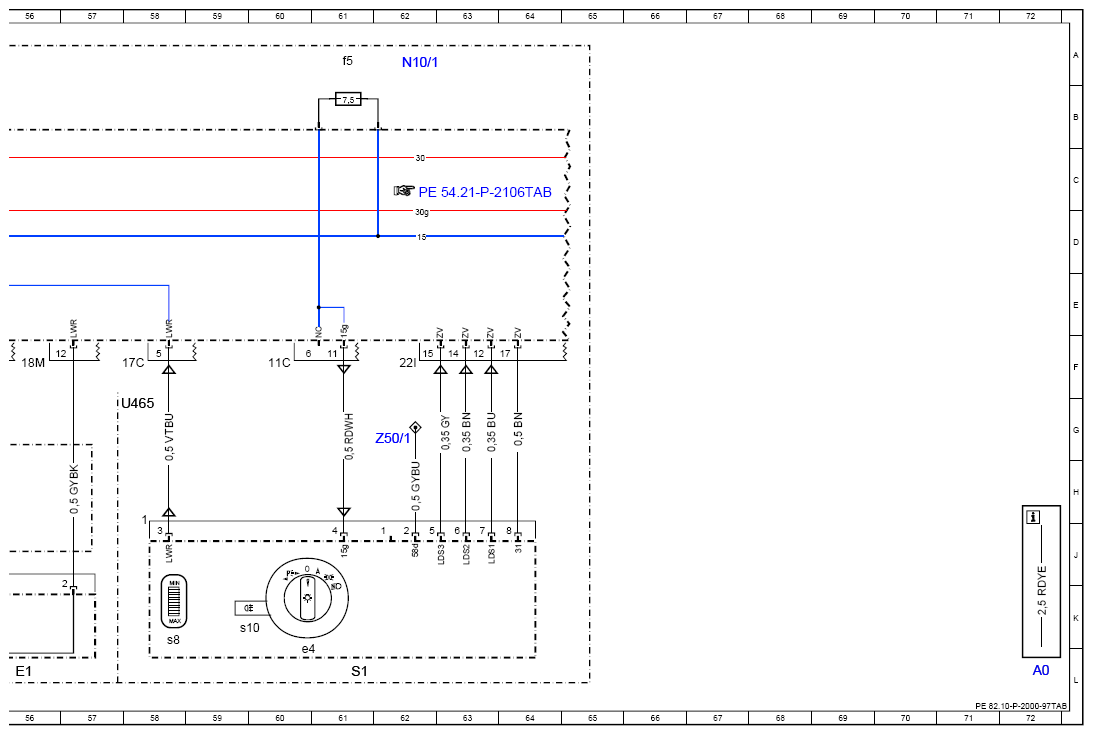

| S1 | Exterior lights switch | 27L |
| S1 | Exterior lights switch | 61L |
| S1e4 | Switch illumination | 26L |
| S1e4 | Switch illumination | 60L |
| S1s10 | Rear fog light button | 25K |
| S1s10 | Rear fog light button | 59K |
| S1s11 | Front fog lamp button | 25J |
| S1s8 | Headlamp range controller | 24K |
| S1s8 | Headlamp range controller | 58K |
| U175 | Valid for all except (USA and Canada) | 13H |
| U175 | Valid for all except (USA and Canada) | 13J |
| U175 | Valid for all except (USA and Canada) | 23H |
| U175 | Valid for all except (USA and Canada) | 22H |
| U175 | Valid for all except (USA and Canada) | 14H |
| U175 | Valid for all except (USA and Canada) | 21J |
| U175 | Valid for all except (USA and Canada) | 44G |
| U175 | Valid for all except (USA and Canada) | 54G |
| U248 | Valid for headlamp range adjustment for halogen headlamps | 13J |
| U248 | Valid for headlamp range adjustment for halogen headlamps | 13H |
| U248 | Valid for headlamp range adjustment for halogen headlamps | 21J |
| U248 | Valid for headlamp range adjustment for halogen headlamps | 14H |
| U248 | Valid for headlamp range adjustment for halogen headlamps | 22H |
| U248 | Valid for headlamp range adjustment for halogen headlamps | 23H |
| U465 | Valid for manual headlamp range adjustment | 23G |
| U465 | Valid for manual headlamp range adjustment | 57G |
| W16/4 | Right major assembly compartment ground point | 21G |
| W16/4 | Right major assembly compartment ground point | 43G |
| W16/5 | Left major assembly compartment electronics ground point | 12G |
| W16/5 | Left major assembly compartment electronics ground point | 53G |
| Z50/1 | Circuit 58d instrument panel connector sleeve | 28G |
| Z50/1 | Circuit 58d instrument panel connector sleeve | 62G |
