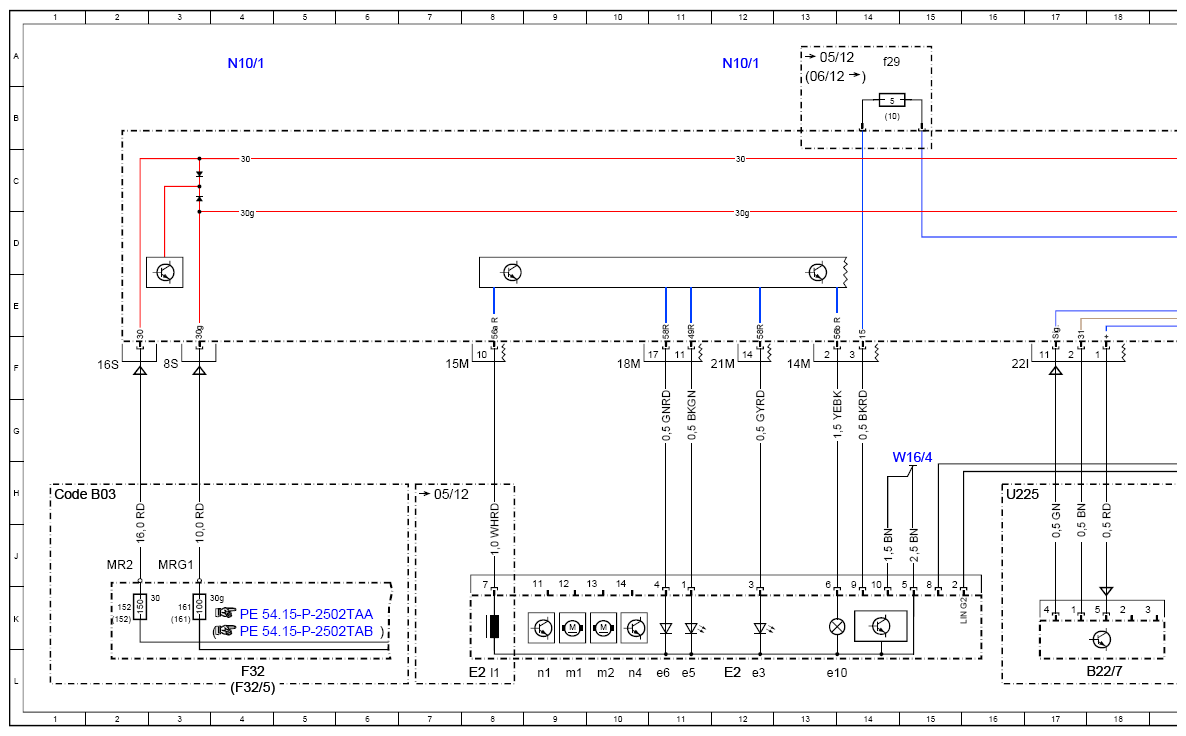

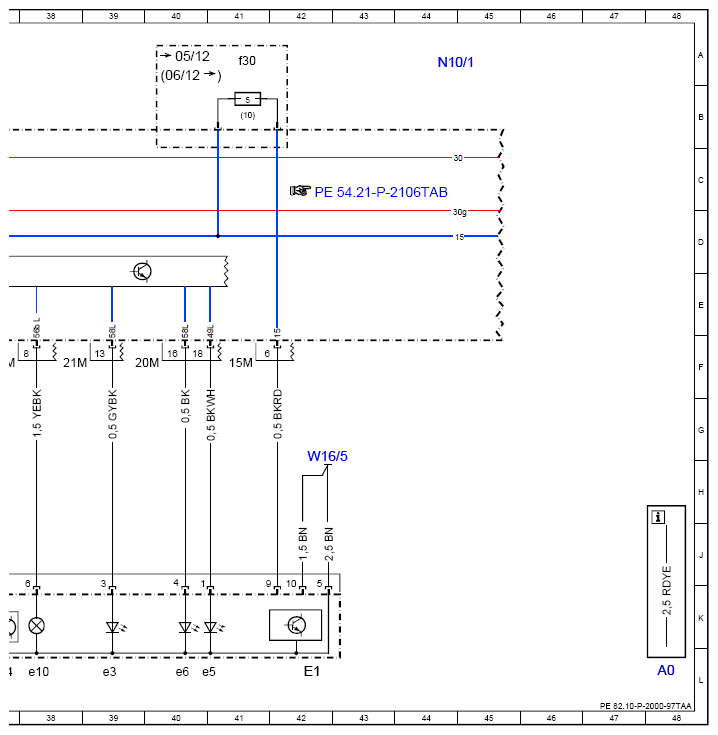

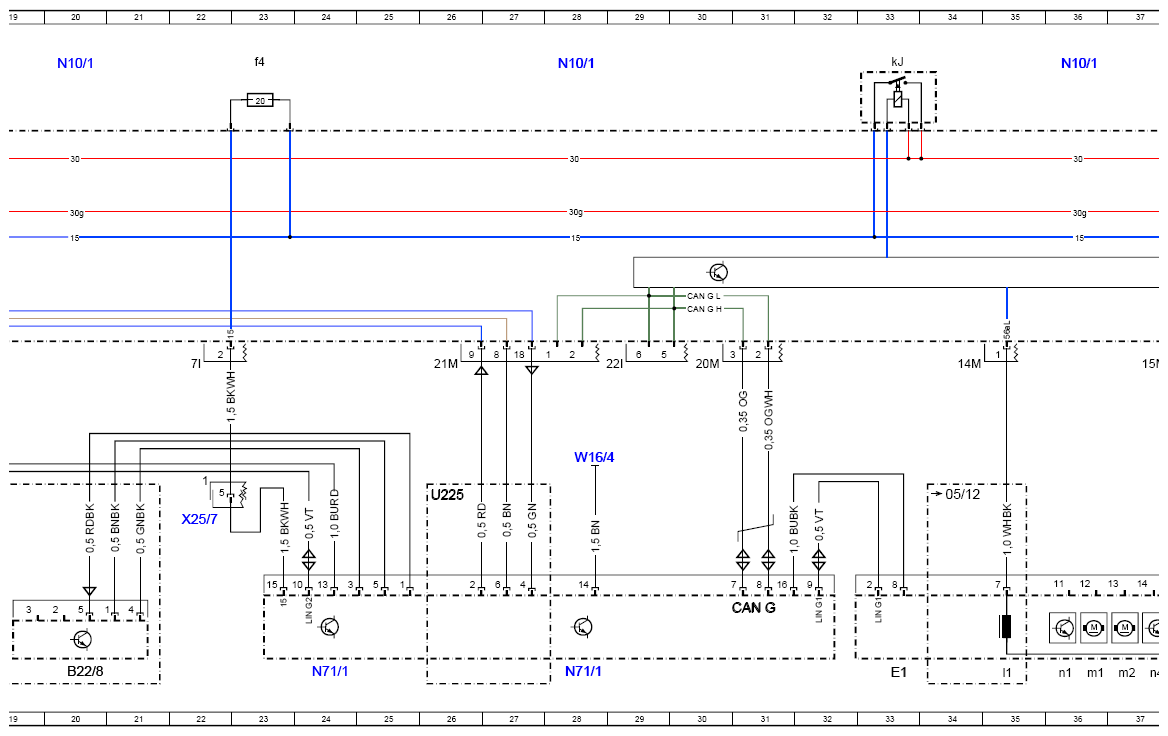

(Wiring Diagram Of Exterior Lights - PE82.10-P-2000-97TAA)
WARNING: This page is about a different car, the 2020 Mercedes-Benz SLC43 AMG, 2019 Mercedes-Benz SLC43 AMG, 2018 Mercedes-Benz SLC43 AMG, and 2017 Mercedes-Benz SLC43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 172.4
up to model year 2016
with code 615 (Bi-xenon headlamps with active light function)
Model 172.4
up to model year 2016
with code 621 (Intelligent Light System (left-hand traffic))
Model 172.4
up to model year 2016
with code 622 (Intelligent Light System)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 48L |
| B22/7 | Left rear level sensor | 18L |
| B22/8 | Left front level sensor | 20L |
| CAN G | Front end CAN | 31K |
| Code B03 | ECO start/stop function | 1H |
| E1 | Left front lamp unit | 33L |
| E1 | Left front lamp unit | 42L |
| E1e10 | Left xenon bulb with integrated ignition module | 38L |
| E1e3 | Left front standing and parking lamp | 39L |
| E1e5 | Left front turn signal lamp | 40L |
| E1e6 | Left front side-marker lamp | 40L |
| E1l1 | Left high beam solenoid | 35L |
| E1m1 | Left headlamp range adjustment actuator motor | 36L |
| E1m2 | Left active curve illumination actuator motor | 37L |
| E1n1 | Left xenon lamp control unit | 36L |
| E1n4 | Left xenon light power supply module | 37L |
| E2 | Right front lamp unit | 8L |
| E2 | Right front lamp unit | 12L |
| E2e10 | Right xenon bulb with integrated ignition module | 13L |
| E2e3 | Right front standing and parking lamp | 12L |
| E2e5 | Right front turn signal lamp | 11L |
| E2e6 | Right front side-marker lamp | 11L |
| E2l1 | Right high beam solenoid | 8L |
| E2m1 | Right headlamp range adjustment actuator motor | 9L |
| E2m2 | Right active curve illumination actuator motor | 10L |
| E2n1 | Right xenon light control unit | 9L |
| E2n4 | Right xenon light power supply module | 10L |
| F32 | Front pre-fuse | 4L |
| F32/5 | Pre-fuse box without ECO start/stop function | 4L |
| F32/5f152 | Pre-fuse 152 | 2K |
| F32/5f161 | Pre-fuse 161 | 3K |
| F32f152 | Pre-fuse 152 | 2K |
| F32f161 | Pre-fuse 161 | 3K |
| N10/1 | Front SAM control unit with fuse and relay module | 4A |
| N10/1 | Front SAM control unit with fuse and relay module | 12A |
| N10/1 | Front SAM control unit with fuse and relay module | 20A |
| N10/1 | Front SAM control unit with fuse and relay module | 28A |
| N10/1 | Front SAM control unit with fuse and relay module | 36A |
| N10/1 | Front SAM control unit with fuse and relay module | 44A |
| N10/1f29 | Fuse 29 | 14A |
| N10/1f30 | Fuse 30 | 41A |
| N10/1f4 | Fuse 4 | 23A |
| N10/1kJ | Circuit 15 relay | 33A |
| N71/1 | Headlamp control unit | 24L |
| N71/1 | Headlamp control unit | 28L |
| U225 | Valid without code 483 Vehicle dynamics package | 16H |
| U225 | Valid without code 483 Vehicle dynamics package | 26H |
| W16/4 | Right major assembly compartment ground point | 15H |
| W16/4 | Right major assembly compartment ground point | 28H |
| W16/5 | Left major assembly compartment electronics ground point | 42H |
| X25/7 | Engine compartment/FFS [RBA] electrical connector | 22H |
