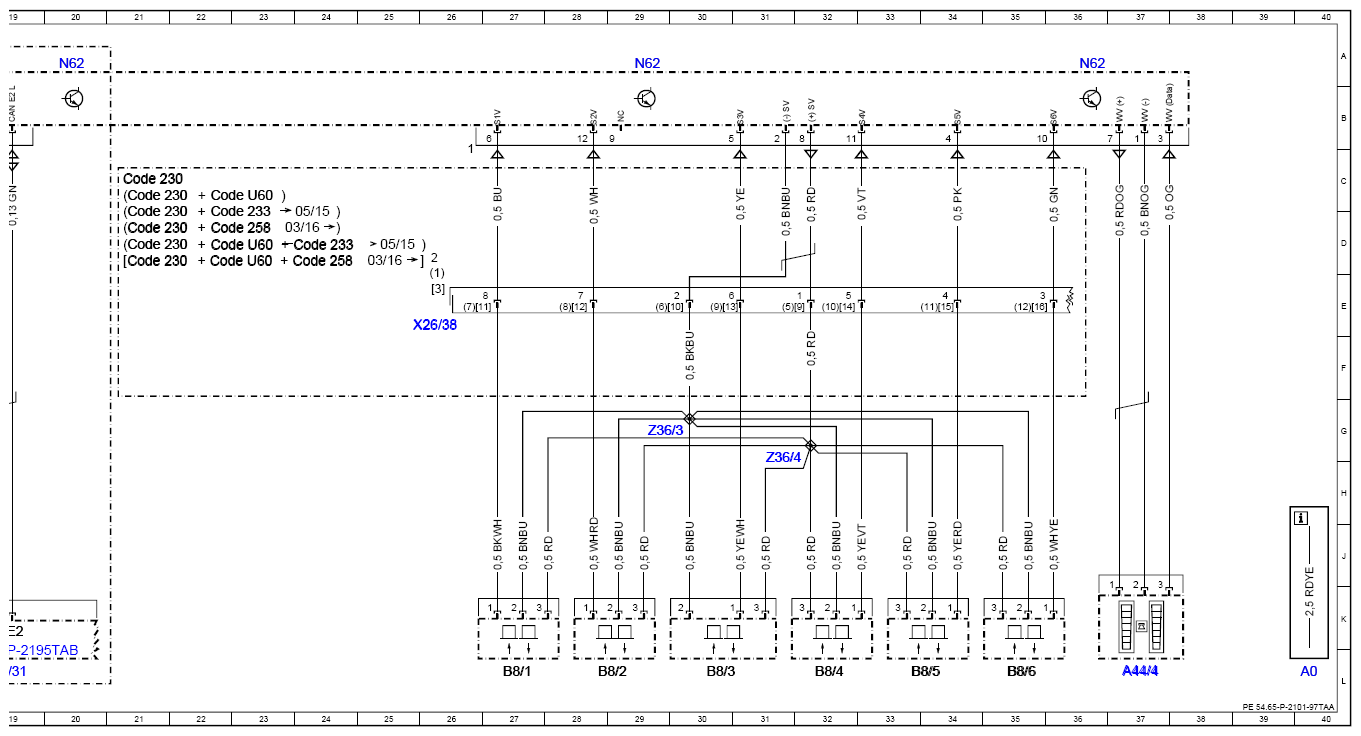

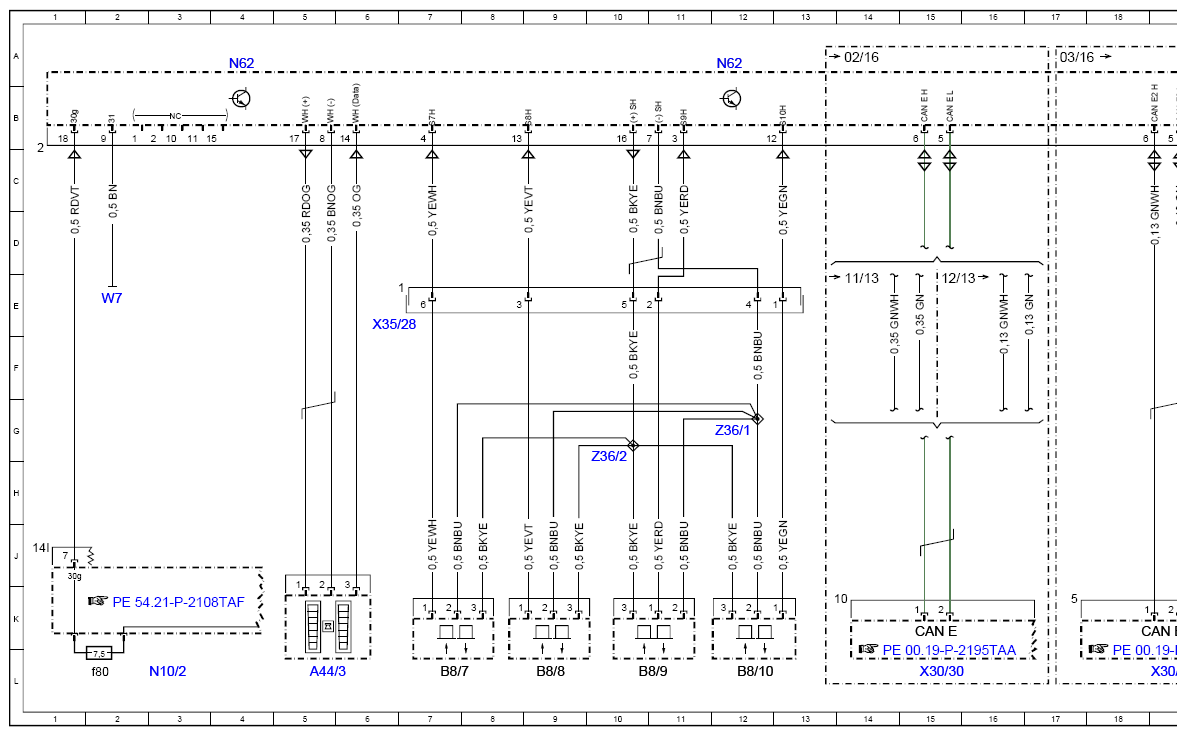

Wiring Diagram for Parktronic System (PTS) Control Unit - PE54.65-P-2101-97TAA
WARNING: This page is about a different car, the 2020 Mercedes-Benz SLC43 AMG, 2019 Mercedes-Benz SLC43 AMG, 2018 Mercedes-Benz SLC43 AMG, and 2017 Mercedes-Benz SLC43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 172.4
with code 230 (Advanced Parking Guidance)
Control unit N62
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 40L |
| A44/3 | Rear parking system warning indicator | 5L |
| A44/4 | Instrument panel parking system warning indicator | 37L |
| B8/1 | Outer left front parking system distance sensor | 27L |
| B8/10 | Outer left rear parking system distance sensor | 12L |
| B8/2 | Center left front parking system distance sensor | 28L |
| B8/3 | Inner left front parking system distance sensor | 30L |
| B8/4 | Inner right front parking system distance sensor | 32L |
| B8/5 | Center right front parking system distance sensor | 33L |
| B8/6 | Outer right front parking system distance sensor | 35L |
| B8/7 | Outer right rear parking system distance sensor | 7L |
| B8/8 | Inner right rear parking system distance sensor | 9L |
| B8/9 | Inner left rear parking system distance sensor | 10L |
| CAN E | Chassis CAN | 15K |
| CAN E2 | Chassis CAN 2 | 19K |
| Code 230 | Exclusive parking assist | 21D |
| Code 230 | Exclusive parking assist | 21C |
| Code 230 | Exclusive parking assist | 21D |
| Code 230 | Exclusive parking assist | 21D |
| Code 233 | DISTRONIC PLUS | 23D |
| Code 233 | DISTRONIC PLUS | 22D |
| Code 258 | COLLISION PREVENTION ASSIST | 23D |
| Code 258 | COLLISION PREVENTION ASSIST | 22D |
| Code U60 | Pedestrian protection | 22D |
| Code U60 | Pedestrian protection | 22C |
| Code U60 | Pedestrian protection | 22D |
| N10/2 | Rear SAM control unit with fuse and relay module | 3L |
| N10/2f80 | Fuse 80 | 2L |
| N62 | Parking system control unit | 4A |
| N62 | Parking system control unit | 12A |
| N62 | Parking system control unit | 20A |
| N62 | Parking system control unit | 29A |
| N62 | Parking system control unit | 36A |
| W7 | Right wheelhouse trunk ground point | 2E |
| X26/38 | Front bumper and frame wiring harness electrical connector | 26E |
| X30/30 | Vehicle floor chassis CAN voltage distributor electrical connector | 15L |
| X30/31 | Chassis 1 CAN (CAN E2) potential distributor electrical connector | 19L |
| X35/28 | Rear bumper parking system electrical connector | 6E |
| Z36/1 | Rear parking system sensors ground line connector sleeve | 12G |
| Z36/2 | Rear parking system sensors positive line connector sleeve | 10G |
| Z36/3 | Front parking system sensors ground line connector sleeve | 29G |
| Z36/4 | Front parking system sensors positive line connector sleeve | 31G |
