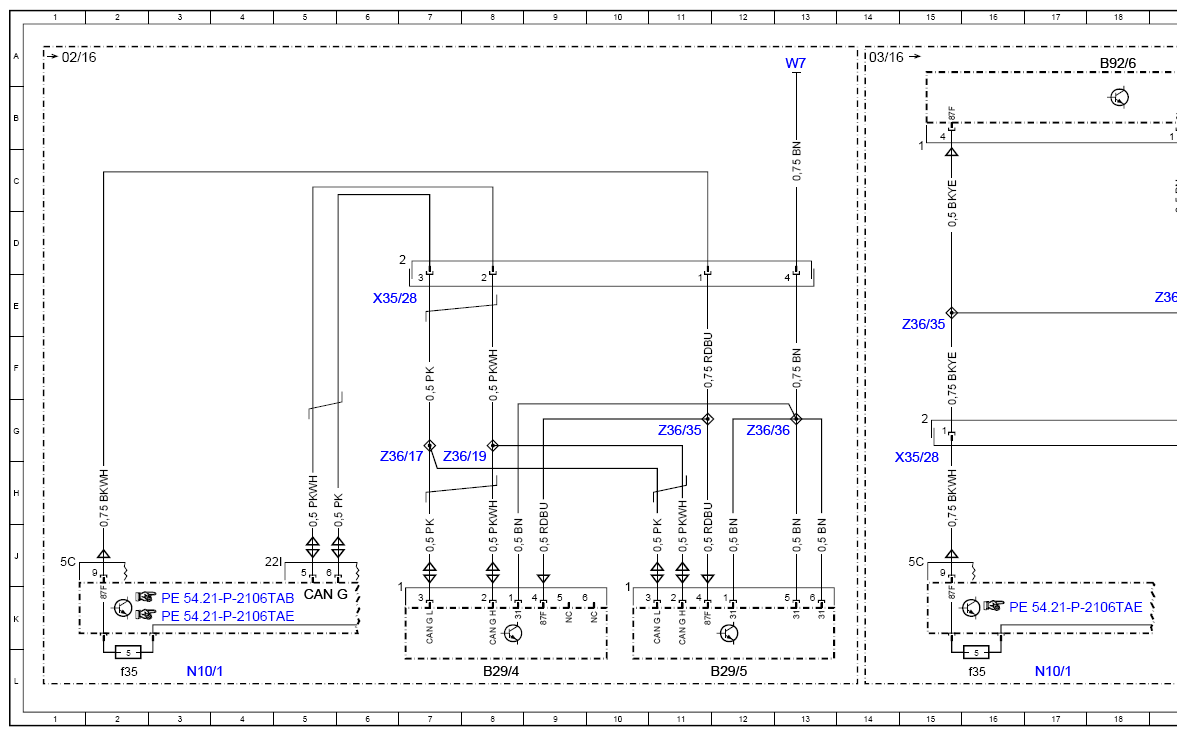

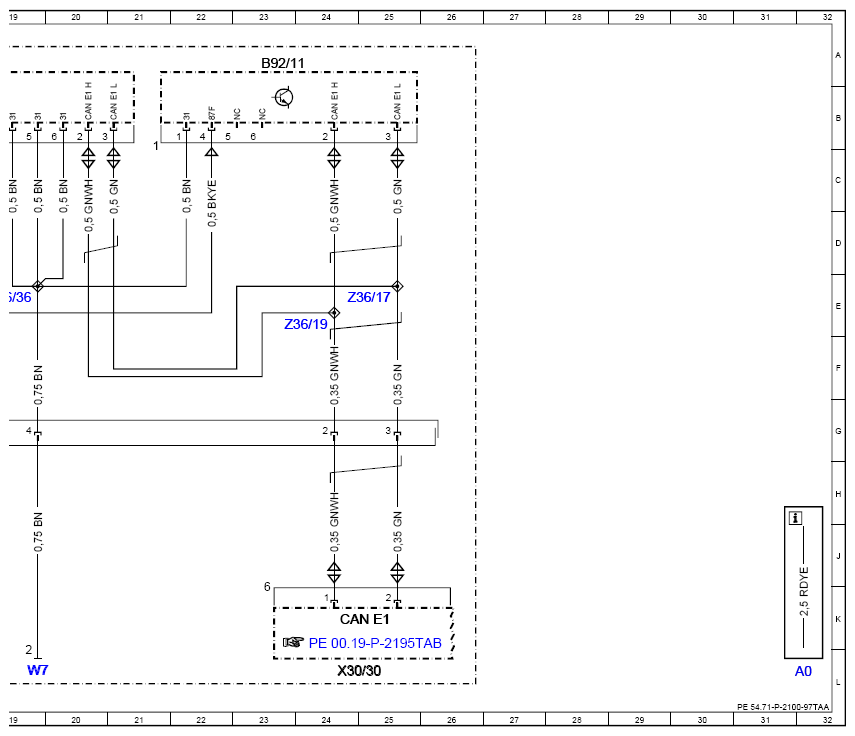

Blind Spot Assist Wiring Diagram - PE54.71-P-2100-97TAA
WARNING: This page is about a different car, the 2020 Mercedes-Benz SLC43 AMG, 2019 Mercedes-Benz SLC43 AMG, 2018 Mercedes-Benz SLC43 AMG, and 2017 Mercedes-Benz SLC43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 172.4 as of 6/1/12
with code 234 (Blind Spot Monitoring)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 32L |
| B29/4 | Left rear bumper intelligent radar sensor | 8L |
| B29/5 | Right rear bumper intelligent radar sensor | 12L |
| B92/11 | Left outer rear bumper integrated radar sensor | 23A |
| B92/6 | Right outer rear bumper integrated radar sensor | 18A |
| CAN E1 | Chassis CAN 1 | 24K |
| CAN G | Front end CAN | 5K |
| N10/1 | Front SAM control unit with fuse and relay module | 3L |
| N10/1 | Front SAM control unit with fuse and relay module | 17L |
| N10/1f35 | Fuse 35 | 2L |
| N10/1f35 | Fuse 35 | 16L |
| W7 | Right wheelhouse trunk ground point | 13A |
| W7 | Right wheelhouse trunk ground point | 19L |
| X30/74 | Chassis CAN 1 (CAN E1) potential distributor electrical connector | - |
| X35/28 | Rear bumper parking system electrical connector | 15H |
| X35/28 | Rear bumper parking system electrical connector | 6E |
| Z36/17 | Rear sensor CAN connector sleeve | 7G |
| Z36/17 | Rear sensor CAN connector sleeve | 25E |
| Z36/19 | Rear sensor CAN connector sleeve | 8G |
| Z36/19 | Rear sensor CAN connector sleeve | 24E |
| Z36/35 | Rear radar sensors sensor power supply connector sleeve | 11G |
| Z36/35 | Rear radar sensors sensor power supply connector sleeve | 15E |
| Z36/36 | Rear radar sensors sensor ground connector sleeve | 12G |
| Z36/36 | Rear radar sensors sensor ground connector sleeve | 19E |
