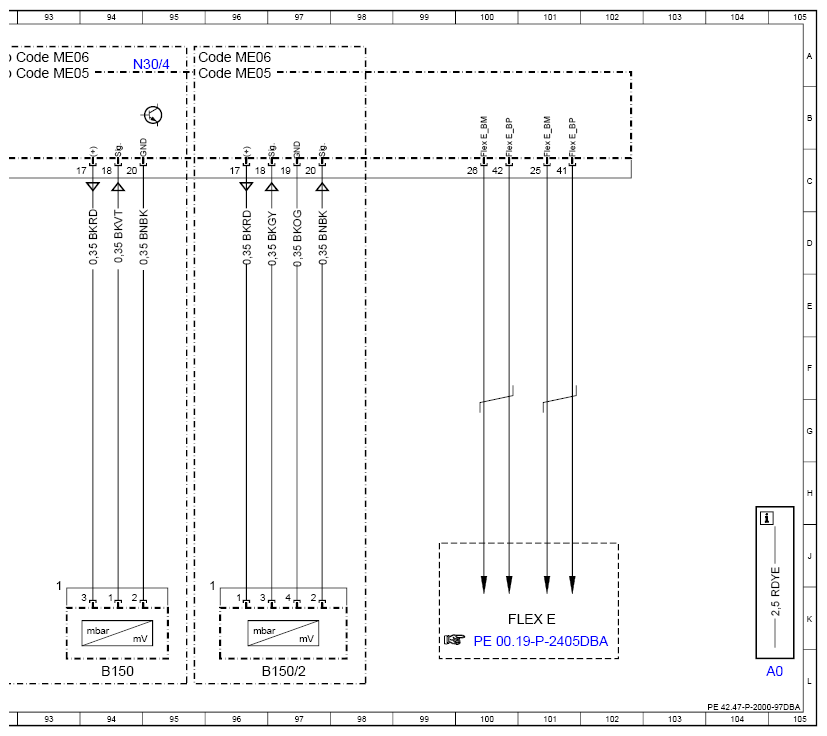

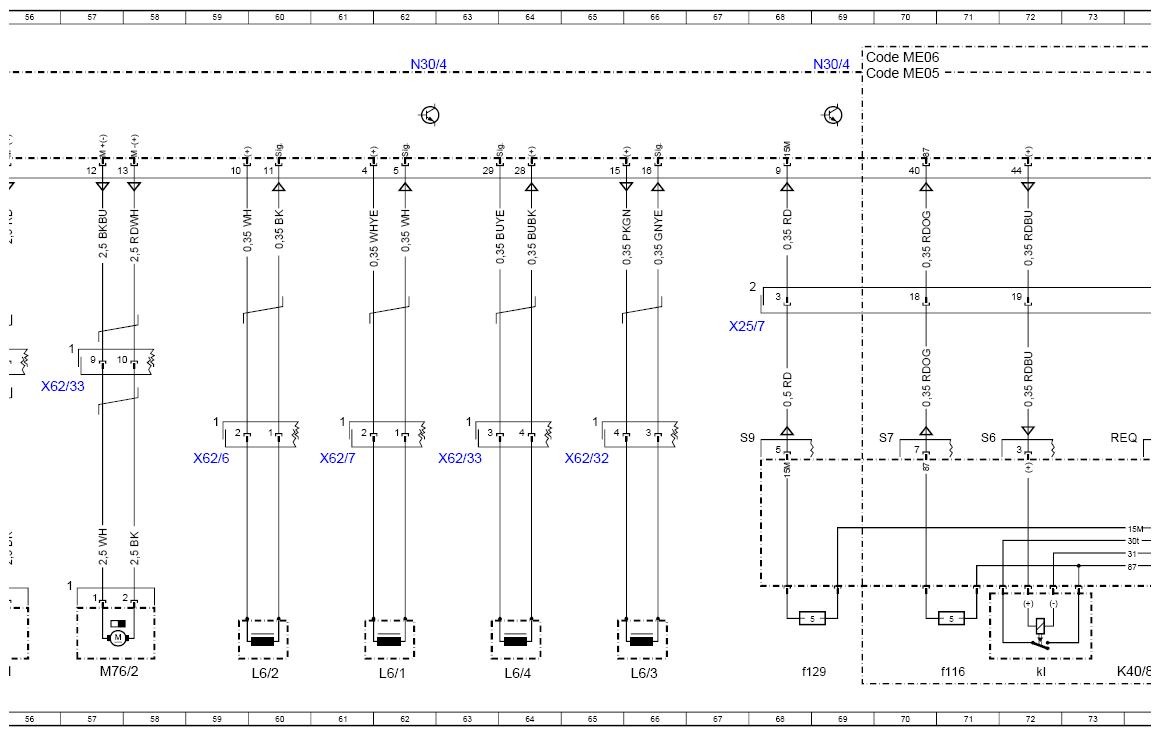

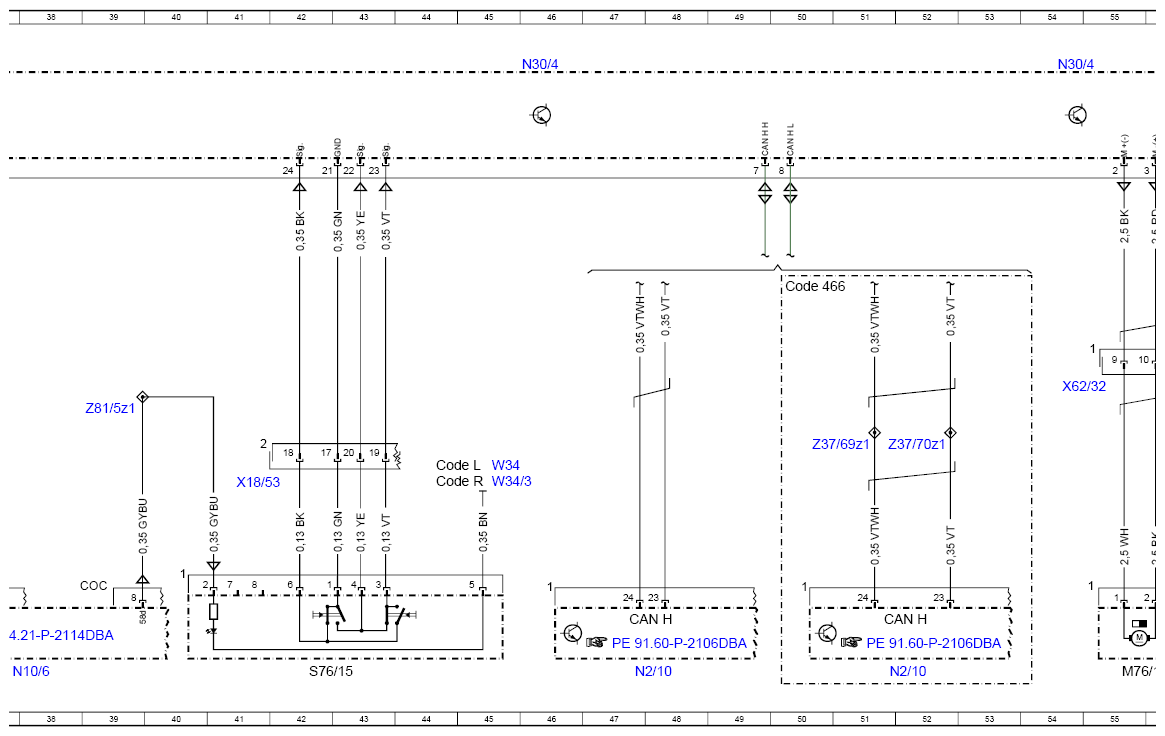

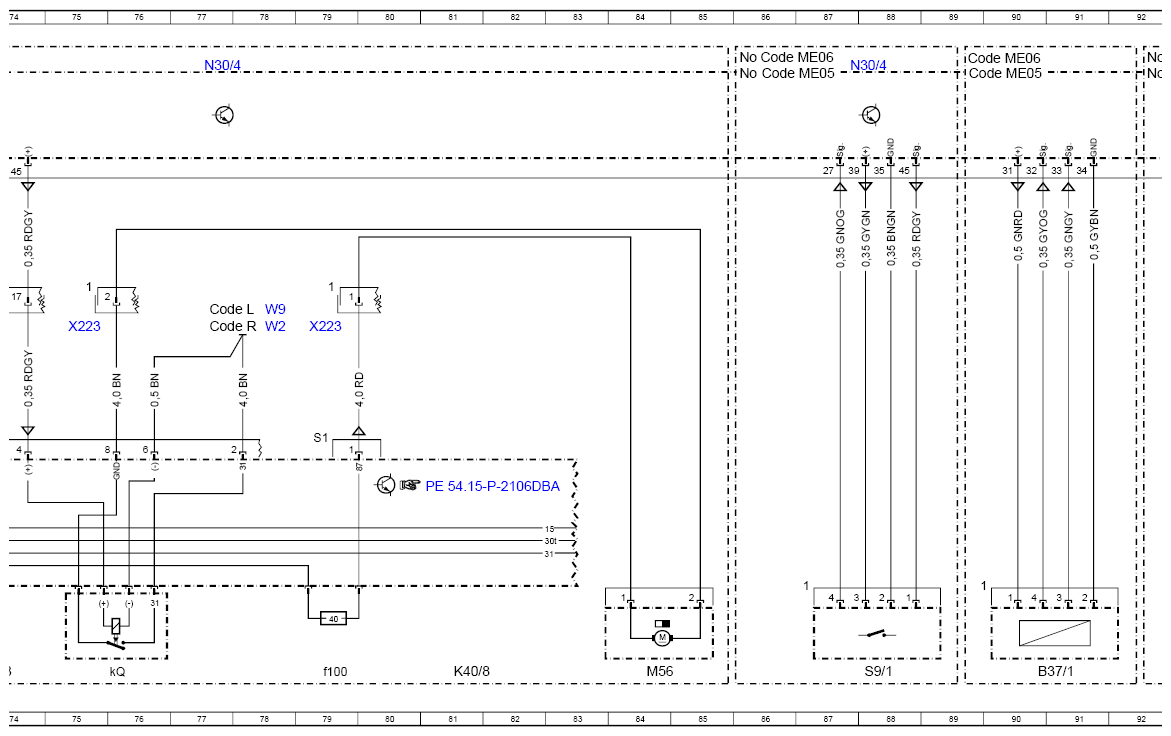

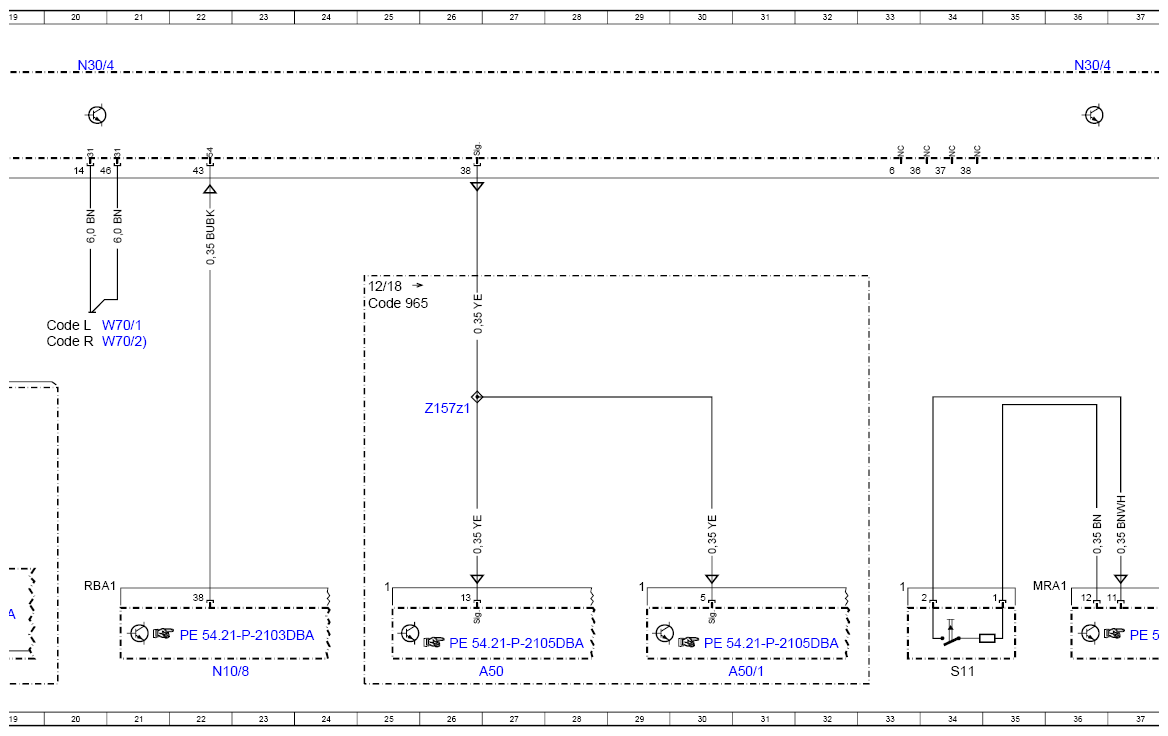

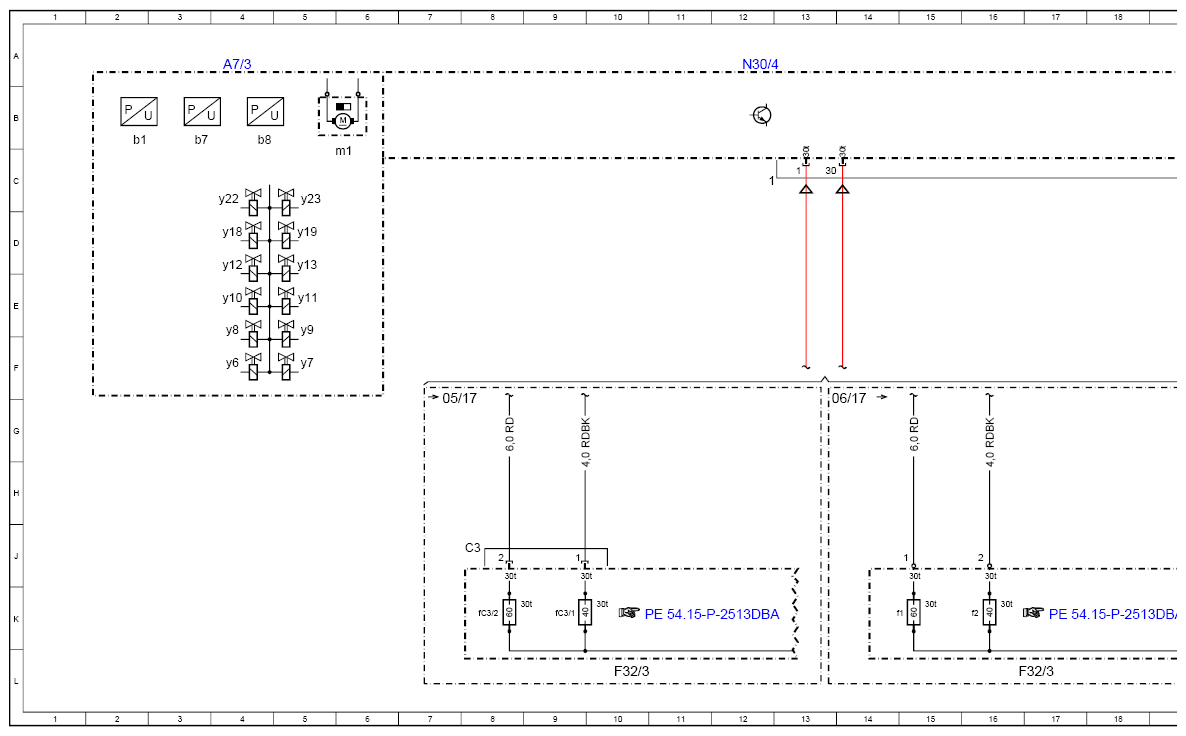

Wiring Diagram For Adaptive Brake (ABR) - PE42.47-P-2000-97DBA
WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2023 Mercedes-Benz E63 S AMG, 2023 Mercedes-Benz E53 AMG, 2023 Mercedes-Benz E350, 2022 Mercedes-Benz E53 AMG, and 2022 Mercedes-Benz E350. However, it is still accessible from the selected car via links, so may be relevant.
Model 213 (except 213.088/089/288/289) up to model year 2021
Control unit N30/4
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 105L |
| A50 | Taximeter | 27L |
| A50/1 | Mirror taximeter | 31L |
| A7/3 | Traction system hydraulic unit | 4A |
| A7/3b1 | Master brake cylinder pressure sensor | 2B |
| A7/3b7 | Brake circuit 2 pressure sensor | 3B |
| A7/3b8 | Rear pressure sensor | 4B |
| A7/3m1 | High pressure and return pump | 6C |
| A7/3y10 | Left rear pressure regulator valve (pressure hold) | 4E |
| A7/3y11 | Left rear pressure regulator valve (pressure release) | 5E |
| A7/3y12 | Right rear pressure regulator valve (pressure hold) | 4D |
| A7/3y13 | Right rear pressure regulator valve (pressure release) | 5D |
| A7/3y18 | Brake circuit 1 switchover valve | 4D |
| A7/3y19 | Brake circuit 2 switchover valve | 5D |
| A7/3y22 | Brake circuit 1 intake ball valve | 4C |
| A7/3y23 | Brake circuit 2 intake ball valve | 5C |
| A7/3y6 | Left front pressure regulator valve (pressure hold) | 4F |
| A7/3y7 | Left front pressure regulator valve (pressure release) | 5F |
| A7/3y8 | Right front pressure regulator valve (pressure hold) | 4E |
| A7/3y9 | Right front pressure regulator valve (pressure release) | 5E |
| B150 | Brake vacuum sensor | 94L |
| B150/2 | Dual brake vacuum sensor | 97L |
| B37/1 | Pedal angle sensor | 90L |
| CAN H | Vehicle dynamics CAN | 47K |
| CAN H | Vehicle dynamics CAN | 52K |
| Code 466 | Active engine mount | 50E |
| Code 965 | Taxi/rental car - Pre-installation | 25E |
| Code L | LEFT-HAND DRIVE | 20E |
| Code L | LEFT-HAND DRIVE | 44H |
| Code L | LEFT-HAND DRIVE | 77E |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUG-IN) | 95A |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUG-IN) | 89A |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUG-IN) | 69A |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUG-IN) | 86A |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUG-IN) | 92A |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUG-IN) | 95A |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUG-IN) | 69A |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUG-IN) | 89A |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUG-IN) | 86A |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUG-IN) | 92A |
| Code R | RIGHT-HAND DRIVE | 20F |
| Code R | RIGHT-HAND DRIVE | 44H |
| Code R | RIGHT-HAND DRIVE | 77E |
| F32/3 | Engine compartment prefuse box | 17L |
| F32/3 | Engine compartment prefuse box | 10L |
| F32/3f1 | Fuse 1 | 14K |
| F32/3f2 | Fuse 2 | 16K |
| F32/3fC3/1 | Electrical fuse C3/1 | 9K |
| F32/3fC3/2 | Electrical fuse C3/2 | 8K |
| K40/8 | Engine fuse and relay module | 81L |
| K40/8 | Engine fuse and relay module | 74L |
| K40/8f100 | Fuse 100 | 79L |
| K40/8f116 | Fuse 116 | 71L |
| K40/8f129 | Fuse 129 | 68L |
| K40/8kl | Vacuum pump mechanical relay (-) | 72L |
| K40/8kQ | Vacuum pump electronic relay (+) | 76L |
| L6/1 | Left front axle rpm sensor | 62L |
| L6/2 | Right front axle rpm sensor | 60L |
| L6/3 | Left rear axle rpm sensor | 66L |
| L6/4 | Right rear axle rpm sensor | 64L |
| M56 | Electric vacuum pump | 84L |
| M76/1 | Left electric parking brake actuator motor | 55L |
| M76/2 | Right electric parking brake actuator motor | 57L |
| N10/6 | Front SAM control unit | 38L |
| N10/8 | Rear SAM control unit | 22L |
| N2/10 | Supplemental restraint system control unit | 47L |
| N2/10 | Supplemental restraint system control unit | 52L |
| N30/4 | Electronic Stability Program control unit | 12A |
| N30/4 | Electronic Stability Program control unit | 20A |
| N30/4 | Electronic Stability Program control unit | 46A |
| N30/4 | Electronic Stability Program control unit | 54A |
| N30/4 | Electronic Stability Program control unit | 62A |
| N30/4 | Electronic Stability Program control unit | 69A |
| N30/4 | Electronic Stability Program control unit | 77A |
| N30/4 | Electronic Stability Program control unit | 88A |
| N30/4 | Electronic Stability Program control unit | 94A |
| N30/4 | Electronic Stability Program control unit | 36A |
| S11 | Brake fluid level switch | 34L |
| S76/15 | Electric parking brake switch | 42L |
| S9/1 | Stop lamp switch | 88L |
| W2 | Right front ground point (at lamp unit) | 78E |
| W34 | Left footwell ground point | 45H |
| W34/3 | Right footwell ground point | 45H |
| W70/1 | Left ESP® ground point | 20E |
| W70/2 | Right ESP® ground point | 20F |
| W9 | Left front ground point (at lamp unit) | 78E |
| X18/53 | Driver-side cockpit/frame floor assembly electrical connector | 41H |
| X223 | Vacuum pump electrical connector | 75E |
| X223 | Vacuum pump electrical connector | 79E |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 67E |
| X62/32 | Rear axle electrical connector, left distributor | 55F |
| X62/32 | Rear axle electrical connector, left distributor | 65H |
| X62/33 | Rear axle electrical connector, right distributor | 57F |
| X62/33 | Rear axle electrical connector, right distributor | 63H |
| X62/6 | Front axle electrical connector, right distributor | 59H |
| X62/7 | Front axle electrical connector, left distributor | 61H |
| Z157z1 | Travel distance connector sleeve | 26G |
| Z37/69z1 | Vehicle dynamics CAN (high) connector sleeve | 51G |
| Z37/70z1 | Vehicle dynamics CAN (low) connector sleeve | 52G |
| Z81/5z1 | Cockpit terminal 58d connector sleeve | 39G |
