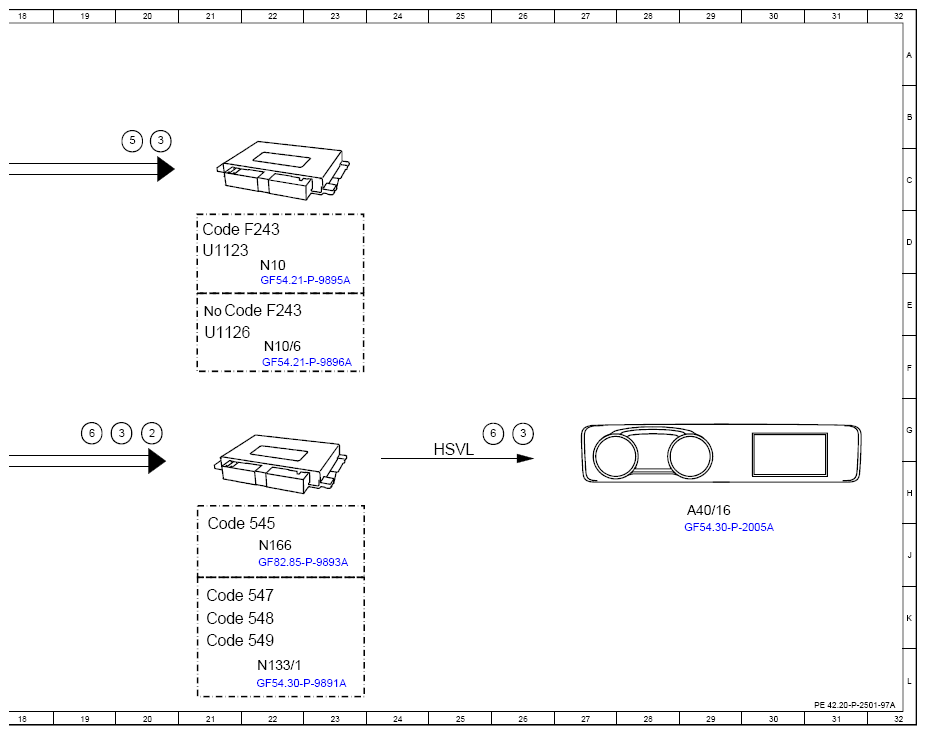

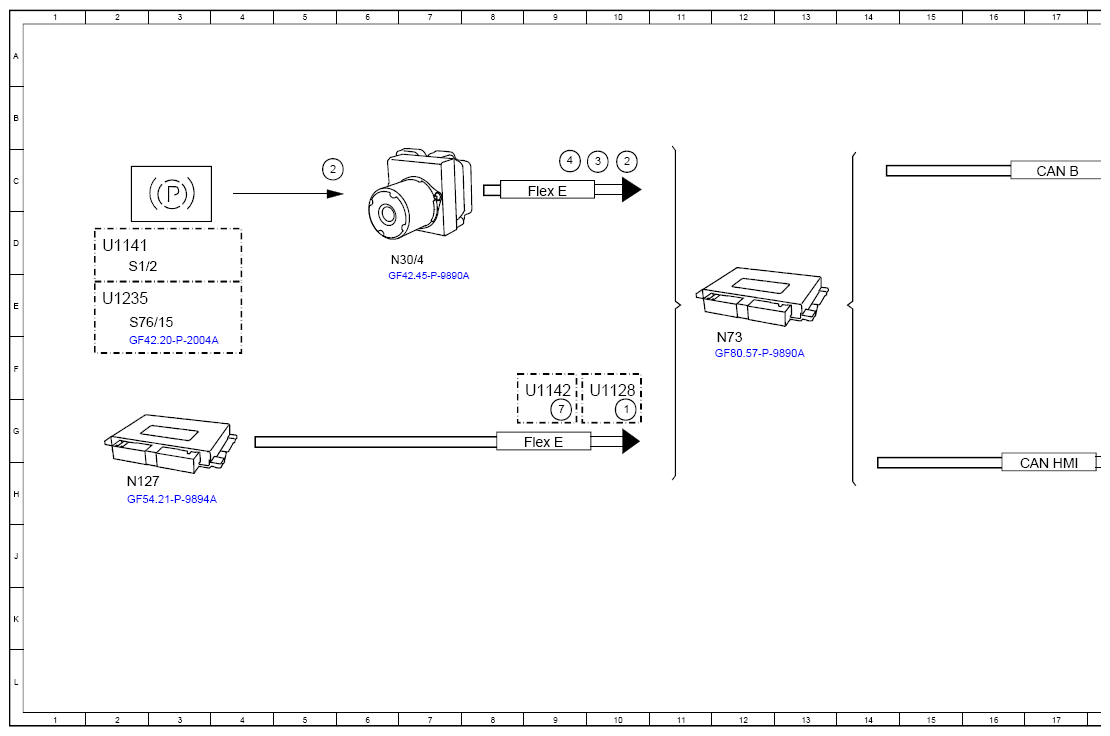

Function Schematic For Electric Parking Brake Emergency Braking - PE42.20-P-2501-97A
WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2023 Mercedes-Benz E63 S AMG, 2023 Mercedes-Benz E53 AMG, 2023 Mercedes-Benz E350, 2022 Mercedes-Benz E53 AMG, and 2022 Mercedes-Benz E350. However, it is still accessible from the selected car via links, so may be relevant.
Model 213, 238, 257, 290 as of model year 2021
Model 118, 167, 177, 243, 247, 293
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine running, signal | 10G |
| 2 | Electric parking brake switch, status | 20G |
| 2 | Electric parking brake switch, status | 10C |
| 2 | Electric parking brake switch, status | 6C |
| 3 | Emergency stop, signal | 20G |
| 3 | Emergency stop, signal | 26G |
| 3 | Emergency stop, signal | 20C |
| 3 | Emergency stop, signal | 10C |
| 4 | Wheel speed, signal | 9C |
| 5 | Brake lights, request | 20C |
| 6 | Instrument cluster, message | 26G |
| 6 | Instrument cluster, message | 19G |
| 7 | Electric machine, status | 9G |
| A40/16 | Head unit/instrument cluster display cluster | 29H |
| CAN B | Interior CAN | 17C |
| CAN HMI | User interface CAN | 17H |
| Code 545 | Connect 5 (NTG6) | 21J |
| Code 547 | Connect 20 Entry (NTG6) | 21K |
| Code 548 | Connect 20 MID (NTG6) | 21K |
| Code 549 | Connect 20 HIGH (NTG6) | 21K |
| Code F243 | MODEL SERIES 243 | 21E |
| Code F243 | MODEL SERIES 243 | 21D |
| Flex E | Chassis FlexRay | 9C |
| Flex E | Chassis FlexRay | 9G |
| HSVL | High-speed video link | 25G |
| N10 | Signal acquisition and actuation module | 22D |
| N10/6 | Front signal acquisition and actuation module control unit | 22F |
| N127 | Drivetrain control unit | 2H |
| N133/1 | Instrument cluster control unit | 22L |
| N166 | Head unit/instrument cluster control unit | 22J |
| N30/4 | Electronic Stability Program control unit | 7D |
| N73 | Electronic ignition switch control unit | 12F |
| S1/2 | Exterior lights and electric parking brake switch group | 2D |
| S76/15 | Electric parking brake switch | 2E |
| U1123 | Valid for model 118, 177, 247 | 21D |
| U1126 | Valid except model 118, 177, 247 | 21F |
| U1128 | Valid for combustion engine | 10F |
| U1141 | Valid except model 213, 238, 257, 290 | 2D |
| U1142 | Valid for electric vehicle | 9F |
| U1235 | Valid for model 213, 238, 257, 290 | 2E |
