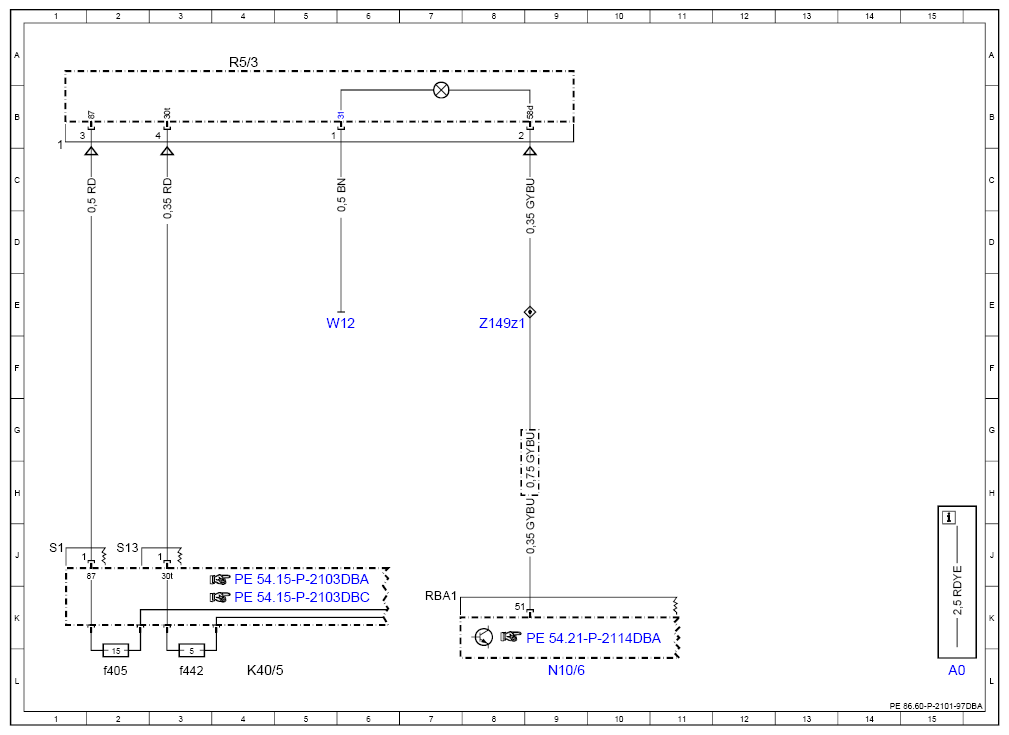

Wiring Diagram For Rear Cup Holder - PE86.60-P-2101-97DBA
WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2023 Mercedes-Benz E63 S AMG, 2023 Mercedes-Benz E53 AMG, 2023 Mercedes-Benz E350, 2022 Mercedes-Benz E53 AMG, and 2022 Mercedes-Benz E350. However, it is still accessible from the selected car via links, so may be relevant.
Model 213 up to model year 2021 with code 311 (Temperature-controlled cup holder) Rear cup holder R5/3
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 15L |
| K40/5 | Rear fuse and relay module | 4L |
| K40/5f405 | Fuse 405 | 2L |
| K40/5f442 | Fuse 442 | 3L |
| N10/6 | Front SAM control unit | 9L |
| R5/3 | Rear cup holder | 4A |
| W12 | Left center console ground point | 5E |
| Z149z1 | Connector sleeve, cigarette lighter with ashtray illumination, rear | 8E |
