(Secure Vehicle On Vehicle Lift With Support Arms - AR00.60-P-0100-01B)
WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2023 Mercedes-Benz E63 S AMG, 2023 Mercedes-Benz E53 AMG, 2023 Mercedes-Benz E350, 2022 Mercedes-Benz E53 AMG, and 2022 Mercedes-Benz E350. However, it is still accessible from the selected car via links, so may be relevant.
Model 167
with code M036 (Maybach version)
Running boards installed
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Information on influencing load ratios when removing major assemblies | AH00.60-P-0001-01A |

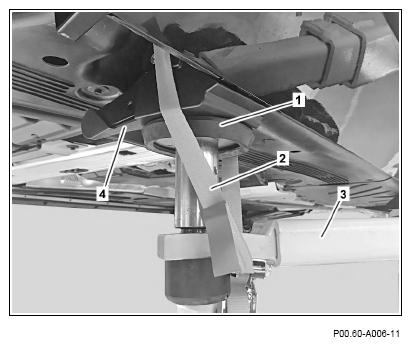

- Guide tensioning straps (2) around running boards (4).
Make sure that the tensioning straps (2) are seated correctly.
- Lash down support plates (1) on vehicle lift swivel arms (3) using tensioning straps (2).
When lashing down, note adjacent component parts.
Otherwise, this will be pinched or damaged.
Otherwise the tensioning strap (2) will be damaged.
- Remove in the reverse order.
