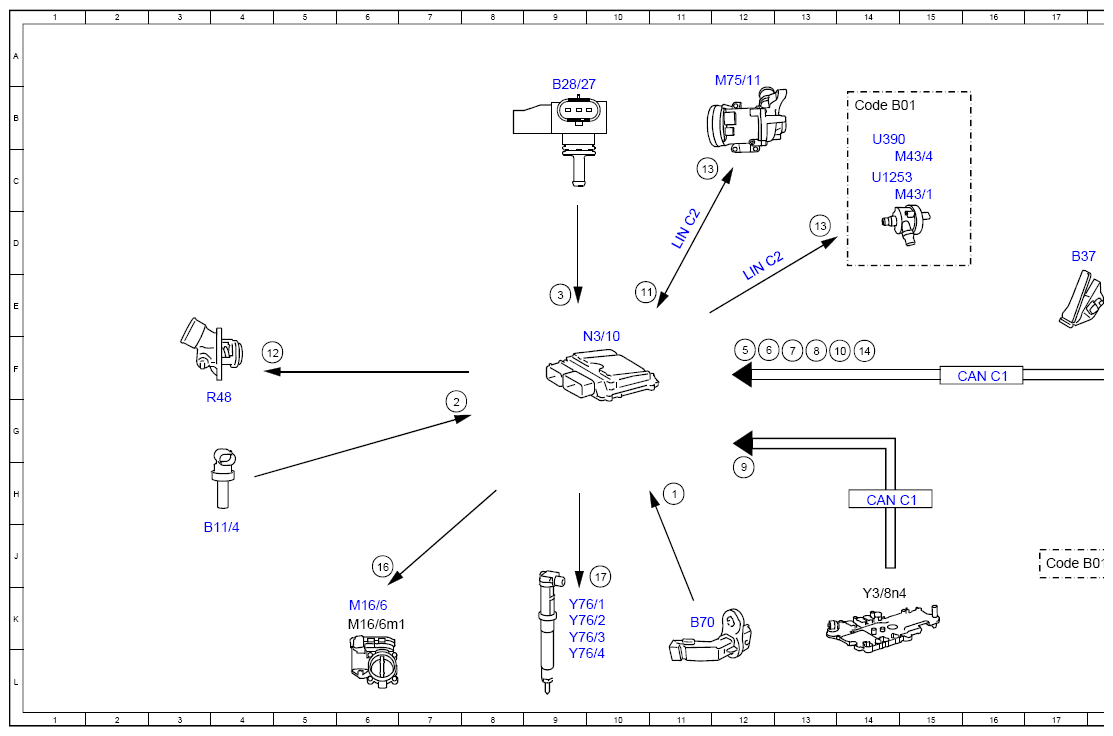

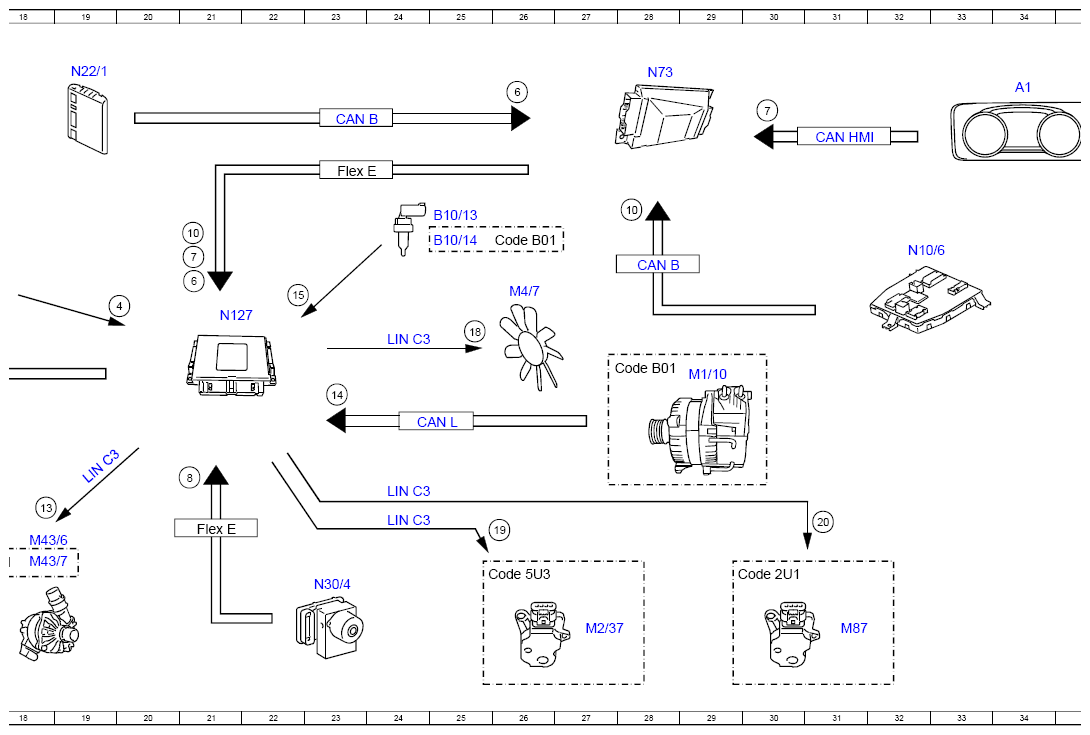

Electrical Function Schematic For Thermal Management - PE07.10-P-2712-97FBI
Engine 264.9 in Model 205, 253
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Crankshaft Hall sensor, signal | 11H |
| 10 | Outside temperature, signal | 13F |
| 10 | Outside temperature, signal | 21D |
| 10 | Outside temperature, signal | 28D |
| 11 | Electric coolant pump, status | 10E |
| 12 | Coolant thermostat heating element, actuation | 4F |
| 13 | Electric coolant pump, request | 11C |
| 13 | Electric coolant pump, request | 13D |
| 13 | Electric coolant pump, request | 18H |
| 14 | Starter-alternator, status | 23G |
| 14 | Starter-alternator, status | 14F |
| 15 | Low-temperature circuit temperature sensor, signal | 23E |
| 16 | Throttle valve actuator motor, actuation | 6J |
| 17 | Fuel injectors, actuation | 10J |
| 18 | Fan motor, specified RPM request | 25E |
| 19 | Radiator trim flap actuator motor, actuation | 26J |
| 2 | Coolant temperature sensor, signal | 7G |
| 20 | Radiator shutters actuator motor, actuation | 31J |
| 3 | Pressure and temperature sensor downstream of throttle valve, signal | 9E |
| 4 | Accelerator pedal sensor, signal | 20E |
| 5 | Accelerator pedal position, signal | 12F |
| 6 | Air conditioning, status | 12F |
| 6 | Air conditioning, status | 21E |
| 6 | Air conditioning, status | 26B |
| 7 | Vehicle speed, signal | 21D |
| 7 | Vehicle speed, signal | 30B |
| 7 | Vehicle speed, signal | 13F |
| 8 | Wheel speed, signal | 13F |
| 8 | Wheel speed, signal | 21H |
| 9 | Transmission oil temperature, signal | 12H |
| A1 | Instrument cluster | 34B |
| B10/13 | Low-temperature circuit temperature sensor | 25D |
| B10/14 | Low-temperature circuit temperature sensor 2 | 25D |
| B11/4 | Coolant temperature sensor | 4J |
| B28/27 | Pressure and temperature sensor downstream of throttle valve | 9B |
| B37 | Accelerator pedal sensor | 17D |
| B70 | Crankshaft Hal I sensor | 11K |
| CAN B | Interior CAN | 23B |
| CAN B | Interior CAN | 28D |
| CAN C1 | Drive train CAN | 14H |
| CAN C1 | Drive train CAN | 16F |
| CAN HMI | User interface CAN | 31B |
| CAN L | Hybrid CAN | 24G |
| Code 2U1 | Radiator shutters | 29J |
| Code 5U3 | AIRPANEL | 25J |
| Code B01 | 48V Technology | 27F |
| Code B01 | 48V Technology | 26D |
| Code B01 | 48V Technology | 17J |
| Code B01 | 48V Technology | 14B |
| Flex E | Chassis FlexRay | 21J |
| Flex E | Chassis FlexRay | 23C |
| LIN C2 | Engine LIN | 11D |
| LIN C2 | Engine LIN | 12D |
| LIN C3 | Drivetrain LIN | 24F |
| LIN C3 | Drivetrain LIN | 19H |
| LIN C3 | Drivetrain LIN | 24H |
| LIN C3 | Drivetrain LIN | 24J |
| M1/10 | Starter-alternator | 29F |
| M16/6 | Throttle valve actuator | 6K |
| M16/6m1 | Throttle valve actuator motor | 6K |
| M2/37 | Radiator trim flap actuator motor | 27K |
| M4/7 | Fan motor | 26E |
| M43/1 | Electric coolant pump 2 | 15C |
| M43/4 | Starter-alternator coolant pump | 15C |
| M43/6 | Low temperature circuit circulation pump 1 | 18J |
| M43/7 | Low temperature circuit circulation pump 2 | 18J |
| M75/11 | Electric coolant pump | 12A |
| M87 | Radiator shutters actuator motor | 31K |
| N10/6 | Front SAM control unit | 32D |
| N127 | Drivetrain control unit | 21E |
| N22/1 | Climate control control unit | 19A |
| N3/10 | ME-SFI [ME] control unit | 10F |
| N30/4 | Electronic Stability Program control unit | 23K |
| N73 | Electronic ignition switch control unit | 28A |
| R48 | Coolant thermostat heating element | 3G |
| U1253 | Valid for model 253 | 14C |
| U390 | Valid for model 205 | 14B |
| Y3/8n4 | Fully integrated transmission control control unit | 14K |
| Y76/1 | Cylinder 1 fuel injector | 9K |
| Y76/2 | Cylinder 2 fuel injector | 9K |
| Y76/3 | Cylinder 3 fuel injector | 9K |
| Y76/4 | Cylinder 4 fuel injector | 9L |
