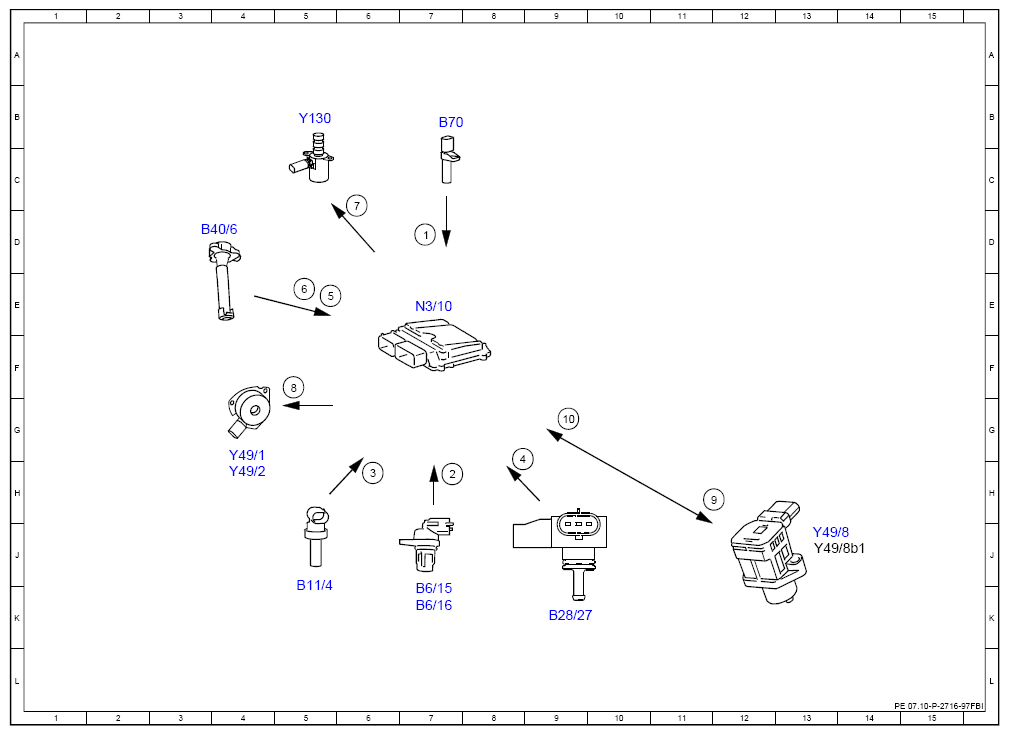

Electrical Function Schematic For Camshaft Adjustment - PE07.10-P-2716-97FBI
Engine 264.9 in Model 205, 253
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Crankshaft Hall sensor, signal | 7D |
| 10 | Intake camshaft valve lift switching Hall sensor, signal | 9G |
| 2 | Camshaft Hall sensor, signal | 7H |
| 3 | Coolant temperature sensor, signal | 6H |
| 4 | Pressure and temperature sensor downstream of throttle valve, signal | 8G |
| 5 | Oil level, signal | 5E |
| 6 | Engine oil temperature, signal | 5E |
| 7 | Engine oil pump valve, actuation | 6C |
| 8 | Camshaft solenoids, actuation | 5F |
| 9 | CAMTRONIC actuator, actuation | 11H |
| B11/4 | Coolant temperature sensor | 5K |
| B28/27 | Pressure and temperature sensor downstream of throttle valve | 9K |
| B40/6 | Engine oil fill level sensor | 3D |
| B6/15 | Intake camshaft Hall sensor | 7K |
| B6/16 | Exhaust camshaft Hall sensor | 7K |
| B70 | Crankshaft Hall sensor | 7B |
| N3/10 | ME-SFI [ME] control unit | 7E |
| Y130 | Engine oil pump valve | 5B |
| Y49/1 | Intake camshaft solenoid | 4G |
| Y49/2 | Exhaust camshaft solenoid | 4H |
| Y49/8 | Intake camshaft valve lift switching actuator | 13J |
| Y49/8b1 | Intake camshaft valve lift switching Hall sensor | 13J |
