Mount High-Pressure Fuel Lines - AR07.03-P-1010-02MRH
Engine 264
INJECTION NOZZLES, INJECTION VALVES, LINES
| Number |
Designation |
Engine 264 |
| BA07.03-P-1001-01I |
Union nut, fuel line to high-pressure pump/fuel distributor |
Stage 1 |
Nm |
15 |
| Stage 2 |
∠° |
75 |
| Stage 3 |
∠° |
25 |

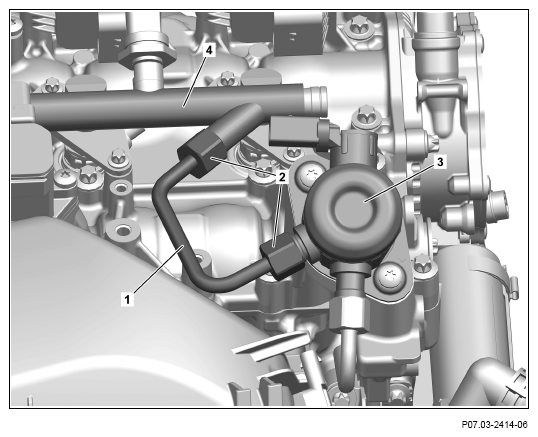

- Position high-pressure line (1) at high-pressure pump (3) and rail (4) and lightly tighten union nuts (2) by hand.
- Securely tighten union nuts (2)
.
Comply with the tightening torques exactly.
Leaks can occur otherwise.
