High-Pressure Fuel Pump Shielding Tightening Sequence - AR07.02-P-0815-01MRH

Engine 264

FUEL SYSTEM HIGH PRESSURE PUMP

Number	Designation		Engine 264
BA07.02-P-1002-02A	Bolt for high-pressure pump shielding	Nm	20

Slightly tighten screws/bolts (1 to 4) in ascending numerical sequence by hand.
Tighten screws/bolts (1 to 4) in ascending numerical sequence

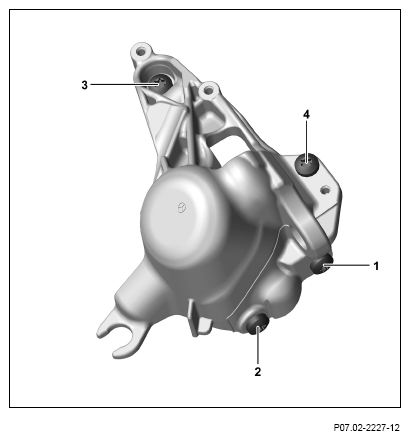

Fig 1: High-Pressure Pump Shielding Tightening Sequence - Engine 264
