Fuel Rail Tightening Procedure - AR07.03-P-1010-06MRH
Engine 264
FUEL DISTRIBUTOR
| Number | Designation | Engine 264 | |
|---|---|---|---|
| BA07.52-P-1001-01K | Screw/bolt, fuel distributor to cylinder head cover | Nm | 8 |

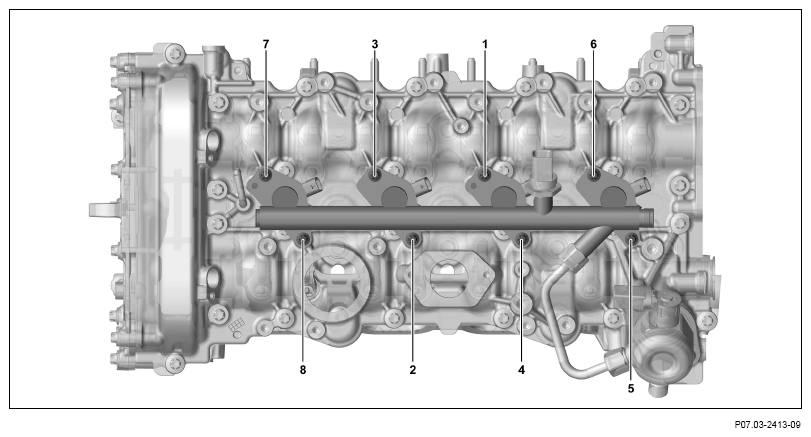

Do not screw in or unscrew the screws (1 to 8) with an impact wrench or pneumatic tool.
Otherwise the cylinder head will be damaged.
- Screw in the screws (1 to 4) by one revolution by hand in ascending sequence and alternating screws.
- Tighten screws (1 to 4) by one revolution by hand in ascending sequence and alternating screws
- Tighten screws (5 to 8) in ascending sequence
