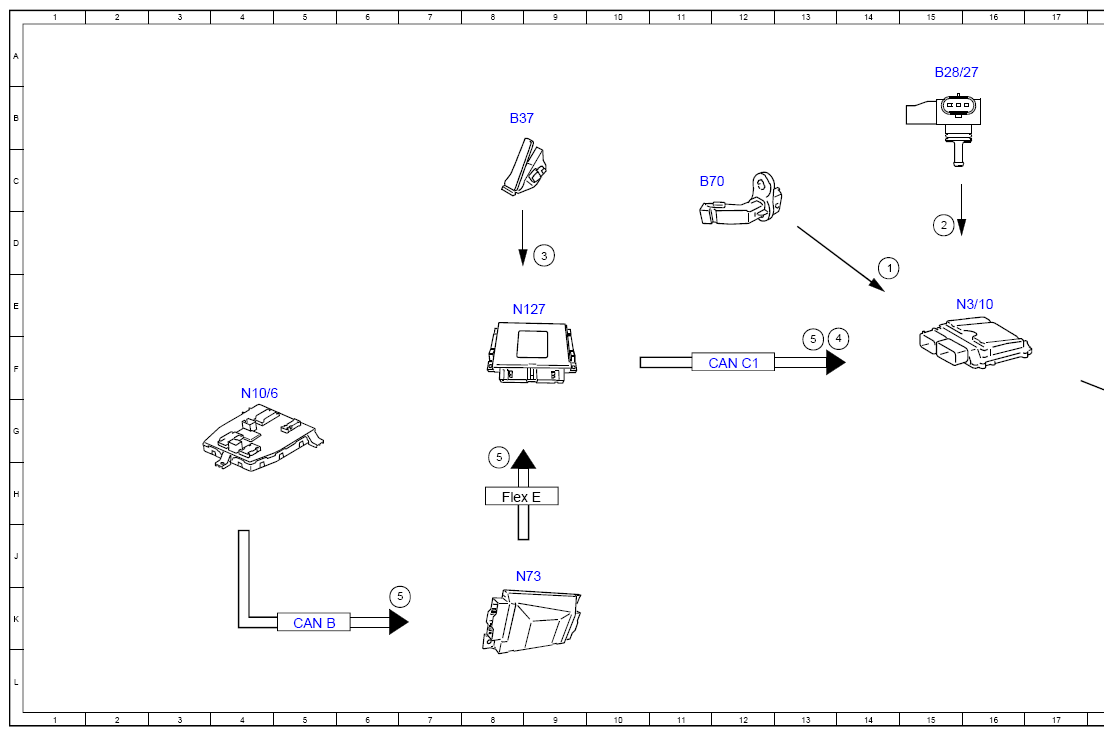

Electrical Function Schematic For Crankcase Ventilation System - PE01.20-P-2001-97FBI
Engine 264.9 in model 205, 253
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Crankshaft Hall sensor, signal | 14D |
| 2 | Pressure and temperature sensor downstream of throttle valve, signal | 15D |
| 3 | Accelerator pedal sensor, signal | 9D |
| 4 | Accelerator pedal position, signal | 14F |
| 5 | Outside temperature, signal | 8G |
| 5 | Outside temperature, signal | 6K |
| 5 | Outside temperature, signal | 13F |
| 6 | Partial load operation crankcase ventilation system valve, actuation | 19G |
| B28/27 | Pressure and temperature sensor downstream of throttle valve | 15A |
| B37 | Accelerator pedal sensor | 8B |
| B70 | Crankshaft Hall sensor | 11C |
| CAN B | Interior CAN | 5K |
| CAN C1 | Drivetrain CAN | 12F |
| Flex E | Chassis FlexRay | 8H |
| N10/6 | Front SAM control unit | 4F |
| N127 | Drivetrain control unit | 8E |
| N3/10 | ME-SFI [ME] control unit | 16E |
| N73 | Electronic ignition switch control unit | 8J |
| Y58/2 | Partial load operation crankcase ventilation valve | 19G |
