Tightening Procedure For Charge Air Distributor - AR09.41-P-8683-01MRH

Engine 264

INTAKE MANIFOLD

Number Designation Engine 264
BA09.20-P-1001-01H Screw/bolt, charge air distributor to cylinder head Nm 14

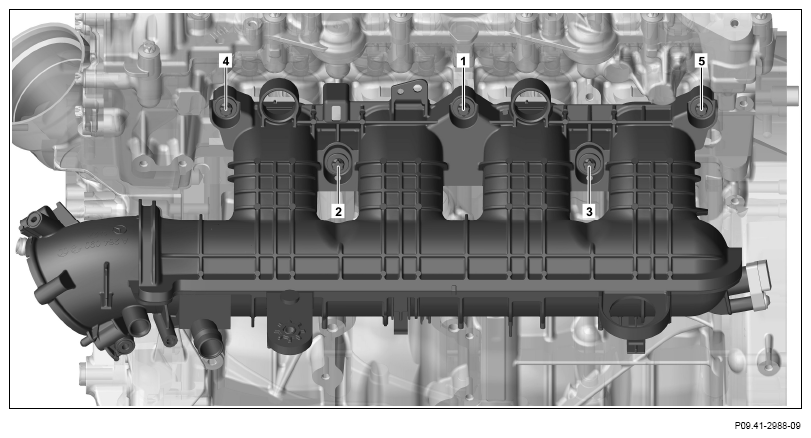

Fig 1: Charge Air Distributor/Intake Manifold Tightening Sequence - Engine 264
G14185023Courtesy of MERCEDES-BENZ USA
  1. Tighten screws/bolts (1 to 5) in ascending numerical sequence TORQUE SPECIFICATION .
