Remove/Install Low-Temperature Circuit Expansion Reservoir - AR09.41-P-0001MRI
Engine 264 in model 205, 253 with code B01 (48V technology)

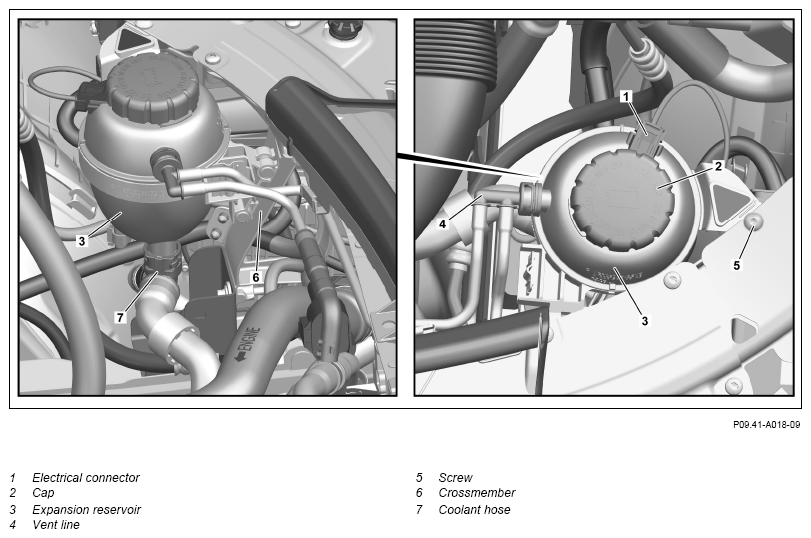

Fig 1: Low-Temperature Circuit Coolant Expansion Reservoir Components Location - Engine 264 In Model 205 With Code B01
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Notes on coolant | AH20.00-N-2080-01A | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on coolant level | AH20.00-P-1142-01CW | ||
| Remove/install | |||
| 1 | Release electrical connector (1) and disconnect. | ||
| 2 | Remove cap (2). | ||
| 3 | Extract coolant from expansion reservoir (3). | Fig 2 | |
| 4 | Remove bleed line (4) from expansion reservoir (3). | AR20.20-P-7441-01RQ | |
| 5 | Remove screw (5). | *BA20.20-P-1002-02B | |
| 6 | Unclip expansion reservoir (3) from crossmember (6) and lift. | ||
| 7 | Remove coolant hose (7) from expansion reservoir (3) and seal with protective cover. | AR20.20-P-7441-01RQ | |
| Fig 3 | |||
| 8 | Remove expansion reservoir (3). | ||
| 9 | Install in the reverse order | ||
| Concluding tasks | |||
| 10 | Refill coolant and check low-temperature circuit for leaks. | AR09.41-P-1011MRI |
ENGINE RADIATOR, COOLANT HOSES AND LINES
| Number | Designation | Engine 264 | |
|---|---|---|---|
| BA20.20-P-1002-02B | Screw, low-temperature circuit expansion reservoir to crossmember | Nm | 8 |
