Detach/Attach Coolant Lines Of Turbocharger - AR09.40-P-6020-18MRH

Engine 264

Notes on threaded connections fastened using a tightening angle-based tightening process

AH00.00-P-0020-01A

TURBOCHARGER

Number	Designation			Engine 264
BA09.40-P-1007-02C	Bolt, coolant feed/return line to turbocharger	Stage 1	Nm	8
BA09.40-P-1007-02C	Bolt, coolant feed/return line to turbocharger	Stage 2	∠°	60

TURBOCHARGER

Number	Designation			Engine 264
BA09.40-P-1008-02C	Bolt, coolant line feed line to coolant line	Stage 1	Nm	8
BA09.40-P-1008-02C	Bolt, coolant line feed line to coolant line	Stage 2	∠°	60

TURBOCHARGER

Number	Designation			Engine 264
BA09.40-P-1009-02C	Bolt, coolant return flow line to cylinder head	Stage 1	Nm	8
BA09.40-P-1009-02C	Bolt, coolant return flow line to cylinder head	Stage 2	∠°	60

REPAIR MATERIALS

Number	Designation		Order number
BR00.45-Z-1010-06A	Lubricant, rubber assembly 1		A 000 989 03 67

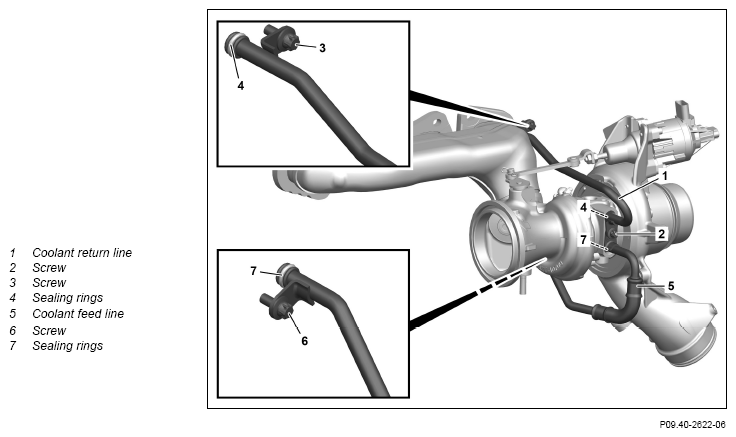

Remove screw (2) .
Replace screw (2).
Remove screw (3) .
Replace screw (3).
Detach coolant return line (1) and take out.
Replace seals (4).

Moisten sealing rings (4) with lubricant before installing.
Remove screw (6) .
Replace screw (6).
Detach coolant feed line (5) and take out.
Replace sealing rings (7).

Moisten sealing rings (7) with lubricant before installing.
Install in the reverse order.

Courtesy of MERCEDES-BENZ USA
