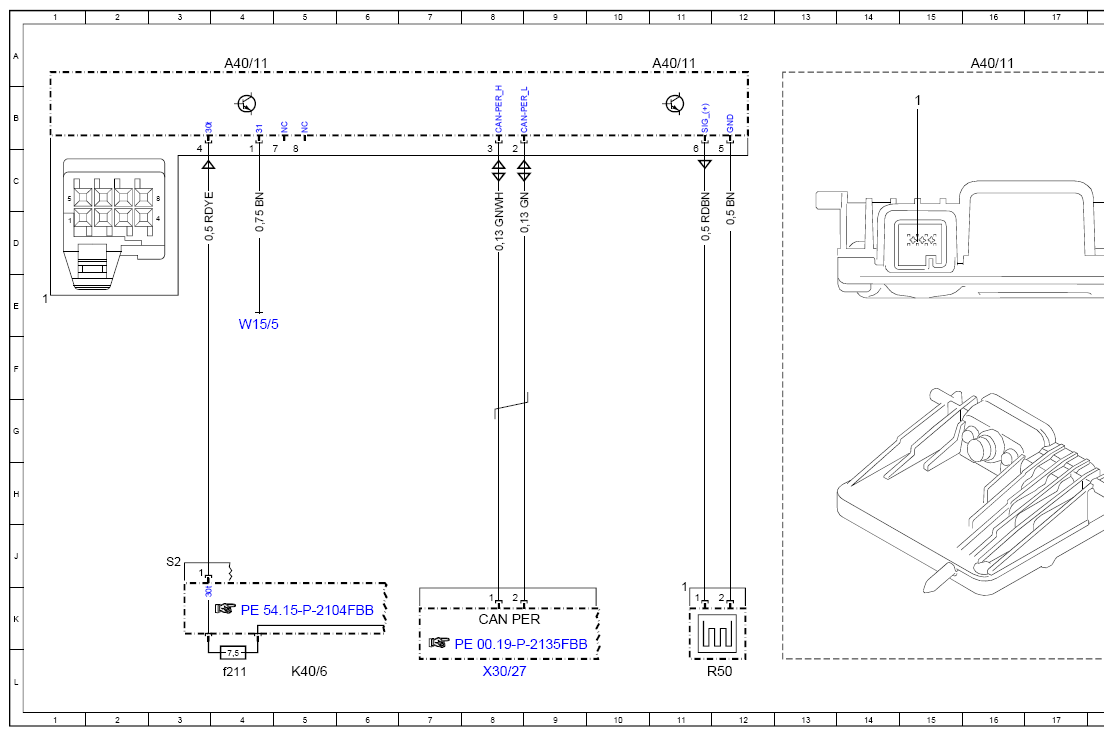

Wiring Diagram For Multifunction Camera - PE54.21-P-2129-97FBC
Model 205 as of model year 2019 with code 22P (Lane tracking package) with code 513 (Traffic Sign Assist) with code 640 (High-performance LED) Mono
| Code: | Designation: | Position: |
|---|---|---|

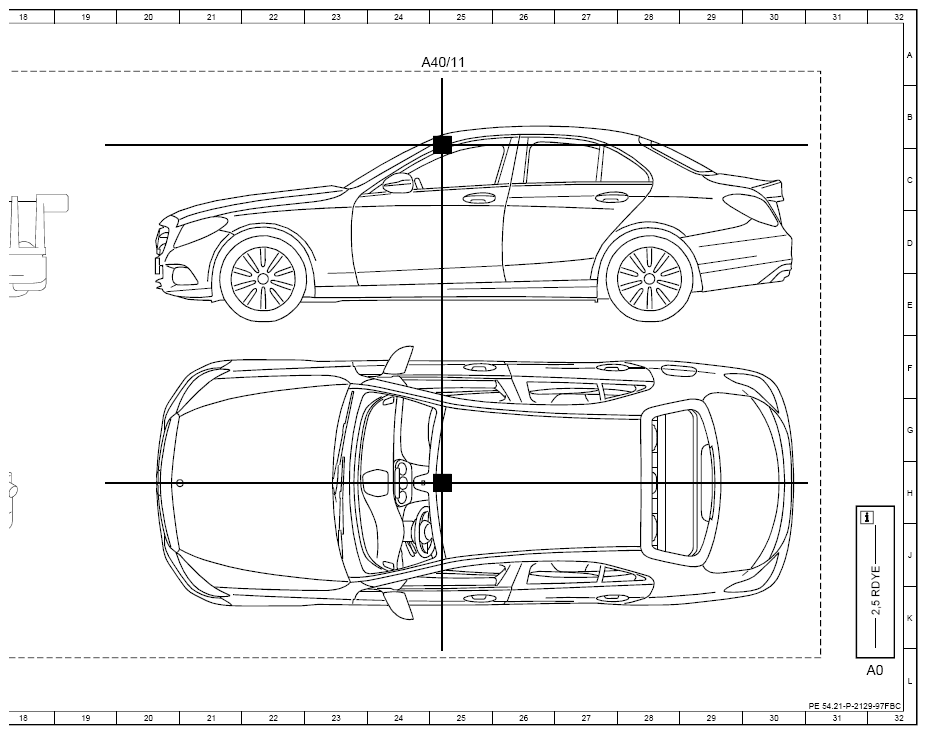

| A0 | Use of wiring diagrams | 32L |
| A40/11 | Mono multifunction camera | 4A |
| A40/11 | Mono multifunction camera | 11A |
| A40/11 | Mono multifunction camera | 16A |
| A40/11 | Mono multifunction camera | 25A |
| CAN PER | Peripherals CAN | 8K |
| K40/6 | Driver-side fuse and relay module | 5L |
| K40/6f211 | Fuse 211 | 4L |
| R50 | Auxiliary heater heating element | 12L |
| W15/5 | Left front footwell ground point | 4E |
| X30/27 | Peripherals CAN (CAN PER) potential distributor electrical connector | 8L |
