Component Description For Instrument Cluster - GF54.30-P-6000RF
Model 205, 253

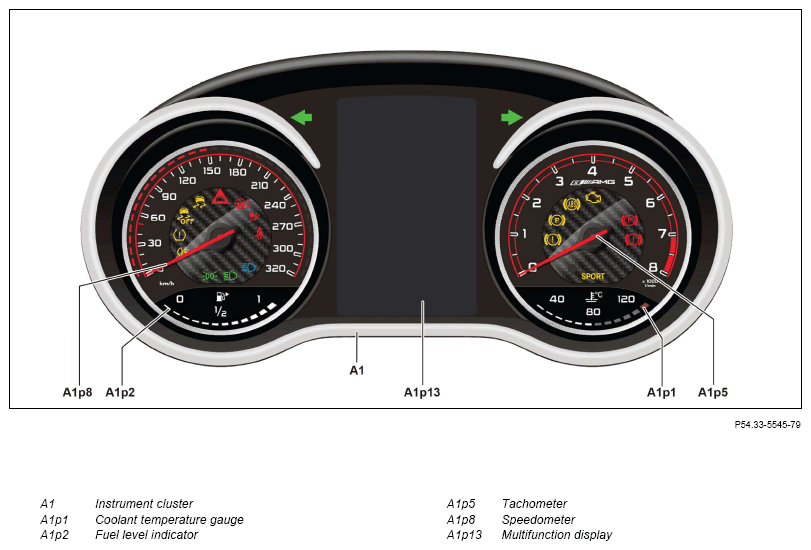

Shown here is ECE variant (Economic Commission for Europe) except model 205.086/087/286/287/386/387/486/487 and except code 464 (Full display digital instrument cluster)
The symbols of the indicator and warning messages are described in a separate service information.

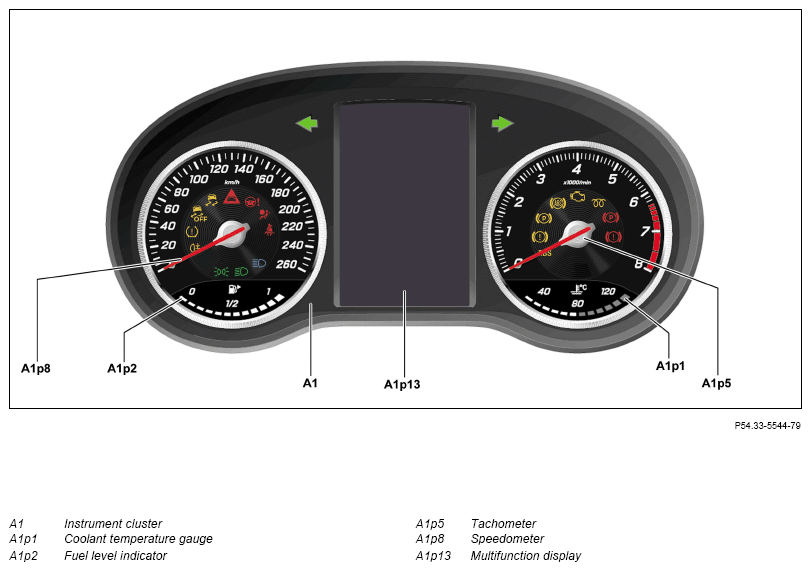

Model 205.086/087/286/287/386/387/486/487 except for code 464 (Digital instrument cluster full display)
The symbols of the indicator and warning messages are described in a separate service information.

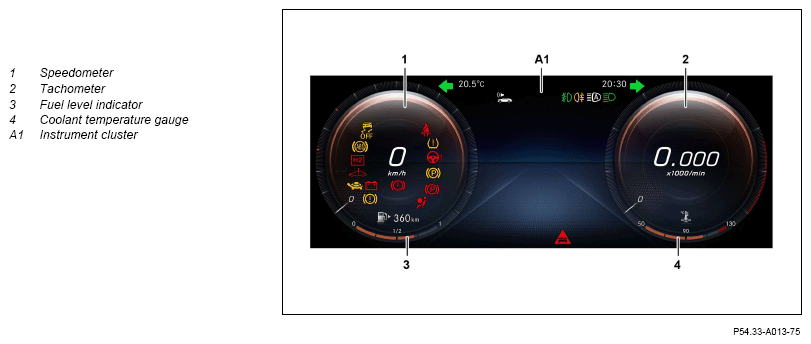

Shown CLASSIC view for code 464 (Digital instrument cluster full display)

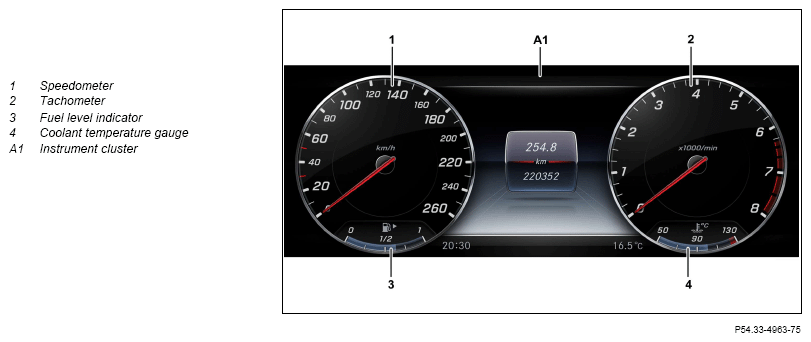

Shown on model 253.99
Model 205, 253 with code 464 (Full display digital instrument cluster)
The symbols available on the analog display as indicator and warning lamps are shown accordingly on the digital full display.
Location
The instrument cluster is located in the dashboard on the driver-side.
Tasks
The instrument cluster has the following tasks:
- Reading in of sensors and signals
- Evaluation of input factors
- Output of warning tones and indicator tones
- Output of signals
Reading in of sensors and signals
The instrument cluster reads in information and data via the following connections:
- User interface CAN (CAN HMI)
- High-speed video link (HSVL)
User interface CAN
The signals are read in by the instrument cluster via user interface CAN.
High-speed video link
The instrument cluster is connected to the head unit (A26/17) via a HSVL line. Via this interface, the instrument cluster receives map data from the head unit.
Evaluation of input factors
The input factors that have been read in are evaluated by the integrated microprocessor and the relevant components are then actuated.
Output of warning tones and indicator tones
The instrument cluster actuates the instrument cluster speaker (H4/61) in the driver footwell to output warning and indicator tones which are requested by the systems installed in the vehicle.
Output of signals
The instrument cluster sends information and data over the following connections:
- User interface CAN
- High speed video link (with code 463 (Head-up Display))
User interface CAN
The instrument cluster transmits information and data via user interface CAN to various control units.
If cooling is required, the instrument cluster reports this over the user interface CAN to the head unit, which then activates the jointly used fan. The fan's air flow is distributed between the head unit and the instrument cluster.
High speed video link (with code 463 (Head-up Display))
The instrument cluster is connected to the head-up display (A40/12) via a HSVL line. Via this interface, the instrument cluster sends signals for the displays and illustrations shown on the head-up display.
Variants
- Entry CLASSIC (2-tube, analog) (except code 464 (Digital instrument cluster full display))
- High Traditional (2-tube, digital (virtual)) (with code 464 (Digital instrument cluster full display))
On vehicles with code 464 (Digital instrument cluster full display), the right and center display areas of the instrument cluster can be programmed freely.
The following contents can be selected:
- SPORT, CLASSIC (right side of display area)
- Tachometer
- Navigation instructions
- ECO display
- Consumption data
- Apps
- PROGRESSIVE (right side of display area)
- Date
- Navigation instructions
- ECO display
- Consumption data
- Apps
- PROGRESSIVE (center of display area)
- Assist graphic
| Overview of symbols of indicator/warning messages | GF54.30-P-2001-04AA | ||
| Wiring diagram for instrument cluster (IC) control unit | Model 253 (except 253.99) as of model year 2020 A1 HIGH Model 253.99 as of model year 2019 with code 9O1 (Fuel cell preinstallation) A1 | PE54.30-P-2101-97FCA | |
| Model 205 as of model year 2019 High instrument cluster | PE54.30-P-2101-97FBC | ||
| Model 205 as of model year 2019 Entry instrument cluster | PE54.30-P-2101-97FBB | ||
| Model 205 up to model year 2019 Control unit A1 Model 253 (except 253.99) up to model year 2020 Control unit A1 | PE54.30-P-2101-97FBA |
